DB8-R999-4000K
Retrofit LED Engine
Retrofit Engine
CATEGORYRetrofit Led Lamps
PRODUCT RANGEDIABLO
COLORRed
The DB8-R999 module combines advanced thermal management with a single 8W LED chipset to enable superior performance in the smallest of packages. Constructed to 50mm diameter ensuring retrofit compatibility with standard size downlights. The DB8-R999 engine is supplied with a 38° optic, 15°, 24° and 55° options available. White bezel and an optional order only black bezel with light weight construction allows versatility when installing. Available in combination with Mains Dimmable, 1-10V and DALI dimmable Power Supplies. Please Note: This product does not support hot plugging.
Optical Performance
Wattage8W
Lumen Output940LM
Efficacy118LM/W
CCT4000K
CRICRI > 98
Binning2 STEP MACADAMS
Beam Angle38°
ChipsetLUMINUS CLM-9
Chip LifeL70 B10 > 138,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current180MA
Driver ConfigurationREMOTE
Construction
InstallationRETROFIT
ConstructionALUMINIUM
Diameter50 MM
Height45 MM
Weight0.09KG
FinishRED
IP RatingIP20

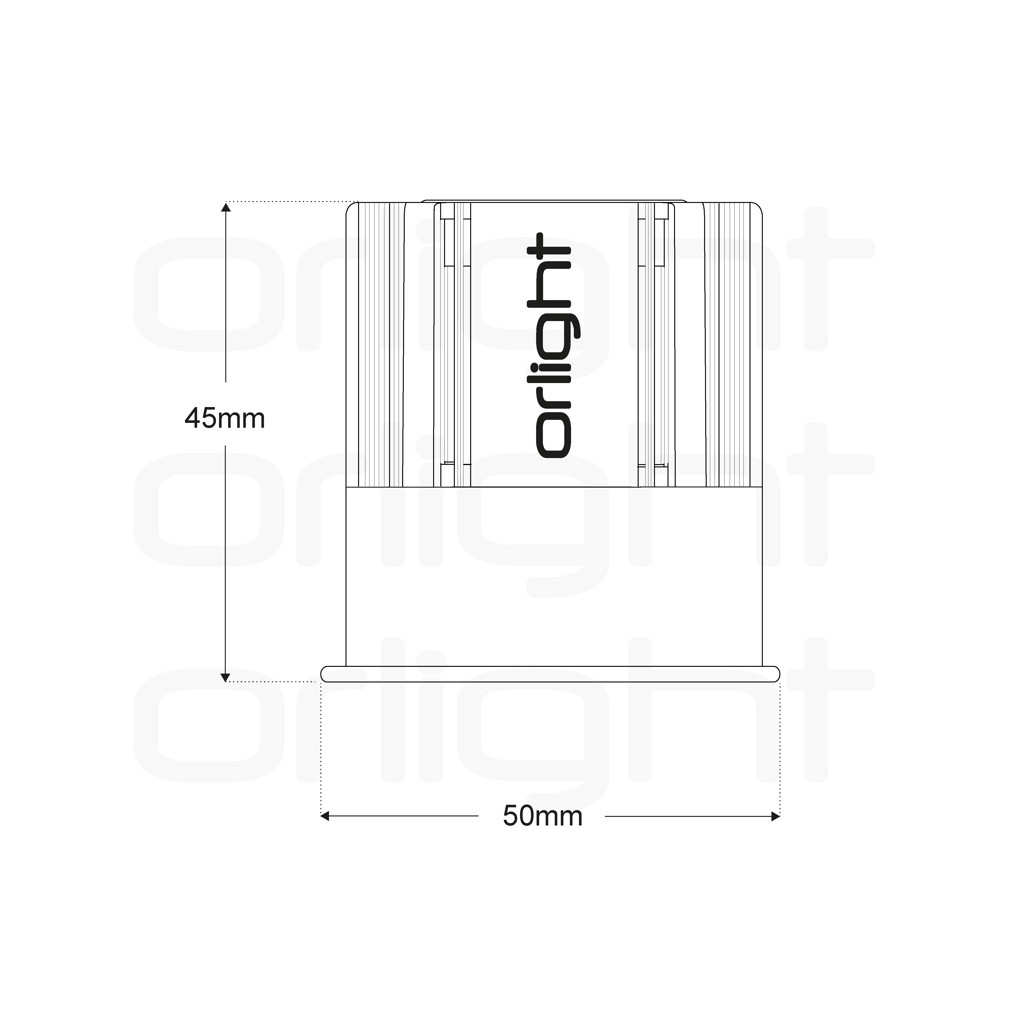

Dimensions

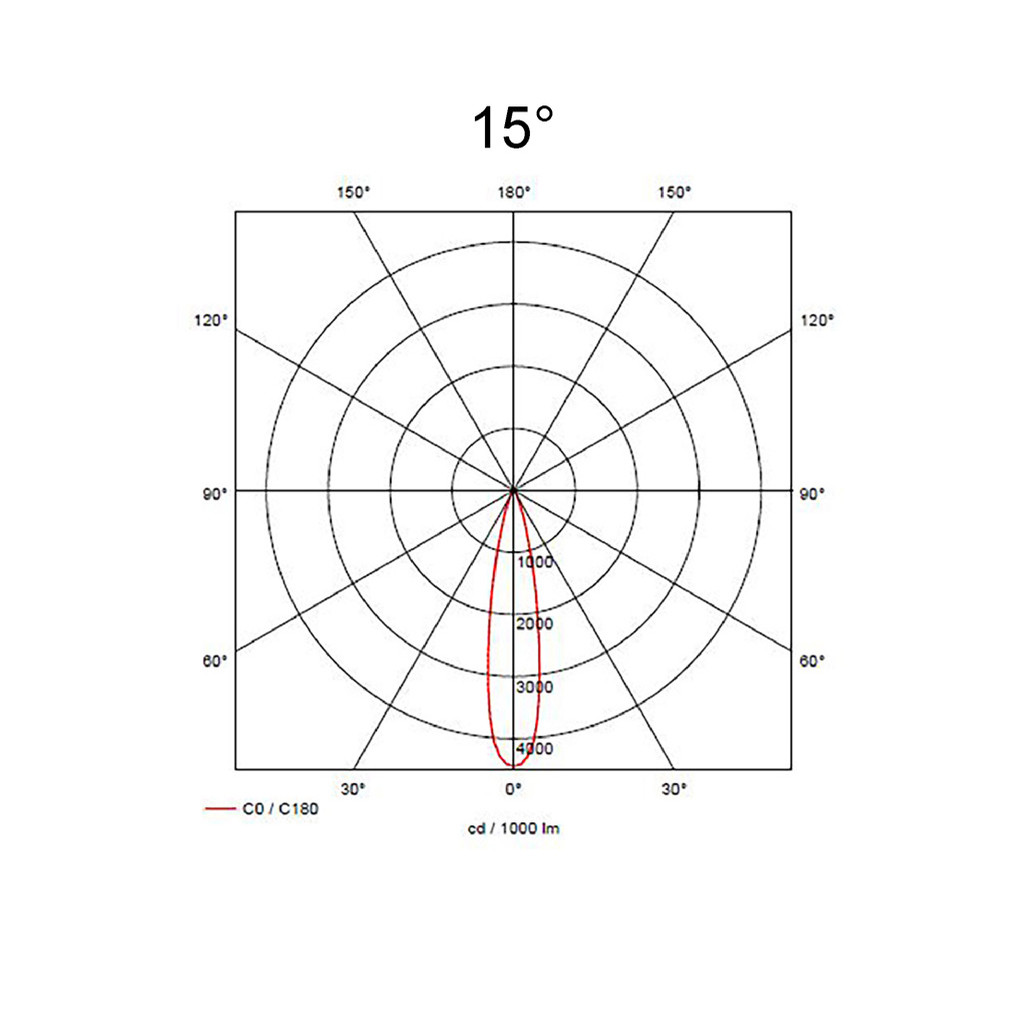

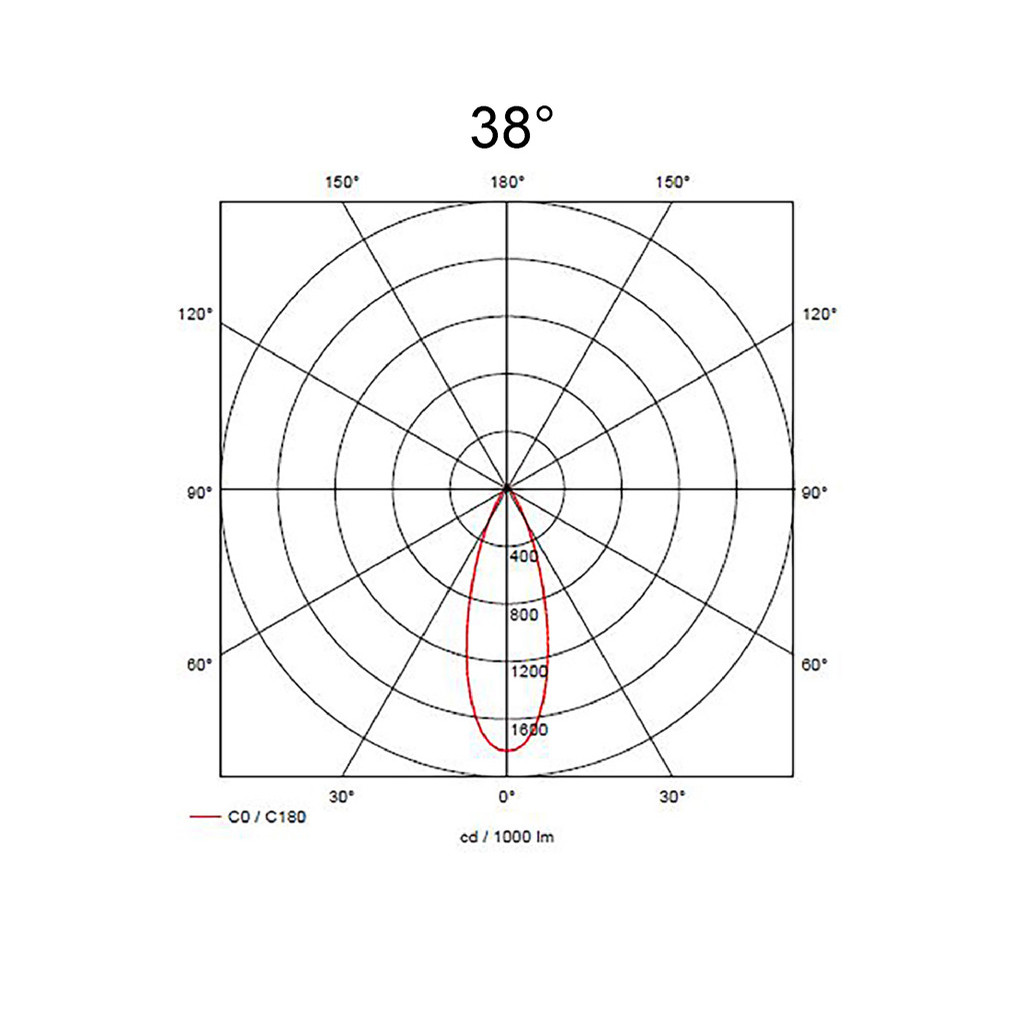

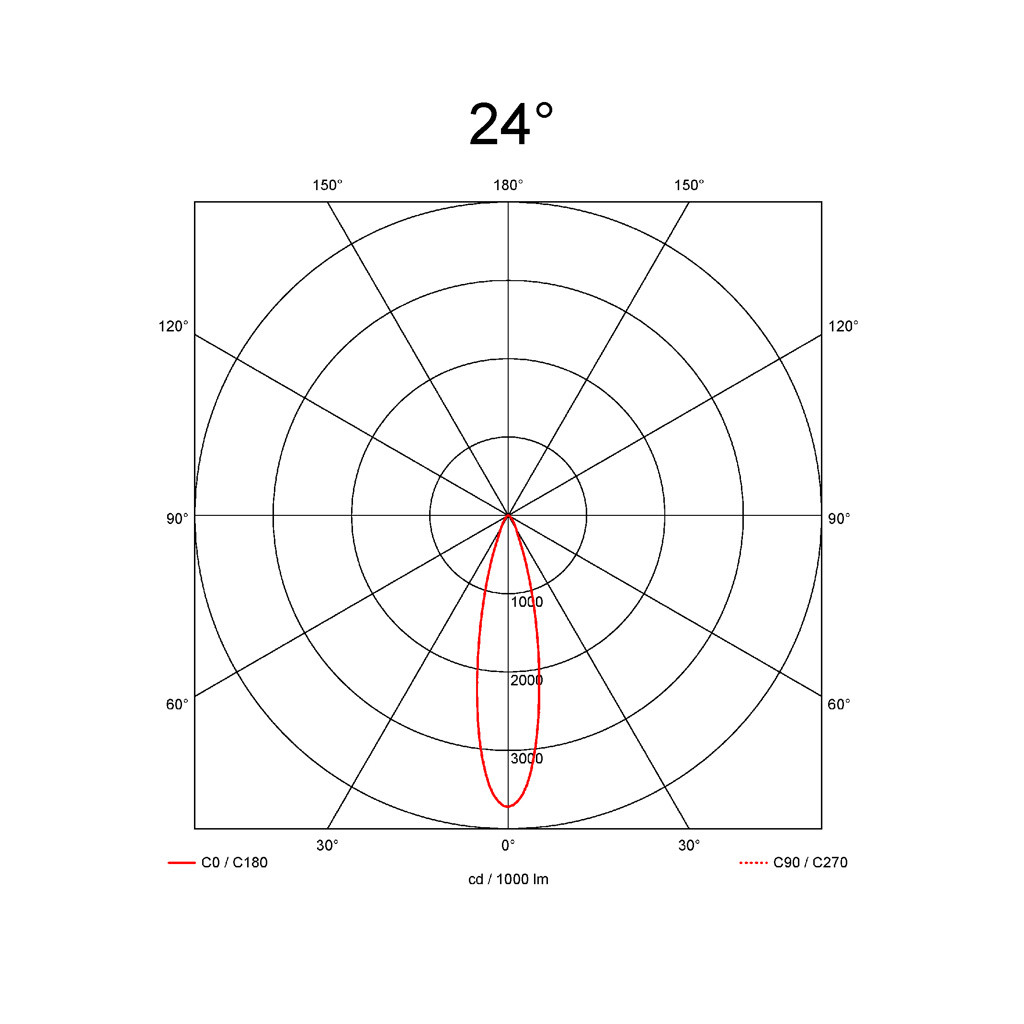

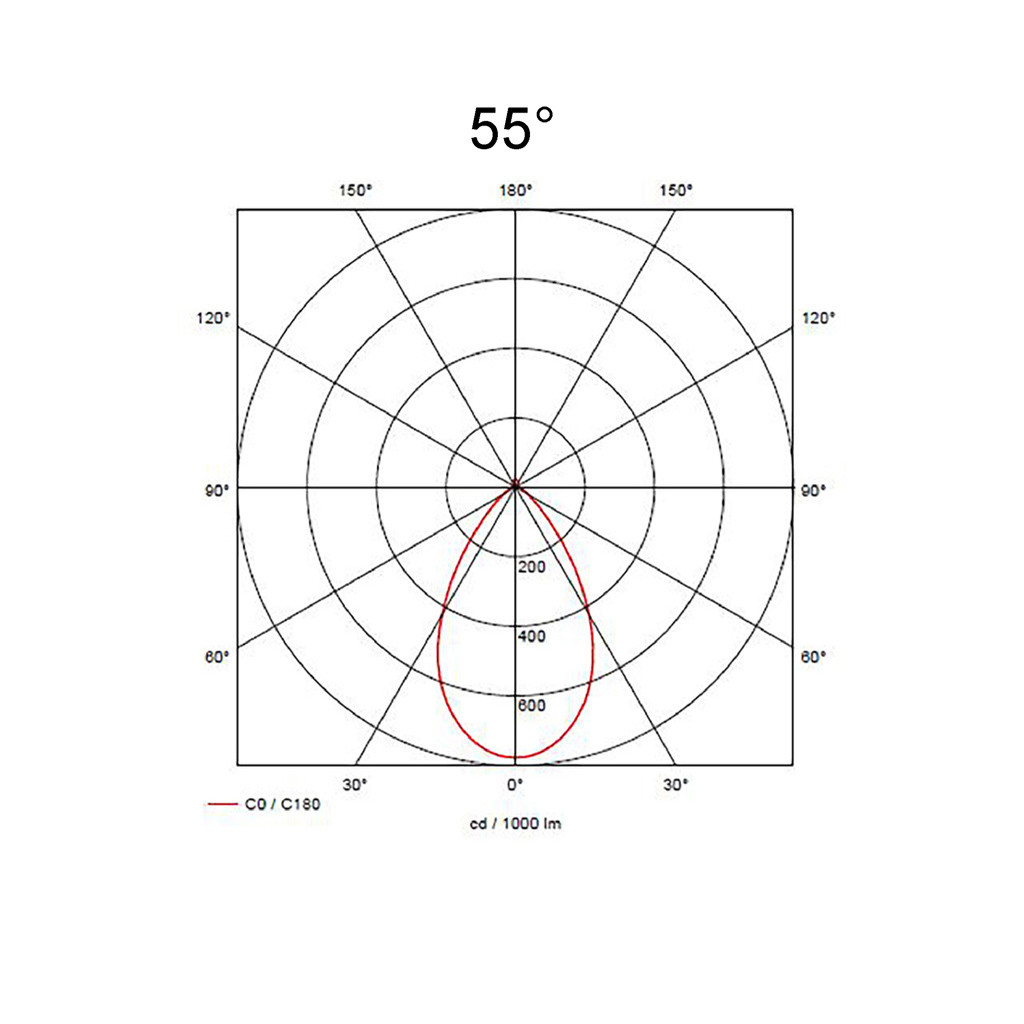

Light Distribution
