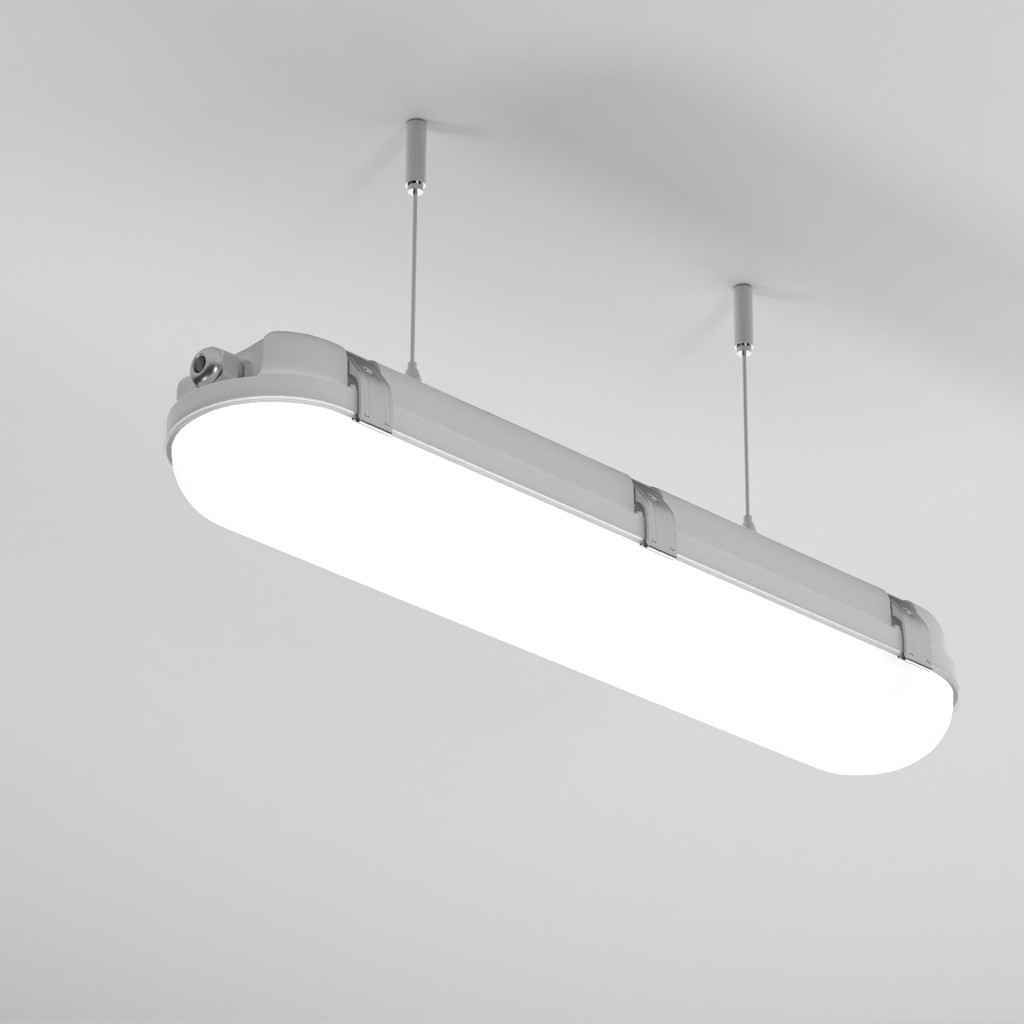

ORLWP2-2-30W-LED-DALI-B-EM
High Powered Solid State LED Weather Pack
Weatherproof
CATEGORYInterior
PRODUCT RANGEWEATHERPRO
COLORGrey
Orlight IP66 rated LED weather packs are ideal for back of house areas, car parks, storage areas, warehousing, under canopy, walkways and general industrial use. Featuring a high efficacy LED card, body and diffuser constructed from injection moulded Polycarbonate. Supplied with stainless steel clips for added durability. Do not connect the battery supply until the 220/240V A.C. supply is permanently fed. Allow 24 hours of charge before running the lamp in emergency mode.
Optical Performance
Wattage30W
Lumen Output4080LM
Efficacy136LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current750MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE
ConstructionPOLYCARBONATE
Length600 MM
Width / Depth125 MM
Height90 MM
Weight1.36KG
FinishGREY
IP RatingIP66
IK RatingIK08
Operating Ambient Temperature-40˚C - +65˚C
Lamp ChangeSOLID STATE LED
TP(a)/TP(b)TPA
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen500LM
Dimensions

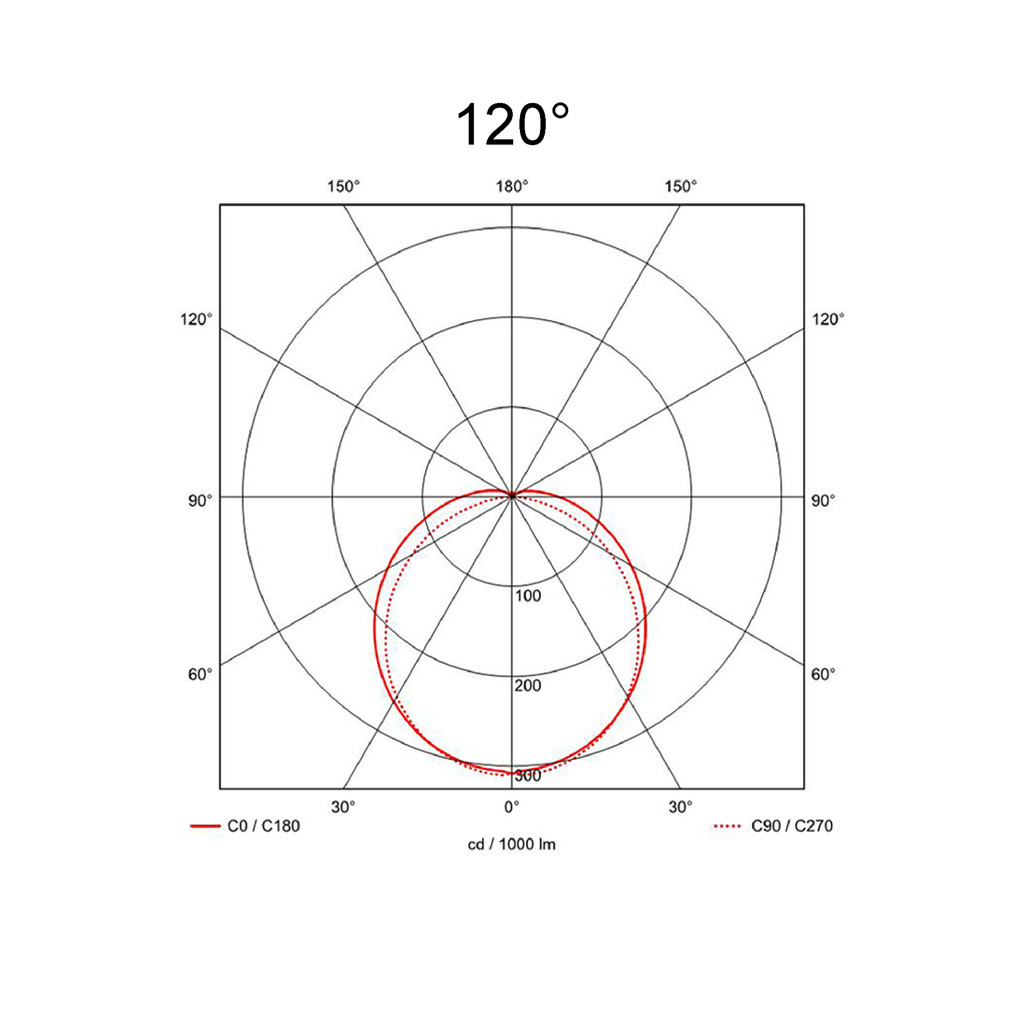

Light Distribution
120°
