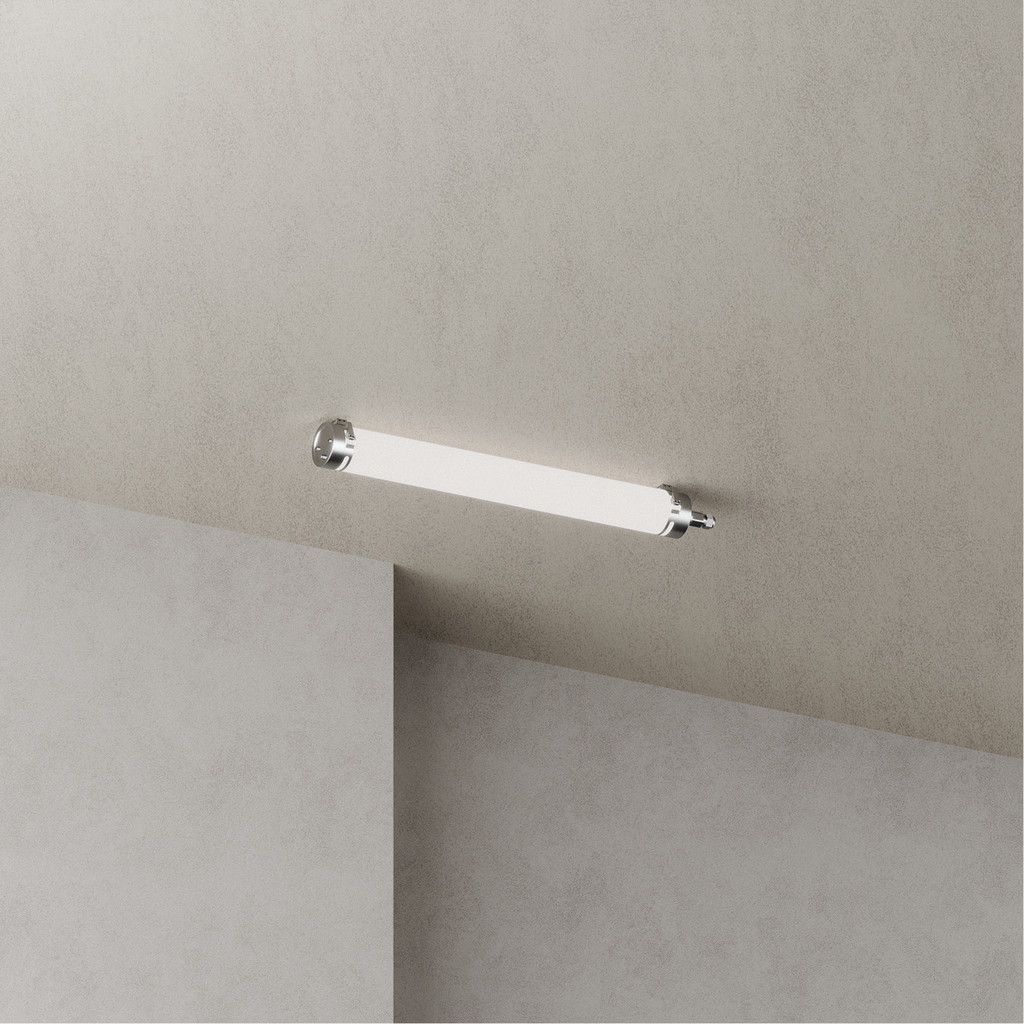

LUNEX-PRO-600-20W-4K-EM
Tubular Linear LED Fixture
Weatherproof
CATEGORYInterior
PRODUCT RANGELUNEX PRO
COLORStainless Steel

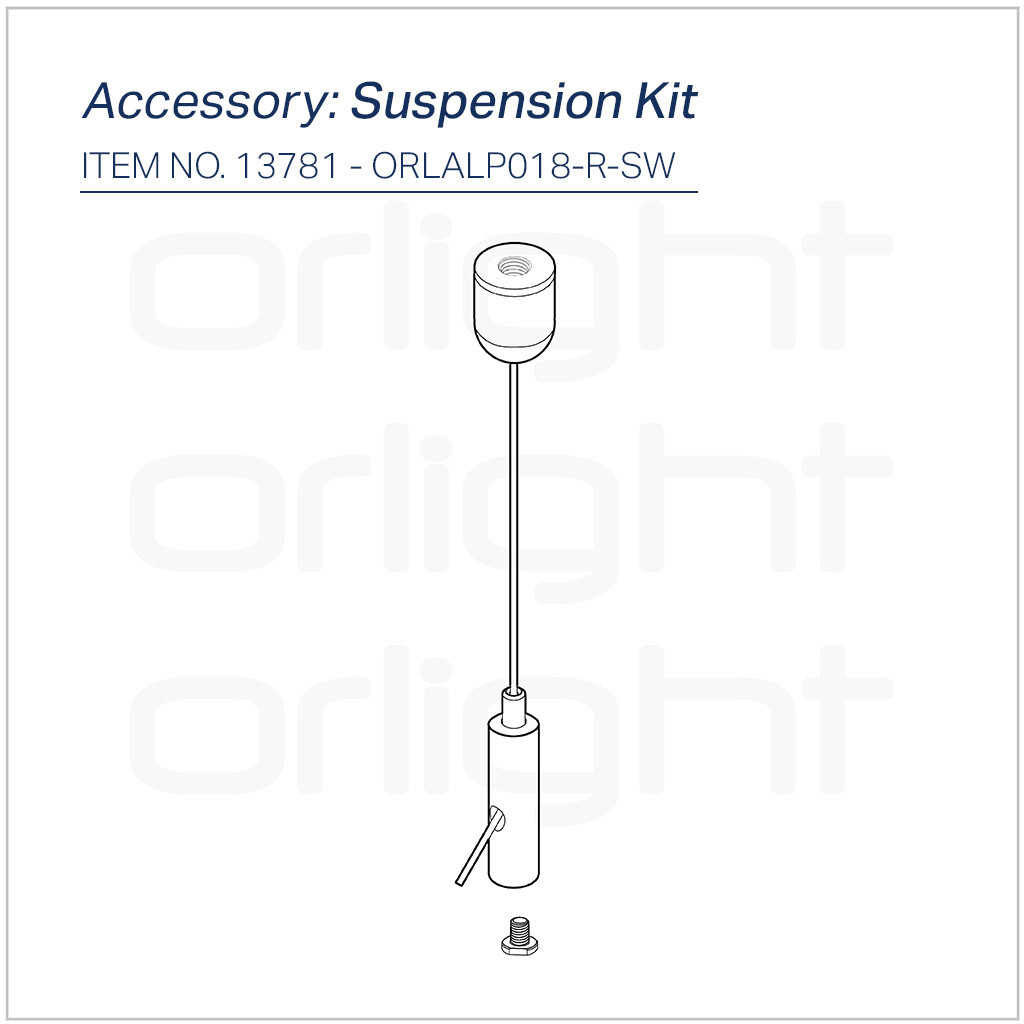

The LUNEX PRO-600 is a robust 20W 4K EM tri-proof LED luminaire designed for demanding environments including car parks, transport hubs and public infrastructure. This model is supplied as a linkable fixture. Rated IP66 and IK10, it delivers durable, reliable performance with wide 120° illumination. A tough polycarbonate diffuser and 316L stainless steel end caps ensure strength and corrosion resistance. Supplied with a Quick-Fit surface mounting bracket as standard; suspension kit available separately. Please Note: The Lunex Pro-600-EM requires remote emergency gear
Optical Performance
Wattage20W
Lumen Output2800LM
Efficacy140LM/W
CCT4000K
CRICRI > 80
Beam Angle120°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 100,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current135MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE / SUSPENDED
ConstructionPOLYCARBONATE
Diameter72MM
Length600 MM
FinishSTAINLESS STEEL
IP RatingIP66
IK RatingIK10
Operating Ambient Temperature-20˚C - +40˚C
TP(a)/TP(b)TP(A)
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen420LM

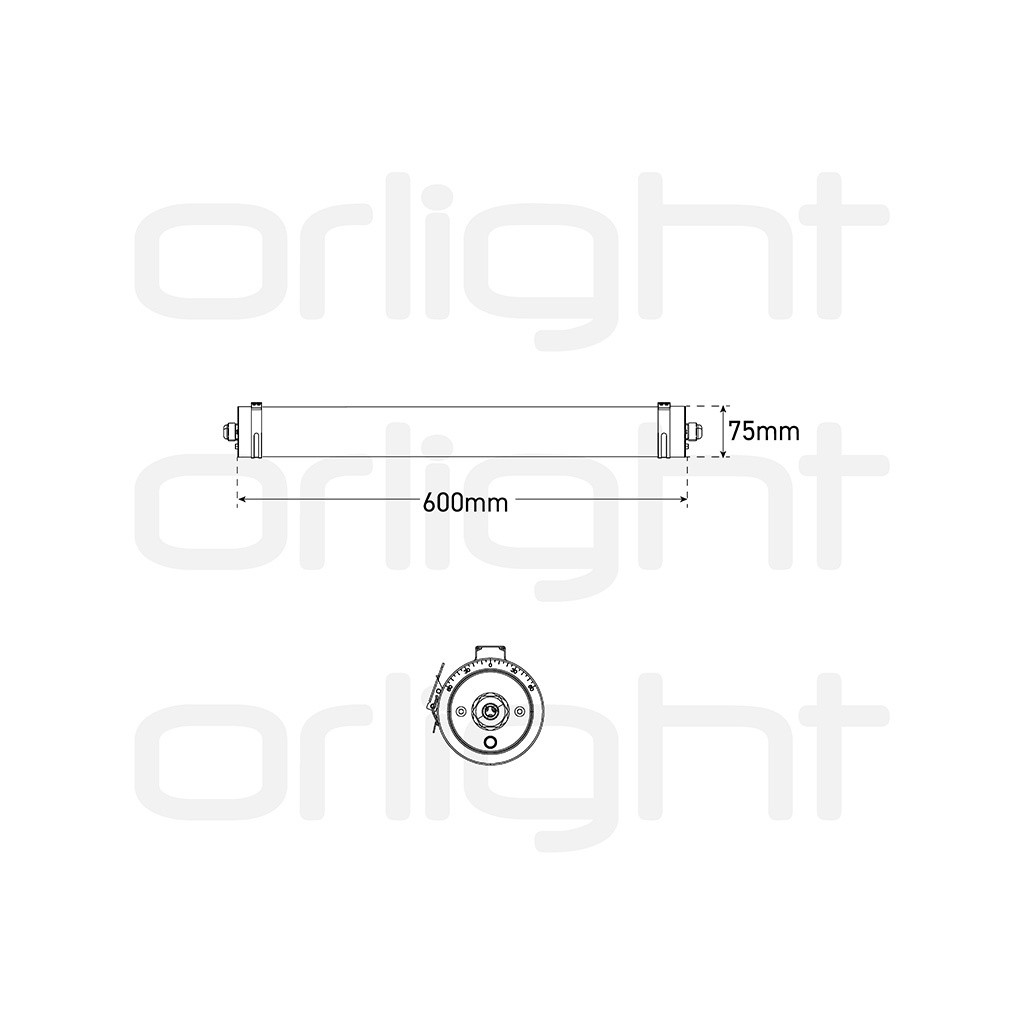

Dimensions

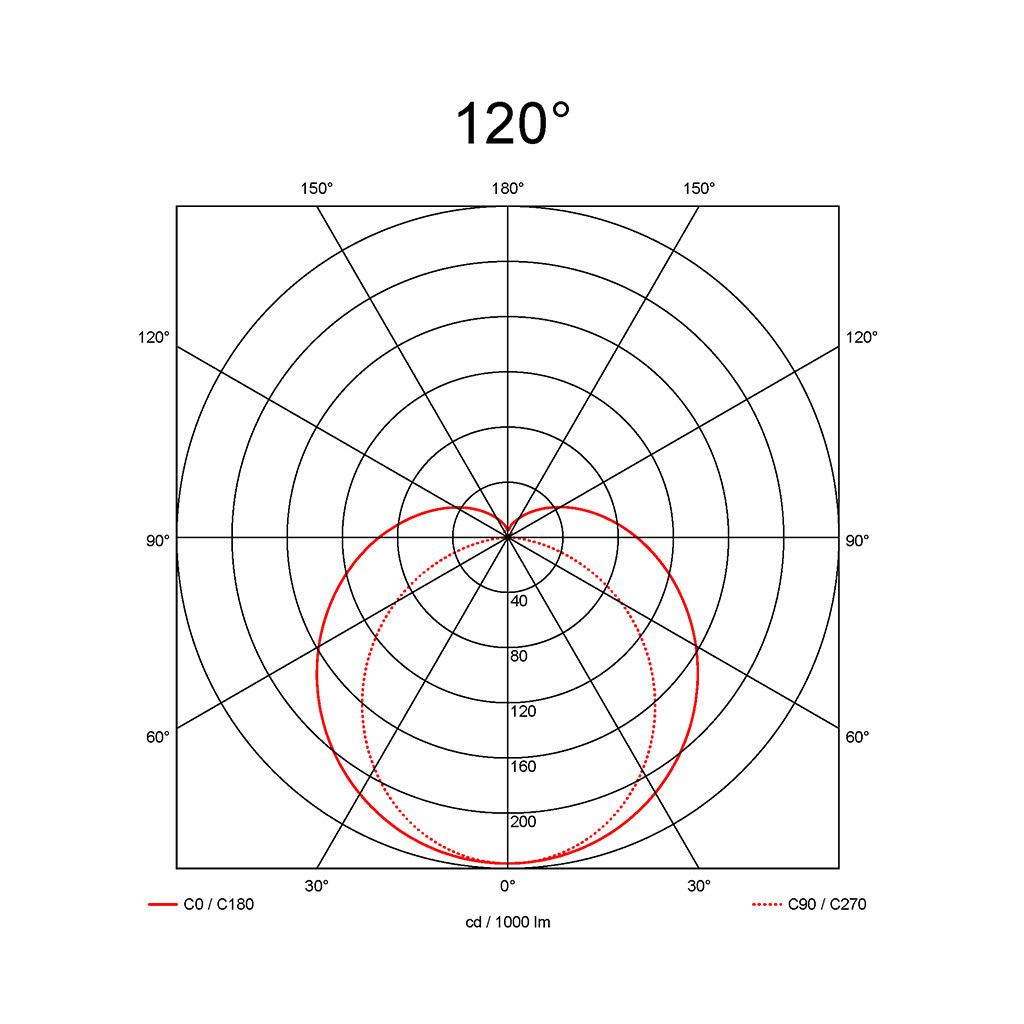

Light Distribution
120°
