LUNEX-PRO-600-20W-3K
Tubular Linear LED Fixture
Weatherproof
CATEGORYInterior
PRODUCT RANGELUNEX PRO
COLORStainless Steel
The LUNEX PRO-600 is a robust 20W 3K tri-proof LED luminaire designed for demanding environments including car parks, transport hubs and public infrastructure. This model is supplied as a linkable fixture. Rated IP66 and IK10, it delivers durable, reliable performance with wide 120° illumination. A tough polycarbonate diffuser and 316L stainless steel end caps ensure strength and corrosion resistance. Supplied with a Quick-Fit surface mounting bracket as standard; suspension kit available separately.
Optical Performance
Wattage20W
Lumen Output2400LM
Efficacy120LM/W
CCT3000K
CRICRI > 80
Beam Angle120°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 100,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current135MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE / SUSPENDED
ConstructionPOLYCARBONATE
Diameter72MM
Length600 MM
Weight0.7KG
FinishSTAINLESS STEEL
IP RatingIP66
IK RatingIK10
Operating Ambient Temperature-20˚C - +40˚C
TP(a)/TP(b)TP(A)
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE

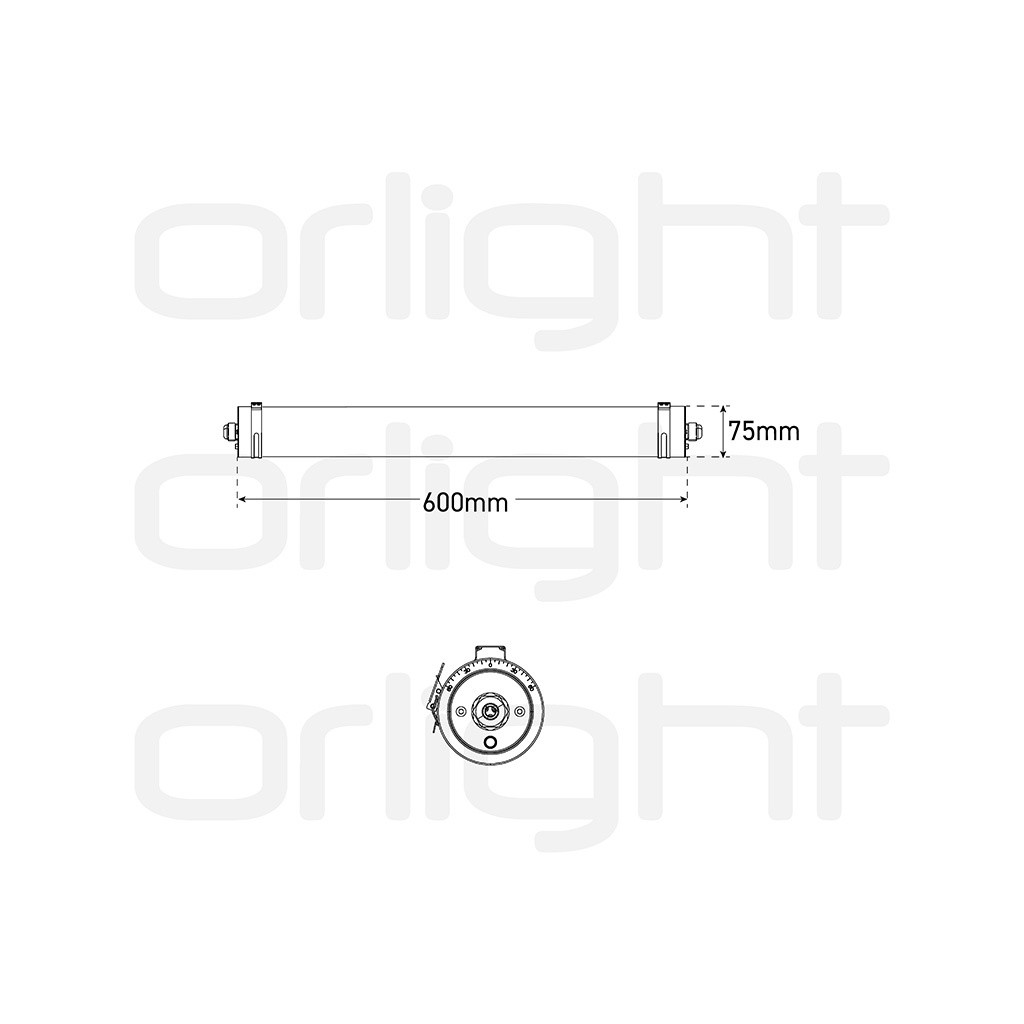

Dimensions

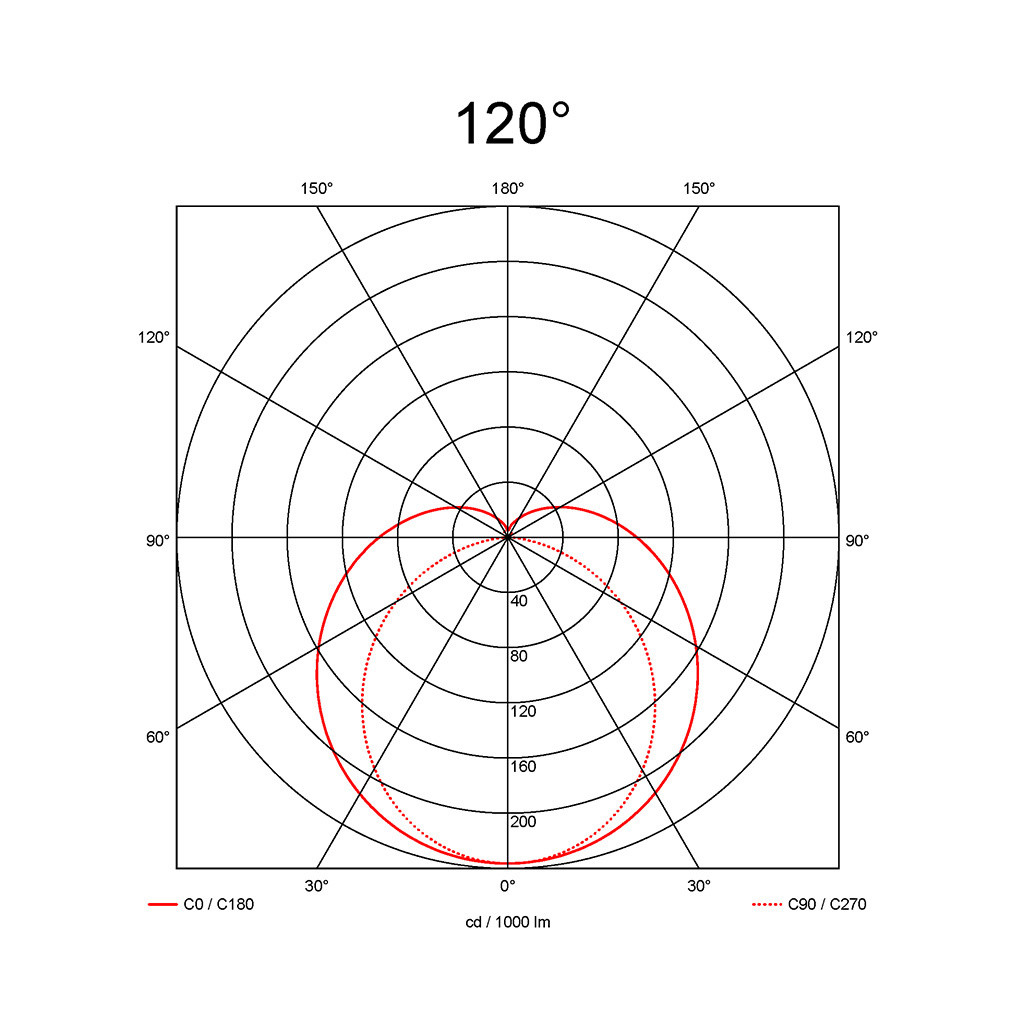

Light Distribution
120°
