LUNEX-600-20W-4K-DALI-B-EM
Tubular Linear LED Fixture
Suspended
CATEGORYInterior
PRODUCT RANGELUNEX
COLORStainless Steel
The LUNEX-600 is a premium 20W DALI-B-EM 4K linear LED tubular light designed for commercial interiors and architectural lighting schemes. This model is supplied as a non-linkable fixture. Its sleek form and high-efficiency output deliver wide 120° illumination with excellent visual comfort. A PMMA diffuser and 316L stainless steel end caps offer a refined, modern aesthetic. Ideal for offices, clean zones, and exposed ceilings in contemporary environments. Supplied with a Quick-Fit surface bracket; suspension kit available separately. Please Note: The Lunex-600-EM requires remote emergency gear
Optical Performance
Wattage20W
Lumen Output3120LM
Efficacy156LM/W
CCT4000K
CRICRI > 80
Beam Angle120°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 100,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current135MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE / SUSPENDED
ConstructionPMMA
Diameter72MM
Length600 MM
FinishSTAINLESS STEEL
IP RatingIP66
IK RatingIK06
Operating Ambient Temperature-20˚C - +40˚C
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen468LM
Dimensions

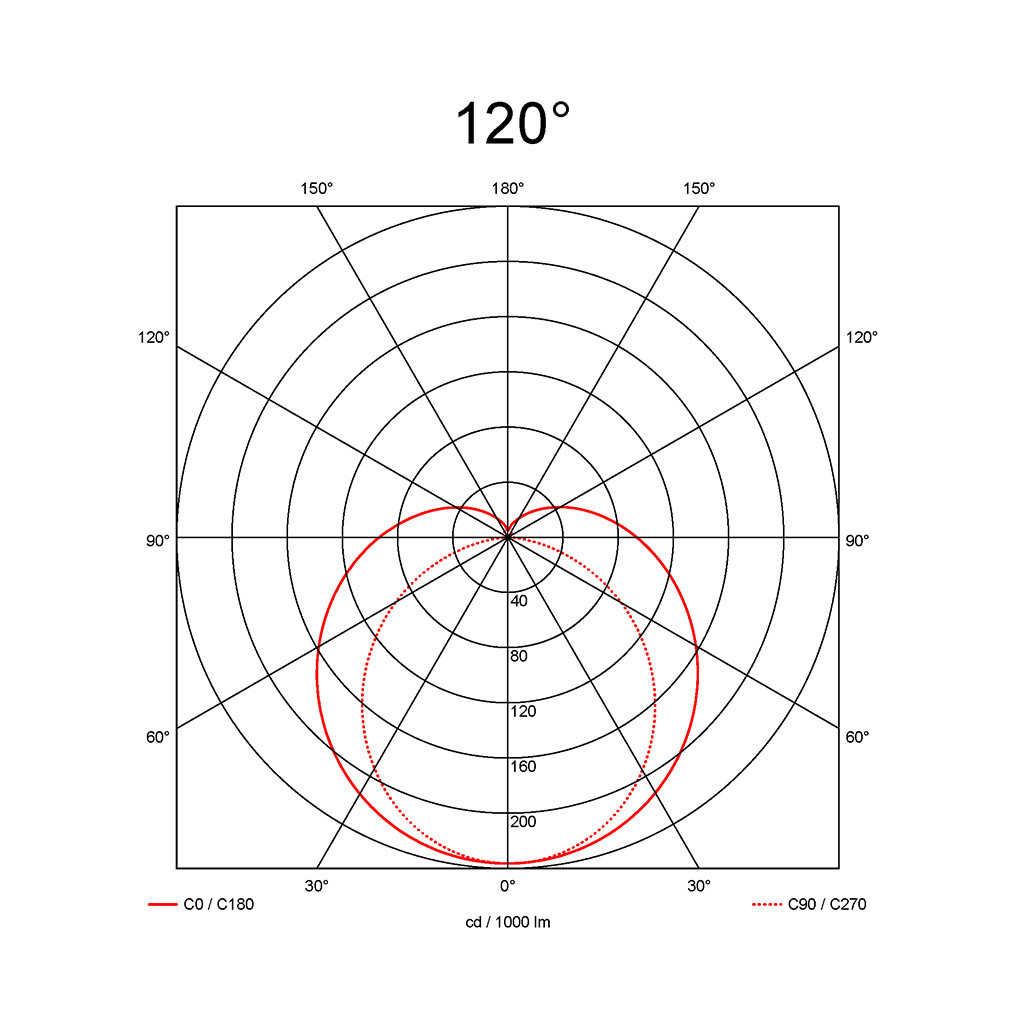

Light Distribution
120°
