LUNEX-600-20W-3K
Tubular Linear LED Fixture
Suspended
CATEGORYInterior
PRODUCT RANGELUNEX
COLORStainless Steel
The LUNEX-600 is a premium 20W 3000K linear LED tubular light designed for commercial interiors and architectural lighting schemes. This model is supplied as a non-linkable fixture. Its sleek form and high-efficiency output deliver wide 120° illumination with excellent visual comfort. The precision-engineered PMMA diffuser and 316L stainless steel end caps create a refined, modern aesthetic, making it ideal for offices, clean zones and exposed ceilings within contemporary environments. Supplied with a Quick-Fit surface mounting bracket as standard; suspension kit available separately.
Optical Performance
Wattage20W
Lumen Output2660LM
Efficacy133LM/W
CCT3000K
CRICRI > 80
Beam Angle120°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 100,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current135MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE / SUSPENDED
ConstructionPMMA
Diameter72MM
Length600 MM
Weight1KG
FinishSTAINLESS STEEL
IP RatingIP66
IK RatingIK06
Operating Ambient Temperature-20˚C - +40˚C
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE
Dimensions

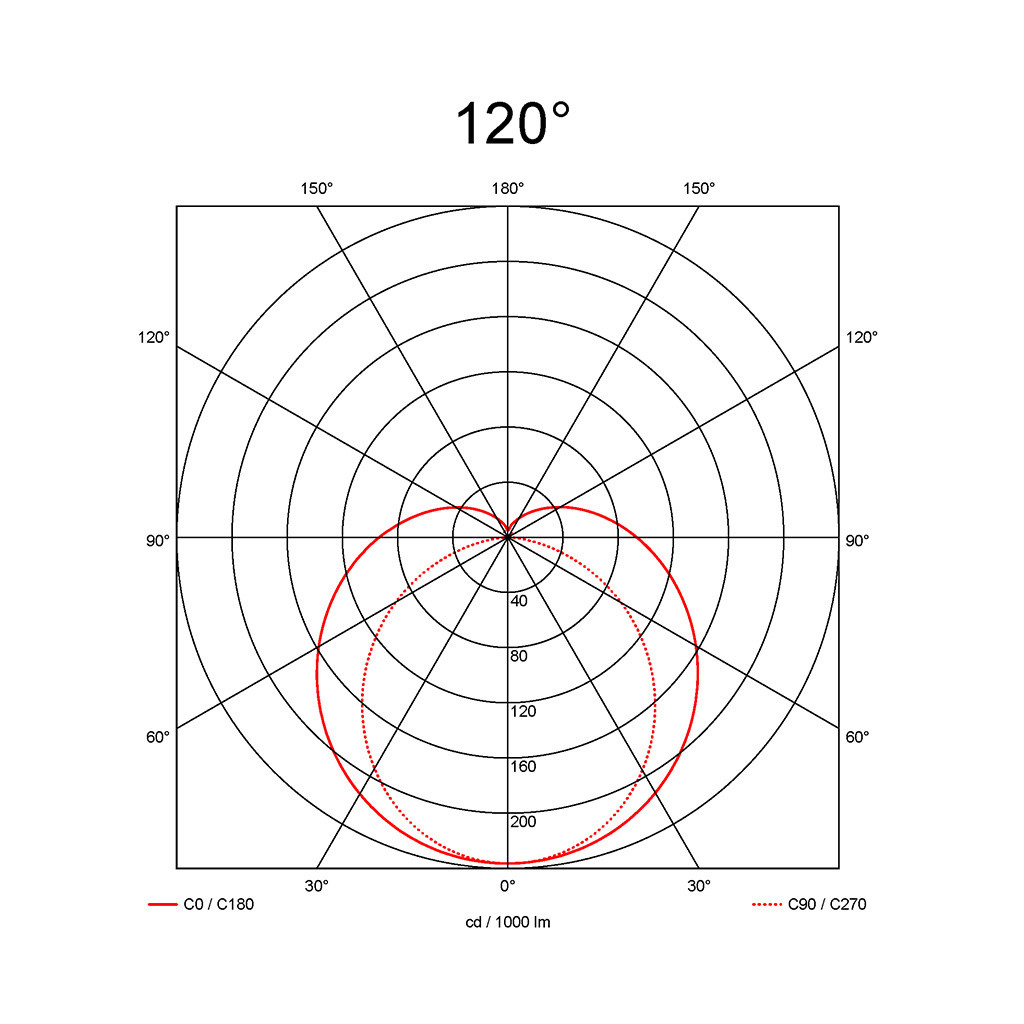

Light Distribution
120°
