SHIELD-320-WH-4K-DALI
Vandal Resistant Corner Mount Fixture
Surface
CATEGORYInterior
PRODUCT RANGESHIELD
COLORWhite
Vandal resistant corner mount surface fixture, expertly crafted from durable sheet steel. This fixture boasts an exceptional IK10++ impact resistance rating, ensuring unparalleled durability. With an IP65 rating, this fixture provides superior protection against dust and water, making it suitable for indoor and outdoor covered applications.
Optical Performance
Wattage8W
Lumen Output1032LM
Efficacy129LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220-240V
Milliamp / Current200MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE
ConstructionSHEET STEEL
Length328 MM
Width / Depth120 MM
Height120 MM
Weight2KG
FinishWHITE
RALRAL 9016
IP RatingIP65
IK RatingIK10++
Operating Ambient Temperature-20˚C - +40˚C
TP(a)/TP(b)TPA
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE

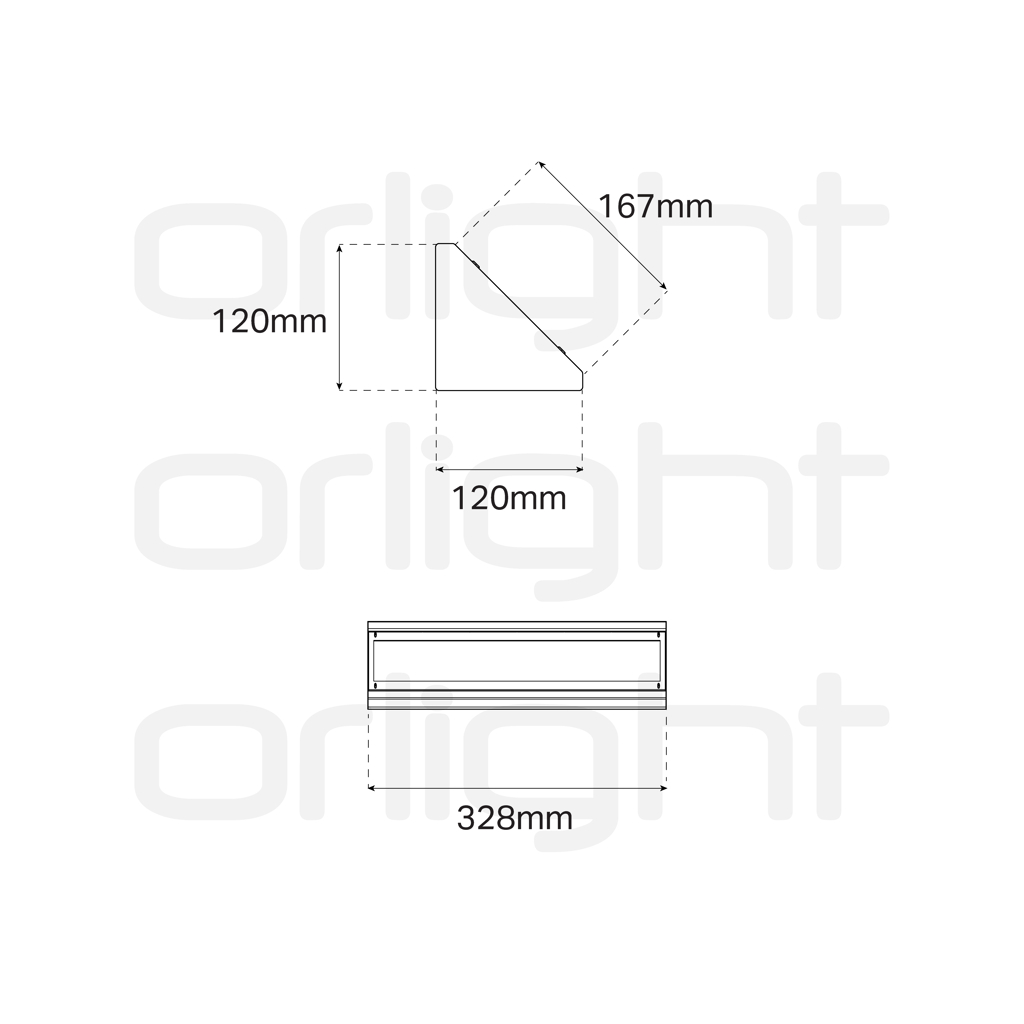

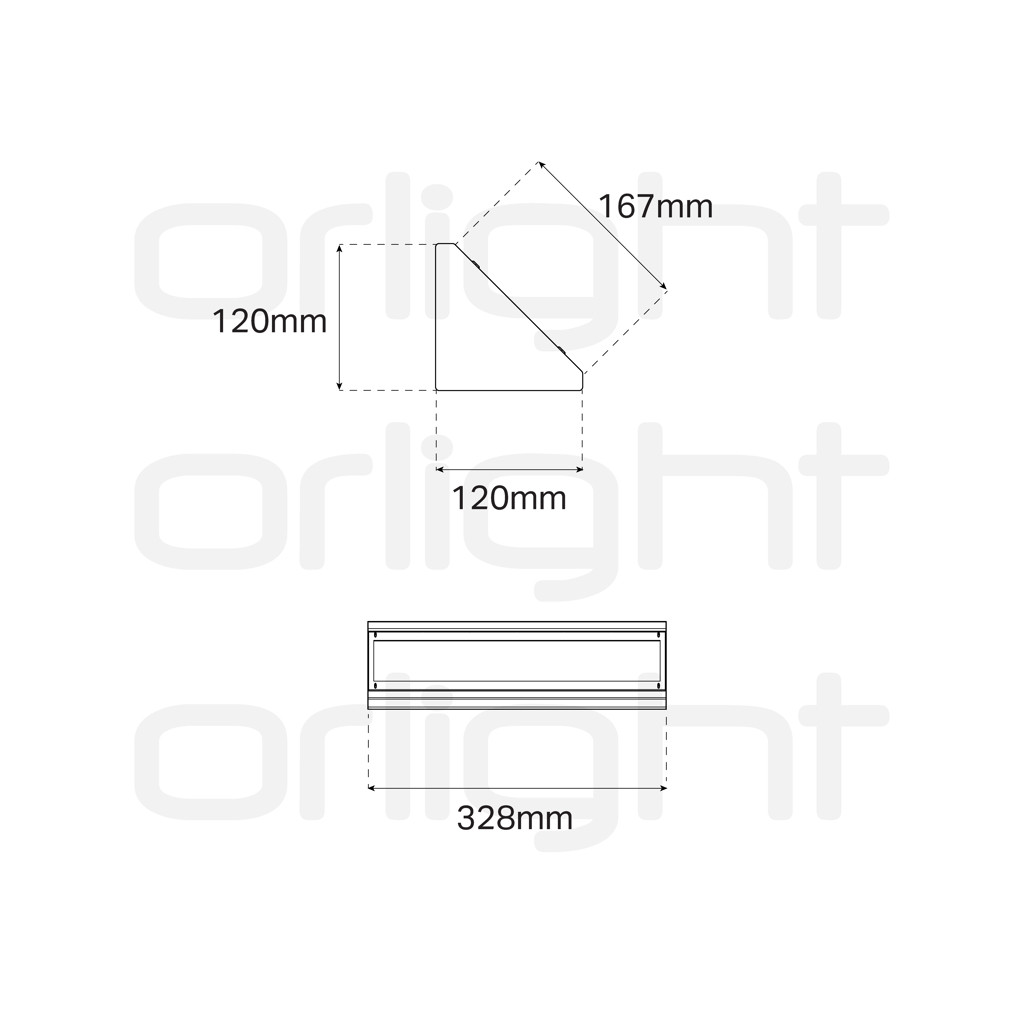

Dimensions

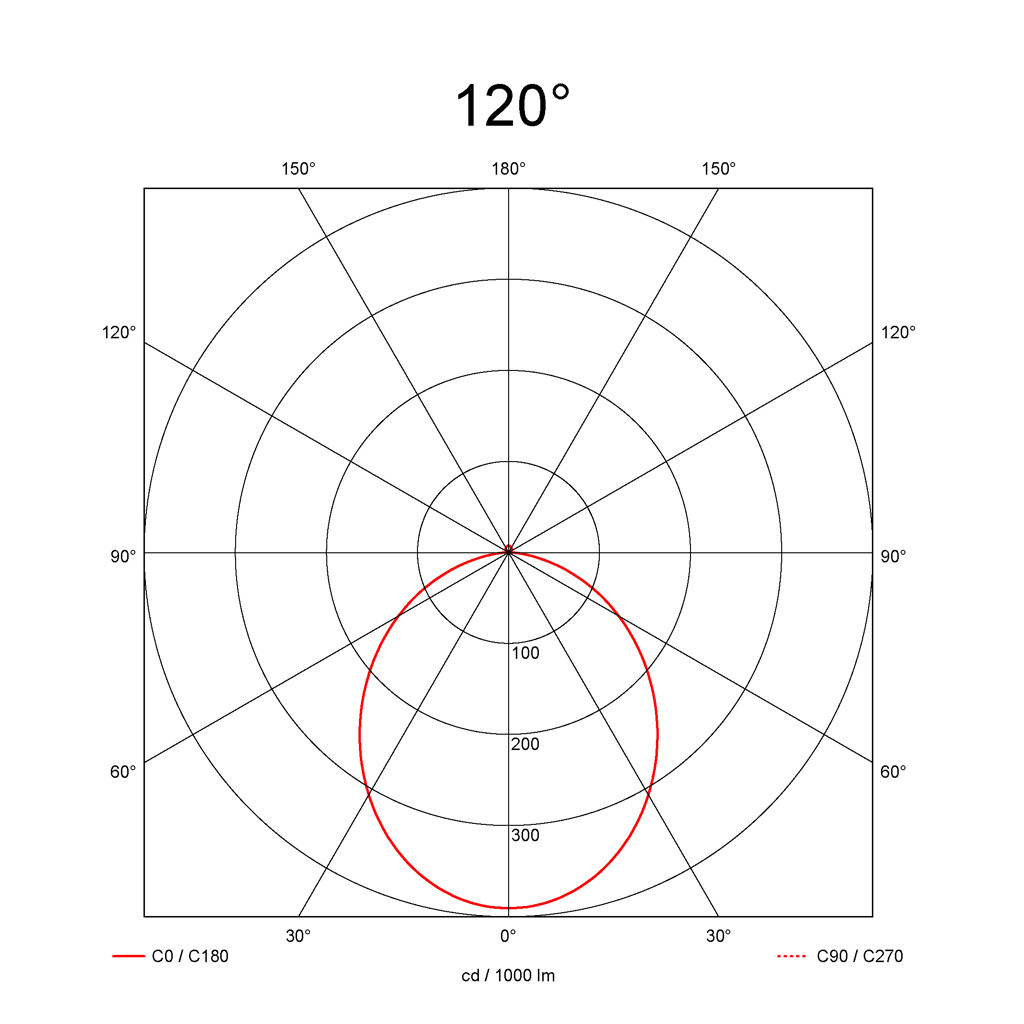

Light Distribution
120°
