RADIUS-WH-4000K-DALI-B-EM
Corner Mounted Linear Fixture
Surface
CATEGORYInterior
PRODUCT RANGERADIUS
COLORWhite
Corner fixture featuring Aluminium construction finished in White RAL9016 and opal diffuser. Integral LED Driver with configurations to accommodate 1-10V, DALI control methods and emergency options.
Optical Performance
Wattage44W
Lumen Output4620LM
Efficacy105LM/W
CCT4000K
CRICRI > 80
Beam Angle120°
ChipsetSMD 2835 LED
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current850MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE
ConstructionALUMINIUM
Length1200 MM
Width / Depth95 MM
Height76 MM
Weight2KG
FinishWHITE
RALRAL 9016
IP RatingIP20
IK RatingIK08
Operating Ambient Temperature-40˚C - +40˚C
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen324LM
Dimensions

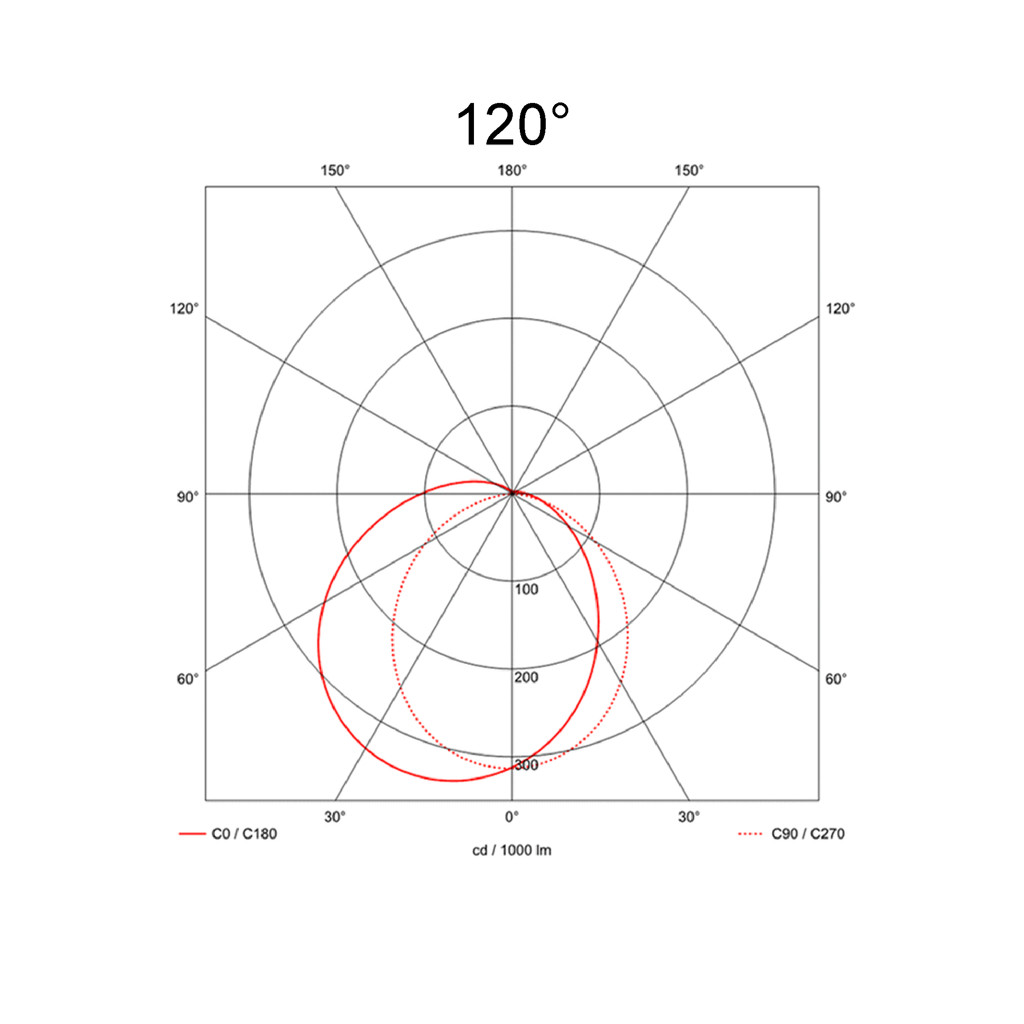

Light Distribution
120°
