ORLLEDBT-1200-9016-3K
Linear LED Fixture
Surface
CATEGORYInterior
PRODUCT RANGEORLLEDBT
COLORWhite
Linear LED fitting featuring Aluminium construction finished in white RAL9016 and an opal diffuser. Integral LED driver with configurations to accommodate 1-10V, DALI and emergency options. This 4ft LED Luminaire can be surface mounted or suspended depending on the desired application.
Optical Performance
Wattage42W
Lumen Output4032LM
Efficacy96LM/W
CCT3000K
CRICRI > 80
Beam Angle120°
ChipsetSMD 2835 LED
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current1000MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE
ConstructionALUMINIUM
Length1200 MM
Width / Depth124 MM
Height68 MM
Weight2.2KG
FinishWHITE
RALRAL 9016
IP RatingIP20
IK RatingIK08
Operating Ambient Temperature-20˚C - +45˚C
TP(a)/TP(b)TP(A)
Emergency
EmergencyAVAILABLE
Emergency ConfigurationINTEGRAL

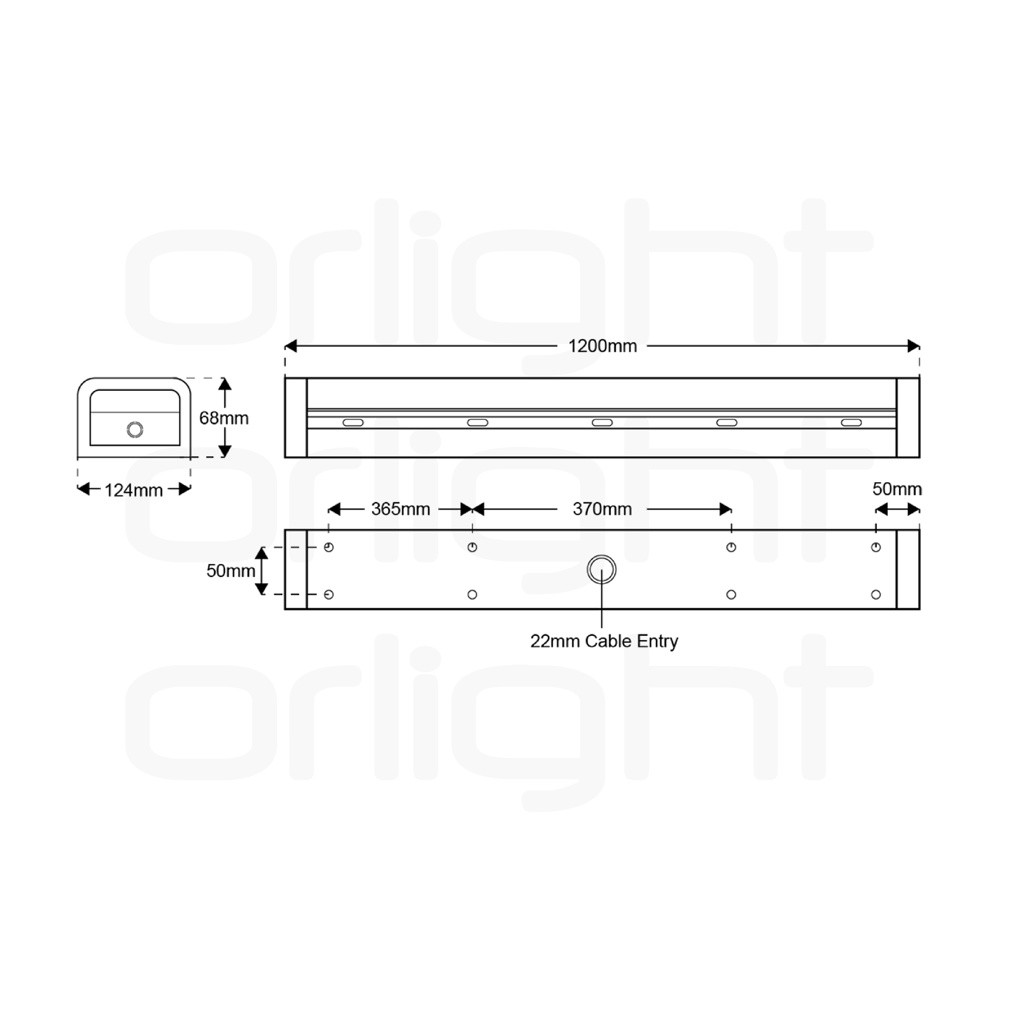

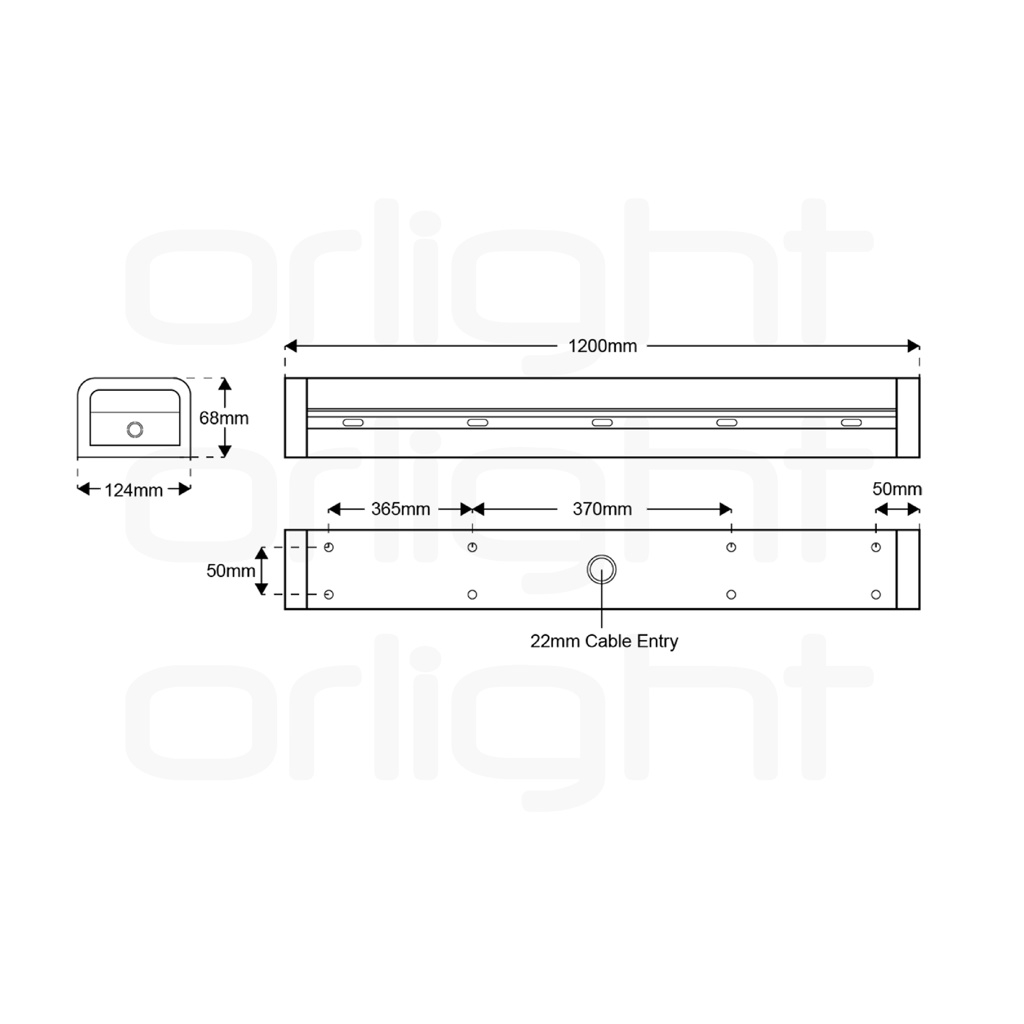

Dimensions

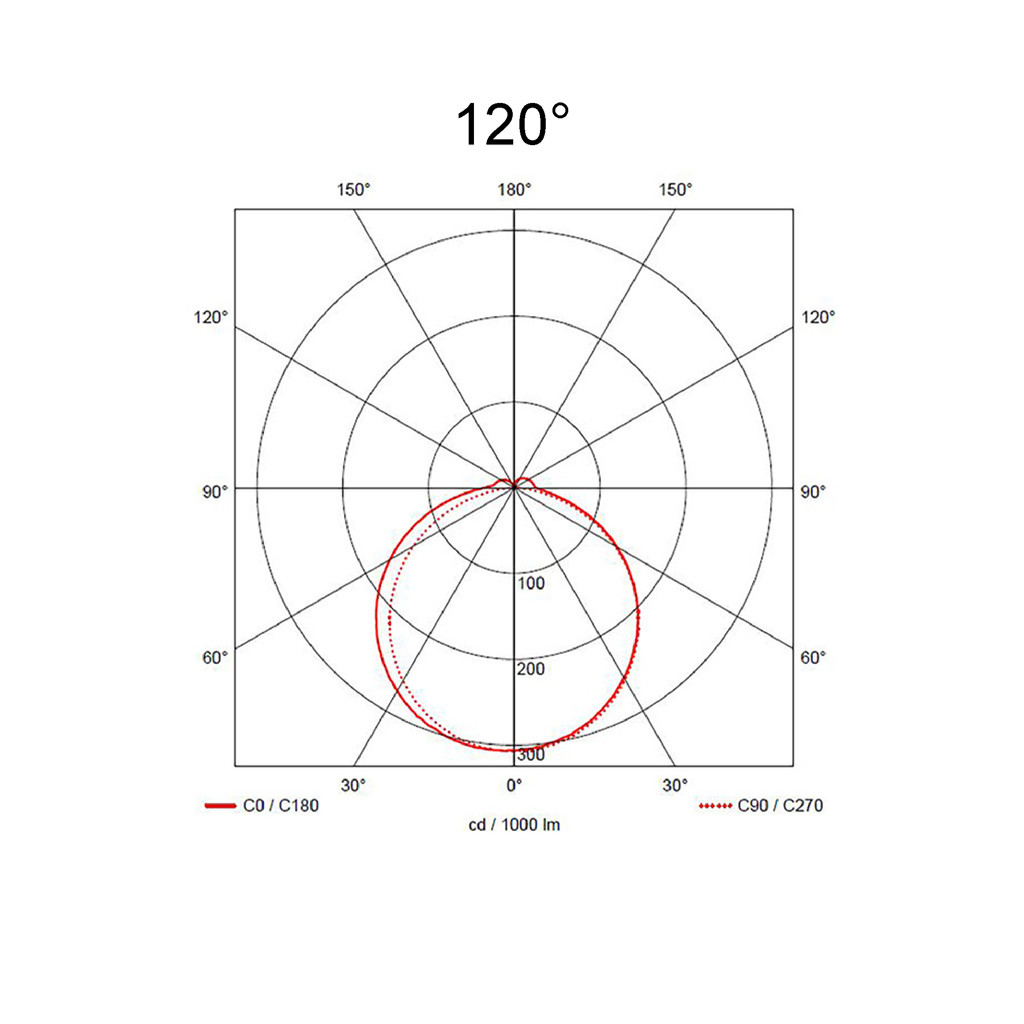

Light Distribution
120°
