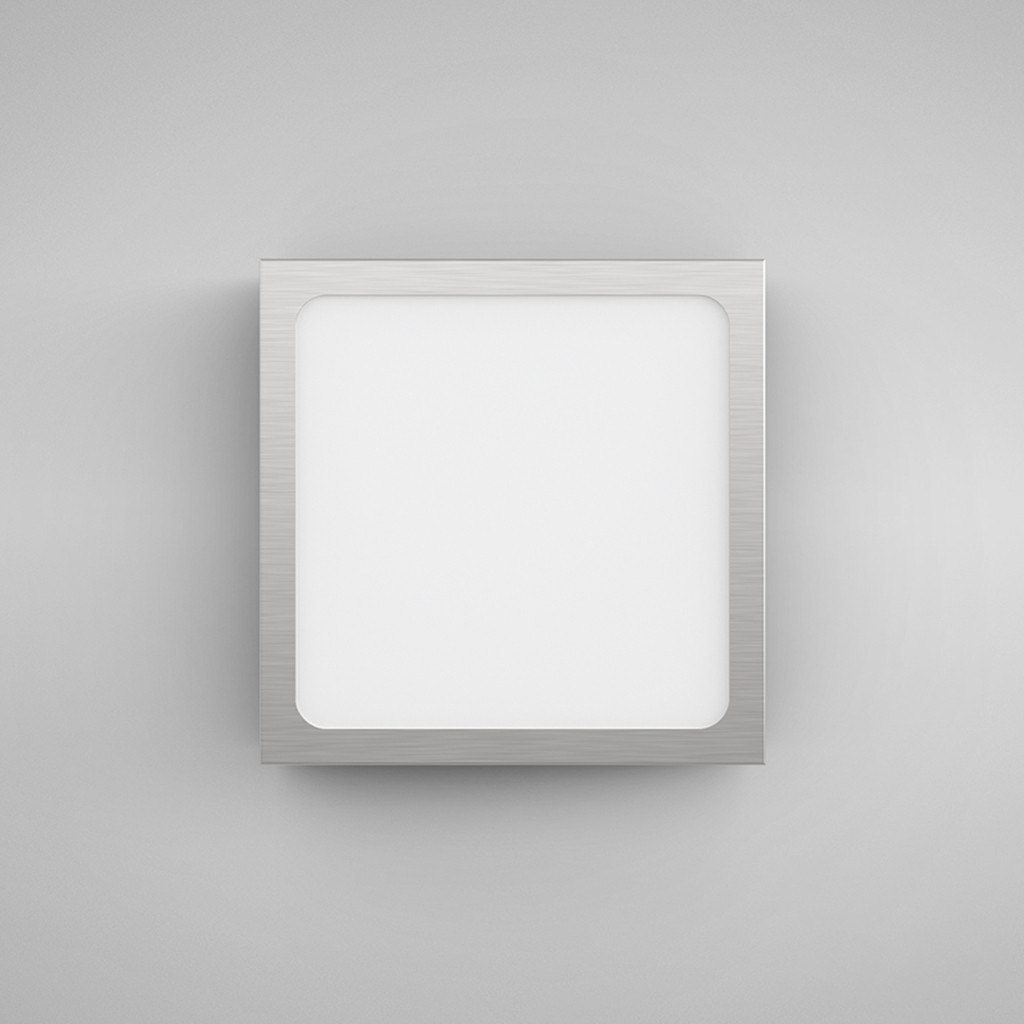

ORL1551U-SQ-SS-LED-4K-MS-EM
High Output Surface Fixture
Surface
CATEGORYInterior
PRODUCT RANGEORL1551
COLORAluminium
High powered decorative square fixture featuring a Polycarbonate base, opal diffuser and aluminium construction. Integral LED Driver with configurations to accommodate switched, 1-10V, DALI, DSI, Corridor and Push Dim control methods. The fixture is rated to IP65 and is available in a variety of finishes.
Optical Performance
Wattage20W
Lumen Output2400LM
Efficacy120LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220-240V
Milliamp / Current520MA
Driver ConfigurationINTEGRAL
ControlMICROWAVE SENSOR-EM
Construction
InstallationSURFACE
ConstructionALUMINIUM
Length318 MM
Width / Depth318 MM
Height80 MM
FinishALUMINIUM
IP RatingIP65
IK RatingIK06
Operating Ambient Temperature-25˚C - +45˚C
TP(a)/TP(b)TPA
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen360LM

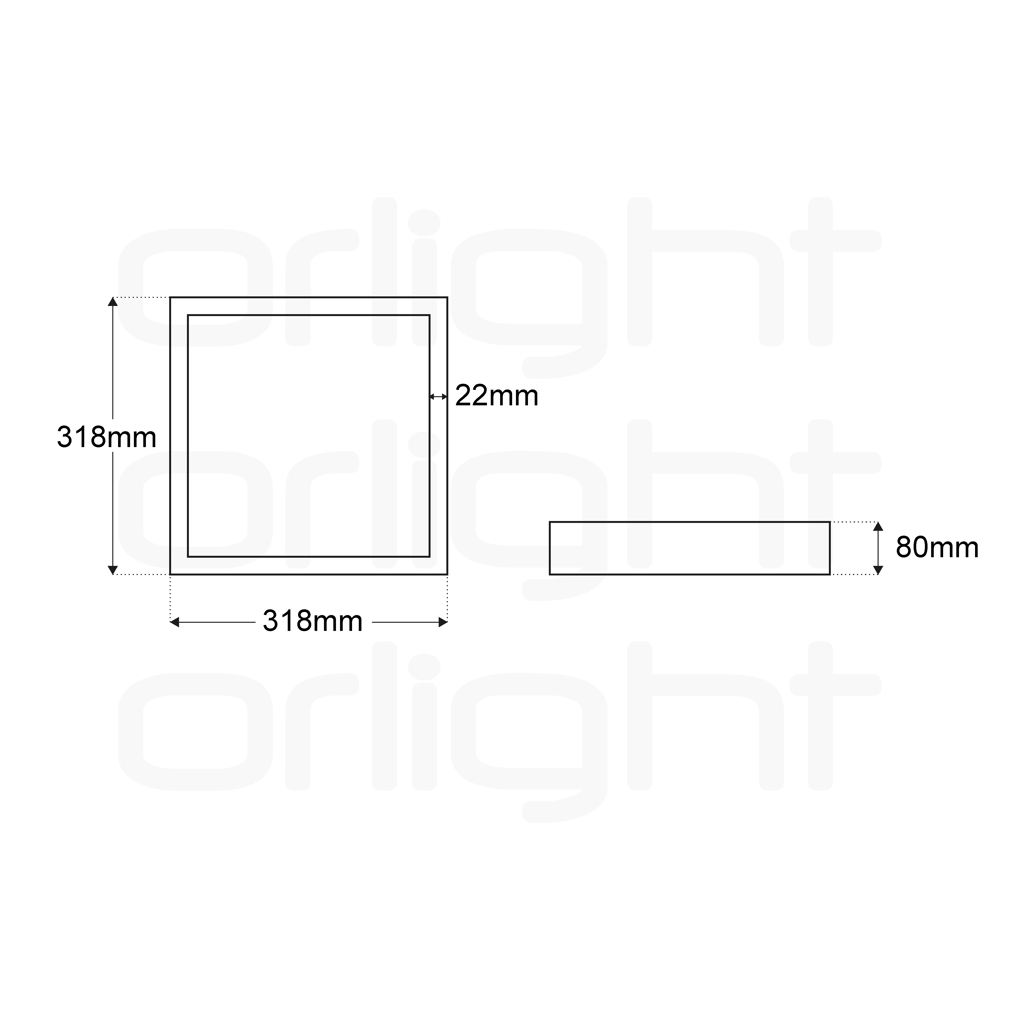

Dimensions

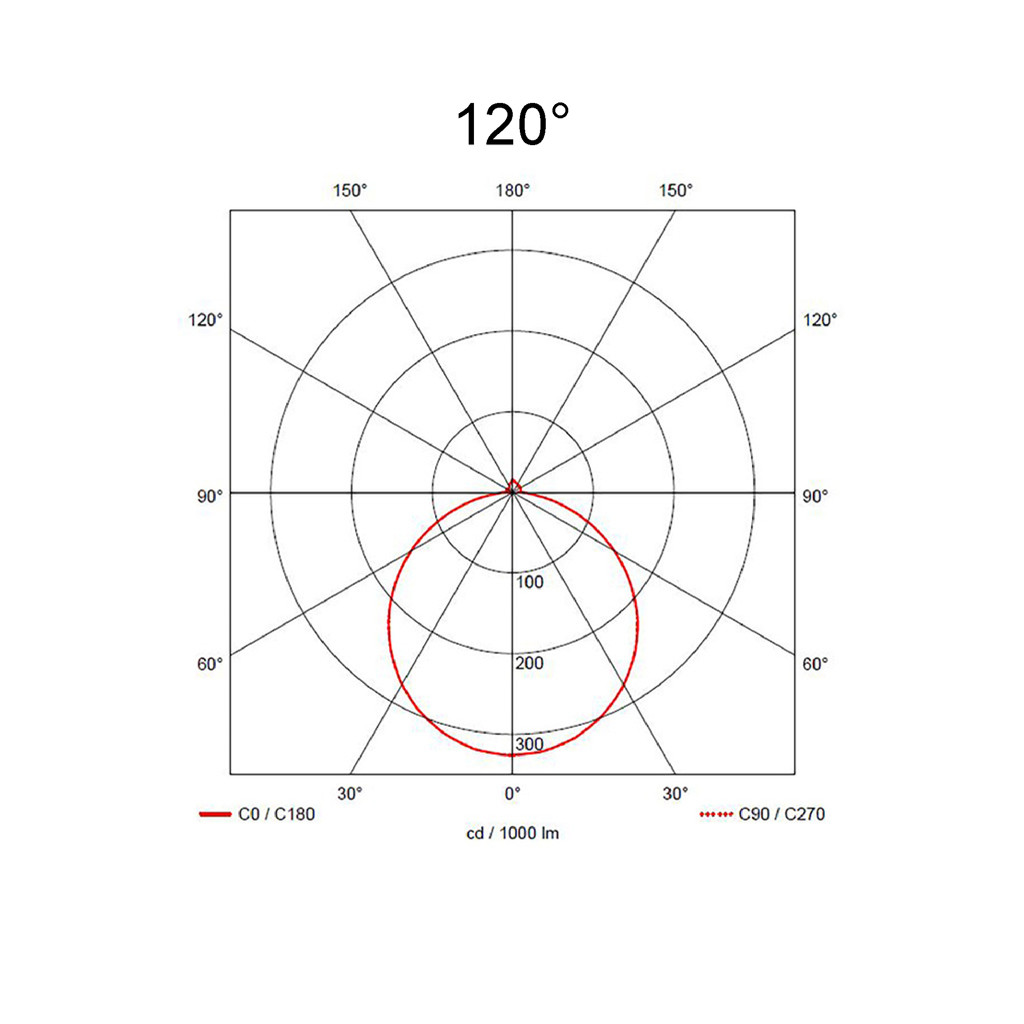

Light Distribution
120°
