ORL1551U-CE-WH-LED-3K-DALI-B-EM
High Output Surface Fixture
Surface
CATEGORYInterior
PRODUCT RANGEORL1551
COLORWhite
High powered decorative round fixture features Aluminium construction and anti-glare glass diffuser. Integral LED Driver. Designed to be used with Conduits. The fixture is rated to IP65 and is available in a variety of finishes. Mains switched, 3 hour emergency, Occupancy detection, DALI and 1-10V options.
Optical Performance
Wattage20W
Lumen Output2220LM
Efficacy111LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220-240V
Milliamp / Current550MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE
ConstructionALUMINIUM
Diameter320 MM
Height80 MM
FinishWHITE
RALRAL 9016
IP RatingIP65
IK RatingIK06
Operating Ambient Temperature-25˚C - +45˚C
TP(a)/TP(b)TPA
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen332LM

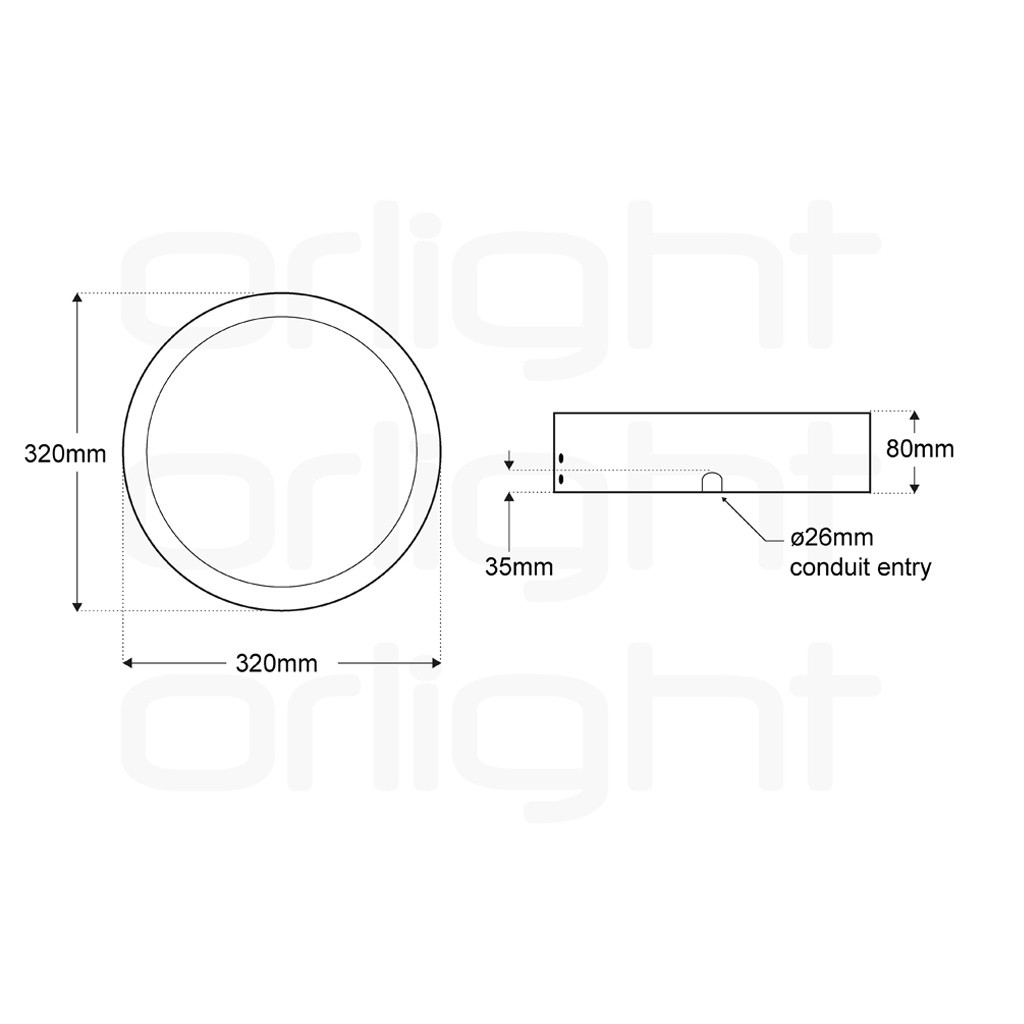

Dimensions

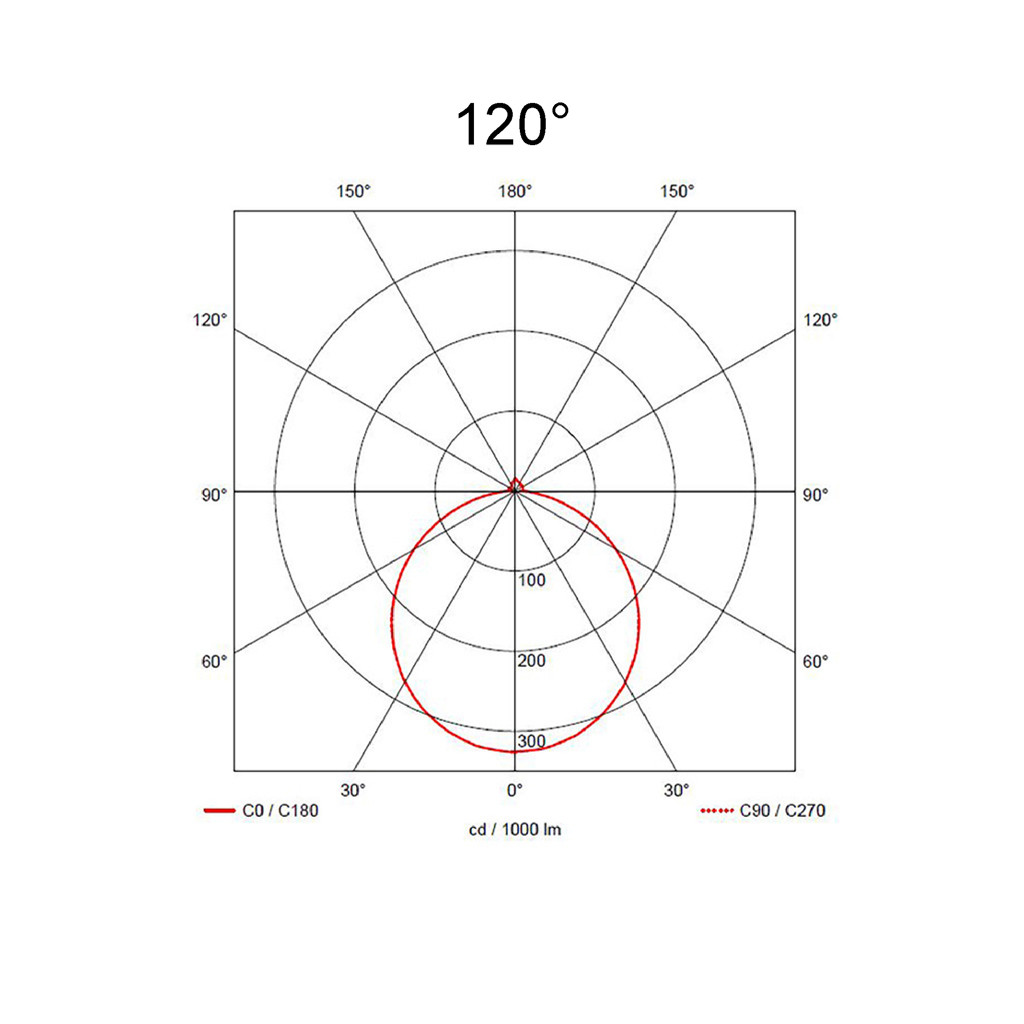

Light Distribution
120°
