MARINEFLEX-TOP-RGB-S
Architectural Flexible Linear
Flexible Linear
CATEGORYInterior
PRODUCT RANGEMARINEFLEX
COLORWhite
Vibrant top-emitting RGB strip ideal for edge lighting, contours, and architectural accents. Made from silicone, with dot-free illumination, IP67 protection, UV and chemical resistance for indoor/outdoor use. Delivers dynamic colour-changing effects with full RGB control for custom lighting scenes. Perfect for retail, hospitality, and residential applications demanding impact and durability. Please click here to view length matrix and additional information.
Construction
InstallationSURFACE / RECESSED
ConstructionSILICONE
Length1000MM
Width / Depth16 MM
Height17 MM
FinishWHITE
IP RatingIP67
IK RatingIK08
Operating Ambient Temperature-40˚C - +45˚C
Cut Points83.3 MM
Max Cut Length10000 MM
Optical Performance
Wattage12.8W/M
Lumen Output282LM/M
Efficacy22LM/W
CCTRGB
Binning2 STEP MACADAMS
Beam Angle110°
ChipsetSMD5050
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24V
Cable Length300 MM

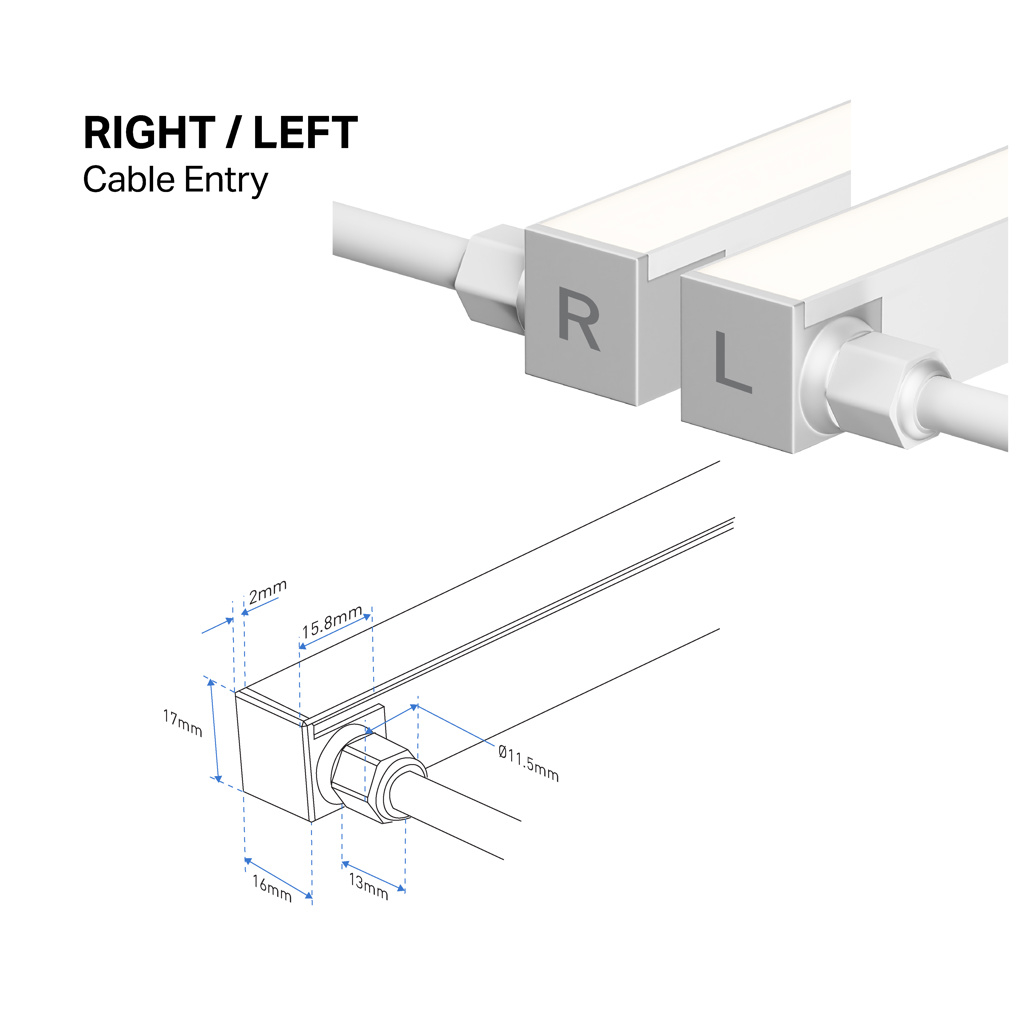

Dimensions
Light Distribution
110°
| Item No. | Driver | Control | Max. Length | Datasheet |
|---|---|---|---|---|
| 15210 | ORLRPV2435 | Switched | 2.5M | |
| 15214 | ORLRPV2460 | Switched | 4.6M | |
| 15199 | ORLRPV24100 | Switched | 7.7M | |
| 15203 | ORLRPV24150 | Switched | 10M | |
| 34998 | ORLDALIIF-12-24-36V-TW-RGBW-DT8 | Interface | 10M | |
| 14063 | ORL-DMX-8030 | Interface | 10M |
