MARINEFLEX-SIDE-TW-S
Architectural Flexible Linear
Flexible Linear
CATEGORYInterior
PRODUCT RANGEMARINEFLEX
COLORWhite
This IP67-rated strip delivers clean, side-emitting light—ideal for coves, edges, and linear accents. Built for durability, made from silicone, with UV and chemical resistance, suited for indoor and outdoor use. Available in tuneable white 2700K–5300K with CRI >90 for excellent colour rendering and visual clarity. 2-Step MacAdam binning and dot-free technology ensure consistent, flawless illumination. Please click here to view length matrix and additional information.
Construction
InstallationSURFACE / RECESSED
ConstructionSILICONE
Length1000MM
Width / Depth16 MM
Height17 MM
FinishWHITE
IP RatingIP67
IK RatingIK10
Operating Ambient Temperature-40˚C - +45˚C
Cut Points71.4 MM
Max Cut Length10000 MM
Optical Performance
Wattage13W/M
Lumen Output1001LM/M
Efficacy77LM/W
CCT2700K-5300K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle110°
ChipsetLUMILEDS 2835 LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24V
Cable Length300 MM

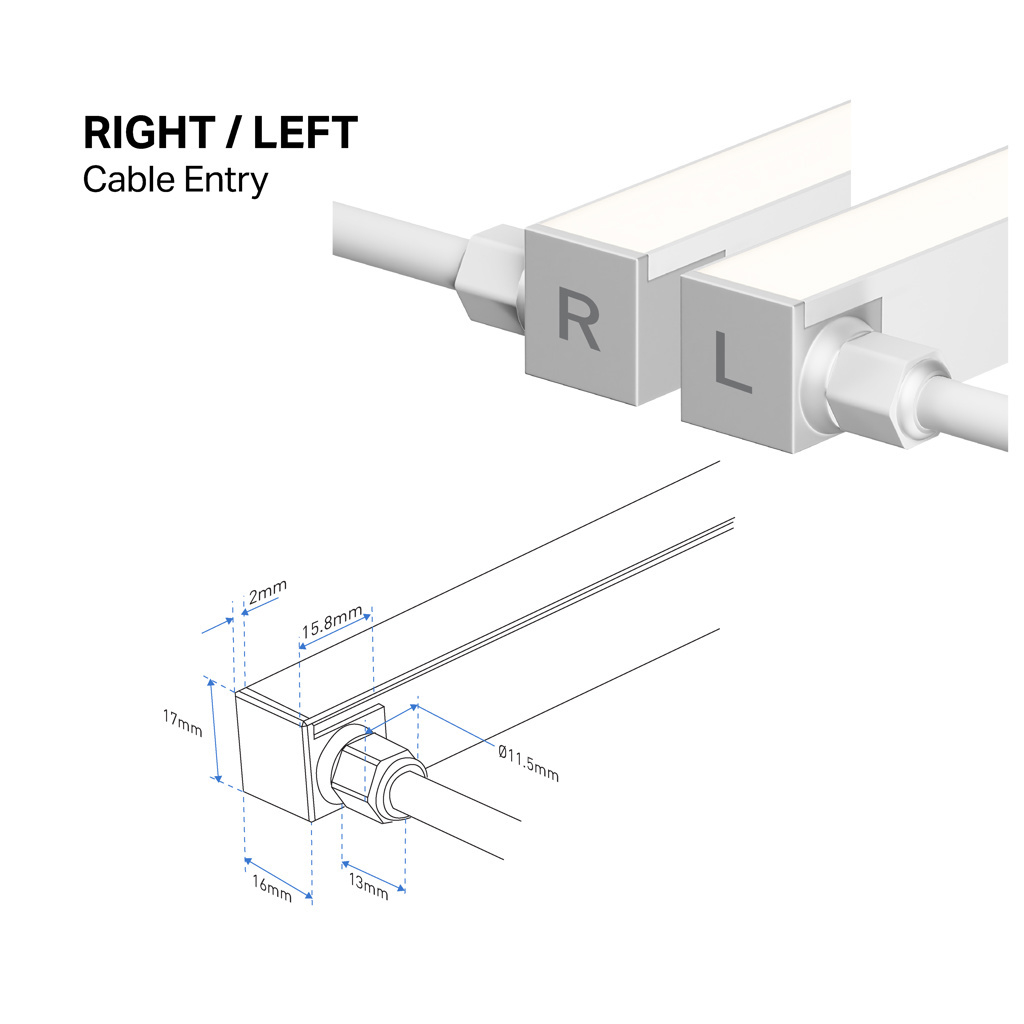

Dimensions
| Item No. | Driver | Control | Max. Length | Datasheet |
|---|---|---|---|---|
| 15210 | ORLRPV2435 | Switched | 2.5M | |
| 15214 | ORLRPV2460 | Switched | 4.5M | |
| 15199 | ORLRPV24100 | Switched | 7.5M | |
| 15203 | ORLRPV24150 | Switched | 10M | |
| 34998 | ORLDALIIF-12-24-36V-TW-RGBW-DT8 | Interface | 10M |
