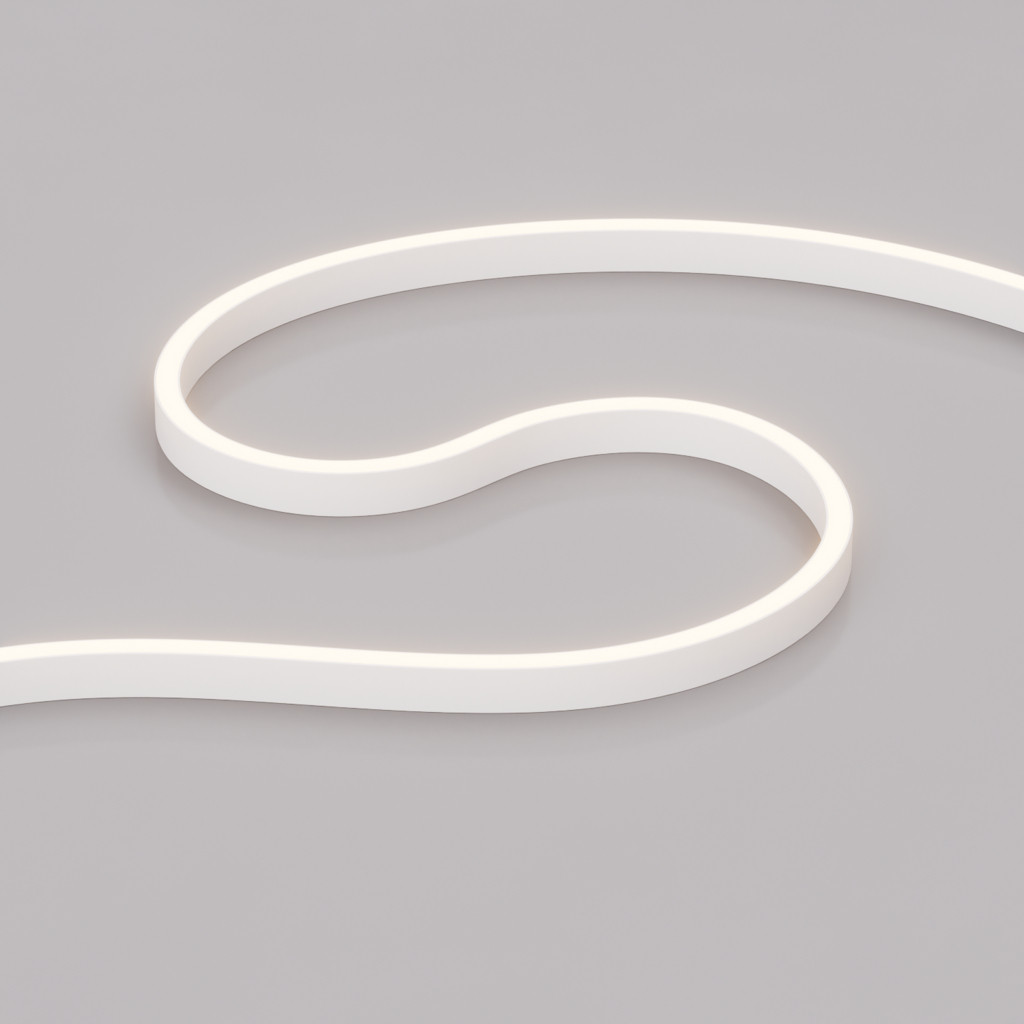

LF-TOP-2700K-CRI90-S
Architectural Flexible Linear
Flexible Linear
CATEGORYInterior
PRODUCT RANGELUMENFLEX
COLORWhite
IP68 rated, top emitting flexible LED strip, offering a uniform and even light distribution with no LED hotspots. Suitable for both interior and exterior applications. Single layer injection moulded connections ensure IP68 integrity. Available in a variety of colour temperatures with a light quality assurance of CRI>80. 2-Step MacAdams Ellipse binning strategy for colour consistency. Please click here to view length matrix and additional information.
Construction
InstallationSURFACE / RECESSED
ConstructionPVC & RESIN
Width / Depth11.5 MM
Height21 MM
FinishWHITE
IP RatingIP68
IK RatingIK08
Operating Ambient Temperature-20˚C - +40˚C
Cut Points83.33 MM
Max Cut Length10000 MM
Optical Performance
Wattage12W/M
Lumen Output456LM
Efficacy38LM/W
CCT2700K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetNICHIA
Chip LifeL70 > 60,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24V
Cable Length300 MM

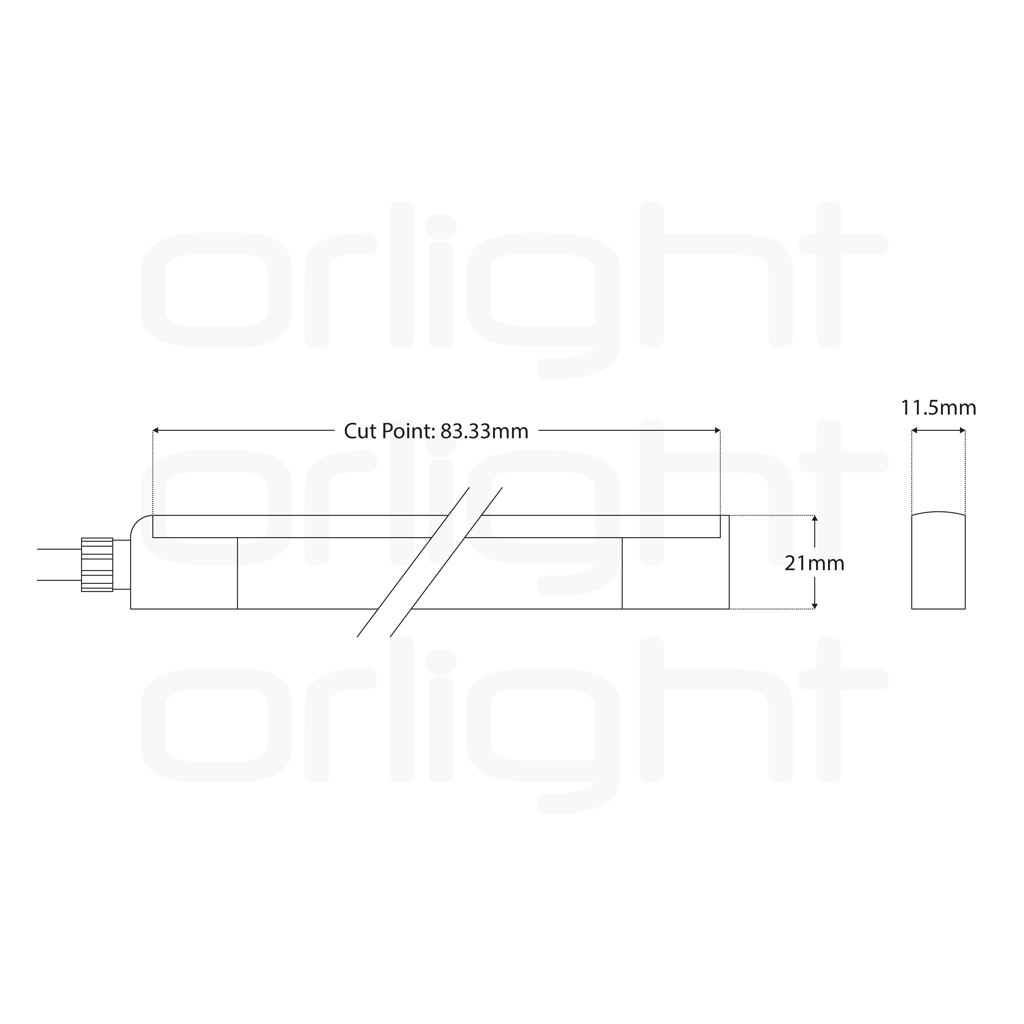

Dimensions
Light Distribution
120°
