ZENITH-MINI-TR-8W-WH-4K
Architectural Downlight
Downlights
CATEGORYInterior
PRODUCT RANGEZENITH
COLORMatt White
High-performance trimless solid-state adjustable LED downlight with high CRI for accurate colour rendering. Featuring a compact aluminium body, all-white finish and low-glare optics for seamless architectural integration.
Optical Performance
Wattage8W
Lumen Output952LM
Efficacy119LM/W
CCT4000K
CRICRI > 96
Binning2 STEP MACADAMS
Beam Angle12˚/ 24˚/ 36˚/ 55˚
ChipsetBRIDGELUX
Electrical
Constant Current or VoltageCONSTANT CURRENT
Milliamp / Current200MA
Driver ConfigurationREMOTE
Construction
InstallationRECESSED TRIMLESS
ConstructionALUMINIUM
Diameter62 MM
Height80 MM
Cutout55 MM
Tilt30°
Rotation350°
FinishMATT WHITE
RALRAL 9010
IP RatingIP54
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE

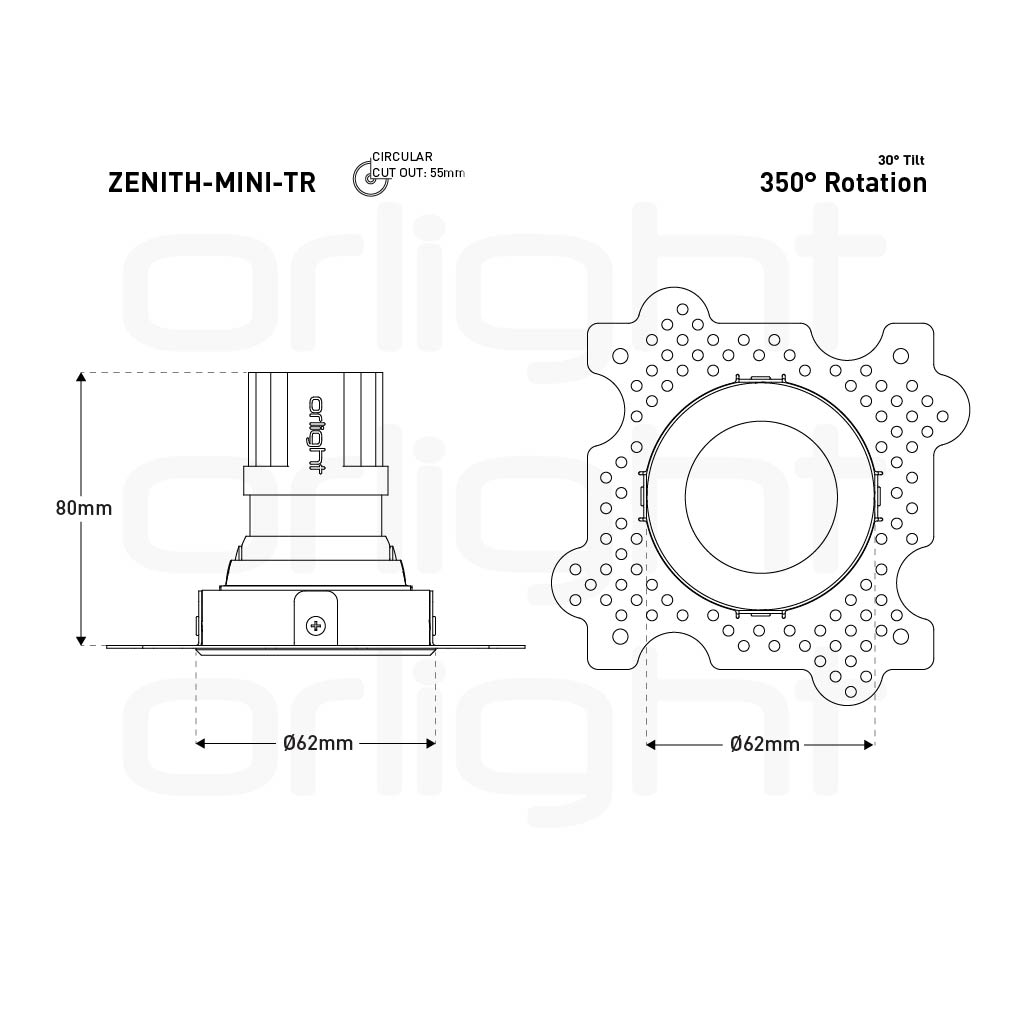

Dimensions
