SHP105-2-WH-4000K-DALI-B-EM
Solid State Round Downlight
Downlights
CATEGORYInterior
PRODUCT RANGESHP-DL
COLORWhite
Orlight’s SHP105 fixed downlight features a ‘thin trim’ design to appear subtle in situ. Construction rated to IP44 with Epoxy powder coat finish. Incorporating a single CREE LED light source which ensures the uniformity of the beam. For further details on the fire rating, please get in touch with our team by emailing technicalsupport@orlight.com Orlight does not recommend cutting of holes prior to receipt of product in hand.
Optical Performance
Wattage10W
Lumen Output1180LM
Efficacy118LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle36°
ChipsetCREE 1507N
Chip LifeL80 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current220MA
Driver ConfigurationREMOTE
ControlDALI DIMMABLE
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter82 MM
Height47 MM
Cutout68 MM
TiltFIXED
FinishWHITE
RALRAL 9016
IP RatingIP44
Fire RatedYES
Fire Rating90 MINS - SOLID JOIST
Fire Test Report400398
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen355LM

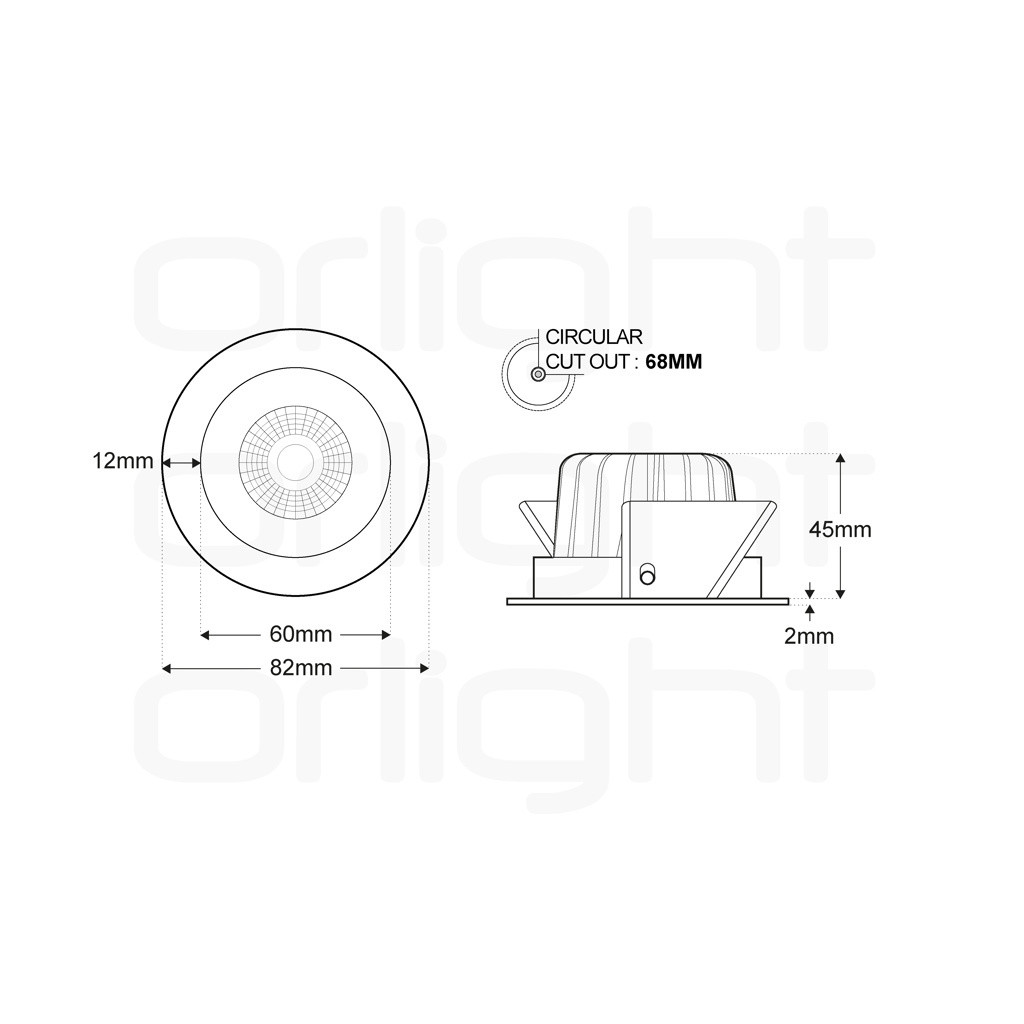

Dimensions

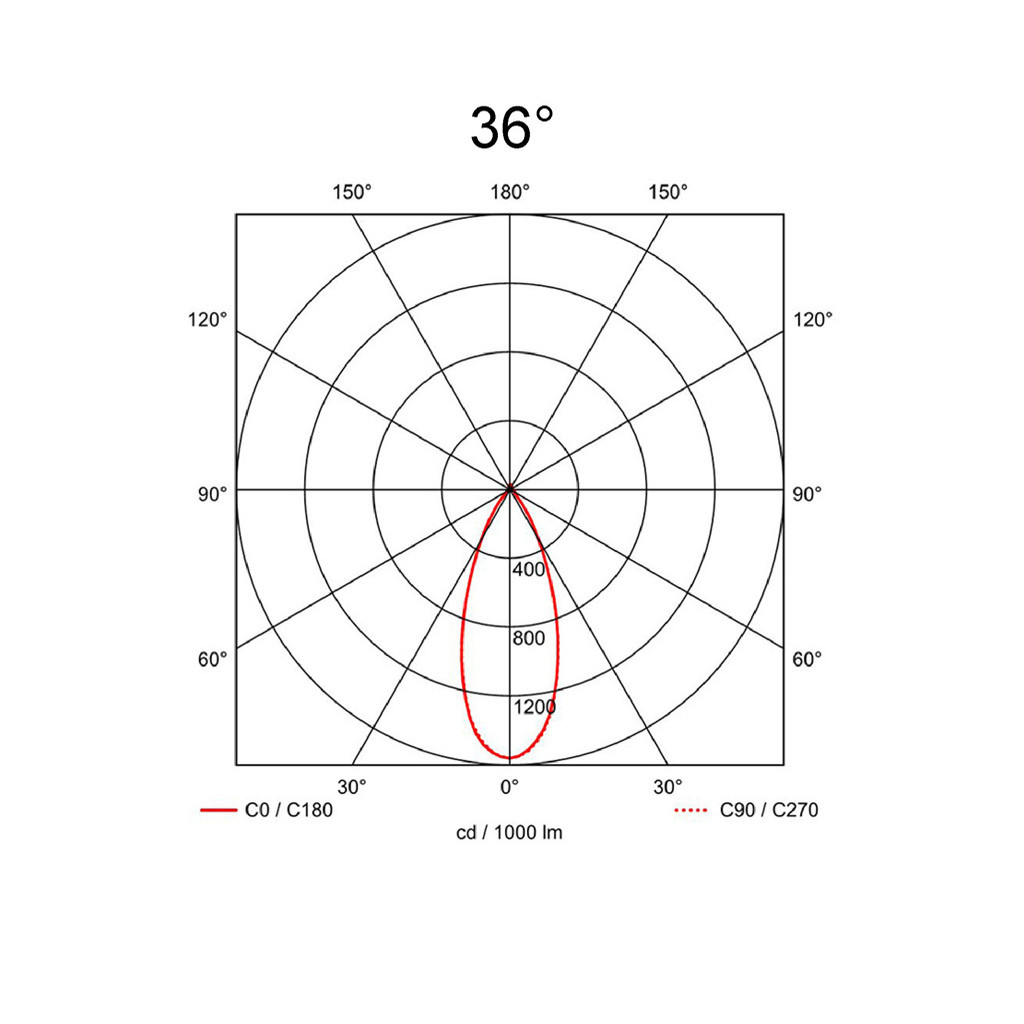

Light Distribution
36°
