ORION-TR-13W-AW-IP54-FG-2700K
Adjustable Solid State Downlight
Downlights
CATEGORYInterior
PRODUCT RANGEORION
COLORAll White
Orion Trimless fixture combines thermal management with a LED chipset to enable superior performance with a passive cooling system. Aluminium construction. CRI>90 for light quality assurance, consistency is adhered to with a 2-Step MacAdams Ellipse binning strategy. Orlight does not recommend cutting of holes prior to receipt of product in hand.
Optical Performance
Wattage13W
Lumen Output1417LM
Efficacy109LM/W
CCT2700K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle24° / 40° / 55°
UGRUGR < 19
ChipsetBRIDGELUX
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current300MA
Driver ConfigurationREMOTE
ControlSWITCHED
Construction
InstallationRECESSED TRIMLESS
ConstructionALUMINIUM
Diameter67 MM
Height95 MM
Cutout70 MM
Tilt30°
Rotation355°
FinishALL WHITE
RALRAL 9016
IP RatingIP54
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE

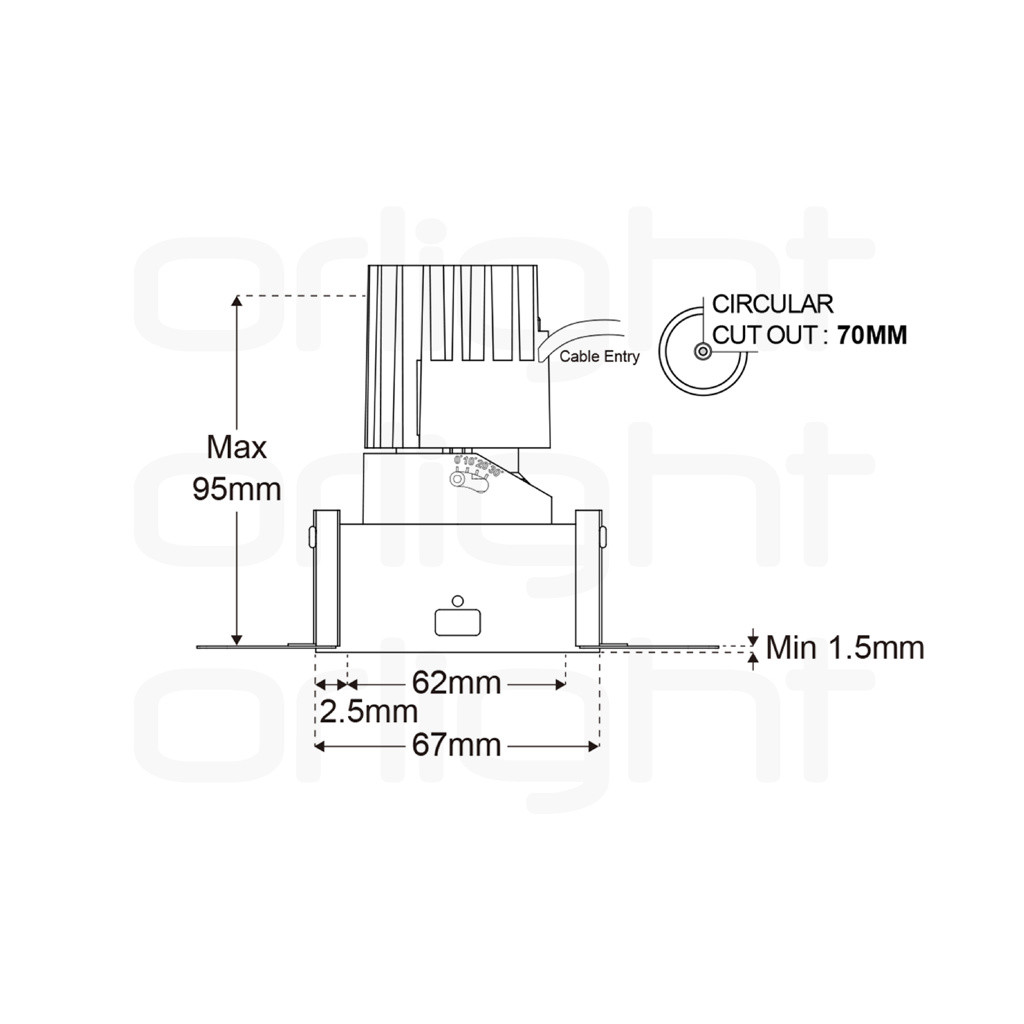

Dimensions

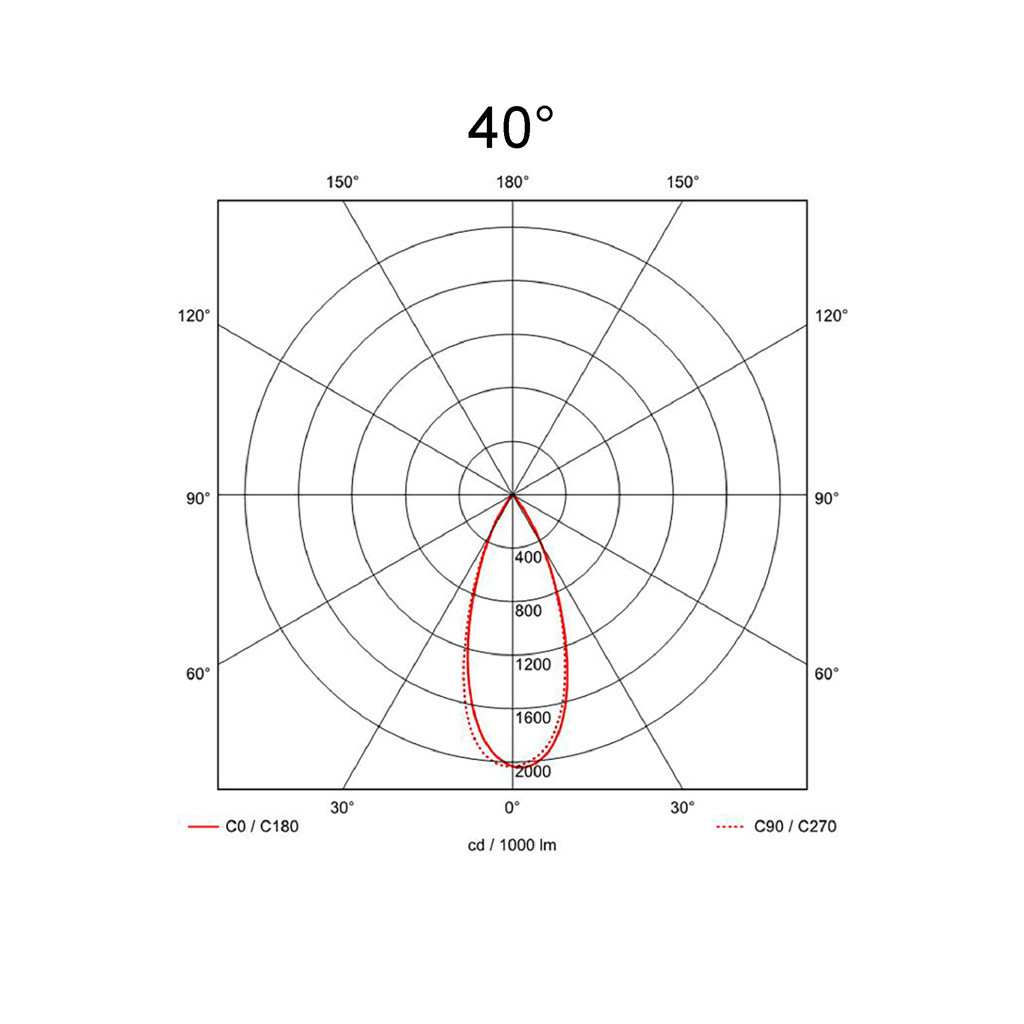

Light Distribution
