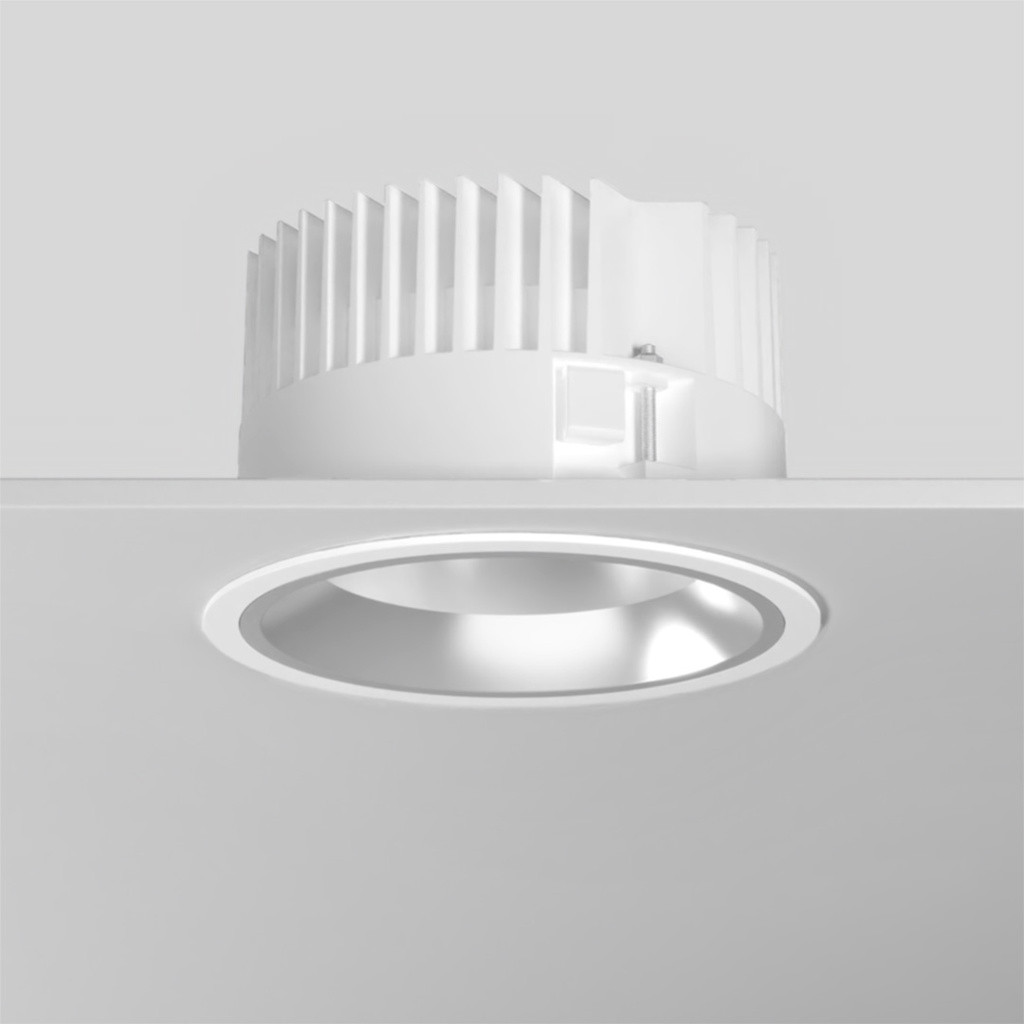

NEBULA200-25W-WH-3K-1-10V
High Powered Recessed Downlight
Downlights
CATEGORYInterior
PRODUCT RANGENEBULA
COLORWhite
NEBULA200 is a high-powered, UGR<19 recessed downlight, constructed from Aluminium and rated to IP54. A deep recessed design finished in white, with a choice of interchangeable reflectors to suit your requirements. Once installed this fixture has a detachable rear case facilitating an ease of maintenance. Attractive appearance while providing great efficiency, ideal for commercial and residential environments. The product is supplied with a 30° optic as standard. 18° and 60° optic available to order. Orlight does not recommend cutting of holes prior to receipt of product in hand.
Optical Performance
Wattage25W
Lumen Output3525LM
Efficacy141LM/W
CCT3000K
CRICRI > 85
Binning2 STEP MACADAMS
Beam Angle18° / 30° / 60°
UGRUGR < 19
ChipsetCITIZEN LED CHIPSET
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current650MA
Driver ConfigurationREMOTE
Control1-10V
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter218 MM
Height132 MM
Cutout200 MM
Weight1.765KG
TiltFIXED
FinishWHITE
RALRAL 9016
IP RatingIP54
Operating Ambient Temperature-20˚C - +35˚C
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE

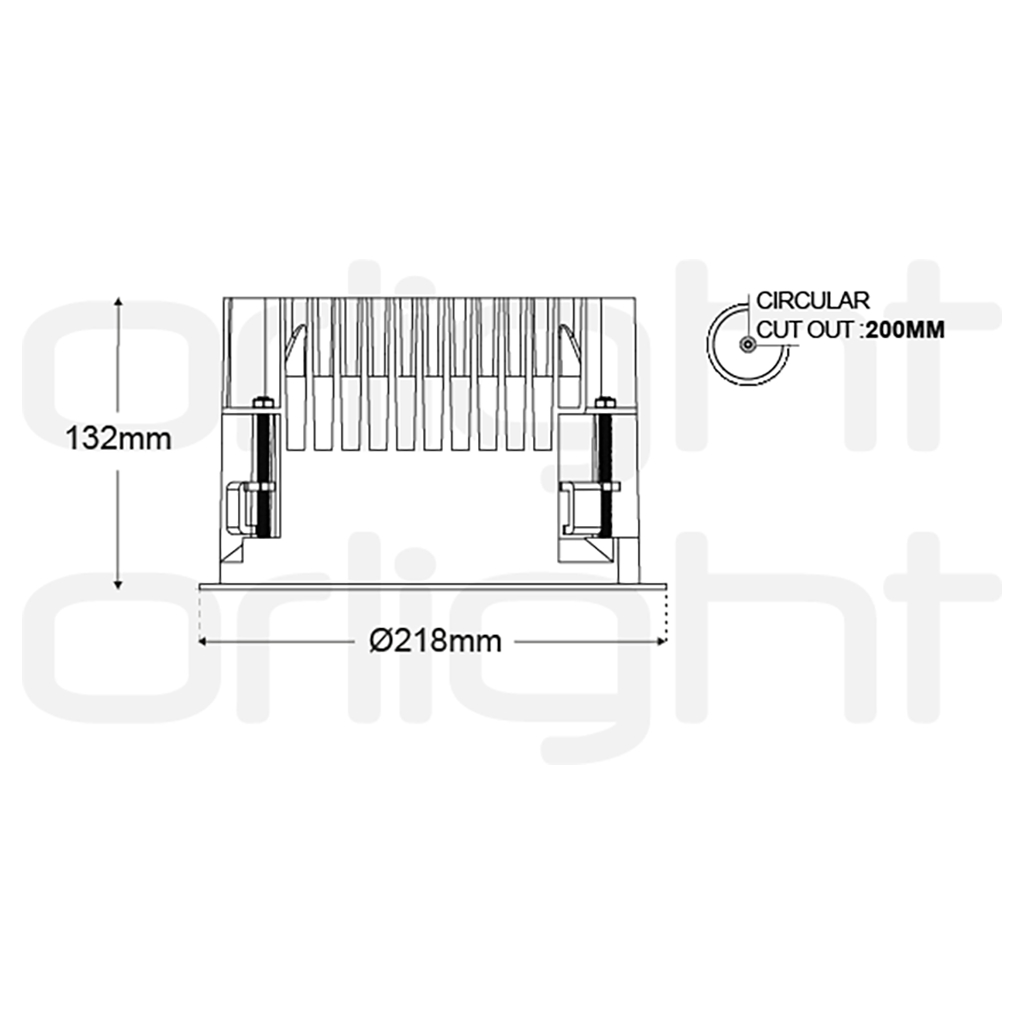

Dimensions
Light Distribution

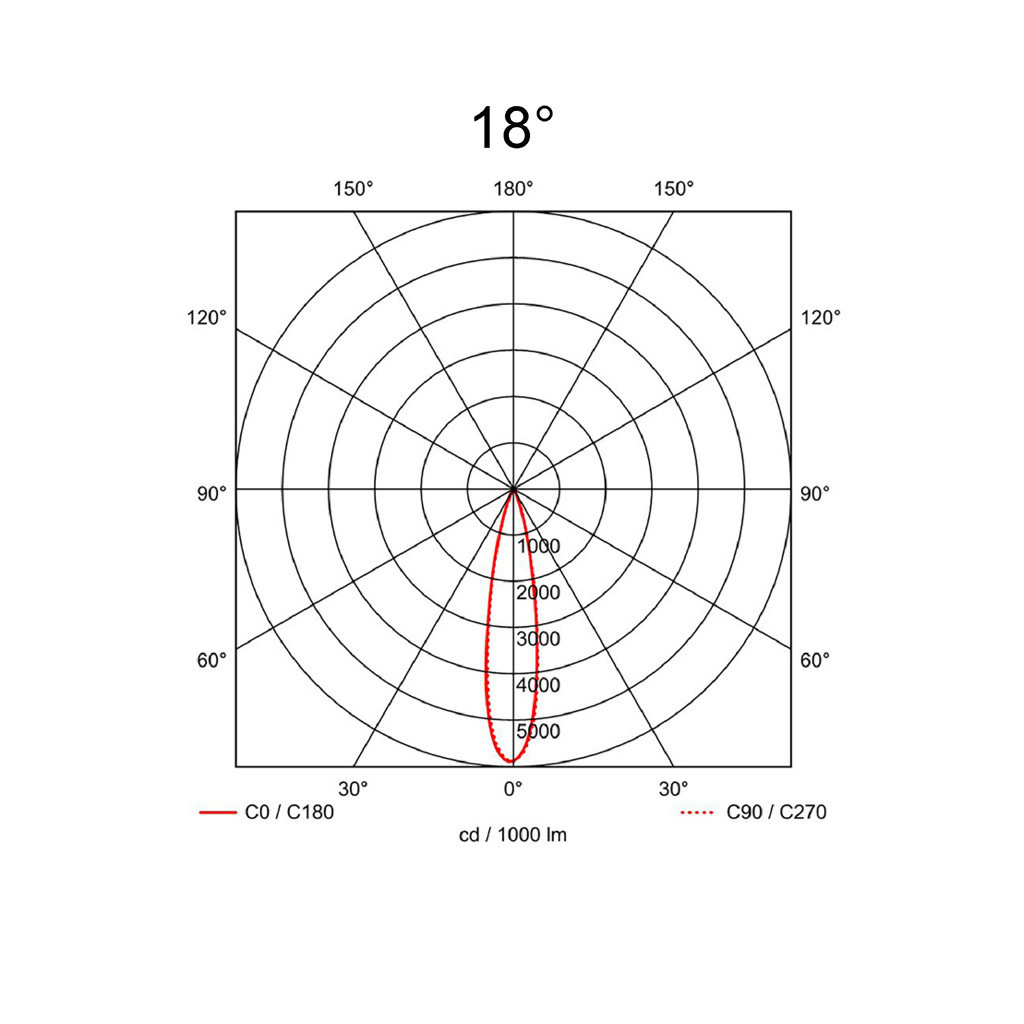

18°

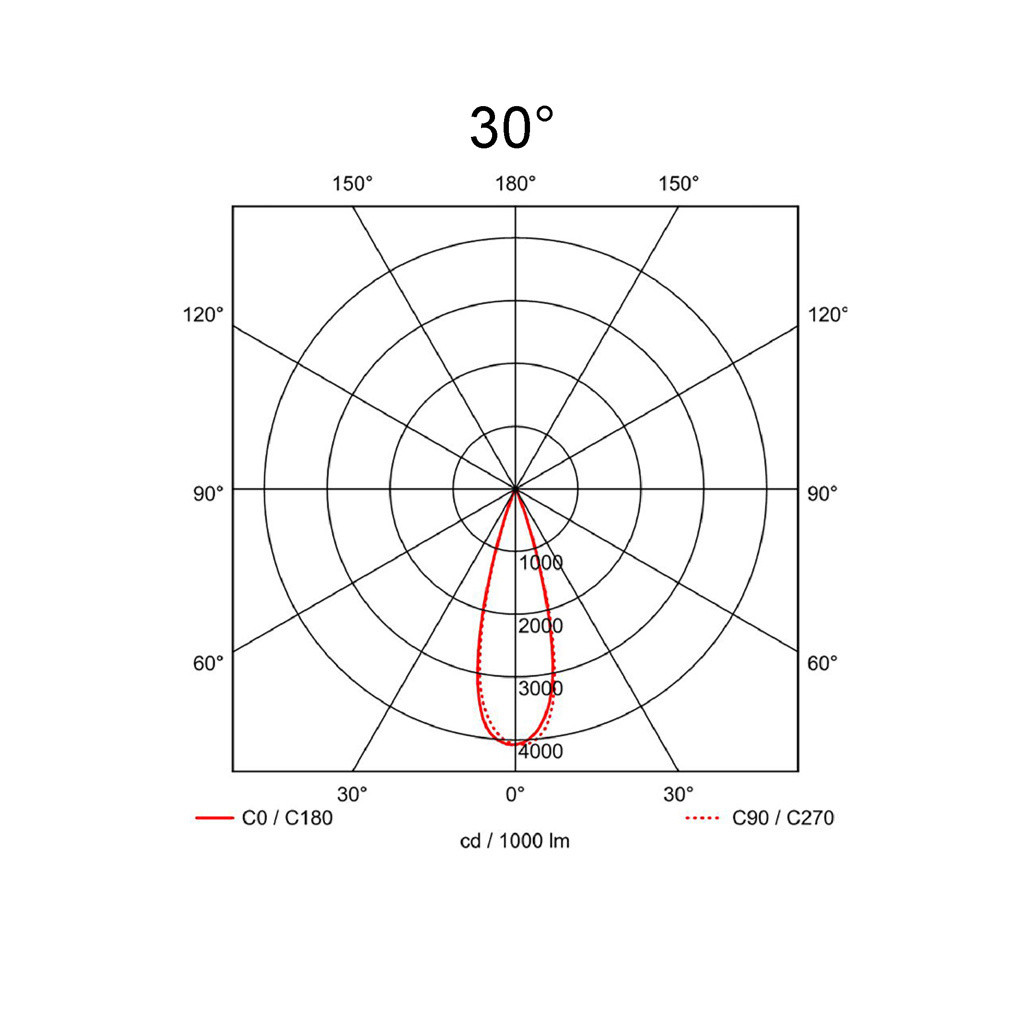

30°

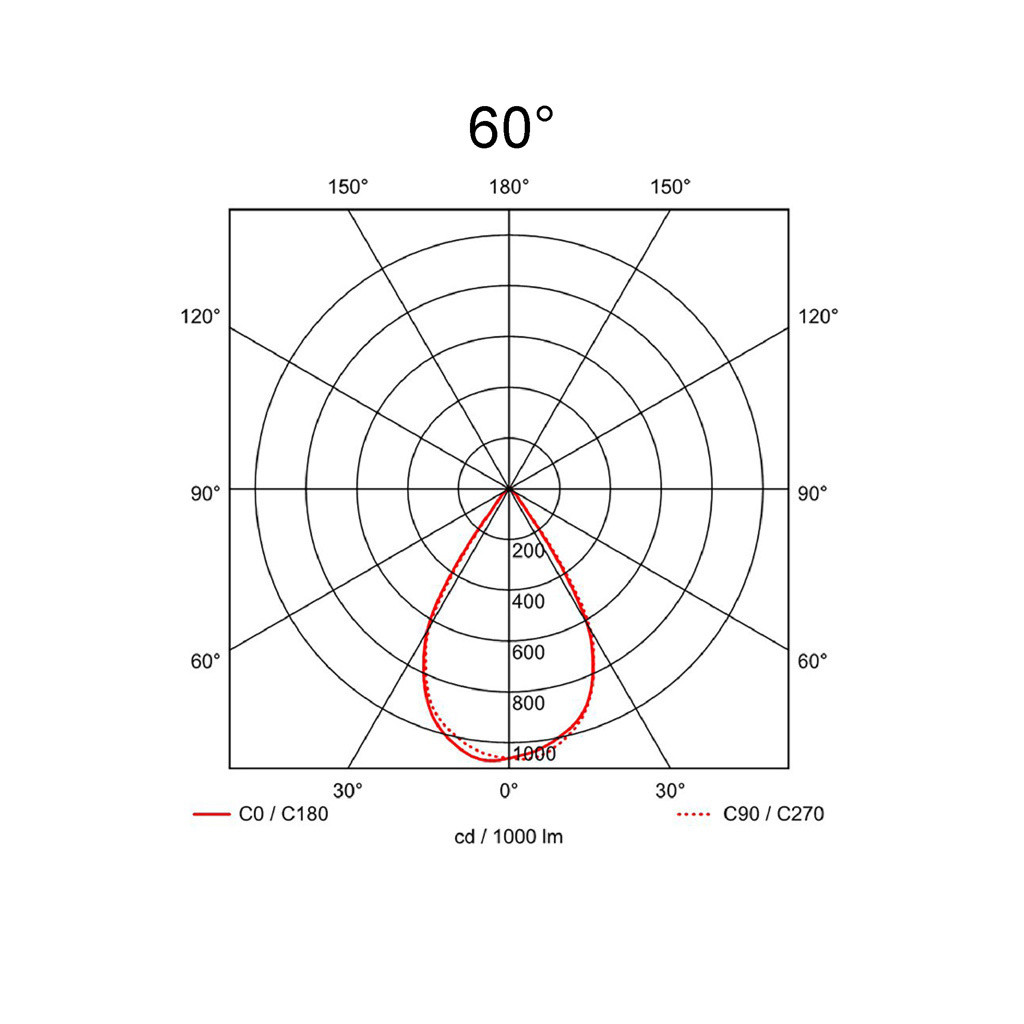

60°
