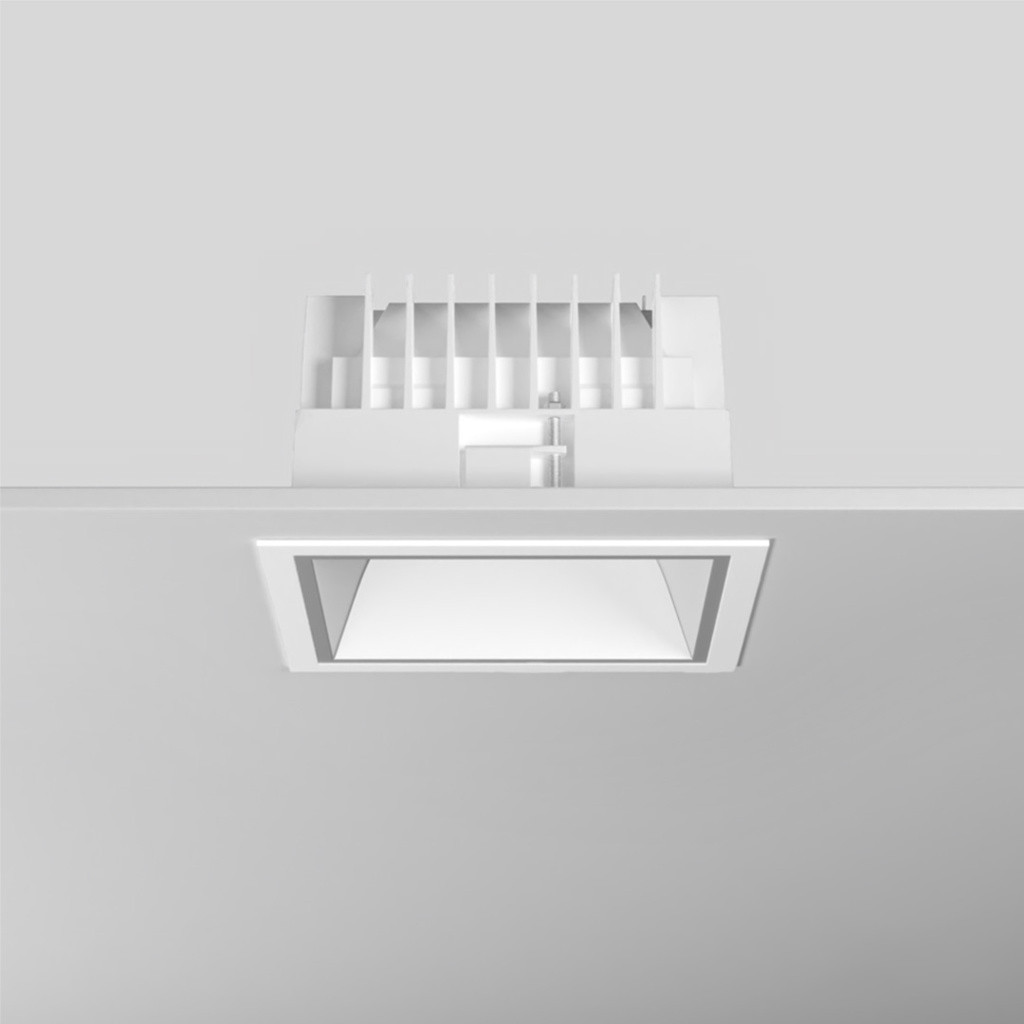

NEBULA150SQ-28W-WH-4K-DALI-B-EM
High Powered Recessed Downlight
Downlights
CATEGORYInterior
PRODUCT RANGENEBULA
COLORWhite
NEBULA150-SQ is a high-powered, UGR<19 recessed downlight, constructed from Aluminium and rated to IP54. A deep recessed design finished in white, with a choice of interchangeable reflectors to suit your requirements. Once installed this fixture has a detachable rear case facilitating an ease of maintenance. Attractive appearance while providing great efficiency, ideal for commercial and residential environments. The product is supplied with a 70° optic as standard. Orlight does not recommend cutting of holes prior to receipt of product in hand.
Optical Performance
Wattage28W
Lumen Output3108LM
Efficacy111LM/W
CCT4000K
CRICRI > 85
Binning2 STEP MACADAMS
Beam Angle70°
UGRUGR < 19
ChipsetCITIZEN LED CHIPSET
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current700MA
Driver ConfigurationREMOTE
ControlDALI DIMMABLE
Construction
InstallationRECESSED
ConstructionALUMINIUM
Length168 MM
Width / Depth168 MM
Height100 MM
Cutout150 MM X 150 MM
Weight0.689KG
TiltFIXED
FinishWHITE
RALRAL 9016
IP RatingIP54
Operating Ambient Temperature-20˚C - +35˚C
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen341LM

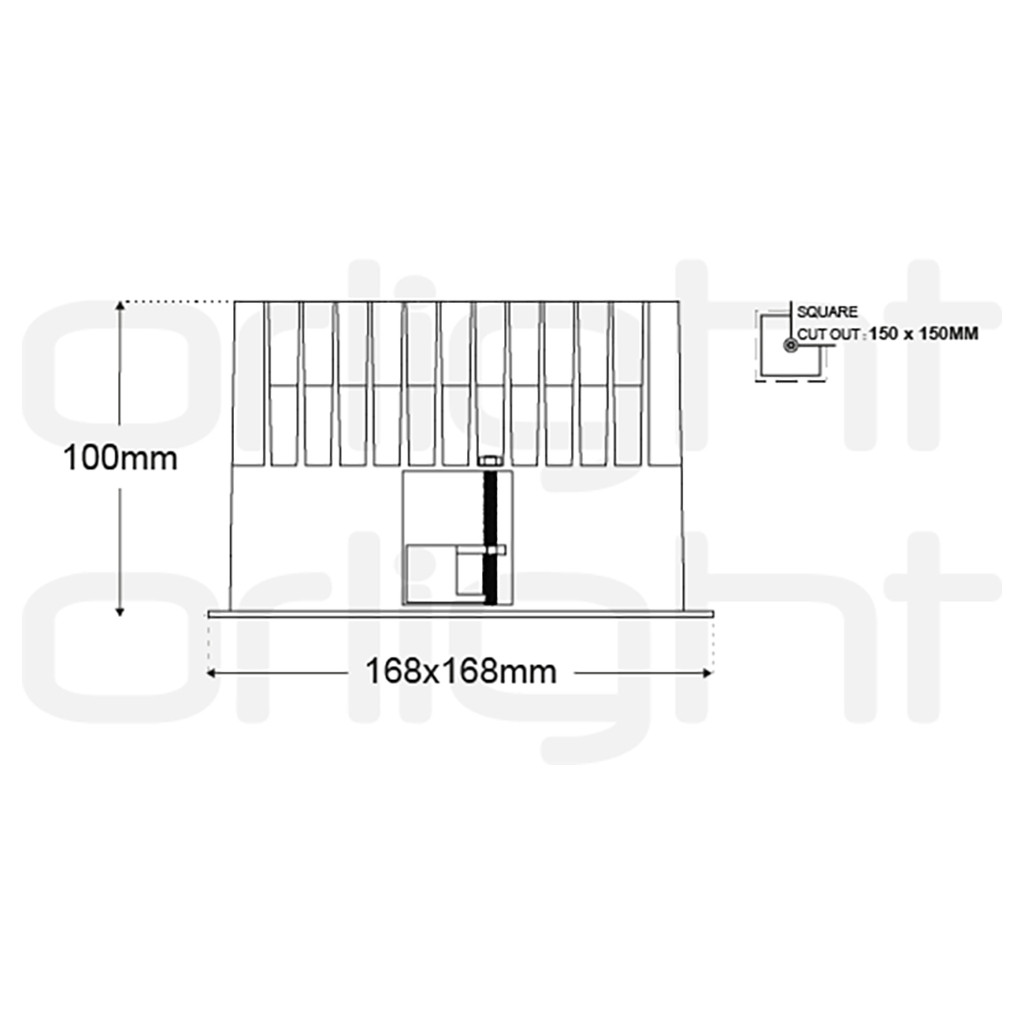

Dimensions

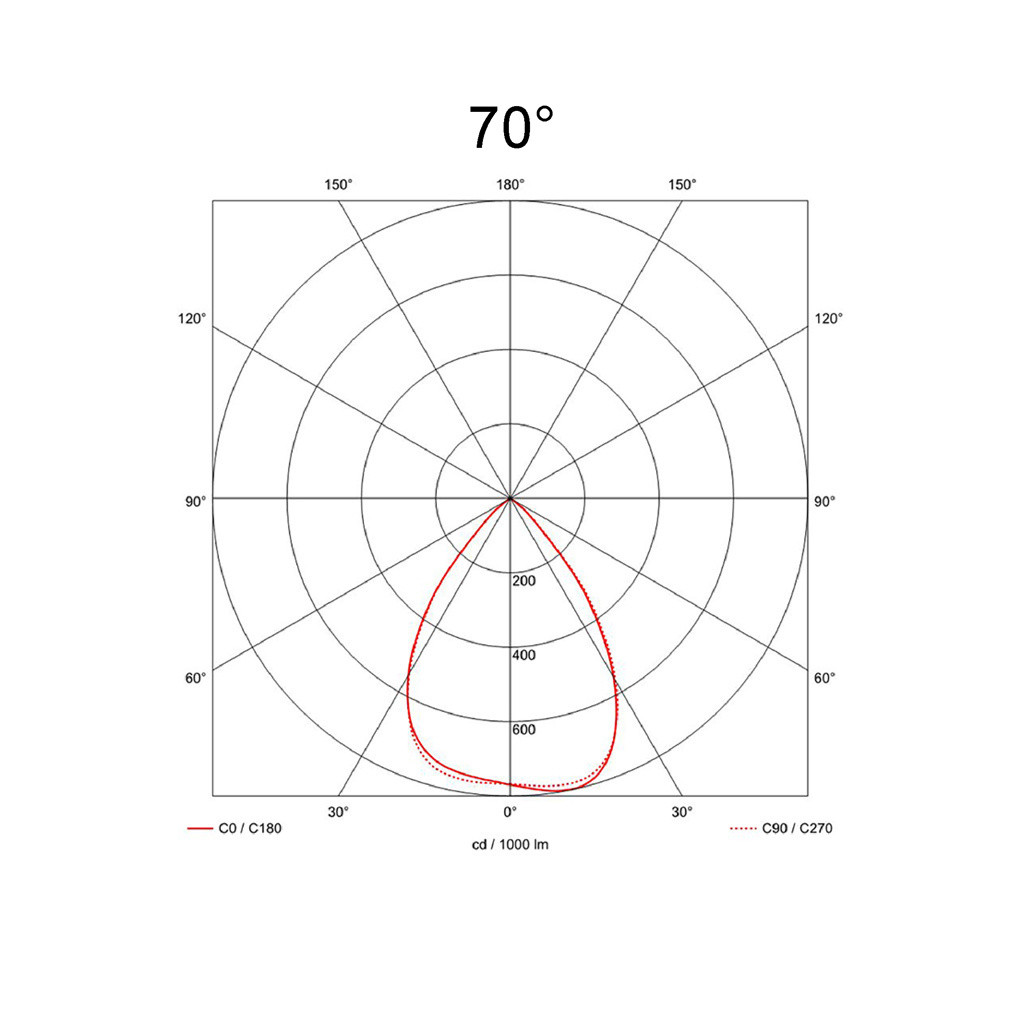

Light Distribution
70°
