NEBULADQSUS-WH-14W-4K-DALI-B-EM
Suspended Fixture
Downlights
CATEGORYInterior
PRODUCT RANGENEBULA SUSPENDED
COLORWhite
NEBULADQ-SUS-200 is a UGR<19, suspended downlight constructed from Aluminium which provides a downward light distribution. This downlight features a high lumen output and CRI>85 for light quality assurance. The product is supplied with a 60° optic as standard.
Optical Performance
Wattage14W
Lumen Output1778LM
Efficacy127LM/W
CCT4000K
CRICRI > 85
Binning2 STEP MACADAMS
Beam Angle60°
UGRUGR < 19
ChipsetCITIZEN LED CHIPSET
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current350MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSUSPENDED
ConstructionALUMINIUM
Diameter210 MM
Width / Depth220 MM
Height756 MM
TiltFIXED
FinishWHITE
RALRAL 9016
IP RatingIP20
Operating Ambient Temperature-20˚C - +35˚C
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen373LM

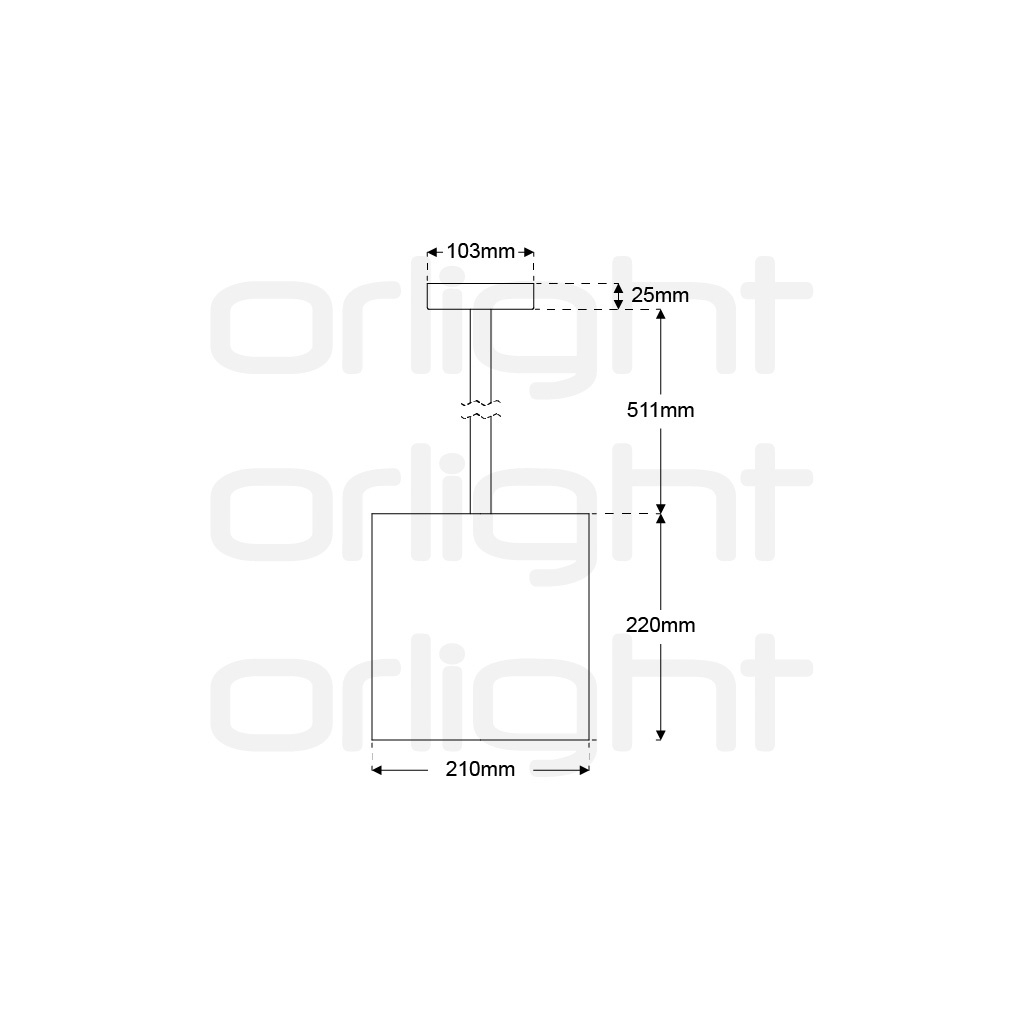

Dimensions

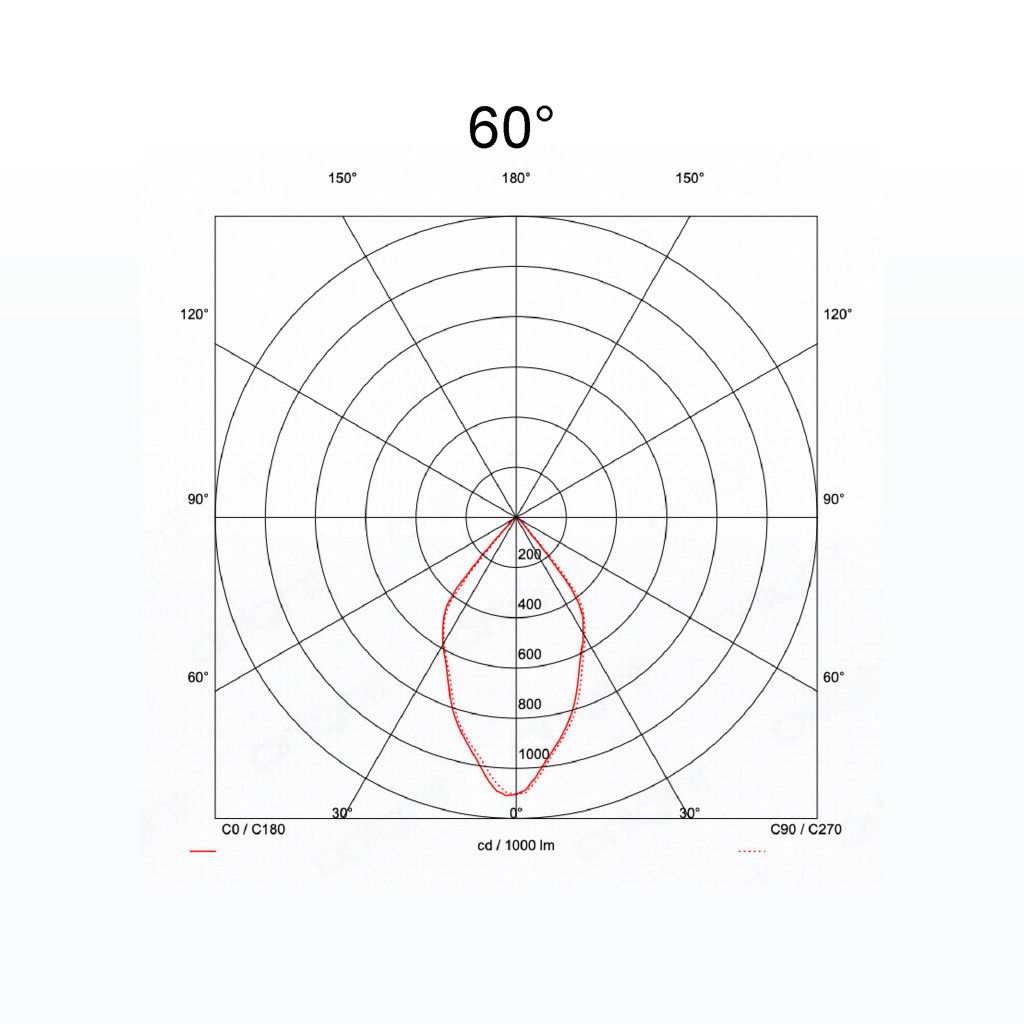

Light Distribution
60°
