NEBULADQSUS-DUO-BL-39W-4K-EM
Suspended Fixture
Downlights
CATEGORYInterior
PRODUCT RANGENEBULA SUSPENDED
COLORBlack
NEBULADQ-SUS-DUO-200 is a UGR<19, suspended downlight constructed from Aluminium which provides up and down directional light distribution. This downlight features a high lumen output and CRI>85 for light quality assurance. The product is supplied with a 60° optic as standard. Emergency option available.
Optical Performance
Wattage39W
Lumen Output4836LM
Efficacy124LM/W
CCT4000K
CRICRI > 85
Binning2 STEP MACADAMS
Beam Angle60°
UGRUGR < 19
ChipsetCITIZEN LED CHIPSET
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current↓ 700MA | ↑ 300MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSUSPENDED
ConstructionALUMINIUM
Diameter210 MM
Width / Depth220 MM
Height756 MM
TiltFIXED
FinishBLACK
RALRAL 9005
IP RatingIP20
Operating Ambient Temperature-20˚C - +35˚C
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen283LM DOWN ONLY

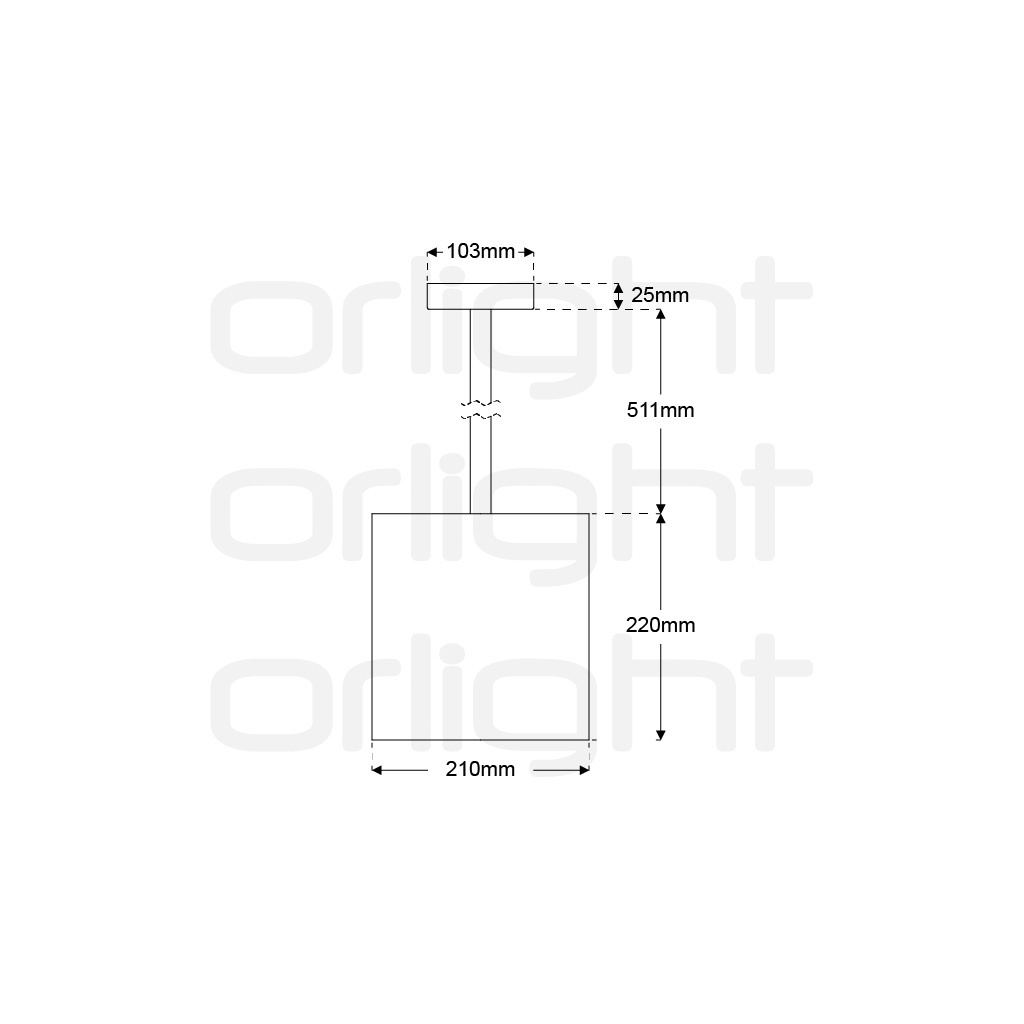

Dimensions

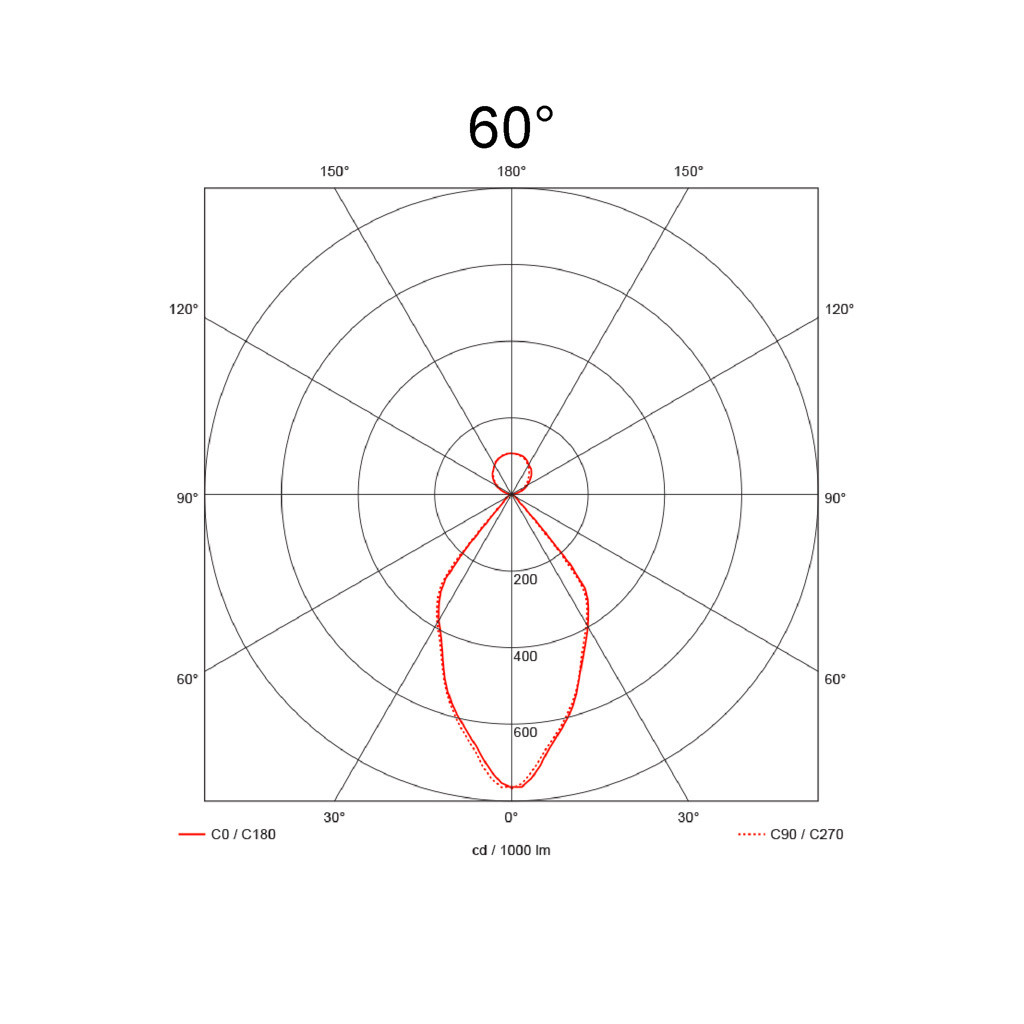

Light Distribution
60°
