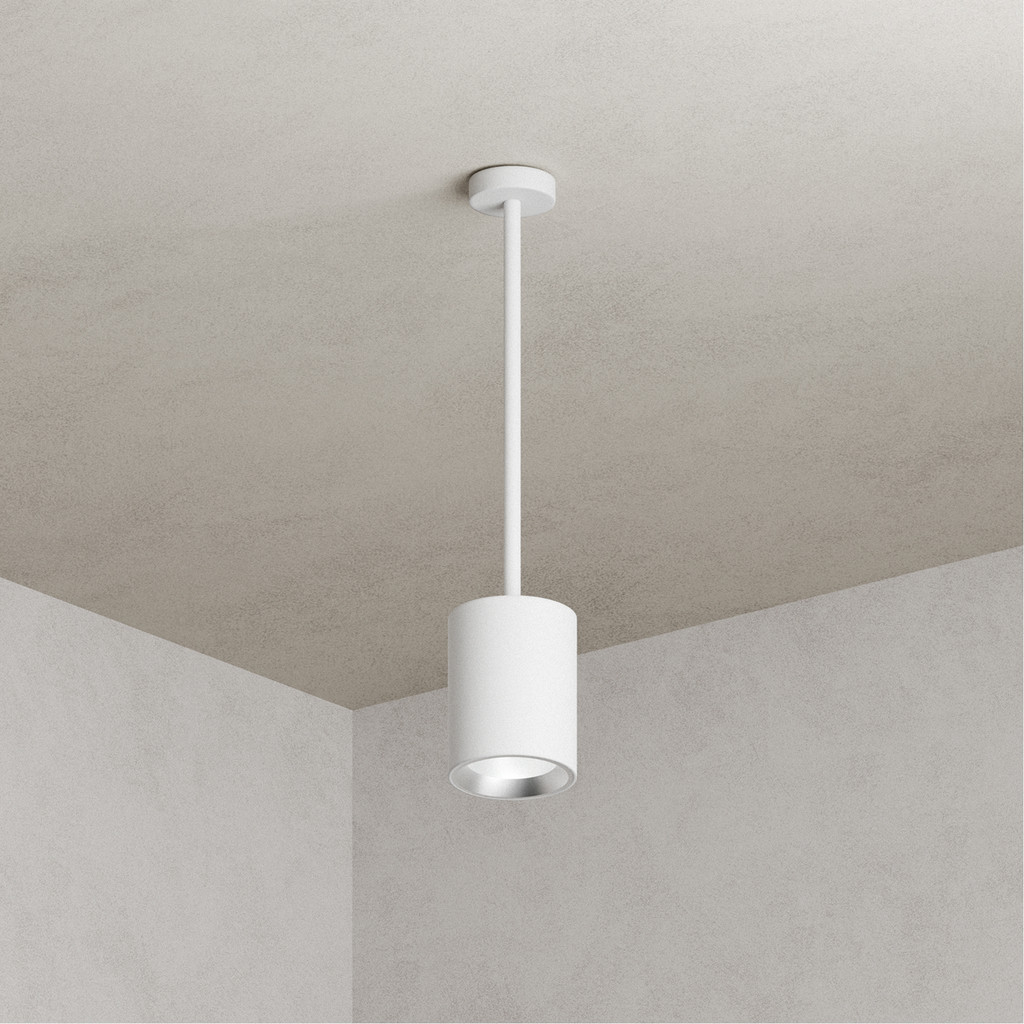

NEBULADQ-150-SUS-21W-WH-3K-DALIB-EM
Suspended Fixture
Downlights
CATEGORYInterior
PRODUCT RANGENEBULA SUSPENDED
COLORWhite
NEBULADQ-SUS-150 is a high-performance UGR<19 suspended LED downlight, engineered from durable aluminium to deliver uniform downward light distribution. With a high lumen output and CRI >85, it ensures excellent visual clarity and light quality across commercial and architectural applications. The product is supplied with a 30° optic as standard. 60° optic available to order. The emergency versions are supplied with remote emergency gear, supporting streamlined installation while maintaining a minimalist suspended profile.
Optical Performance
Wattage21W
Lumen Output2478LM
Efficacy118LM/W
CCT3000K
CRICRI > 85
Binning2 STEP MACADAMS
Beam Angle30° / 60°
UGRUGR < 19
ChipsetCITIZEN LED CHIPSET
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current500MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSUSPENDED
ConstructionALUMINIUM
Diameter150 MM
Height200 MM
Weight2.8KG
TiltFIXED
FinishWHITE
RALRAL 9016
IP RatingIP20
Operating Ambient Temperature-20˚C - +35˚C
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen372LM

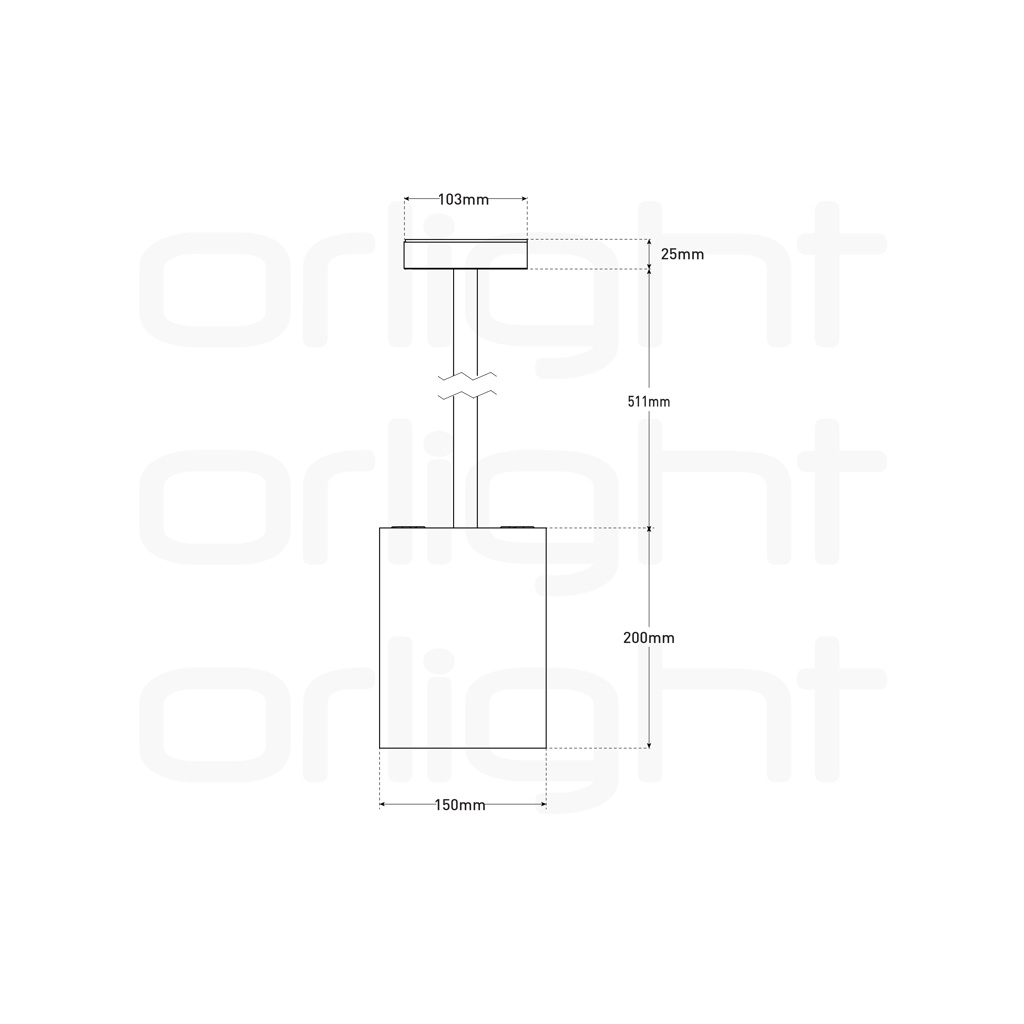

Dimensions
Light Distribution

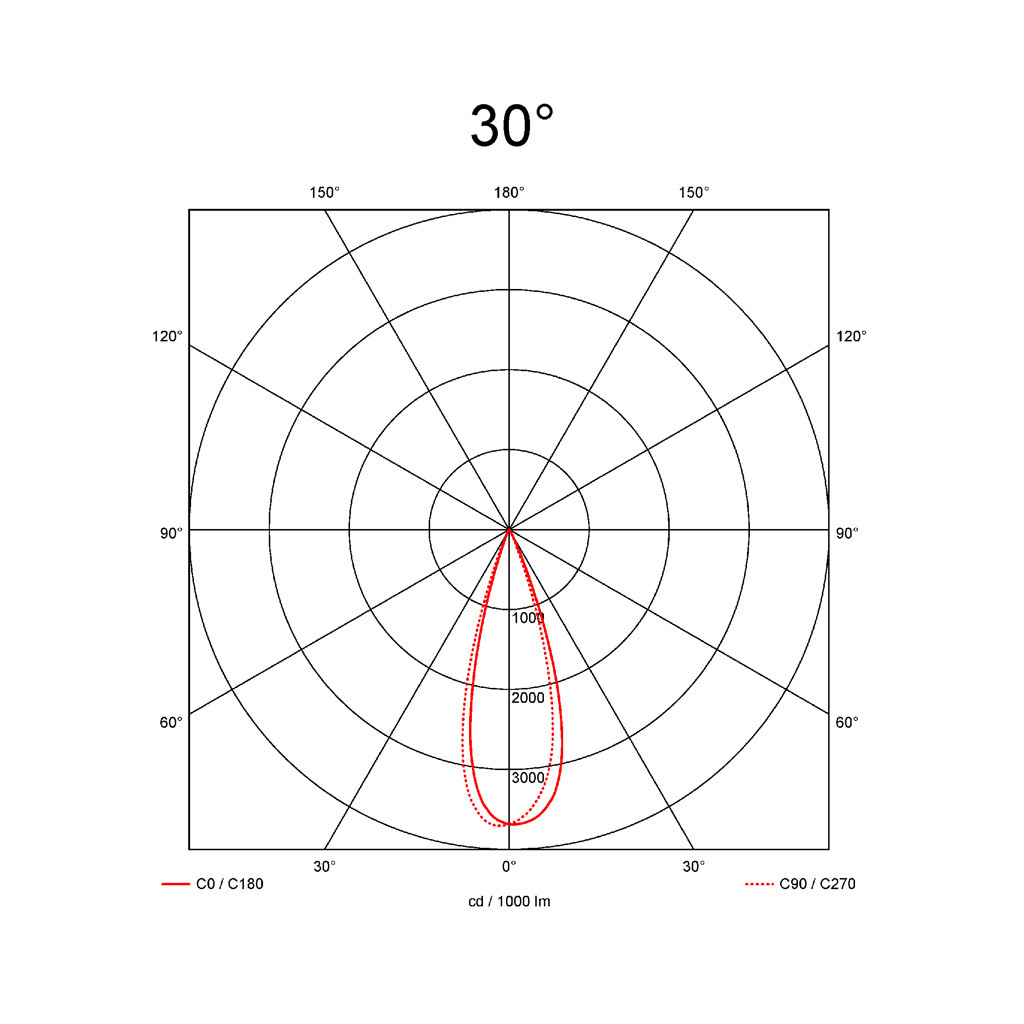

30°

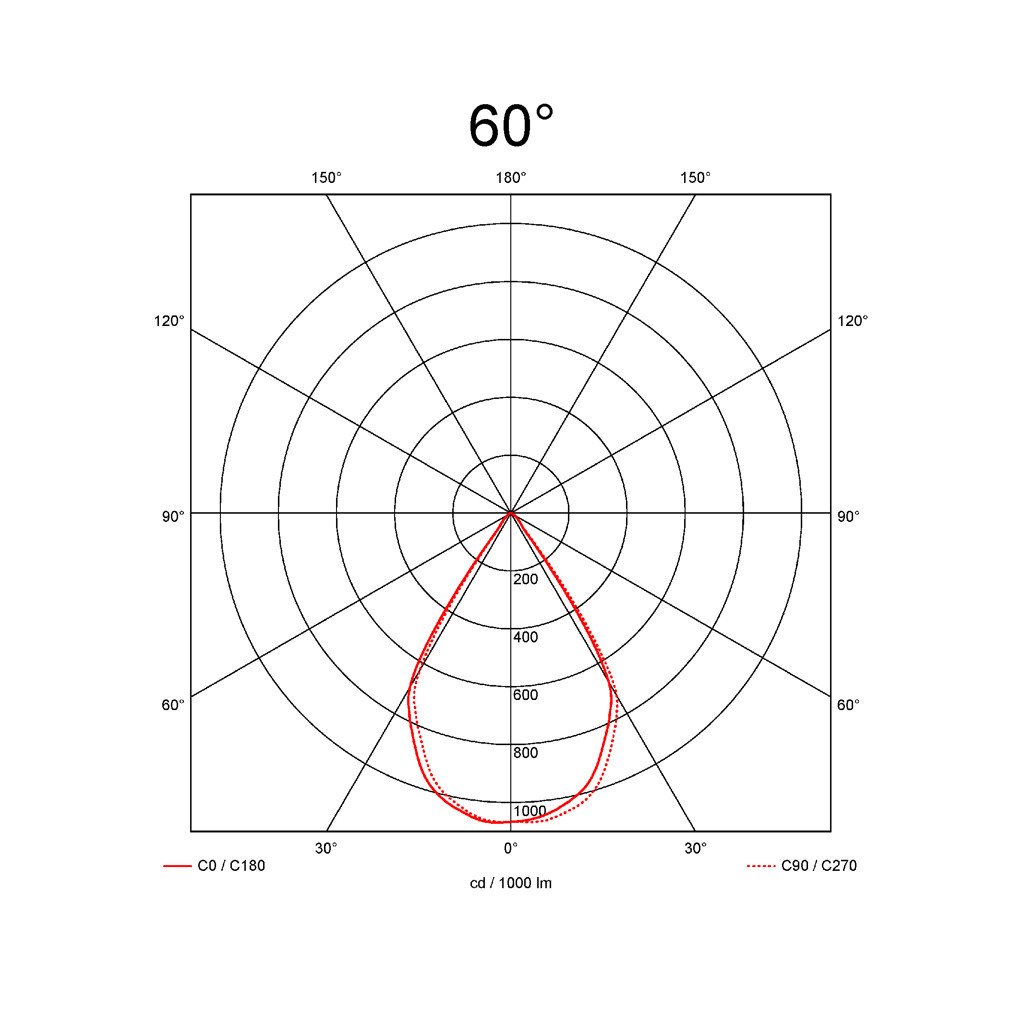

60°
