NEBULADQ-SF-BL-27W-4K
Surface Mounted Fixture
Downlights
CATEGORYInterior
PRODUCT RANGENEBULA SURFACE
COLORBlack
NEBULADQ-SF-200 is a UGR<19, surface mounted downlight, constructed from Aluminium which provides a downward directional light distribution. This downlight features a high lumen output and CRI >85 for light quality assurance. The product is supplied with a 60° optic as standard. Emergency option available.
Optical Performance
Wattage27W
Lumen Output2862LM
Efficacy106LM/W
CCT4000K
CRICRI > 85
Binning2 STEP MACADAMS
Beam Angle60°
UGRUGR < 19
ChipsetCITIZEN LED CHIPSET
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current700MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE
ConstructionALUMINIUM
Diameter210 MM
Height220 MM
Weight3.32KG
TiltFIXED
FinishBLACK
RALRAL 9005
IP RatingIP20
Operating Ambient Temperature-20˚C - +35˚C
Emergency
EmergencyAVAILABLE
Emergency ConfigurationINTEGRAL

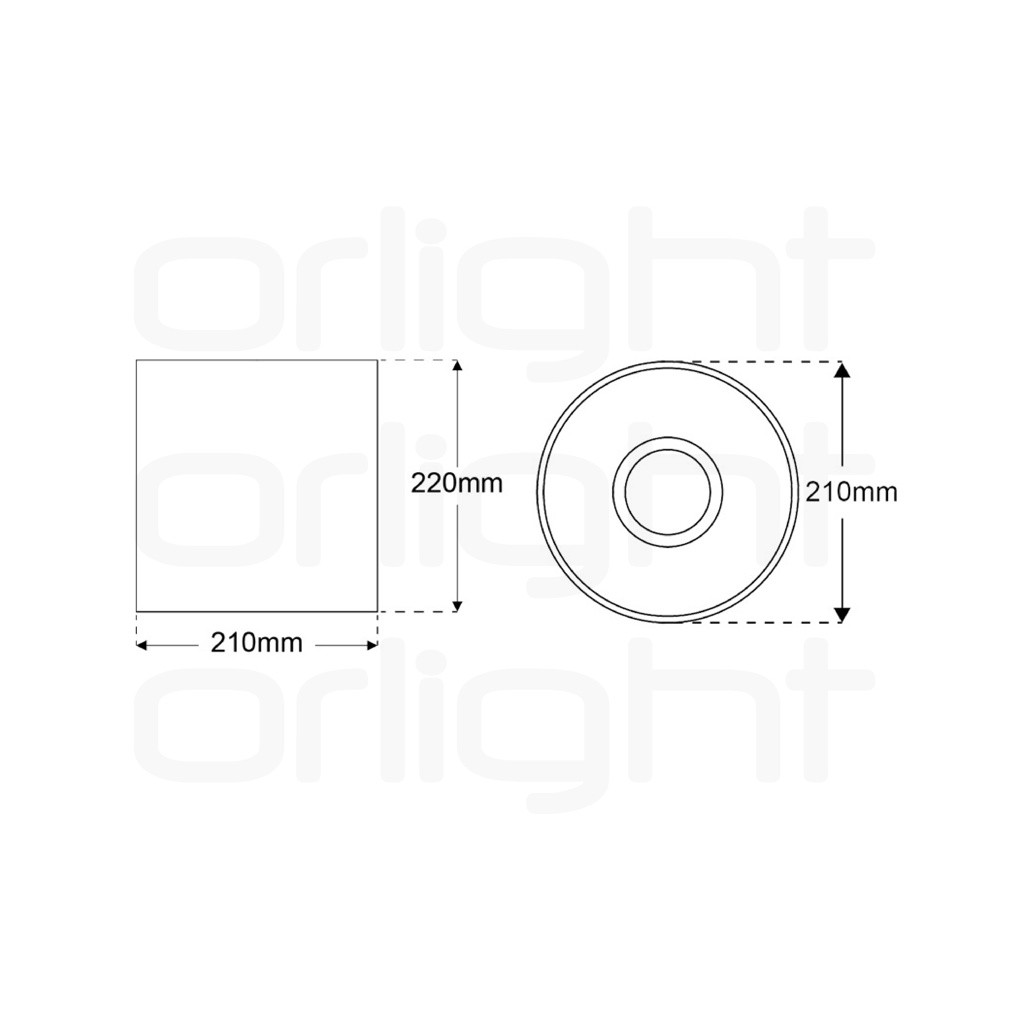

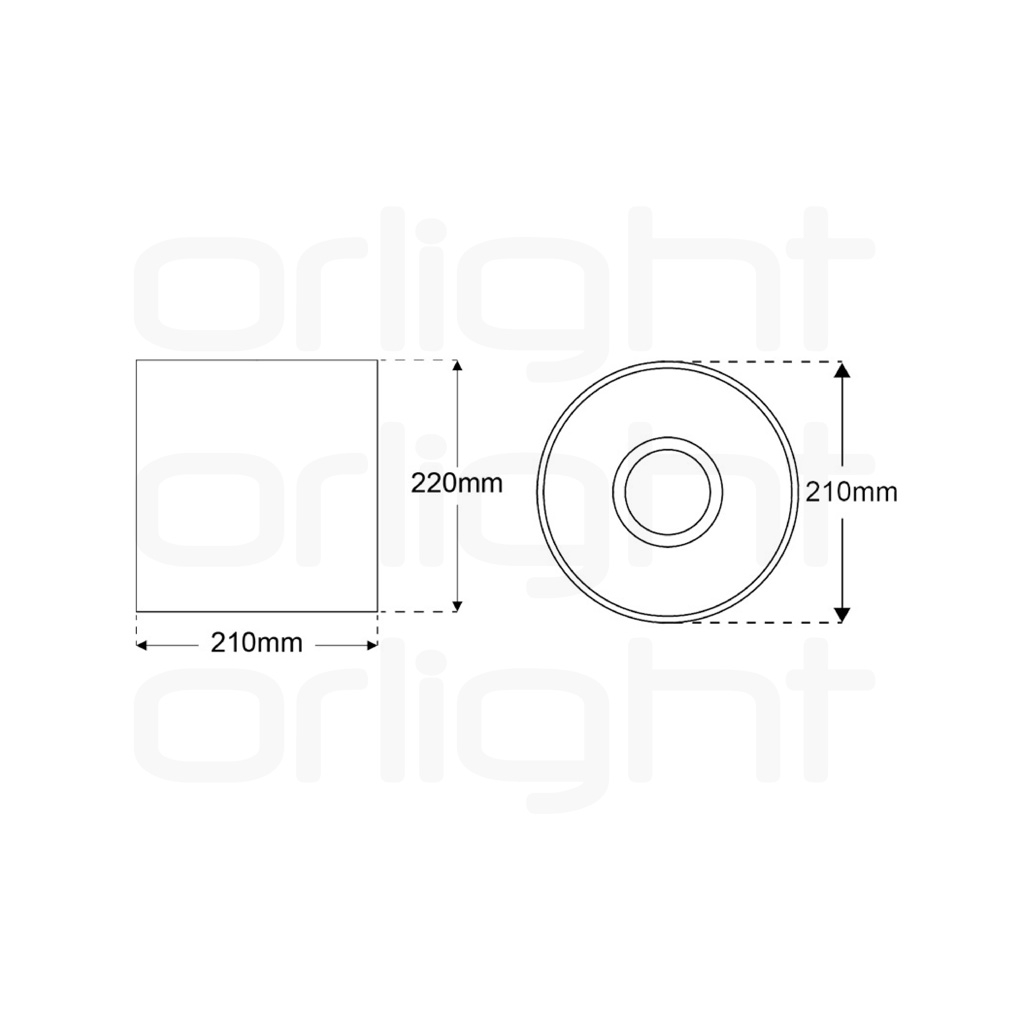

Dimensions

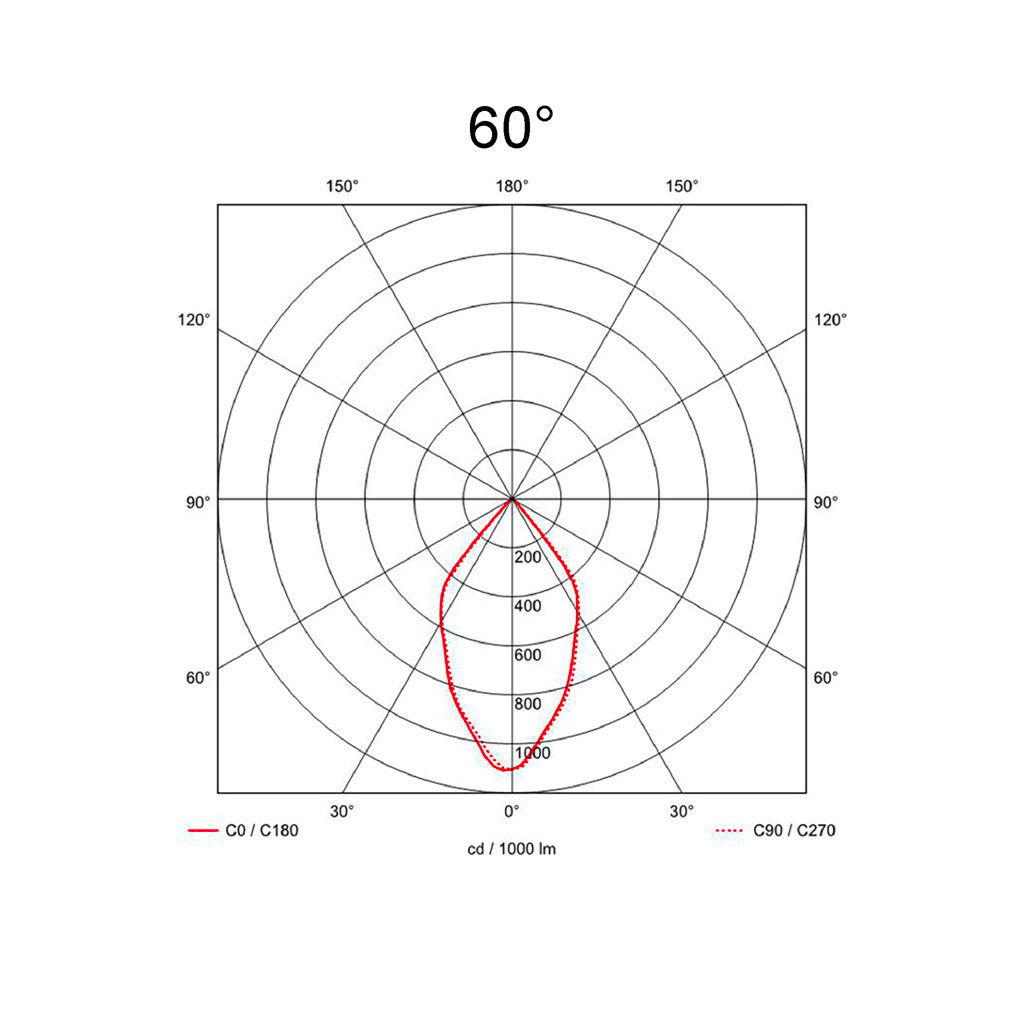

Light Distribution
60°
