NEBULADQ-150-SF-15W-BL-4K-EM
Surface Mounted Fixture
Downlights
CATEGORYInterior
PRODUCT RANGENEBULA SURFACE
COLORBlack
NEBULADQ-SF-150 is a UGR<19, surface mounted downlight constructed from Aluminium which provides a downward directional light distribution. This downlight features a high lumen output and CRI >85 for light quality assurance. The product is supplied with a 30° optic as standard. 60° optic available to order.
Optical Performance
Wattage15W
Lumen Output1890LM
Efficacy126LM/W
CCT4000K
CRICRI > 85
Binning2 STEP MACADAMS
Beam Angle30° / 60°
UGRUGR < 19
ChipsetCITIZEN LED CHIPSET
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current350MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE
ConstructionALUMINIUM
Diameter150 MM
Height200 MM
Weight2.25KG
TiltFIXED
FinishBLACK
RALRAL 9005
IP RatingIP20
Operating Ambient Temperature-20˚C - +35˚C
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen378LM

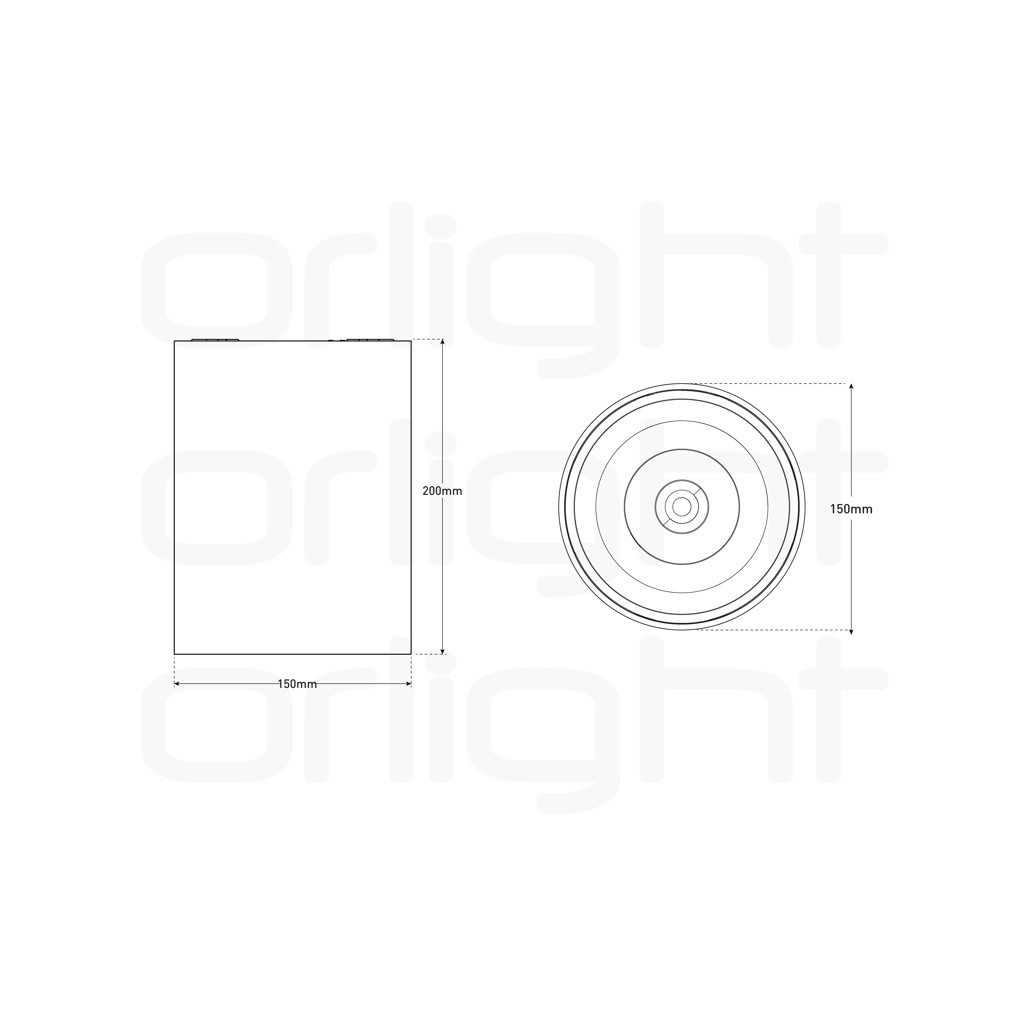

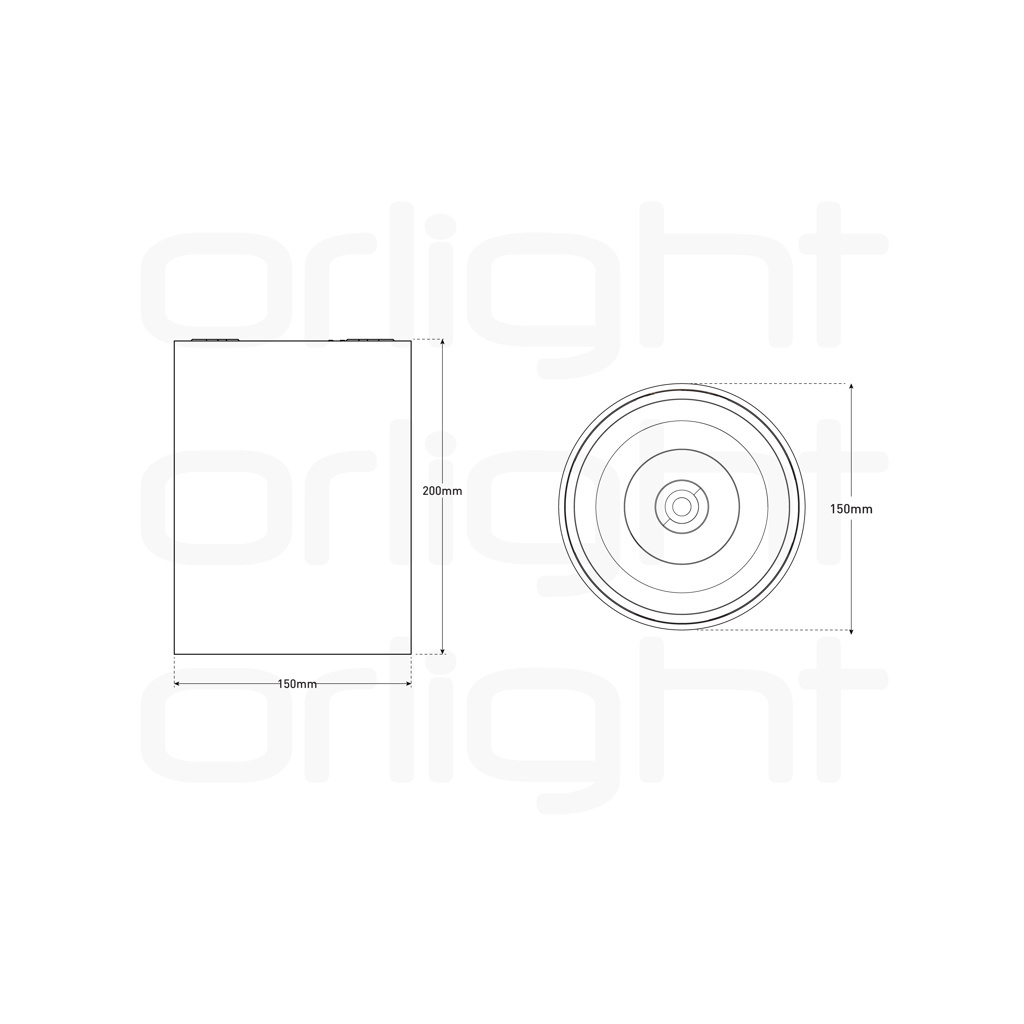

Dimensions
Light Distribution

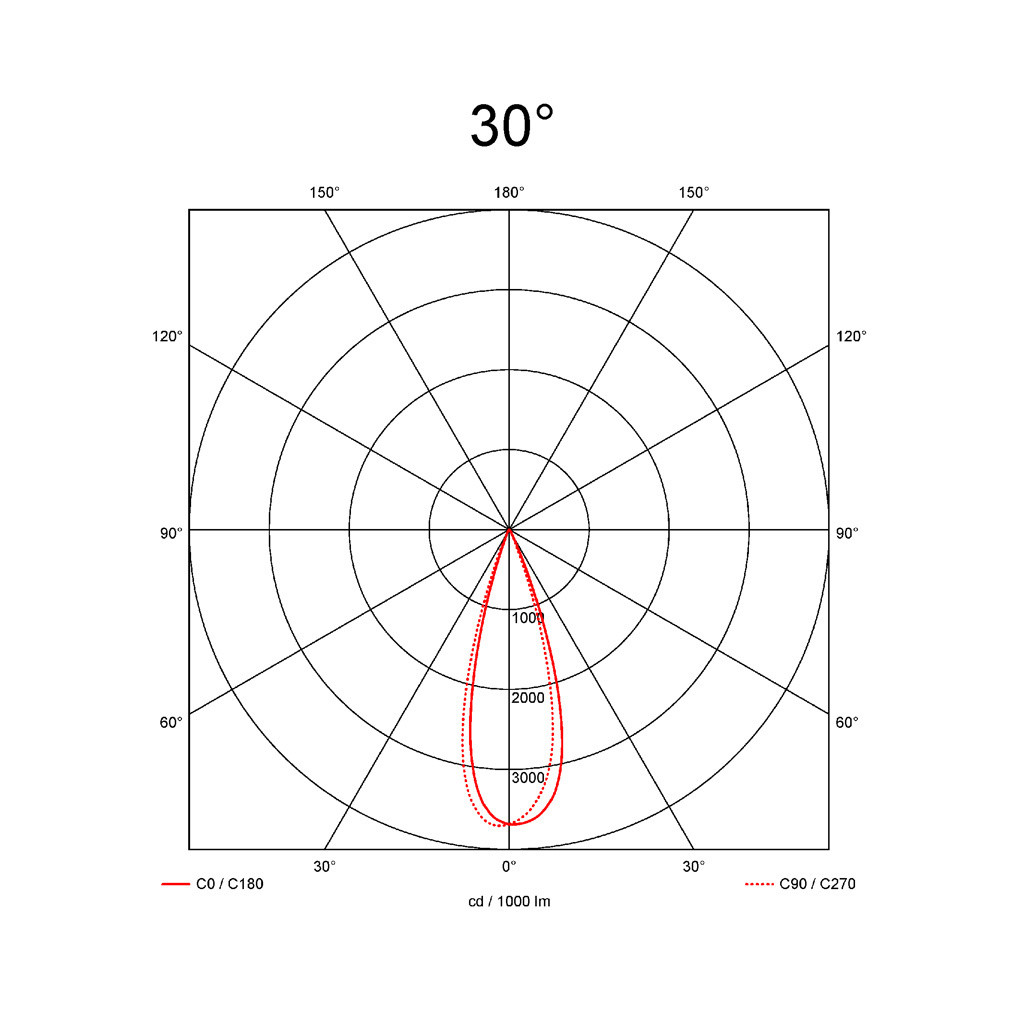

30°

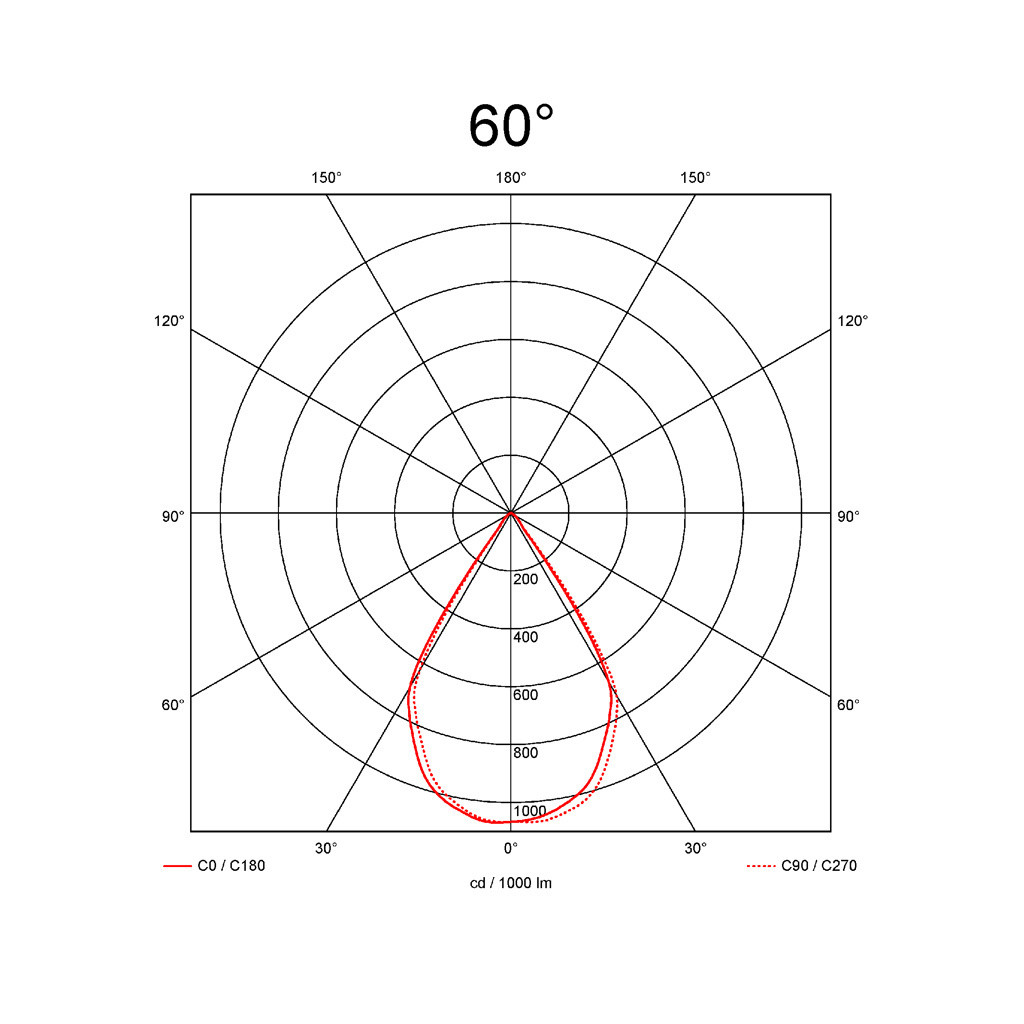

60°
