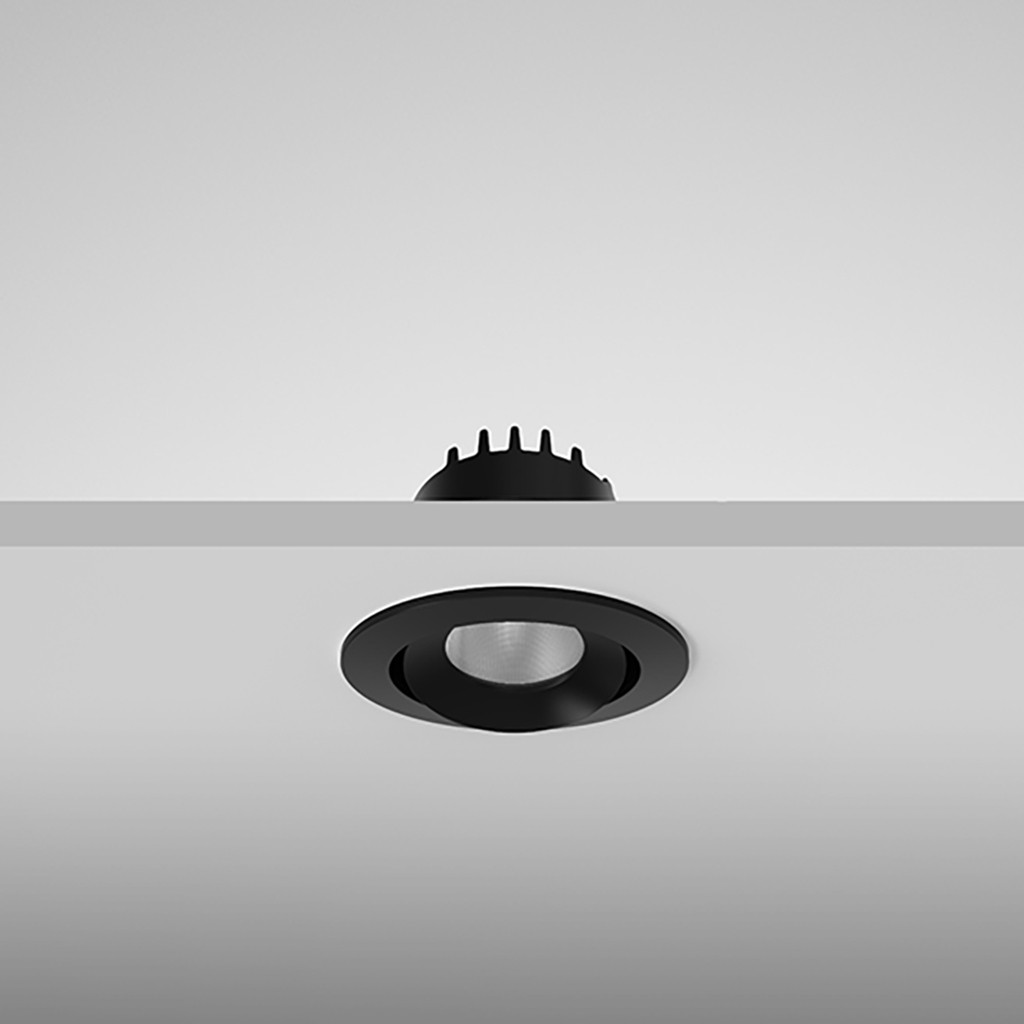

MICRO-TL-BL-3000K
Compact 4W Recessed Downlight
Downlights
CATEGORYInterior
PRODUCT RANGEMICRO
COLORBlack
4W miniature adjustable solid-state fixture with a cutout size of 44mm. Constructed from Aluminium, rated to IP20 and finished in either black or white. This downlight is available in a variety of colour temperatures and CRI>90 provides light quality assurance. Switched/Mains Dimmable driver included. Orlight does not recommend cutting of holes prior to receipt of product in hand.
Optical Performance
Wattage4W
Lumen Output357LM
Efficacy89LM/W
CCT3000K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle48°
UGRUGR < 12
ChipsetCOB LED
Chip LifeL80 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage17V
Milliamp / Current180MA
Driver ConfigurationREMOTE
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter50 MM
Height35 MM
Cutout44 MM
Weight0.065KG
Tilt20°
Rotation360°
FinishBLACK
RALRAL 9005
IP RatingIP20
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE

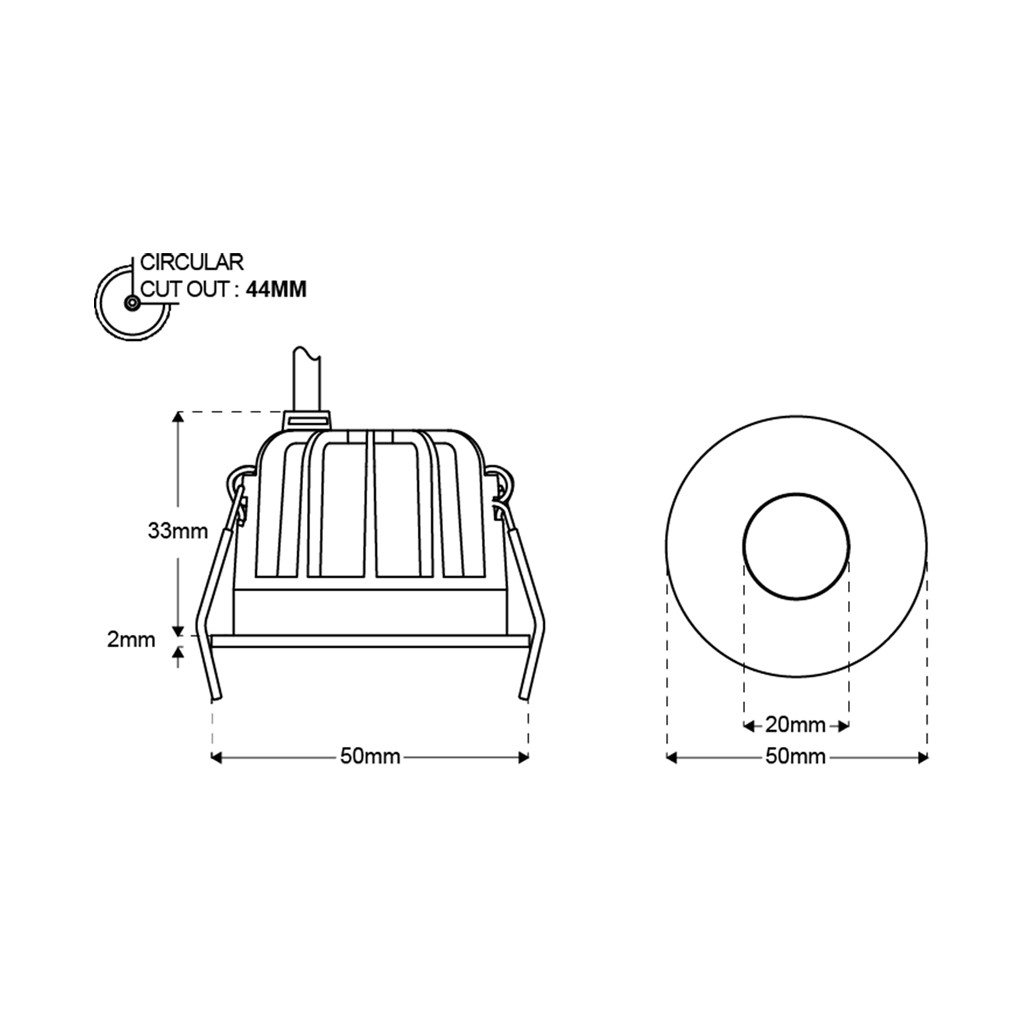

Dimensions

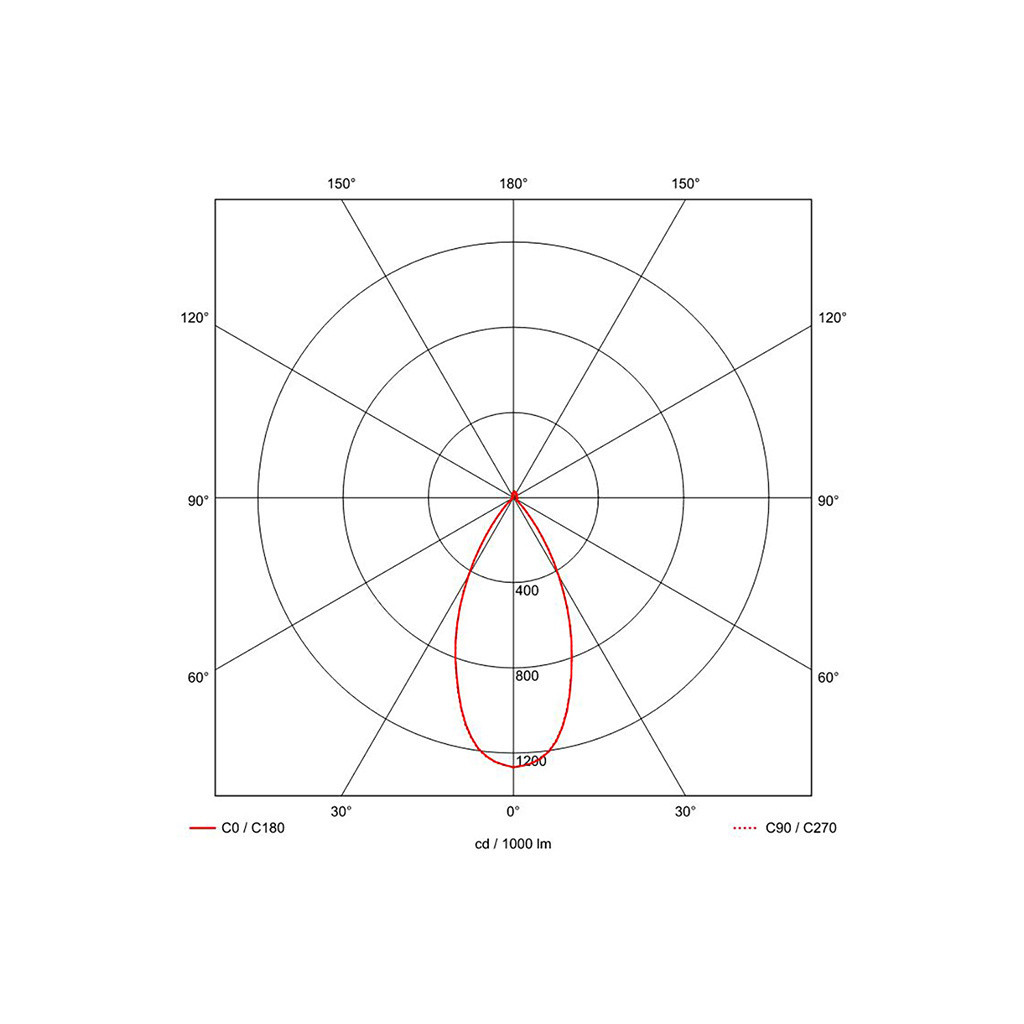

Light Distribution
48°
