GRAFIK5-IP65-BL-BL-2700K-DALI-B-EM
Pod Recessed LED Linear Downlight
Downlights
CATEGORYInterior
PRODUCT RANGEGRAFIK
COLORBlack

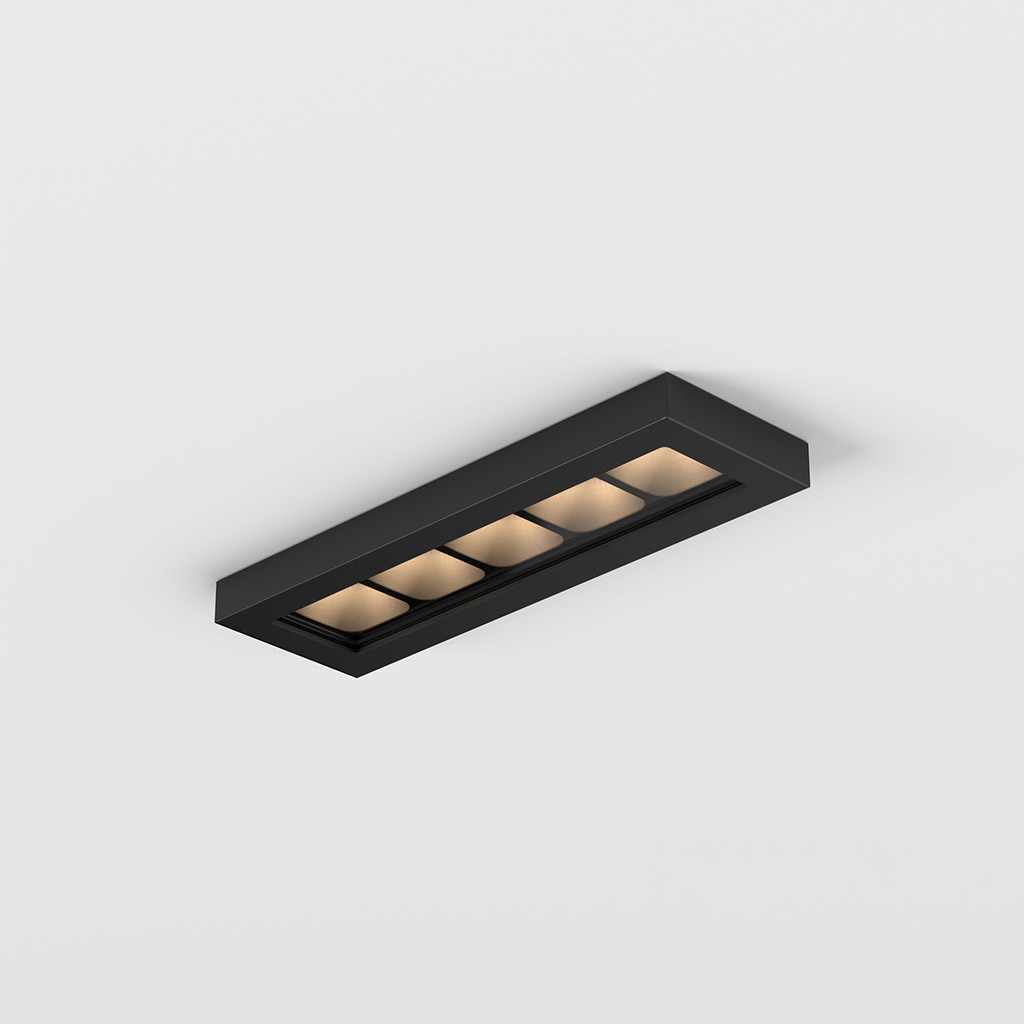

Grafik 5 Pod IP65 is a recessed linear LED downlight, constructed from Aluminium and finished in Black. Available in a variety of colour temperatures and CRI>90, providing light quality assurance. Please Note: This product does not support hot plugging. Orlight does not recommend cutting of holes prior to receipt of product in hand.
Optical Performance
Wattage12W
Lumen Output720LM
Efficacy60LM/W
CCT2700K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle40°
UGRUGR < 19
ChipsetOSRAM LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage16V
Milliamp / Current700MA
Driver ConfigurationREMOTE
ControlDALI DIMMABLE
Construction
InstallationRECESSED
ConstructionALUMINIUM
Length152 MM
Width / Depth45 MM
Height58 MM
Cutout146 MM X 35 MM
TiltFIXED
FinishBLACK
RALRAL 9005
IP RatingIP65
Operating Ambient Temperature-20˚C - +35˚C
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen177LM

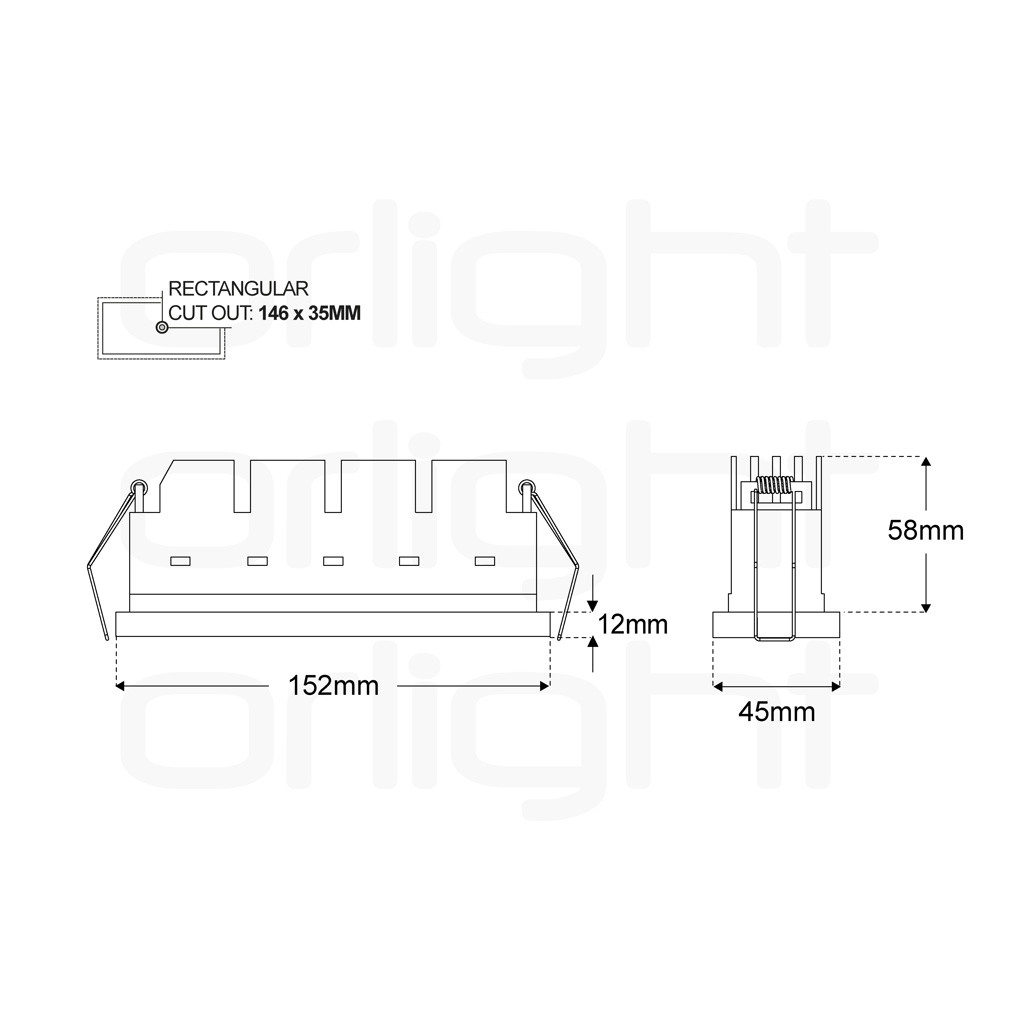

Dimensions

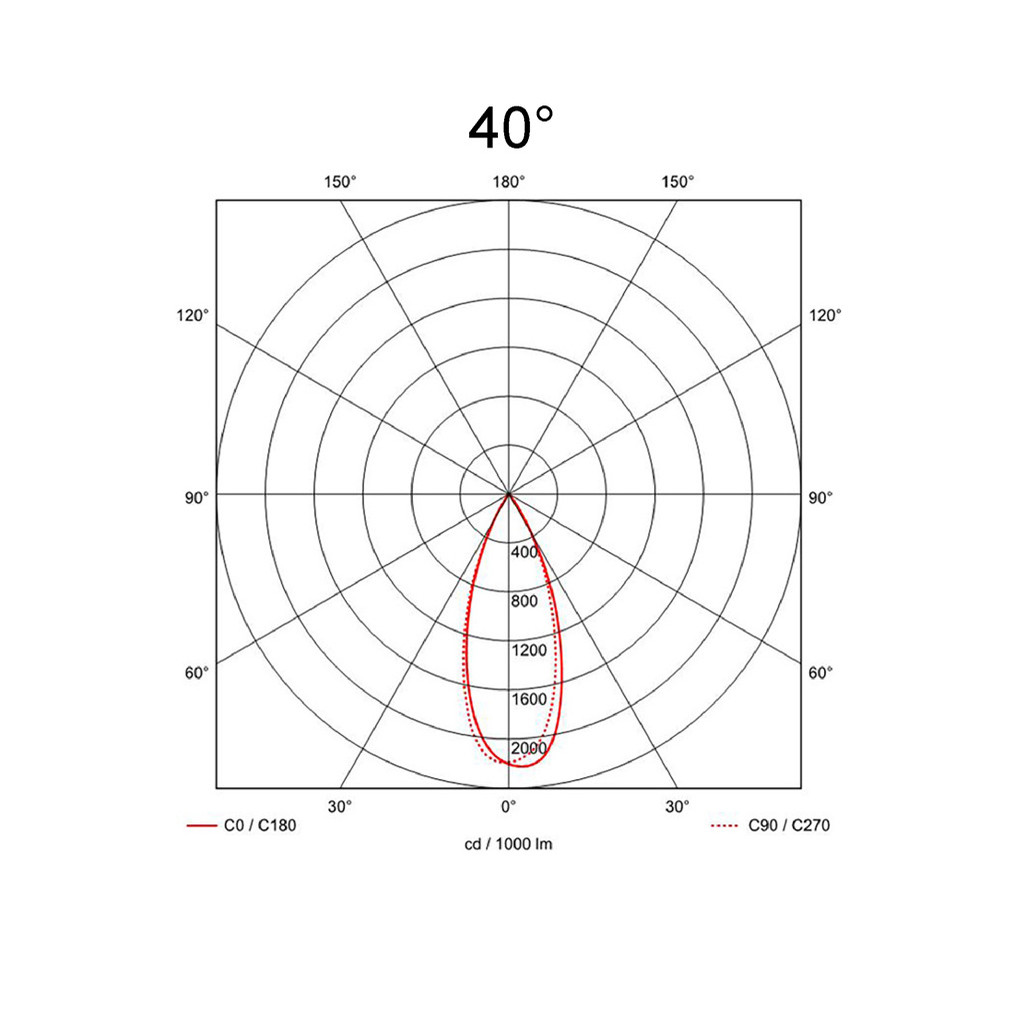

Light Distribution
40°
