GRAFIK1-WH-2700K-EM
Pod Recessed LED Linear Downlight
Downlights
CATEGORYInterior
PRODUCT RANGEGRAFIK
COLORWhite
Orlight’s Grafik range is a perfect combination of lens and reflectors. This recessed LED downlight is constructed from Aluminium, available in a variety of colour temperatures and CRI>90 provides light quality assurance. Finished in white with optional order only reflectors to suit your aesthetical requirements. Please Note: This product does not support hot plugging. Orlight does not recommend cutting of holes prior to receipt of product in hand.
Optical Performance
Wattage3W
Lumen Output162LM
Efficacy54LM/W
CCT2700K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle40°
UGRUGR < 19
ChipsetOSRAM LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage3V
Milliamp / Current700MA
Driver ConfigurationREMOTE
ControlSWITCHED
Construction
InstallationRECESSED
ConstructionALUMINIUM
Length45 MM
Width / Depth45 MM
Height60 MM
Cutout37 MM X 37 MM
TiltFIXED
FinishWHITE
RALRAL 9016
IP RatingIP20
Operating Ambient Temperature-20˚C - +35˚C
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen143LM

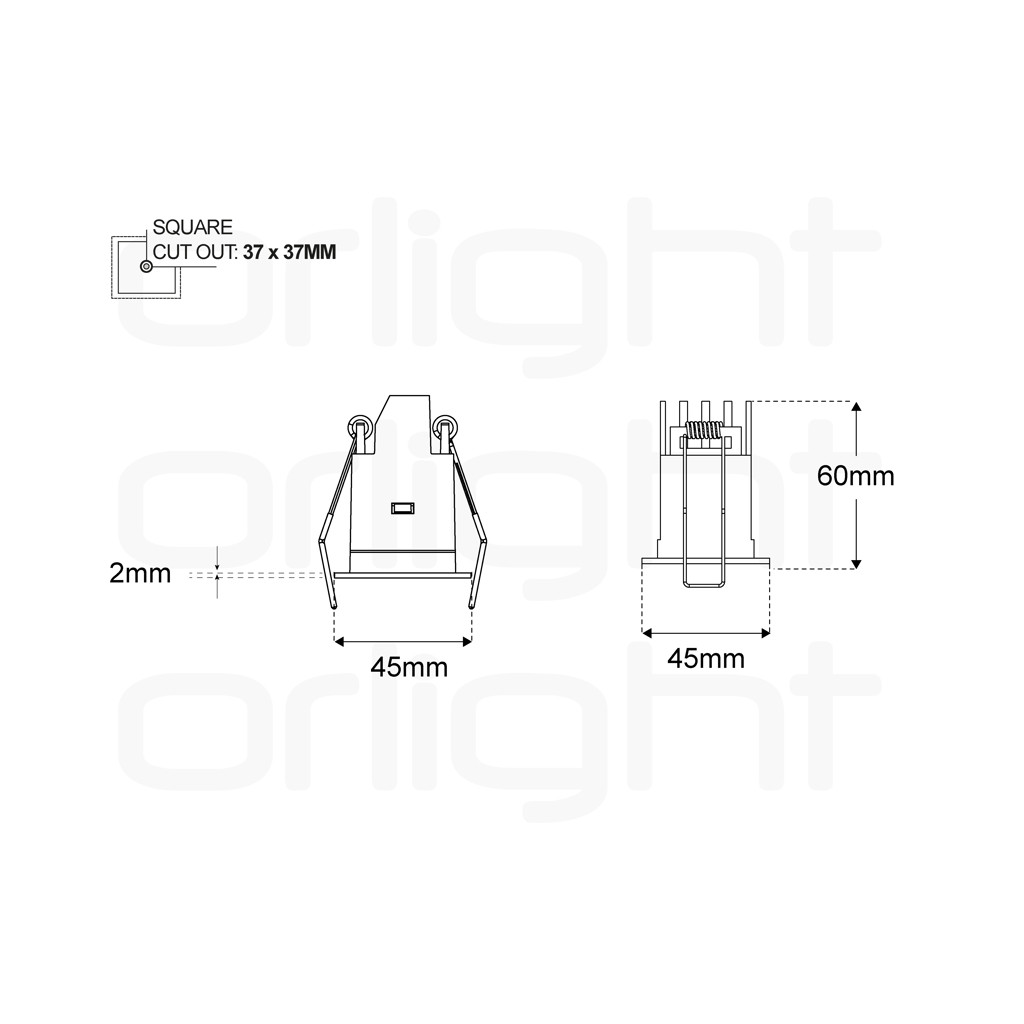

Dimensions

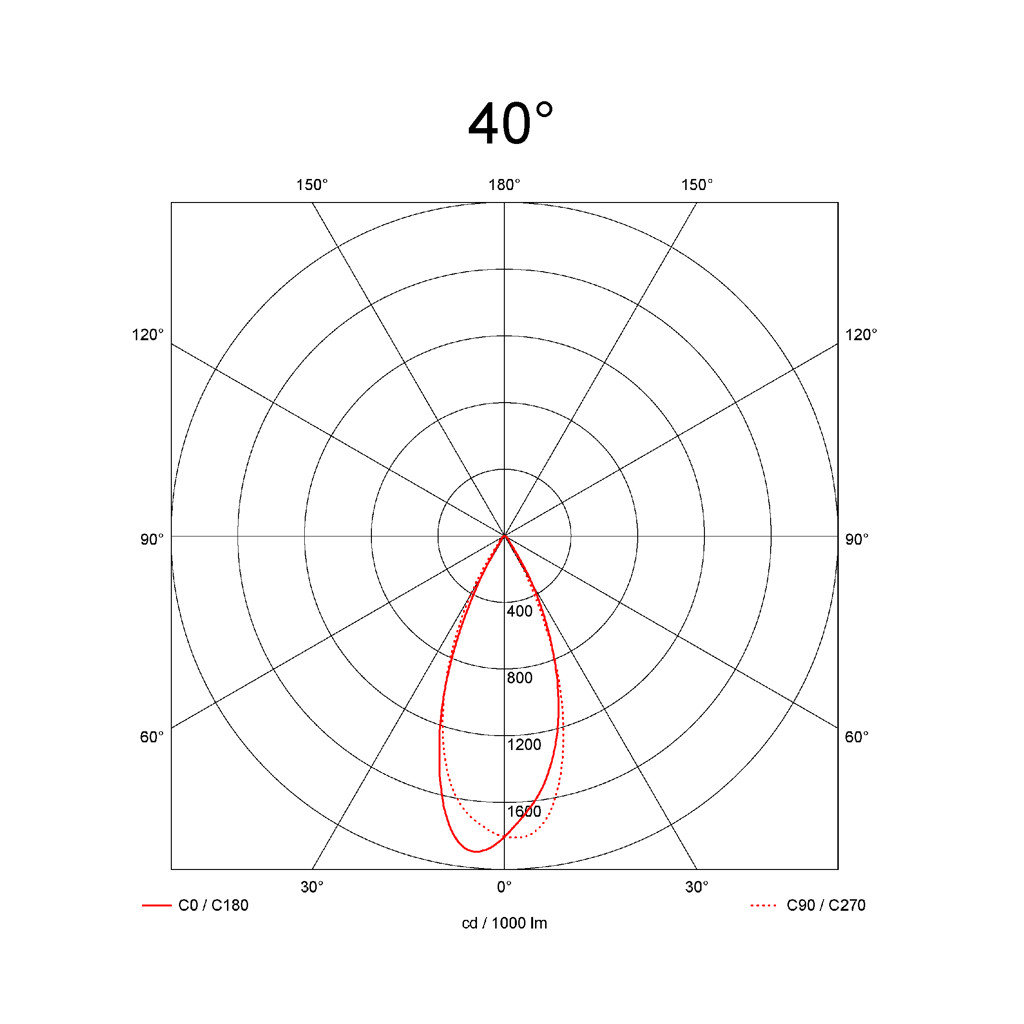

Light Distribution
40°
