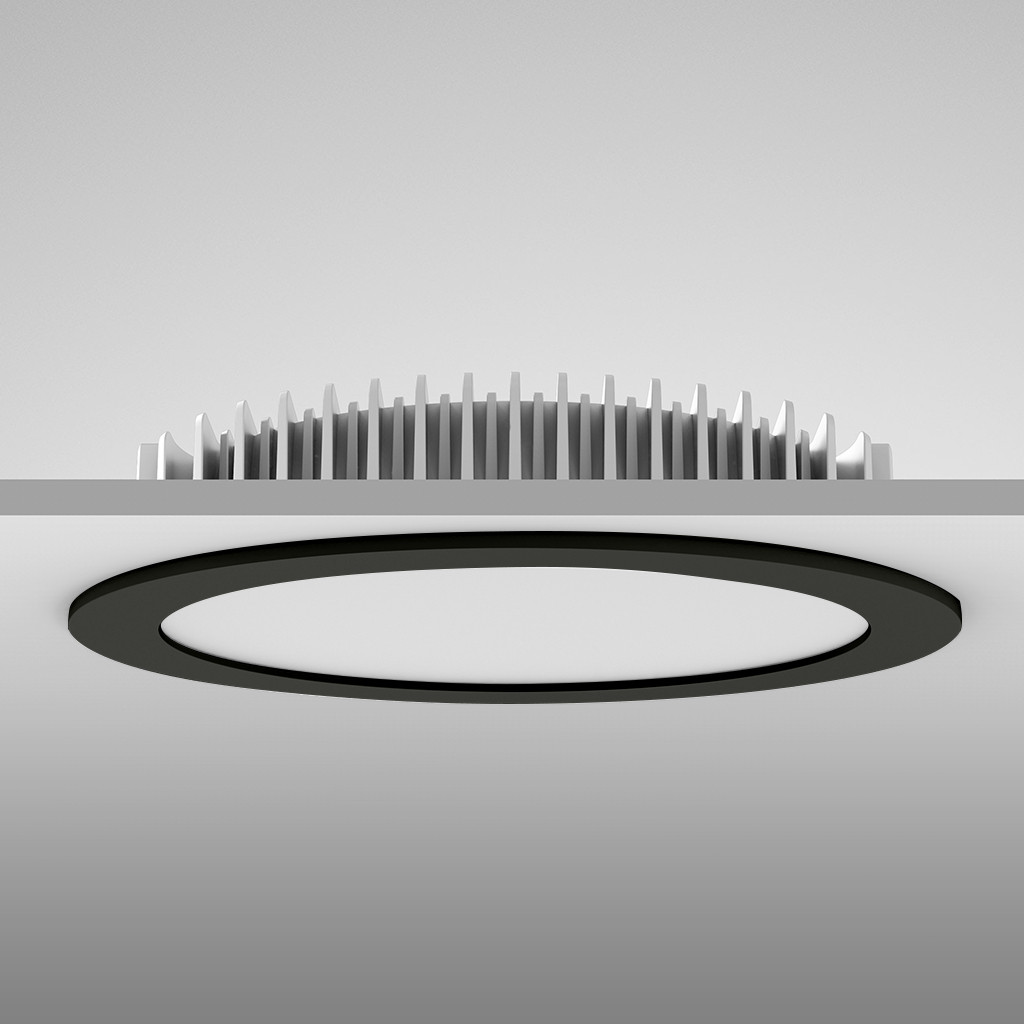

EZ2-231-22W-BL-4K-EM
Solid State Recessed LED Downlight
Downlights
CATEGORYInterior
PRODUCT RANGEEZENTIAL
COLORBlack
Ezential-2-231 Solid State fixture combines advance thermal management with a 2835 SMD Samsung chipset to enable superior performance. Aluminium construction to IP54 with opal diffuser for glare reduction. A single chipset ensures uniformity of the light beam with a CRI>80 light quality assurance. Available in combination with 1-10V and DALI dimmable Power Supplies. Emergency Battery Pack - Integral Please Note: This product does not support hot plugging. Orlight does not recommend cutting of holes prior to receipt of product in hand.
Optical Performance
Wattage22W
Lumen Output3366LM
Efficacy153LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle115°
ChipsetSAMSUNG 2835 SMD
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage38-42V
Milliamp / Current500MA
Driver ConfigurationREMOTE
ControlSWITCHED
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter231 MM
Height47.5 MM
Cutout204 MM
Weight0.98KG
FinishBLACK
RALRAL 9005
IP RatingIP54
TP(a)/TP(b)TP(A)
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen506LM

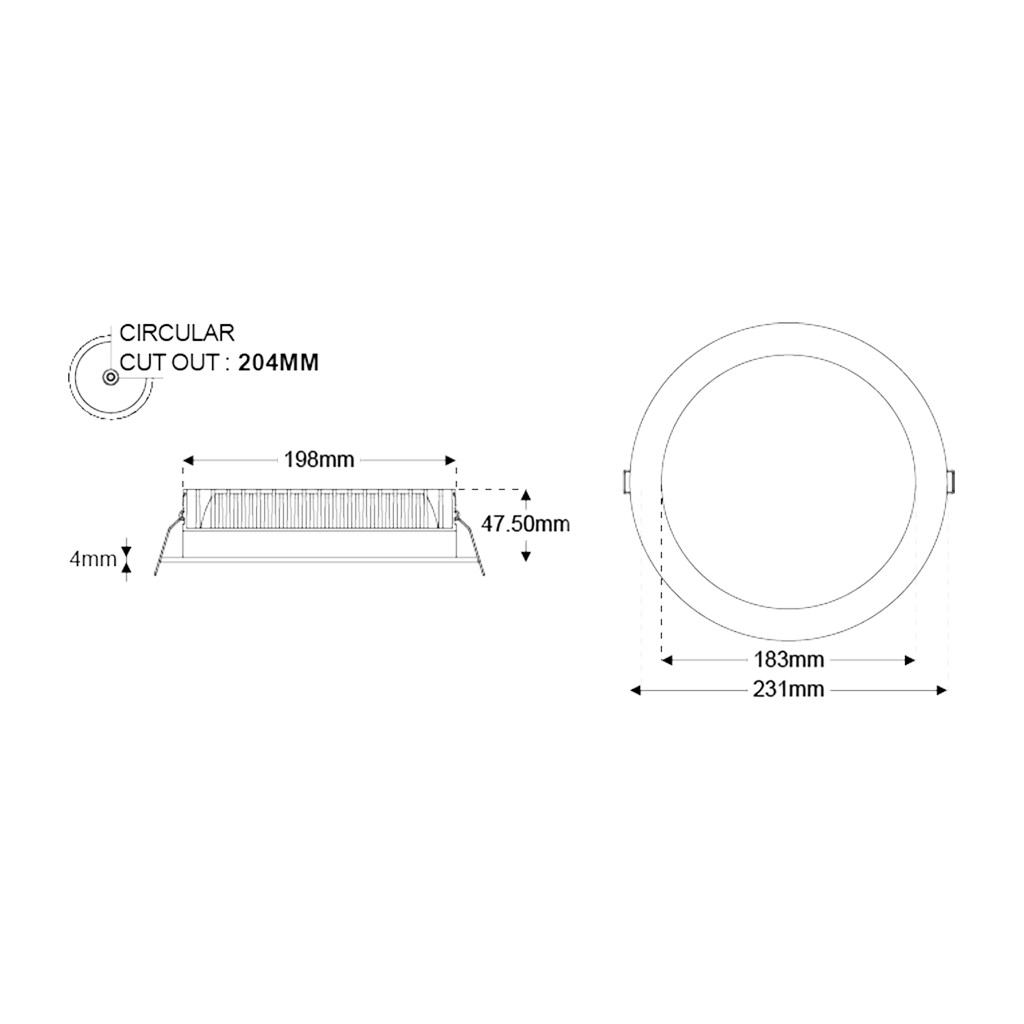

Dimensions

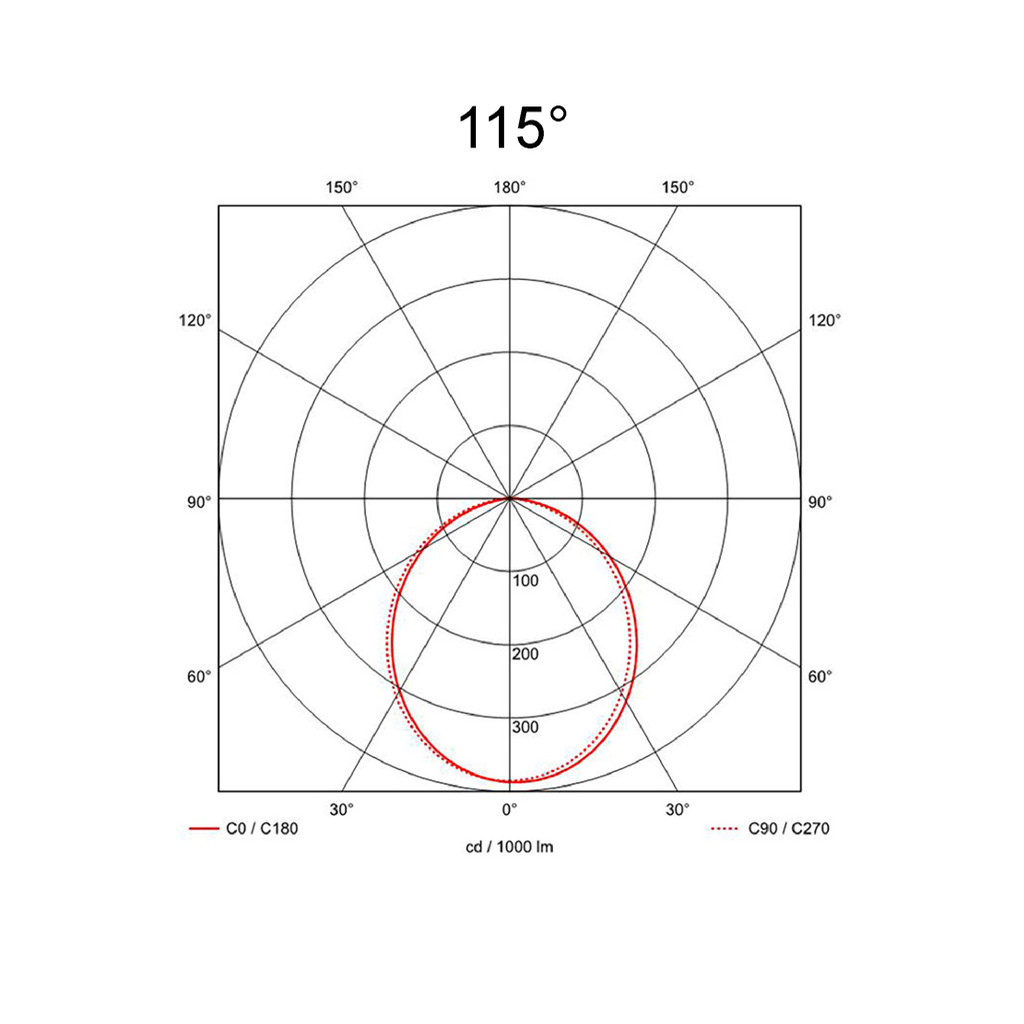

Light Distribution
115°
