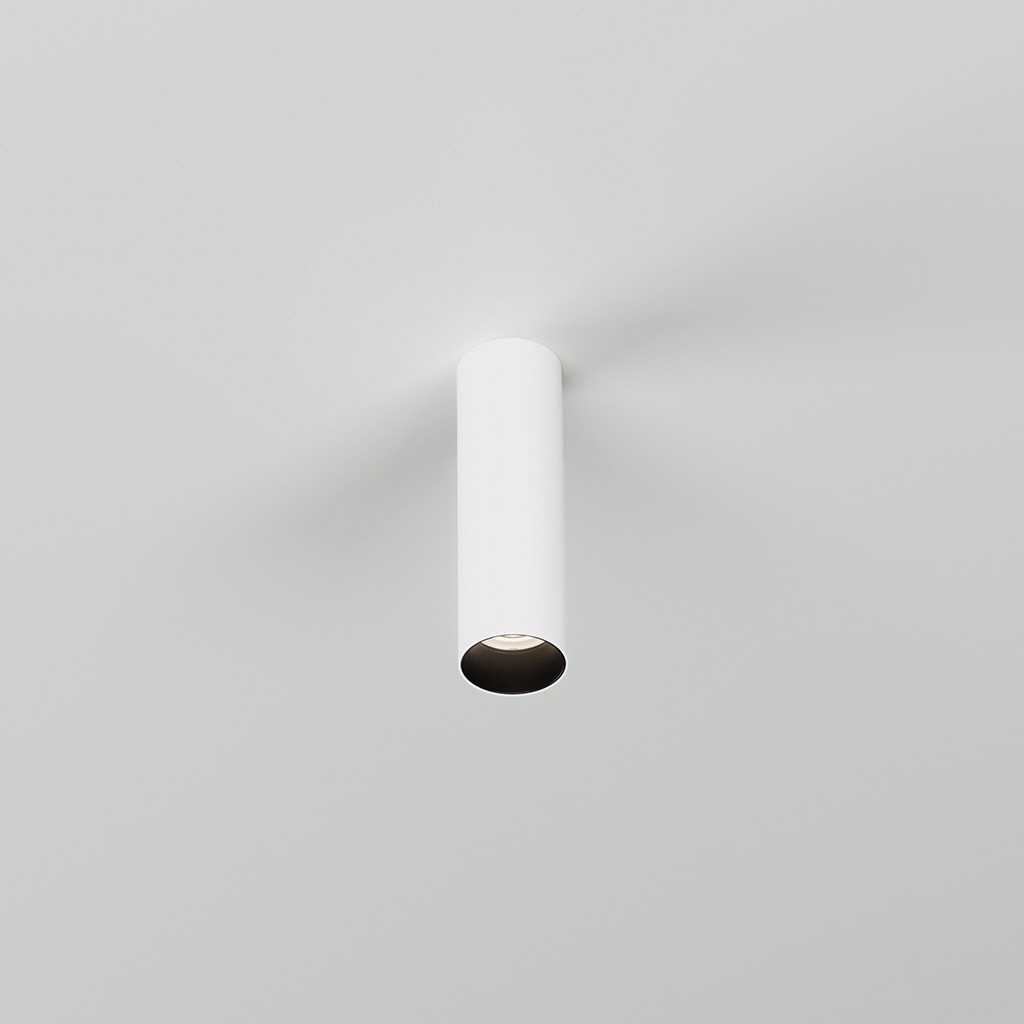

ELIO-90-SM-28W-WH-3K-DALI-B-EM
Surface Mounted Cylinder Fixture
Downlights
CATEGORYInterior
PRODUCT RANGEELIO SURFACE
COLORWhite
ELIO 90 is a high-performance surface-mounted fixture that sets a new standard in lighting excellence. With an IP20 rating, it ensures reliable operation and protection. Available in a sleek black or timeless white finish, it effortlessly complements any decor style. Experience exceptional light quality and accurate colour rendering with its high CRI. For added convenience, the ELIO 90 comes with a BESA mounting accessory and an integral driver (emergency remote), guaranteeing quick and secure installation. Illuminate your space with sophistication and efficiency using our ELIO 90 surface-mounted fixture.
Optical Performance
Wattage28W
Lumen Output2940LM
Efficacy105LM/W
CCT3000K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle20˚
UGRUGR < 19
ChipsetBRIDGELUX
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current700MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE
ConstructionALUMINIUM
Diameter90 MM
Height310 MM
TiltFIXED
FinishWHITE
RALRAL 9016
IP RatingIP20
Operating Ambient Temperature-20˚C - +40˚C
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen293LM

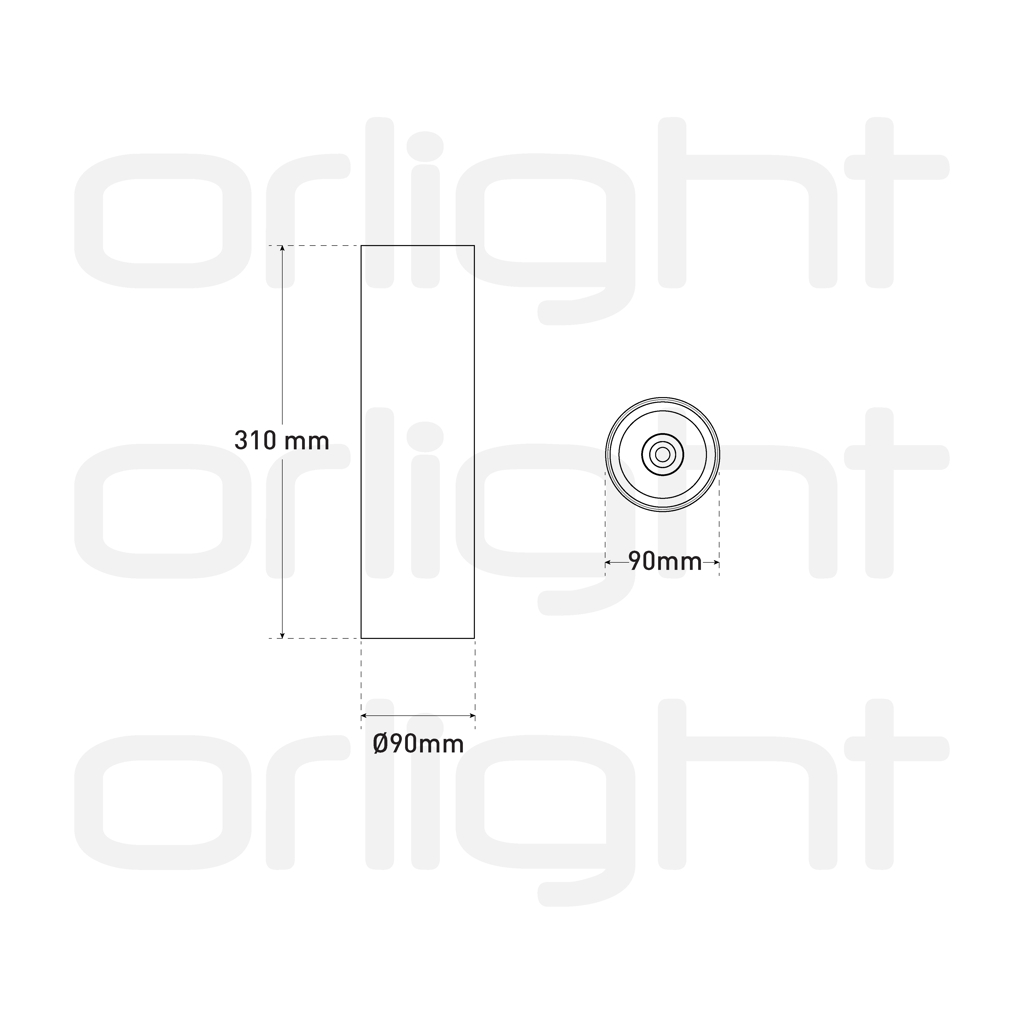

Dimensions

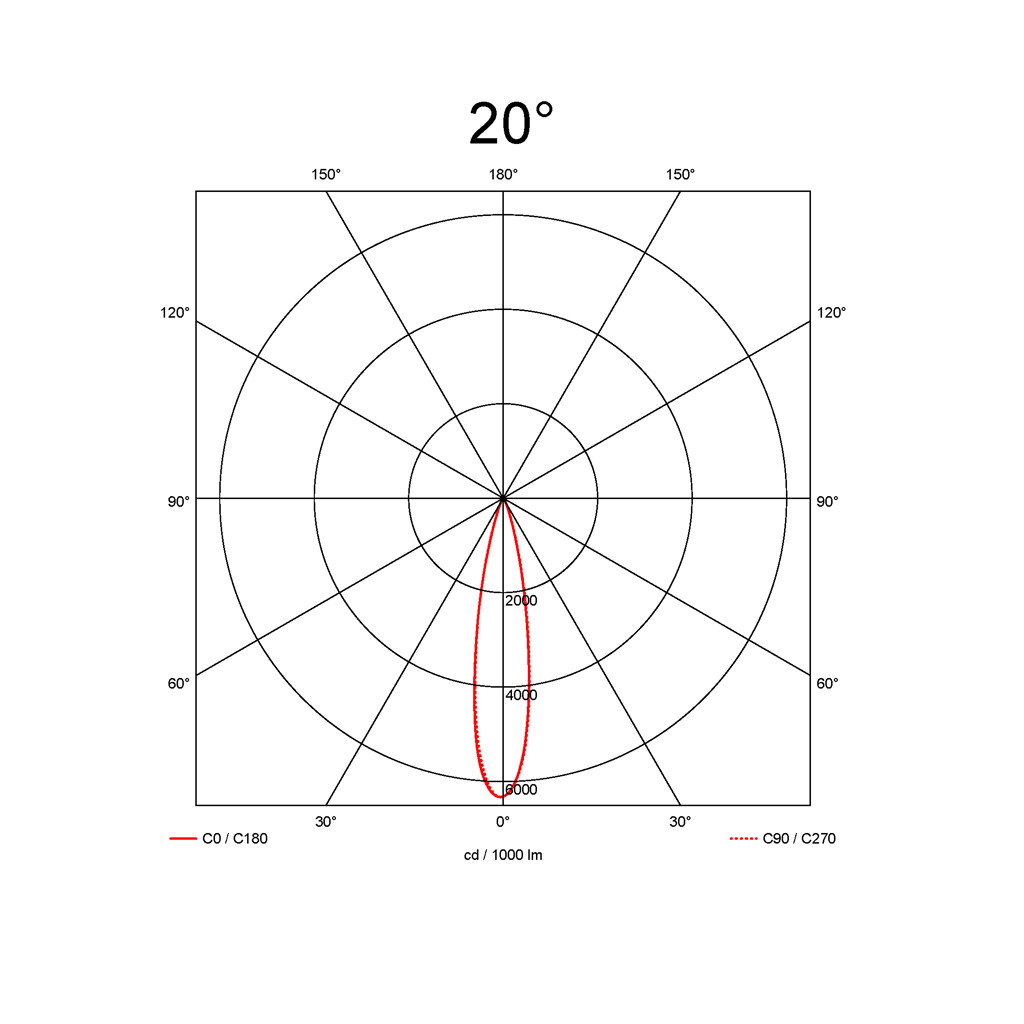

Light Distribution
20˚
