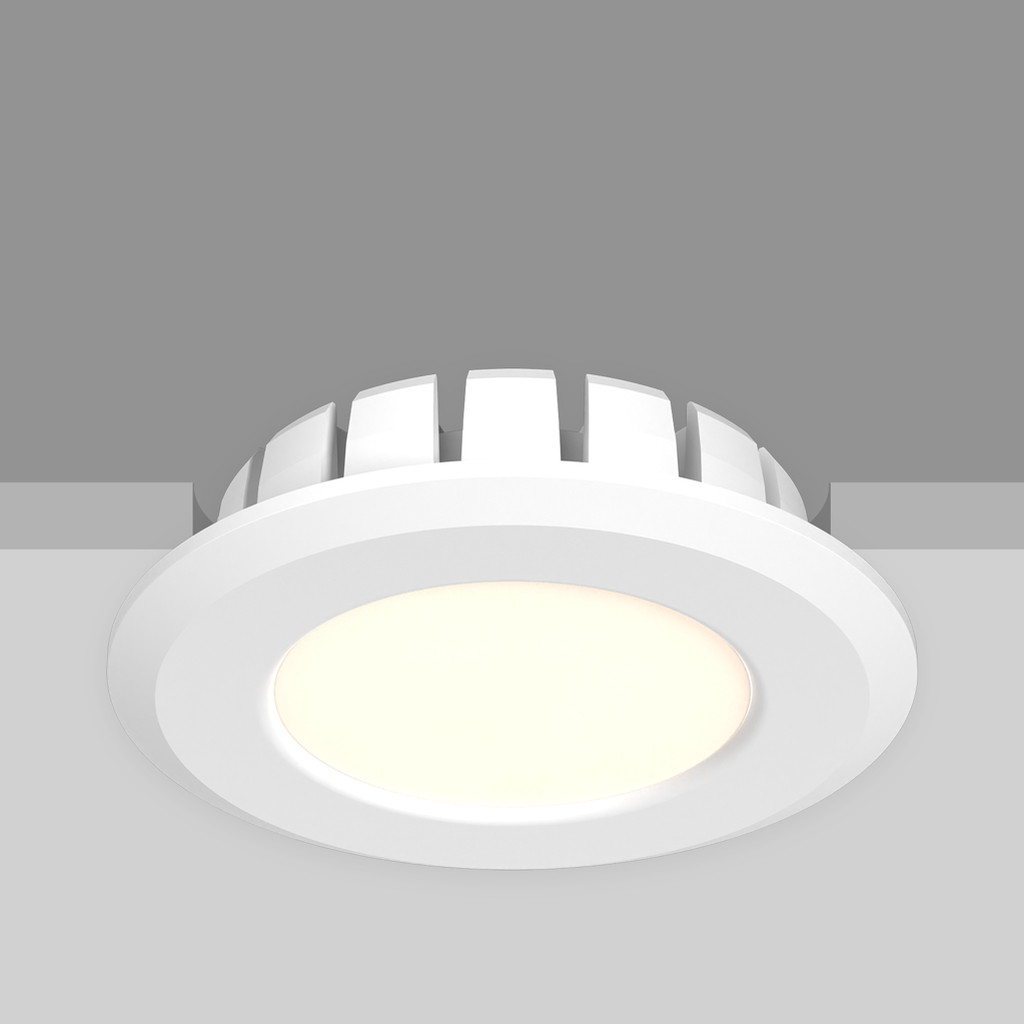

CIT21-WH-4000K
Fixed or Adjustable Solid State Downlight
Downlights
CATEGORYInterior
PRODUCT RANGECIT
COLORWhite
Compact solid state fixture with integrated Citizen chipset. Slim product profile allows for installation applications with as little as 30mm recessed depth. 2-Step MacAdams binning strategy ensures colour consistency with single chip technology providing a consistent beam. Configured to 40 degree beam as standard. Available in combination with Mains Dimmable, 1-10V and DALI dimmable Power Supplies.
Optical Performance
Wattage10W
Lumen Output970LM
Efficacy97LM/W
CCT4000K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle40°
ChipsetCITIZEN LED CHIPSET
Chip LifeL80 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current230MA
Driver ConfigurationREMOTE
ControlSWITCHED
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter90 MM
Height30 MM
Cutout74 MM
Weight0.25KG
TiltFIXED
FinishWHITE
RALRAL 9016
IP RatingIP54
Operating Ambient Temperature-20˚C - +40˚C
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE

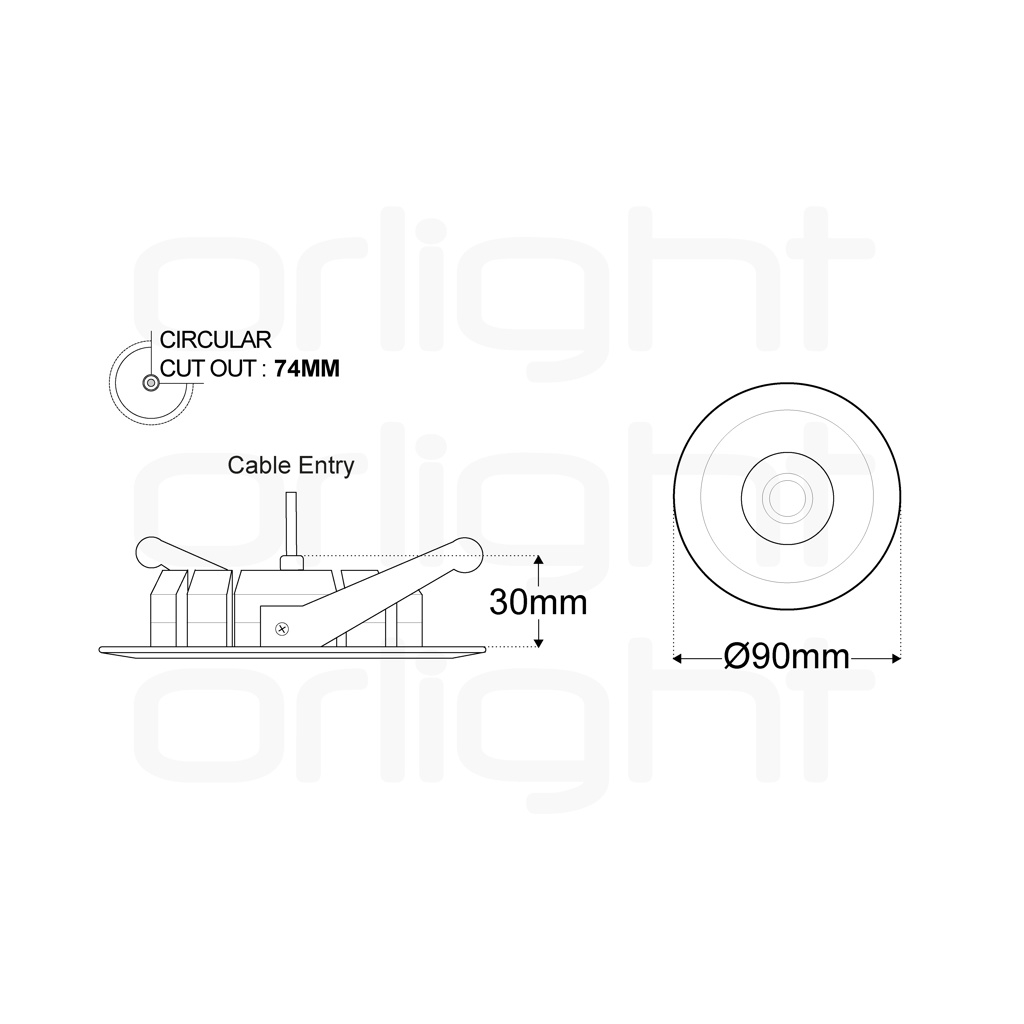

Dimensions

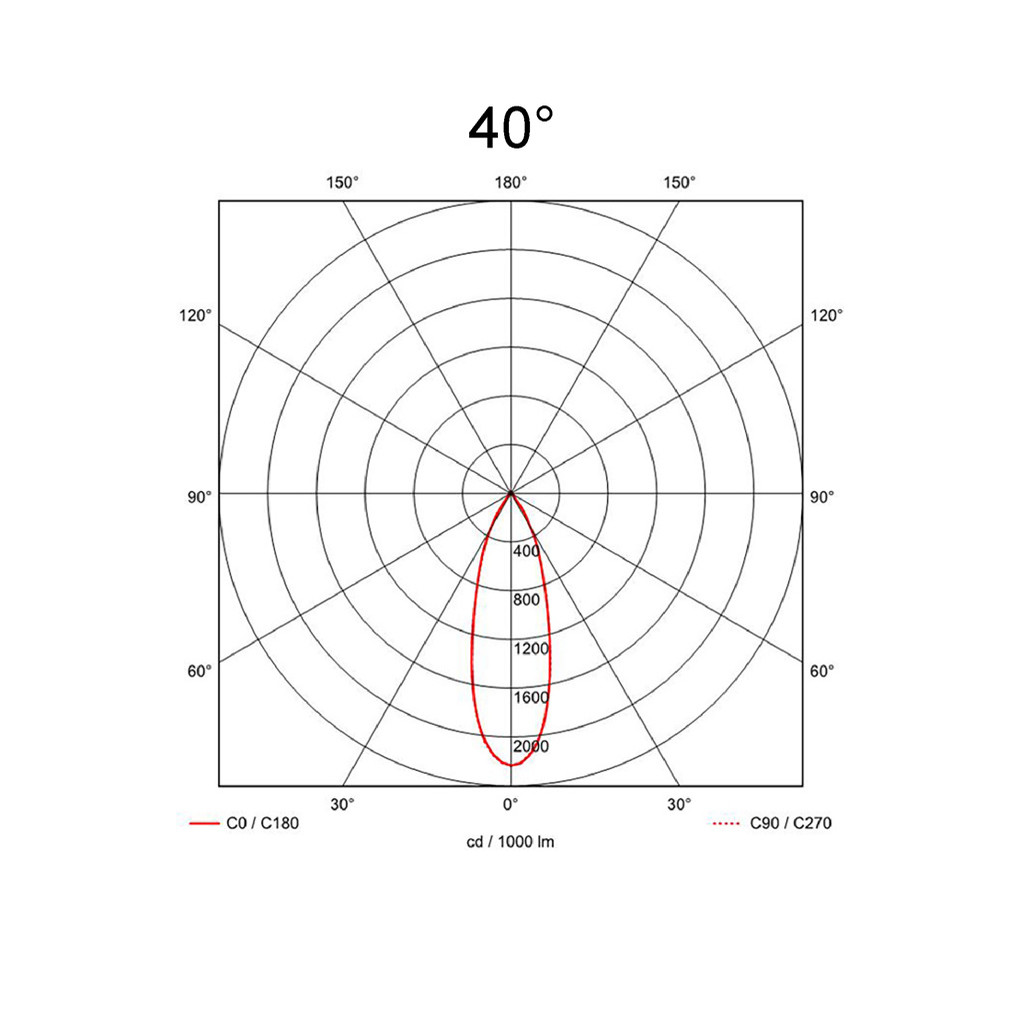

Light Distribution
40°
