ORLLM214-3000K
Projector Fixture
Surface
CATEGORYExterior
PRODUCT RANGETERRA
COLORAluminium
Bar stock aluminium surface mounted projector complete with integral CREE LED package. Fixture rated to IP67 and configured to 30 degree beam as standard. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all touch temperature requirements. Suitable for the illumination of small/medium trees, building exteriors, columns. Please Note: This product does not support hot plugging.
Construction
InstallationSURFACE MOUNTED
ConstructionALUMINIUM
Diameter214 MM
Width / Depth50 MM
Height236 MM
Weight1.7KG
TiltADJUSTABLE
RotationFIXED
FinishALUMINIUM
IP RatingIP67
IK RatingIK07
Operating Ambient Temperature-20˚C - +50˚C
Optical Performance
Wattage24W
Lumen Output2015LM
Efficacy84LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle30°
ChipsetCREE XPE
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage70V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length3000MM

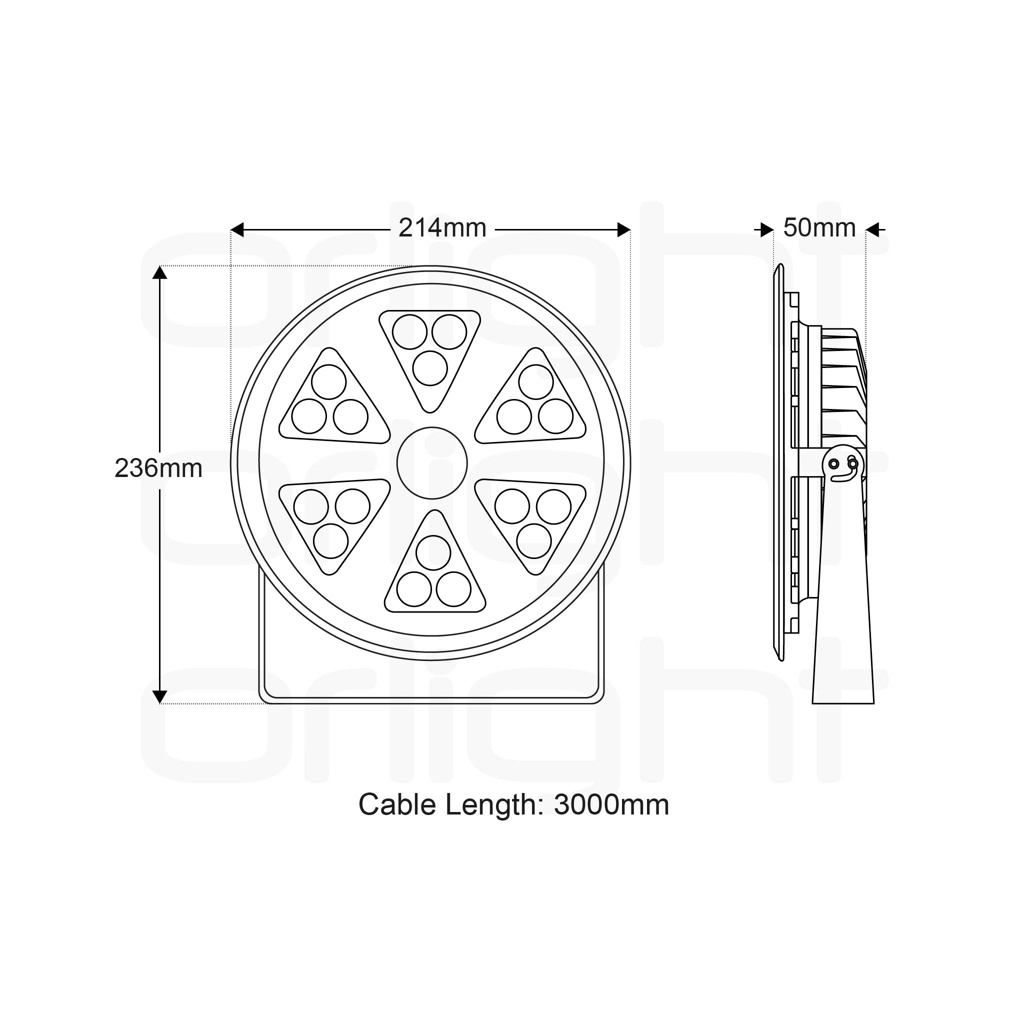

Dimensions

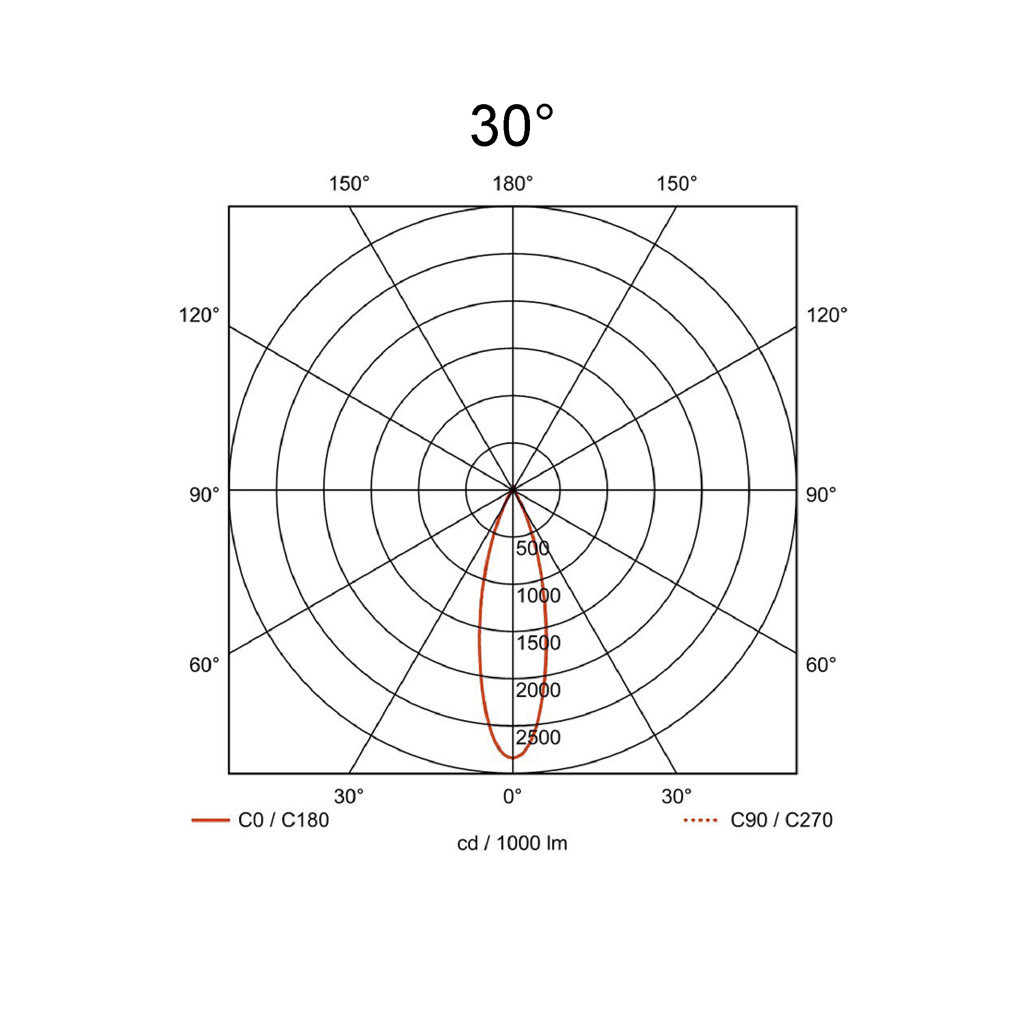

Light Distribution
30°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 1 | 1 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 1 | 1 |
