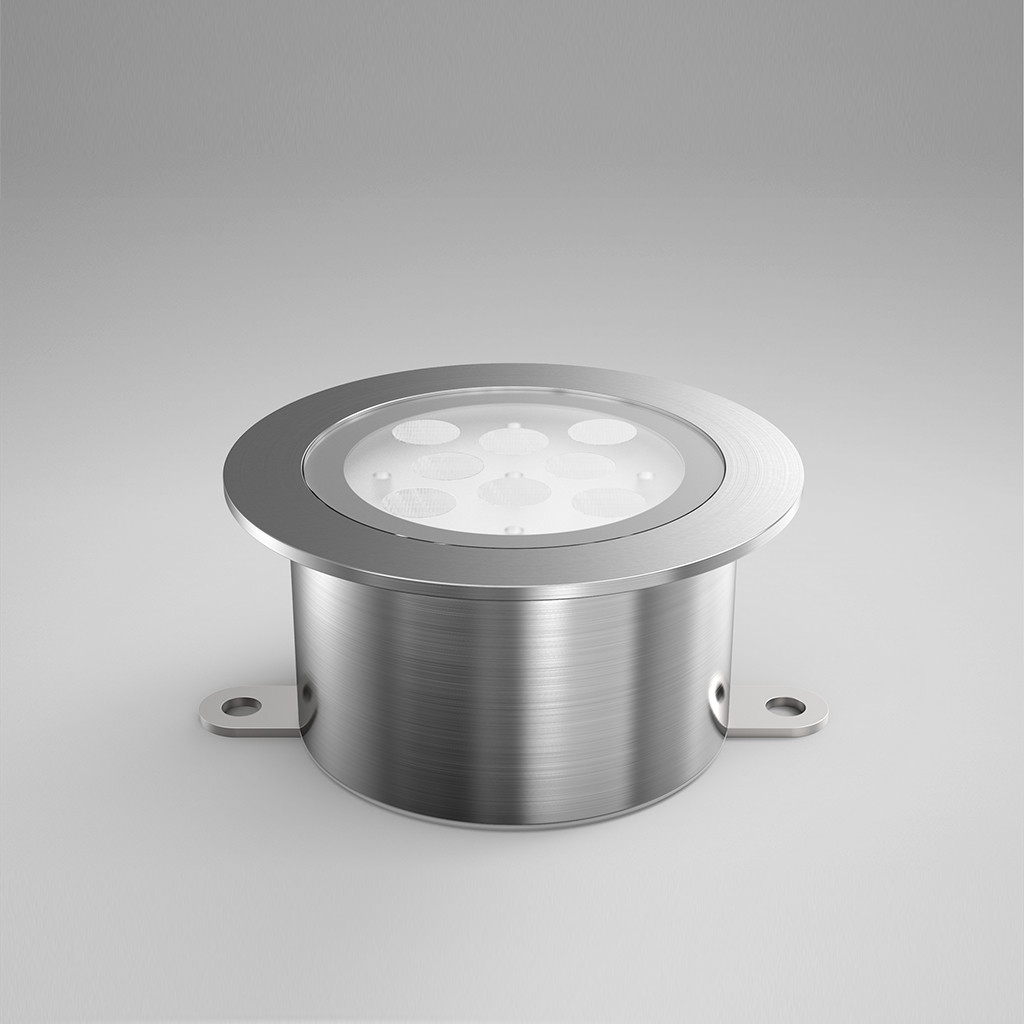

ORLLM96-SF-3000K
Maxi Inground Fixture and Projector
Surface
CATEGORYExterior
PRODUCT RANGENOVA
COLOR316 Marine Grade
Midsize surface fixture complete with integral CREE XPE LED package and 35 degree beam option. Marine Grade 316 Stainless Steel construction rated to IP68. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all touch temperature requirements. Inline 350mA driver options include switched, mains, 1-10V and DALI dimmable solutions. Please Note: This product does not support hot plugging.
Optical Performance
Wattage8W
Lumen Output851LM
Efficacy106LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle35°
ChipsetCREE XPE
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage22-24V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length3000MM
Construction
InstallationSURFACE MOUNTED
ConstructionSTAINLESS STEEL
Diameter96 MM
Width / Depth113 MM
Height46 MM
Finish316 MARINE GRADE
IP RatingIP68
IK RatingIK10
Operating Ambient Temperature-20˚C - +45˚C

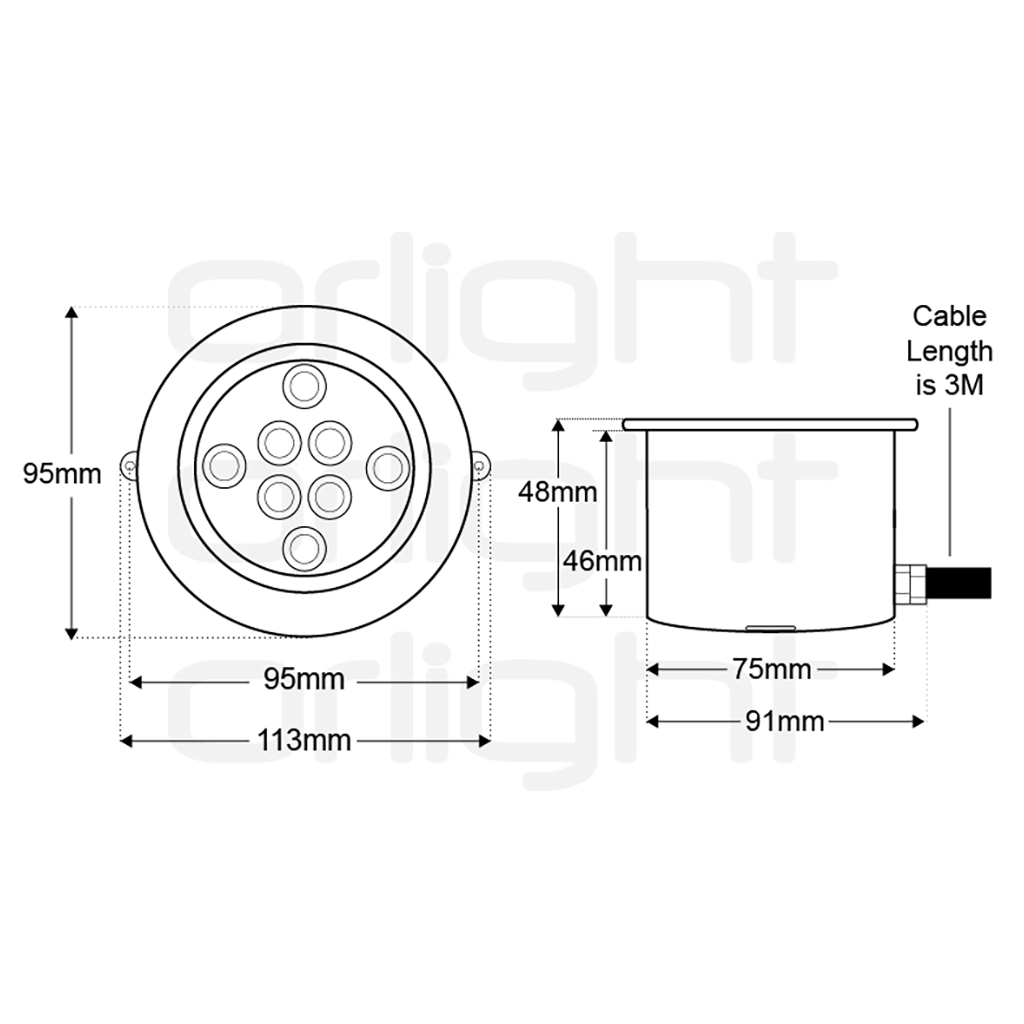

Dimensions

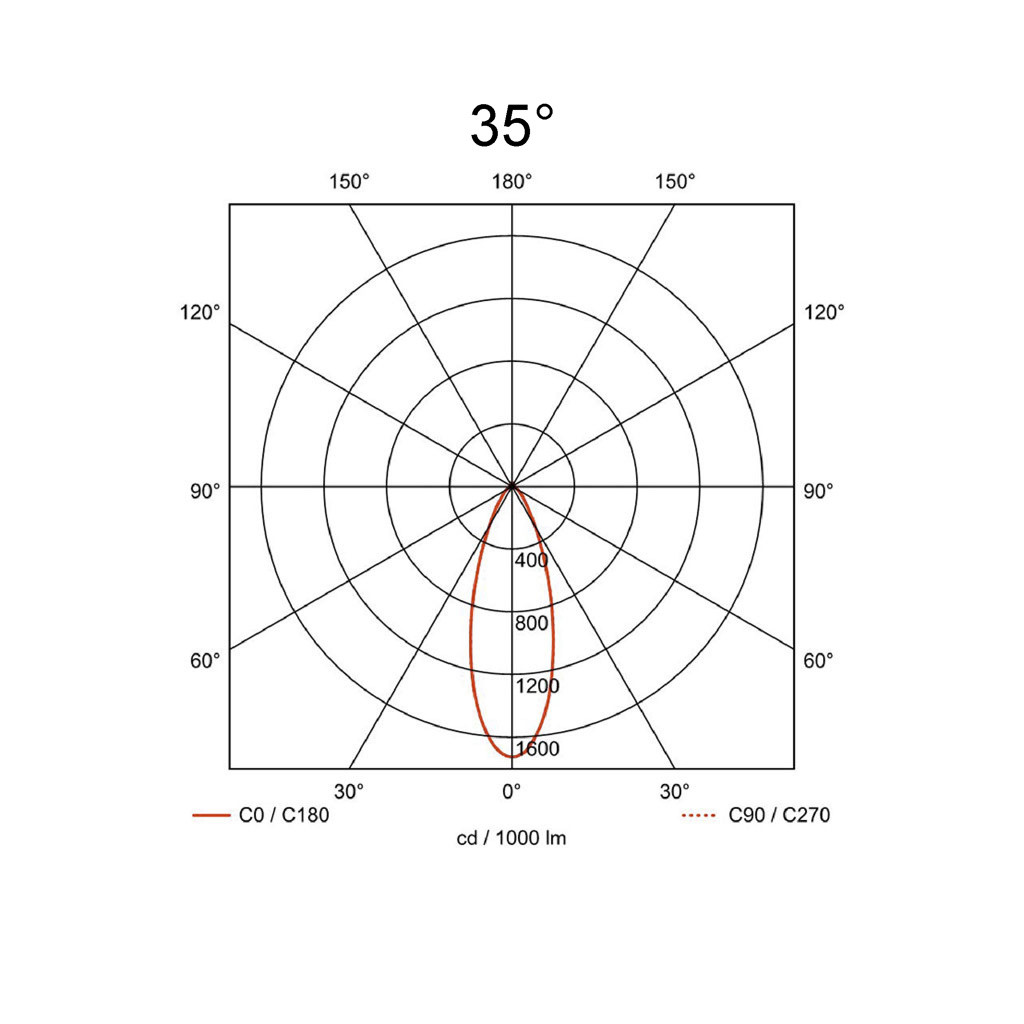

Light Distribution
35°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 1 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 2 | 4 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 2 | 4 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 1 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 2 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 1 | 1 |
