ORLLM78-SS-3000K
Mini Projector
Surface
CATEGORYExterior
PRODUCT RANGEAMARIS
COLOR316 Marine Grade
Marine grade 316 stainless steel miniature surface mounted fixture complete with integral CREE LED package. Fixture rated to IP68 allowing submersion in water thus negating common issues arising from lack of soil drainage. Configured to 30 degree beam as standard. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all touch temperature requirements. Ideal as a surface mounted miniature marker light. Please Note: This product does not support hot plugging.
Construction
InstallationSURFACE MOUNTED
ConstructionSTAINLESS STEEL
Diameter44 MM
Length81 MM
Width / Depth60 MM
Height84 MM
Weight0.5KG
TiltADJUSTABLE
Finish316 MARINE GRADE
IP RatingIP68
IK RatingIK07
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage1W
Lumen Output91LM
Efficacy91LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle30°
ChipsetCREE 1816
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage3V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length3000MM

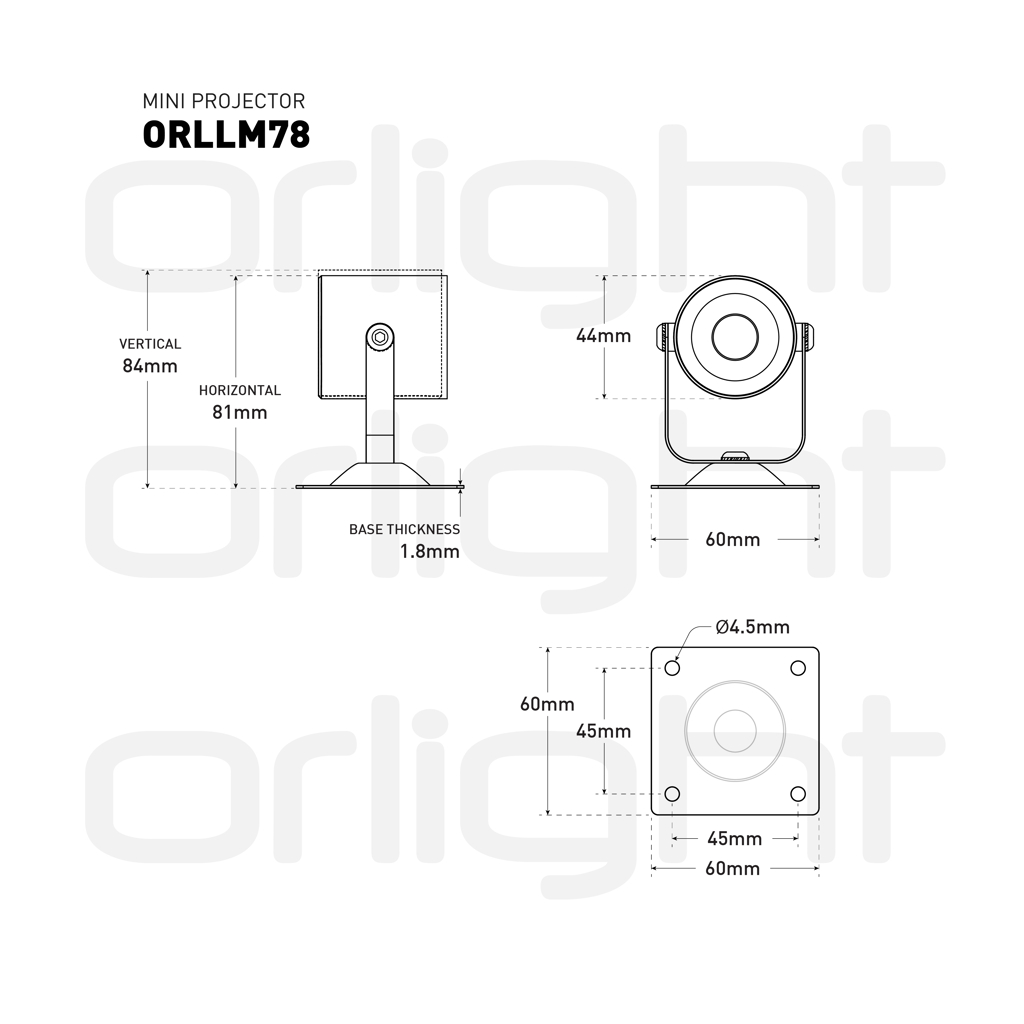

Dimensions

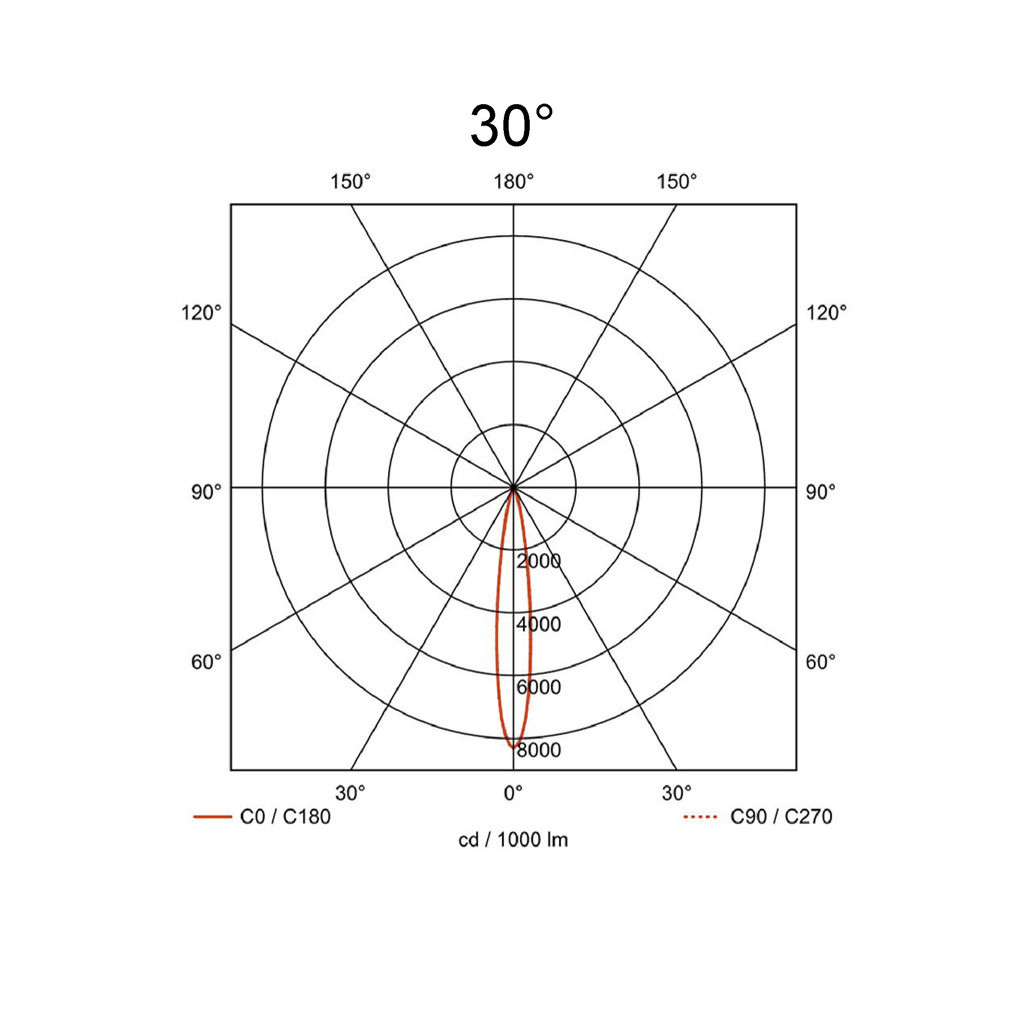

Light Distribution
30°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 8 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 10 | 30 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 10 | 30 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 13 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 15 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 2 | 13 |
