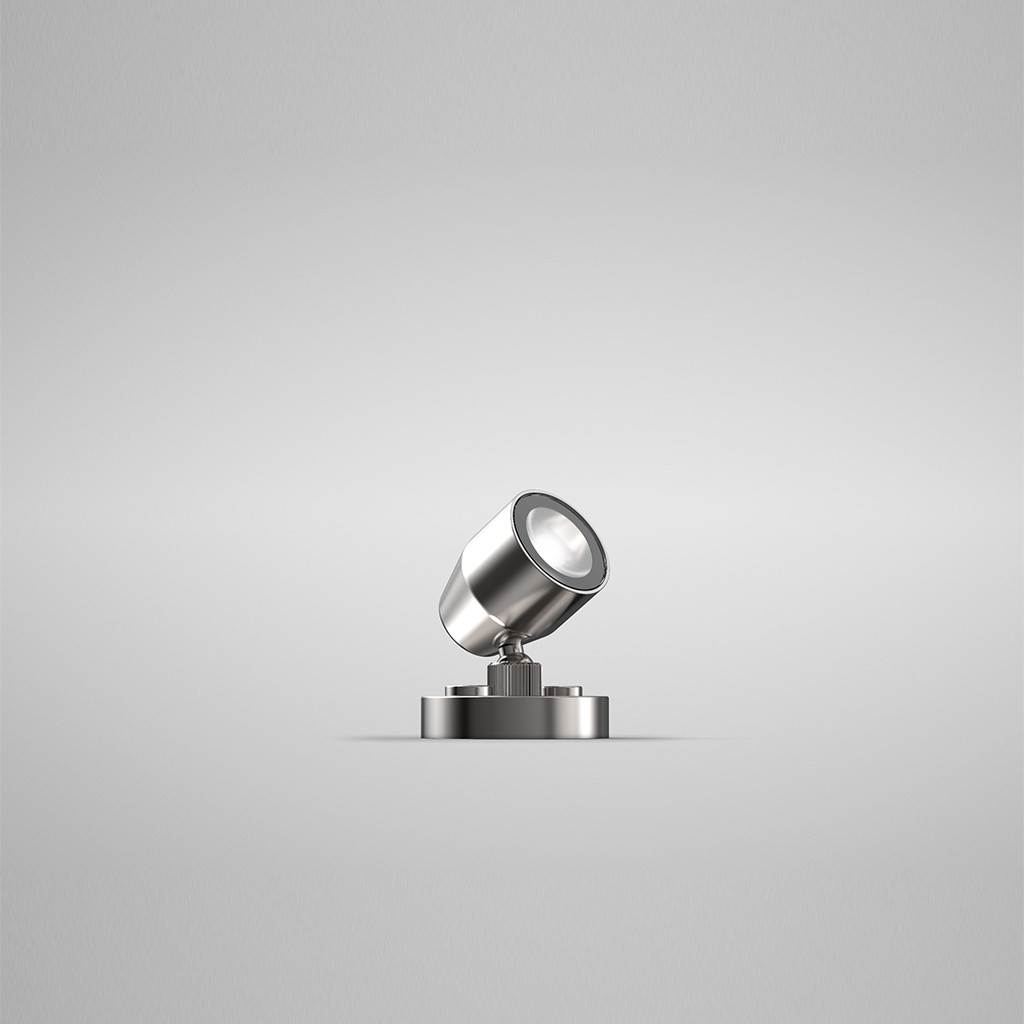

ORLLM600-SS-3000K
Mini Projector
Surface
CATEGORYExterior
PRODUCT RANGEAMARIS
COLOR316 Marine Grade
Marine grade 316 stainless steel surface mounted fixture complete with integral CREE LED package. Fixture rated to IP68 allowing submersion. Configured to 45 degree beam as standard, product functions with 350mA constant current driver. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all touch temperature requirements. Elevated light source (500mm) allows for a downlight effect to be created to paths and boundaries. Please Note: This product does not support hot plugging.
Construction
InstallationSURFACE MOUNTED
ConstructionSTAINLESS STEEL
Diameter38 MM
Height500 MM
Weight0.995KG
TiltADJUSTABLE
Finish316 MARINE GRADE
IP RatingIP68
IK RatingIK07
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage5W
Lumen Output218LM
Efficacy73LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle45°
ChipsetCREE 5050
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage9V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length3000MM
Dimensions

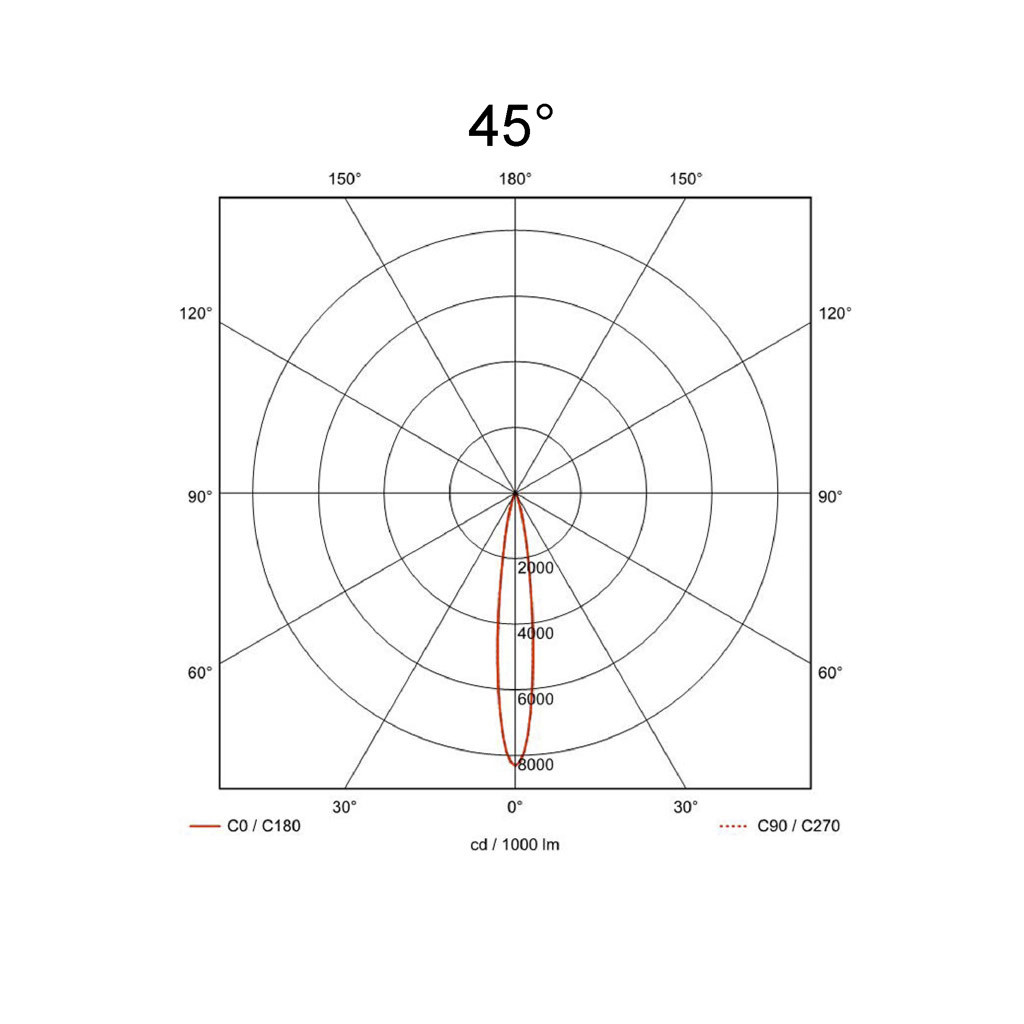

Light Distribution
45°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 3 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 4 | 10 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 4 | 10 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 4 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 5 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 1 | 4 |
