ORLLM732-SS-6000K
Micro Display Fixture
Surface
CATEGORYExterior
PRODUCT RANGEAMARIS DISPLAY
COLORStainless Steel
Miniature display light featuring Stainless Steel construction rated to IP65 making this product suitable for both interior and exterior applications. The product is directional and thus perfect for lighting focal features on the wall or within display cabinets. Incorporates an integrated CREE USA LED white chip set powered at 1W. A low energy, no maintenance solution. Please Note: This product does not support hot plugging.
Optical Performance
Wattage3W
Lumen Output53LM
Efficacy53LM/W
CCT6000K
CRICRI > 70
Binning2 STEP MACADAMS
Beam Angle20°
ChipsetXPE
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage3V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length1100MM
Construction
InstallationSURFACE MOUNTED
ConstructionSTAINLESS STEEL
Diameter29 MM
Width / Depth37.5 MM
TiltADJUSTABLE
FinishSTAINLESS STEEL
IP RatingIP65
IK RatingIK07
Operating Ambient Temperature-20˚C - +45˚C

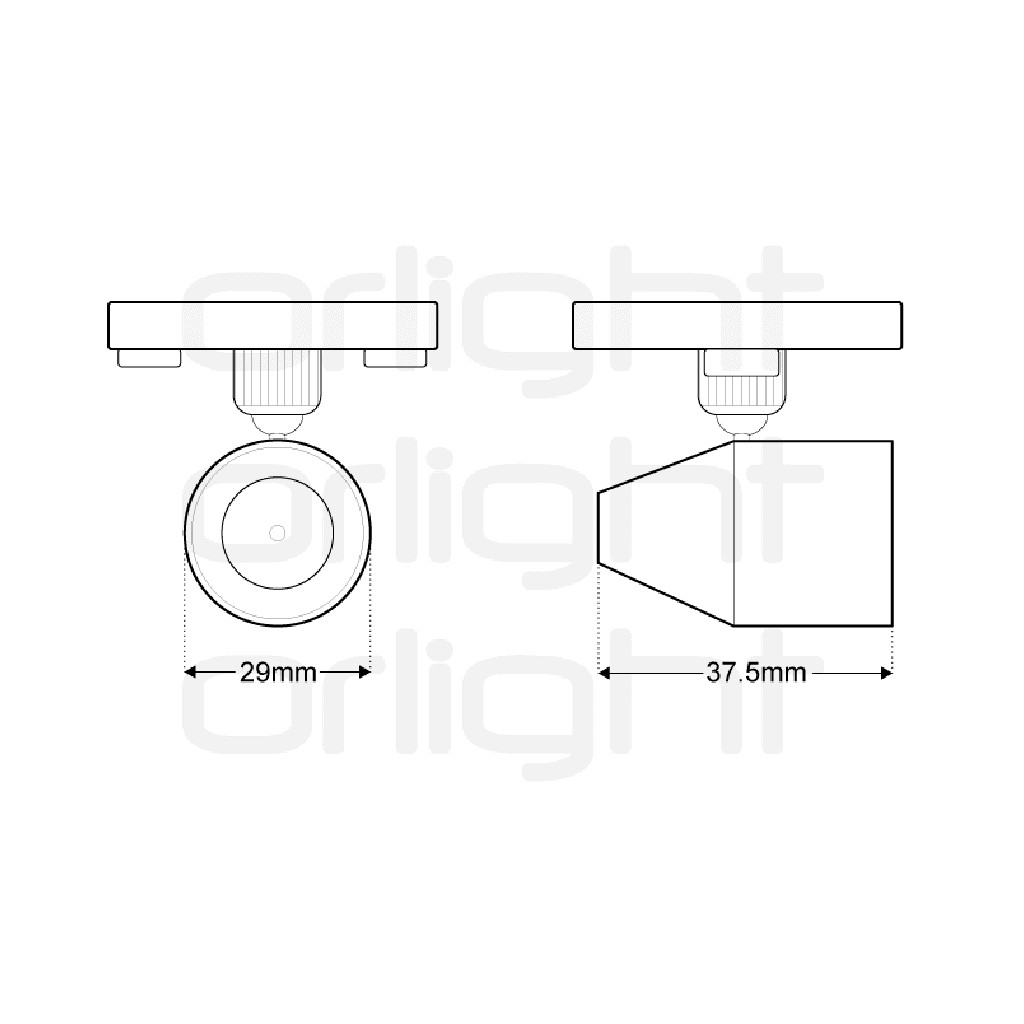

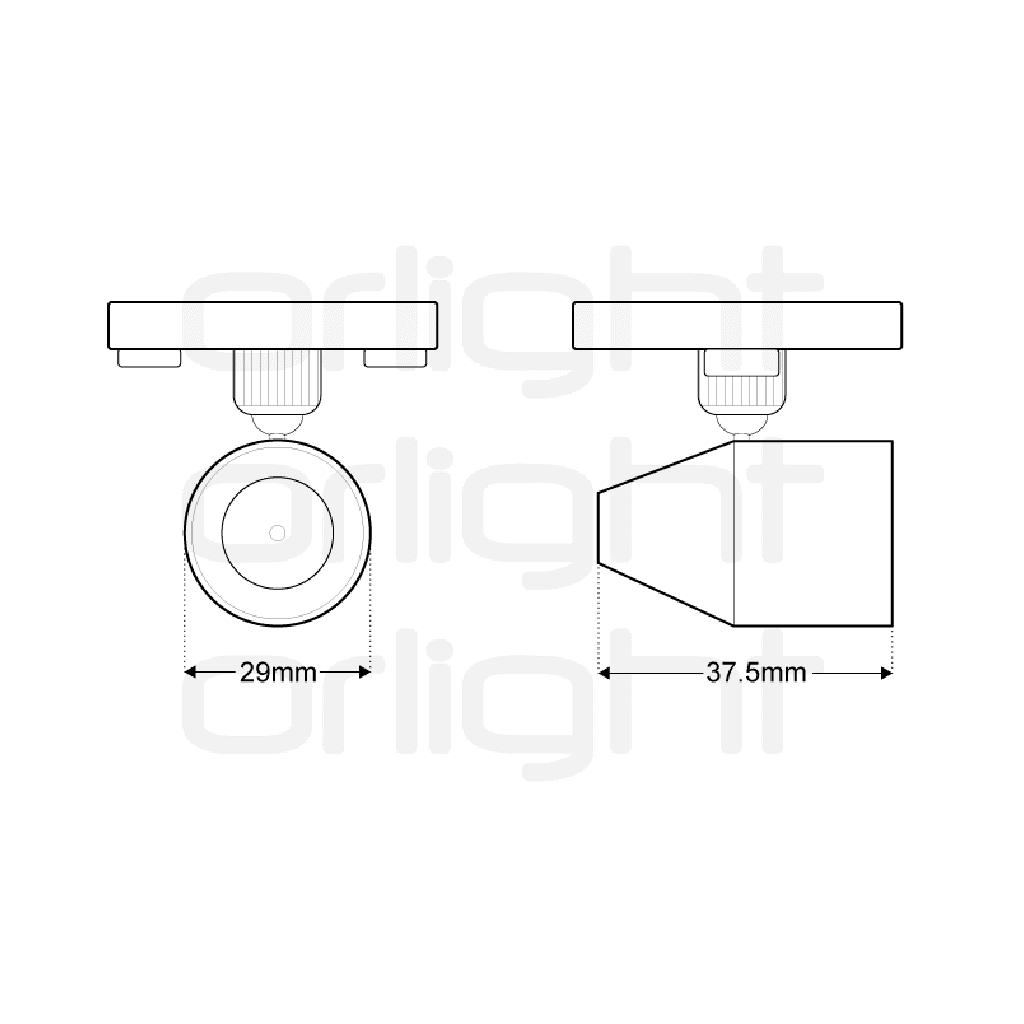

Dimensions

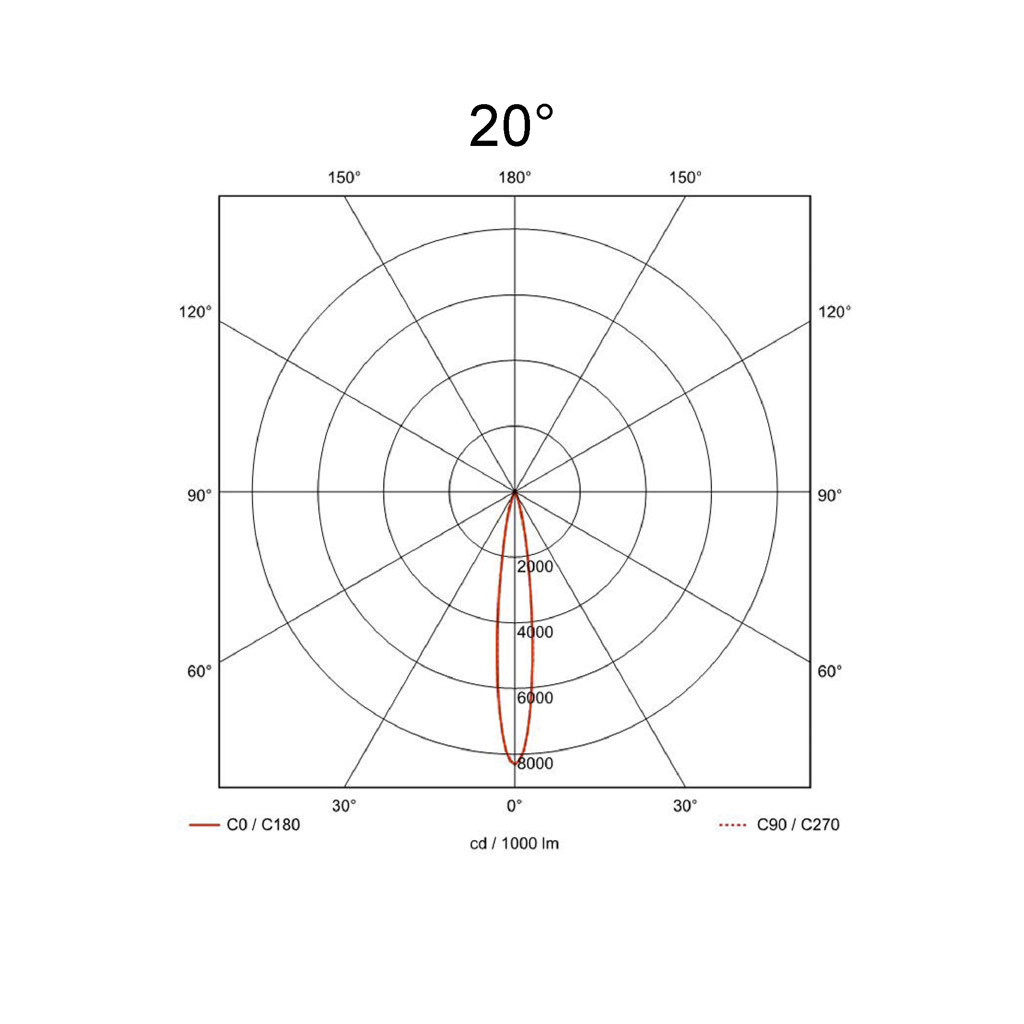

Light Distribution
20°
