ORLLH351-100W-BL-4000K
External Lighting Post Head
Streetscape
CATEGORYExterior
PRODUCT RANGELUMINA
COLORBlack
Dual streetscape fixture featuring Aluminium construction to IP66 finished with Epoxy Power Coat to RAL9004. Integrated Bridgelux LED chipset with Meanwell Power Supply unit. Downward light emission with PMMA optic to 120 degrees. Suitable for use in combination with up to 4M mounting post.
Optical Performance
Wattage100W
Lumen Output8500LM
Efficacy85LM/W
CCT4000K
CRICRI > 65
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetBRIDGELUX CHIPSET
Chip LifeL70 > 60,000HRS
Electrical
Voltage85V-265V
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
ConstructionALUMINIUM
Diameter2 X 450 MM
Height752 MM
FinishBLACK
RALRAL 9004
IP RatingIP66

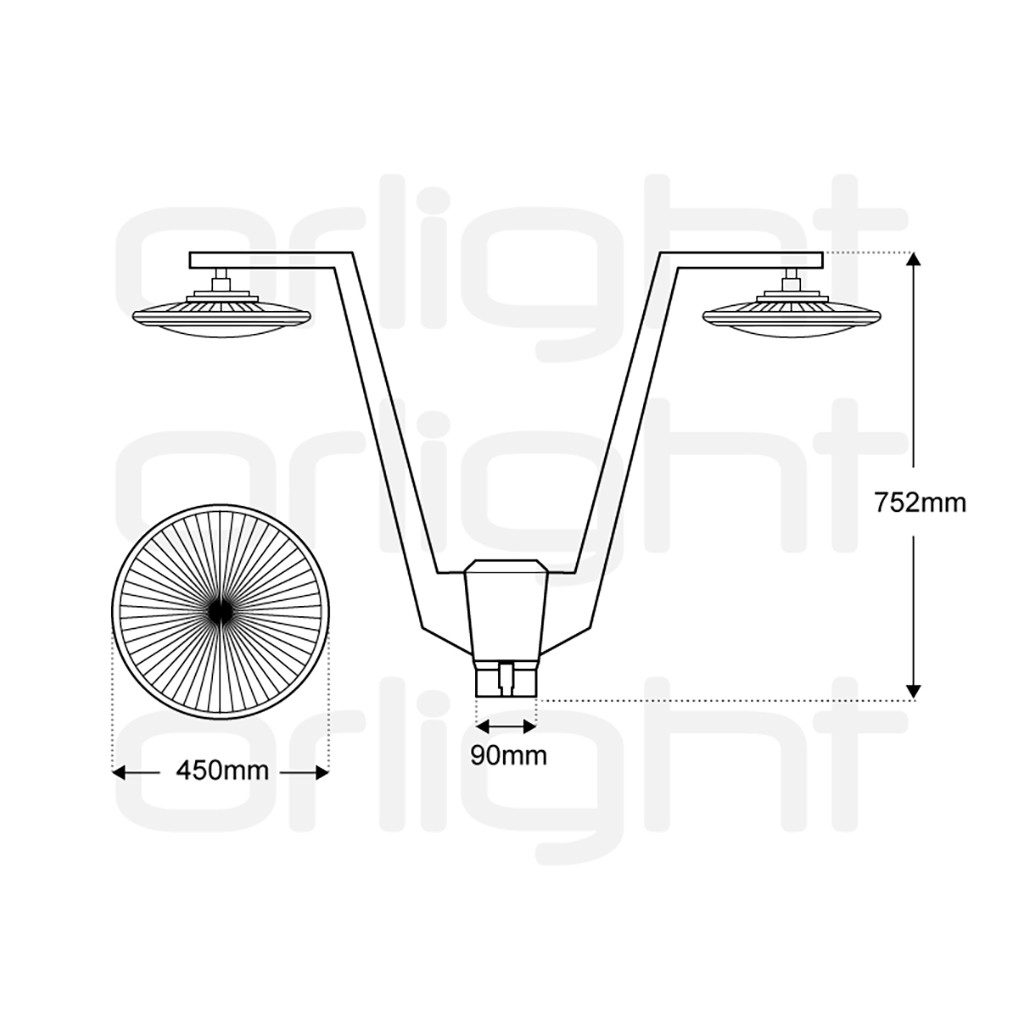

Dimensions

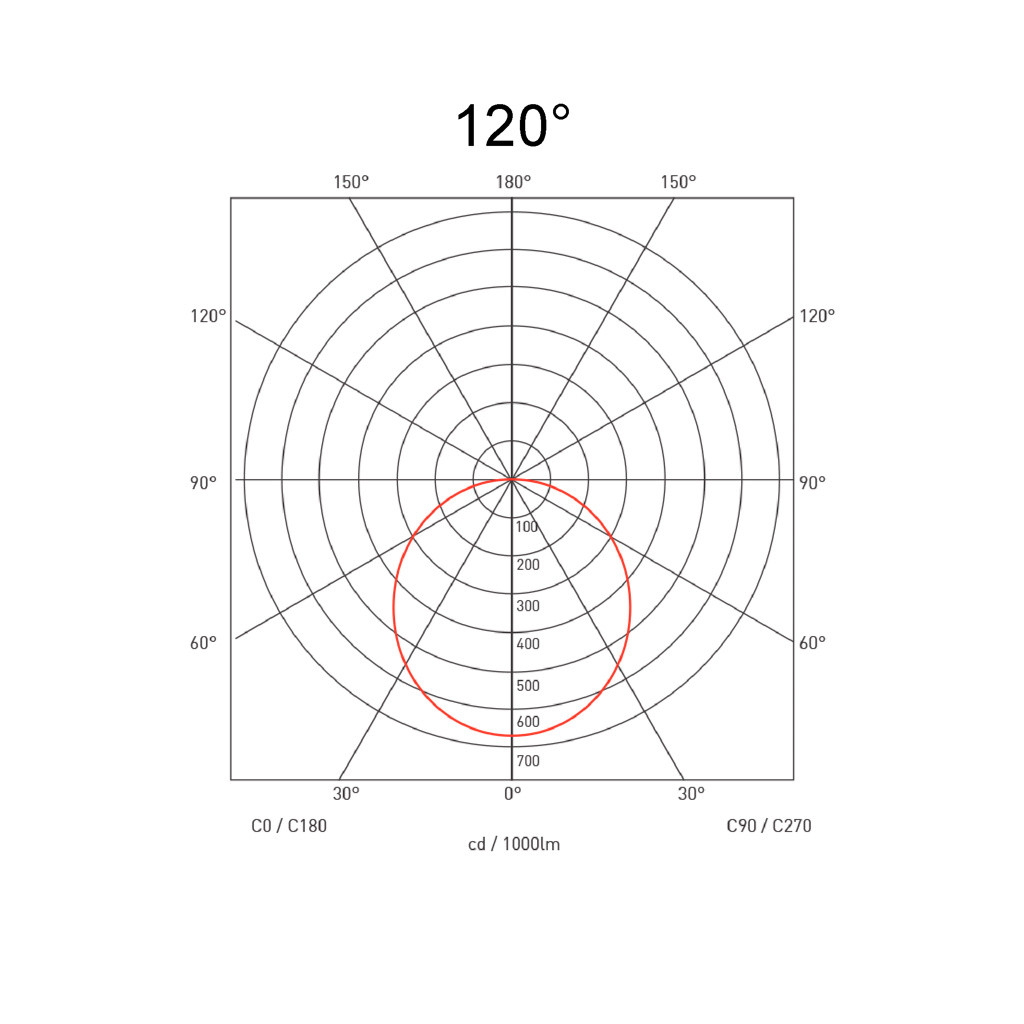

Light Distribution
120°
