ORLLH-40W-BL-3000K
External Lighting Post Head
Streetscape
CATEGORYExterior
PRODUCT RANGELUCID
COLORBlack
Streetscape fixture featuring Aluminium construction to IP65 finished with Epoxy Power Coat to RAL9004. Integrated Bridgelux LED chipset with Meanwell Power Supply unit. Bi-Pole downward light emission with PMMA optic to 120 degrees. Available with 3m, 4m, 5m and 6m poles.
Optical Performance
Wattage40W
Lumen Output3600LM
Efficacy90LM/W
CCT3000K
CRICRI > 70
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetBRIDGELUX CHIPSET
Chip LifeL70 > 60,000HRS
Electrical
Voltage230V
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
ConstructionALUMINIUM
Diameter450 MM
Height605 MM
Weight7.5KG
FinishBLACK
RALRAL 9004
IP RatingIP65

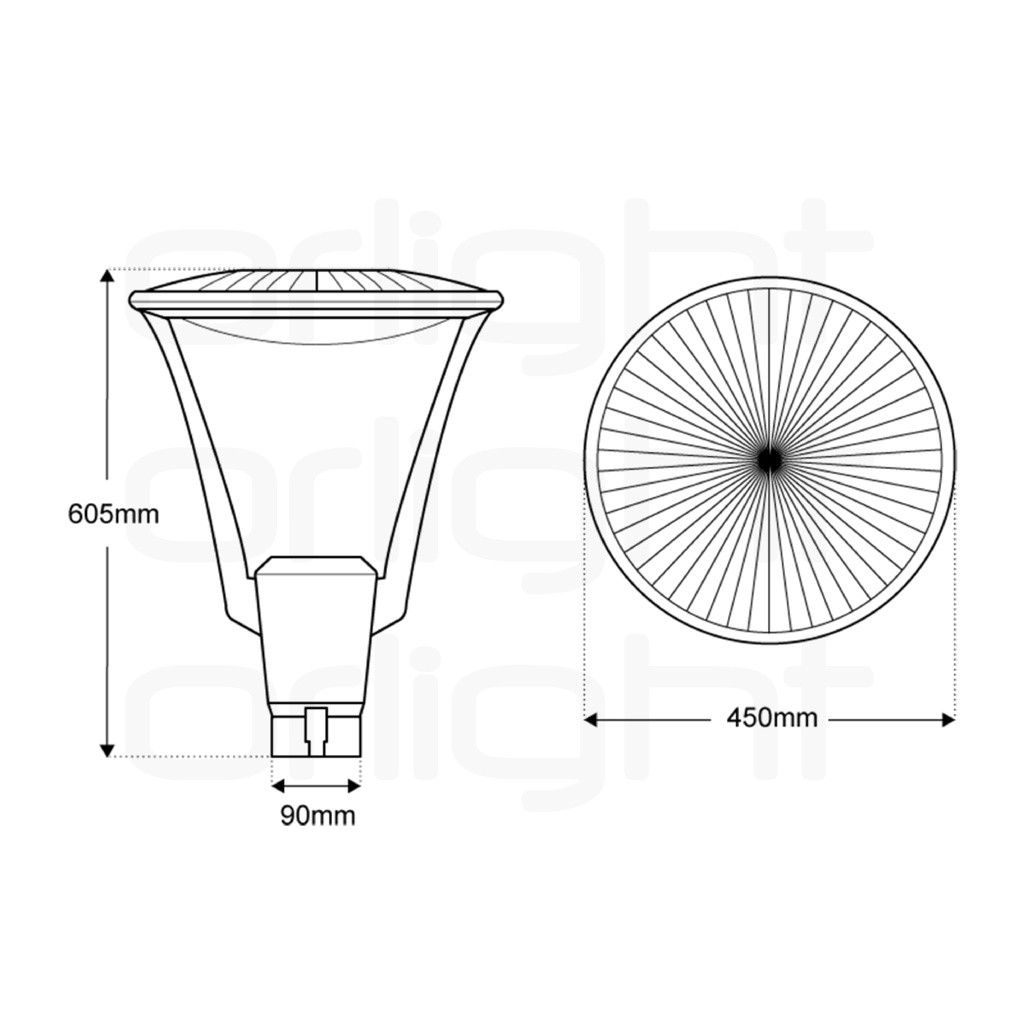

Dimensions

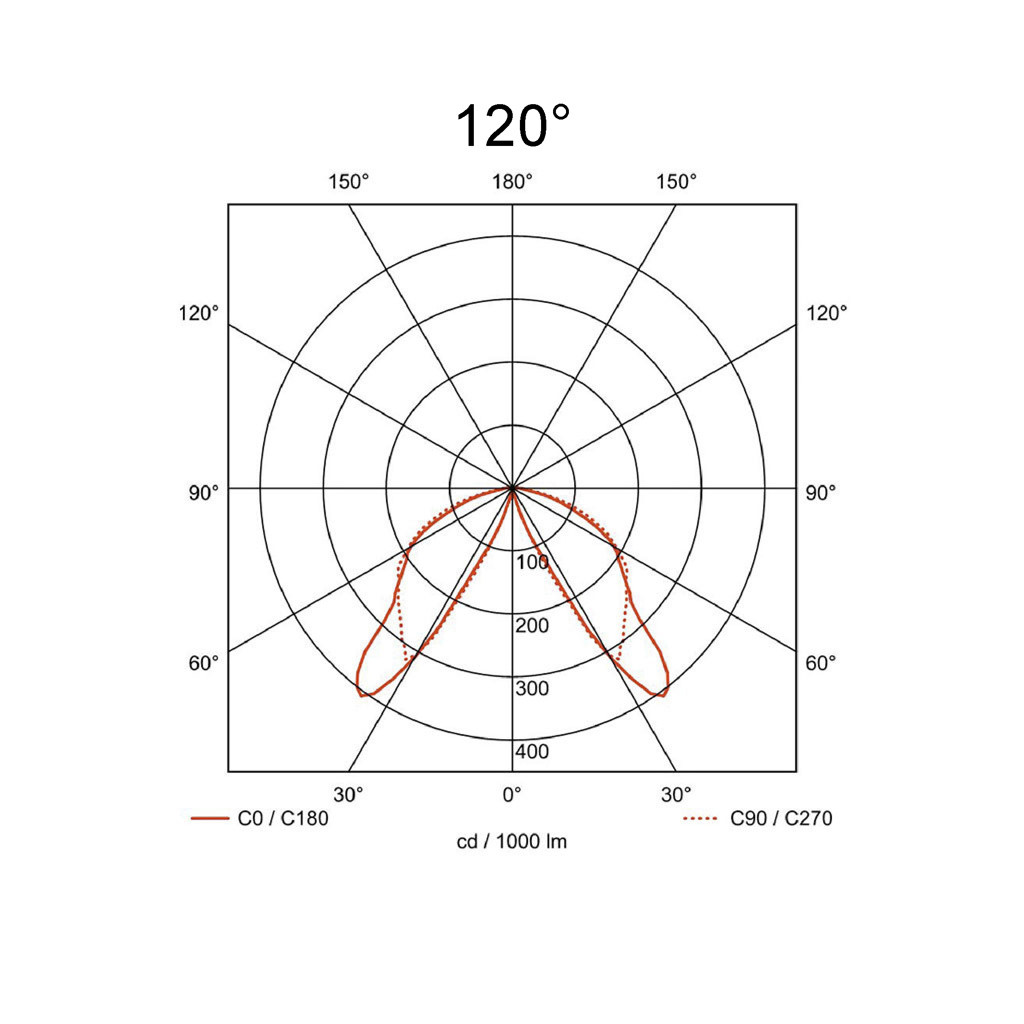

Light Distribution
120°
