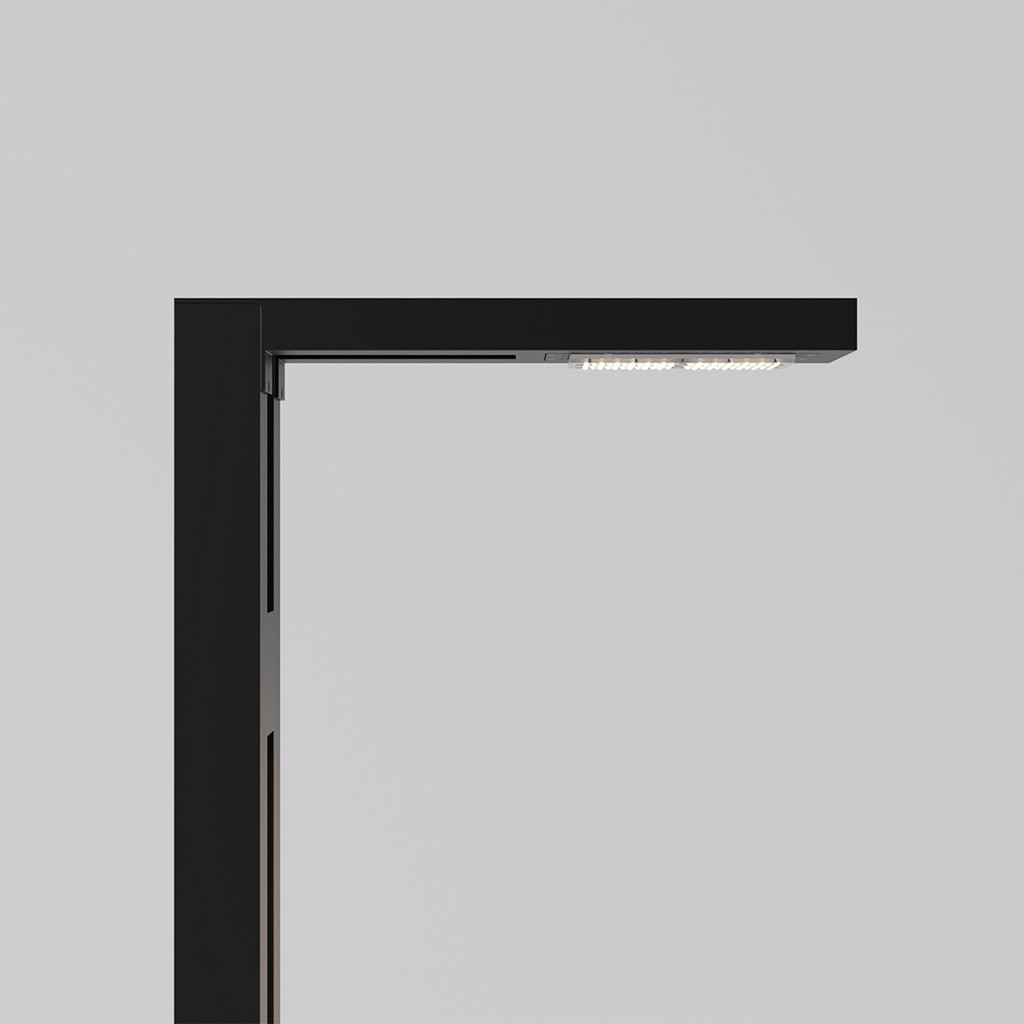

ORLEDGE-3M-FL-9005-4000K
External Lamp Post
Streetscape
CATEGORYExterior
PRODUCT RANGEEDGE
COLORBlack
This LED 3M flange-mounted post light creates a dramatic lighting effect for urban, residential, hospitality, retail, and commercial applications. The poles are constructed of box section 101.6 x 101.6 x 3.25mm Grade 6082 T6 aluminium alloy, finished in RAL9005 and rated to IP65. Access to lamp and control gear via four removable screws. Covered under BS EN 40-3-1:2013, PD6547:2004. Fixings not included.
Optical Performance
Wattage80W
Lumen Output8300LM
Efficacy104LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
ChipsetLED CHIPSET
Chip LifeL70 > 54,000HRS
Electrical
Voltage85V-265V
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE MOUNTED
ConstructionGRADE 6082 ALUMINIUM
Length800 MM
Width / Depth300 MM
Height3000 MM
FinishBLACK
RALRAL 9005
IP RatingIP65
Dimensions

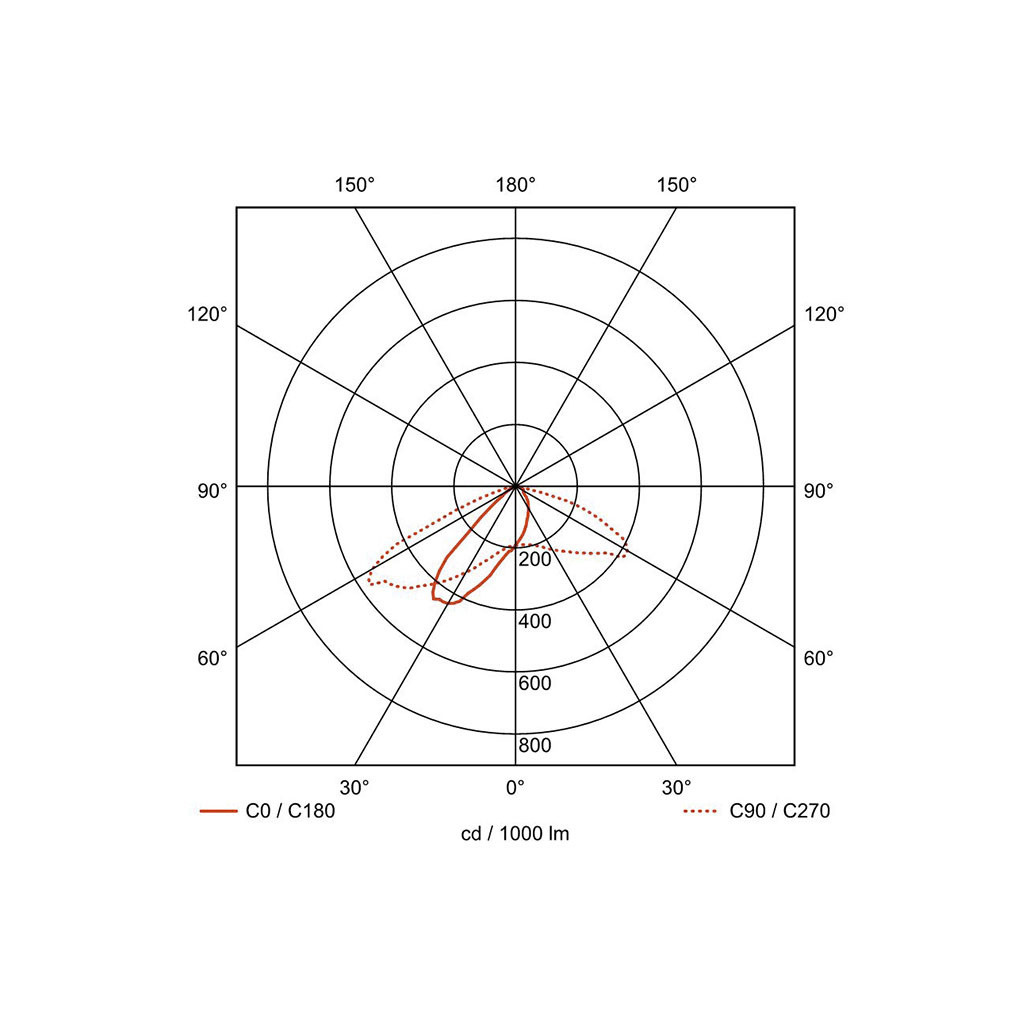

Light Distribution
