Product Categories>EXTERIOR>LUME SPOT>LUME-SPOT-MINI-4000K-45D
LUME SPOT - 41171

LUME-SPOT-MINI-4000K-45D

External Spike Fixture

Spike
LUME-SPOT-MINI-4000K-45D
LUME-SPOT-MINI-4000K-45D
CATEGORYExterior
PRODUCT RANGELUME SPOT
COLORBlack

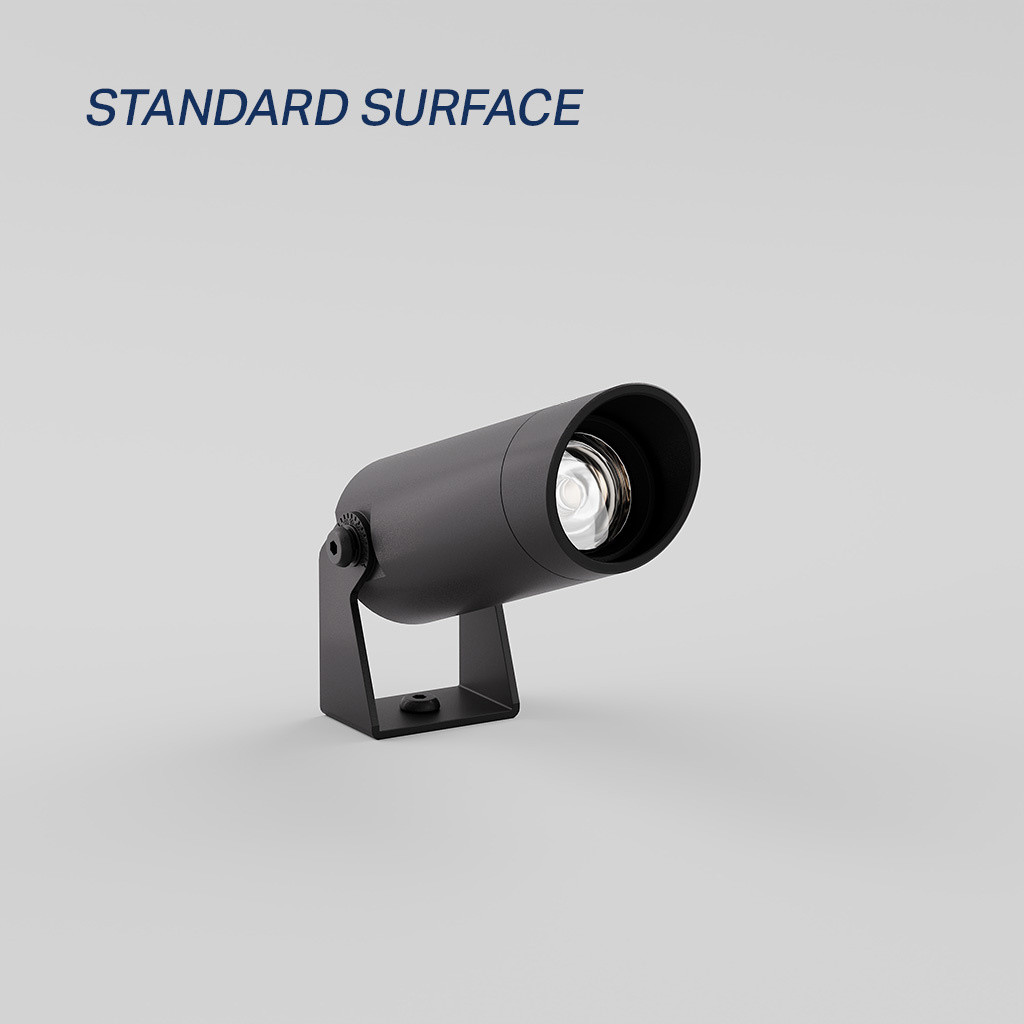

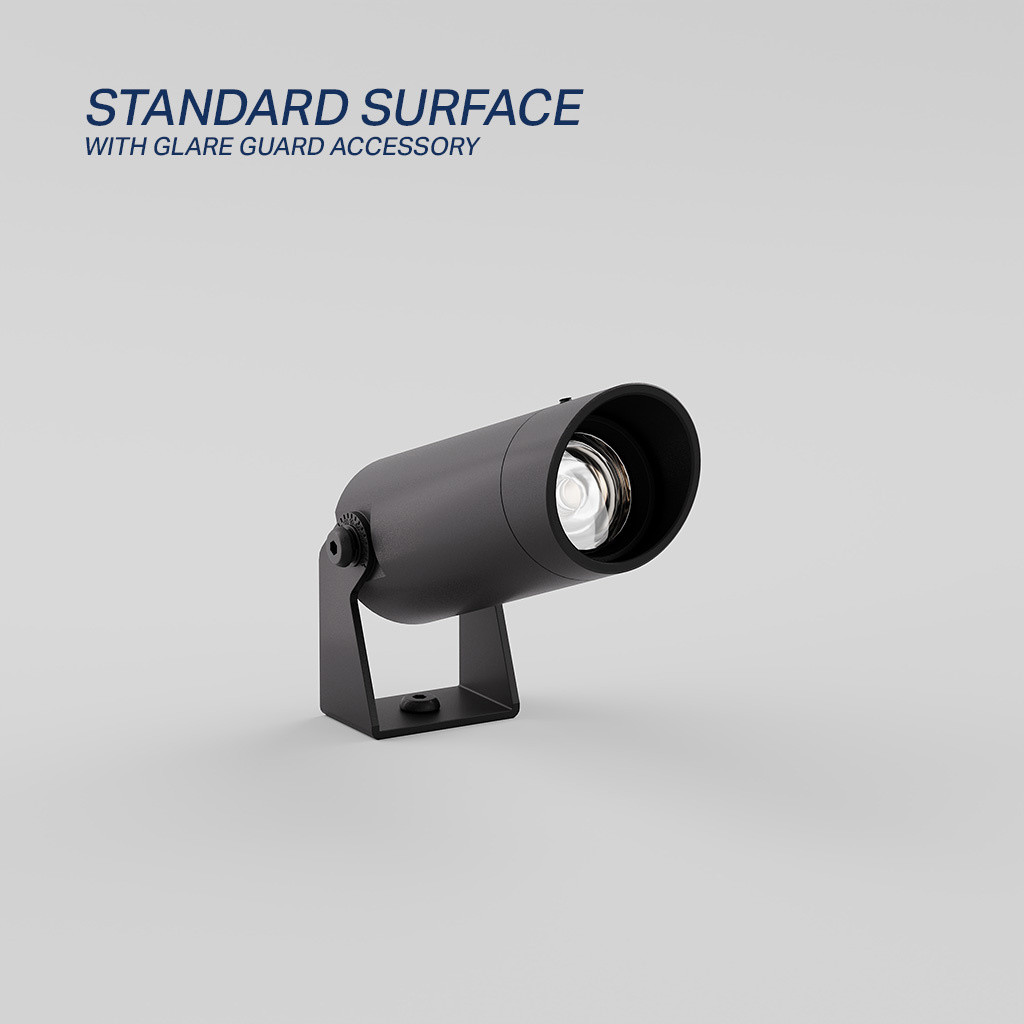

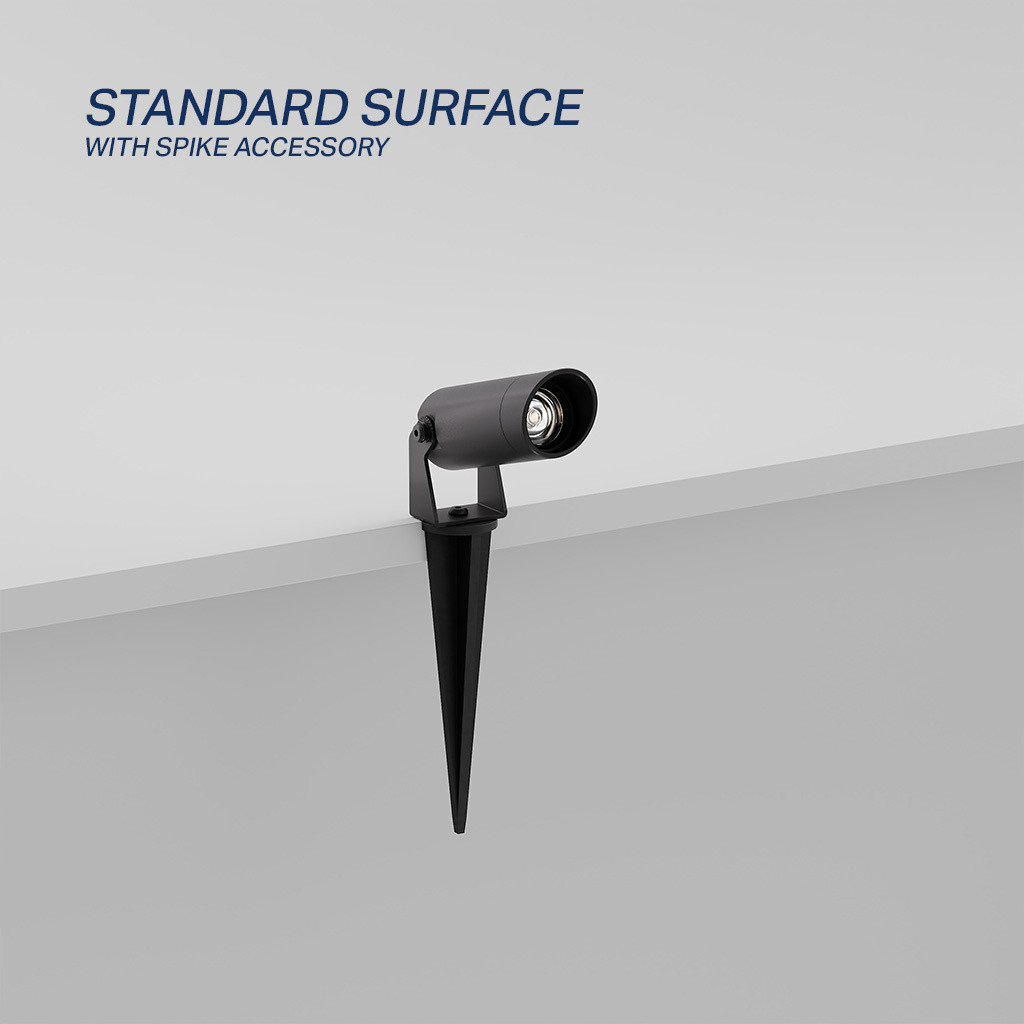

The high-performance LUME Spot-Mini is designed for durability, flexibility and visual comfort across a range of outdoor applications. With an IP67 rating, it offers full protection against dust and powerful water jets—ideal for harsh environments. The fitting can be surface-mounted as standard or spike-mounted using an accessory. A choice of optics supports various lighting requirements, from narrow beams for accenting to wide spreads for general illumination. Its robust tempered glass lens and corrosion-resistant anodised aluminium body ensure lasting performance and visual appeal—ideal for illuminating pathways, gardens, façades or signage with efficiency and style. The fitting is supplied with a 45° lens and glare guard as standard. If an alternative lens is required, please contact sales@orlight.com.

Construction

InstallationSURFACE / SPIKE
ConstructionALUMINIUM
Diameter40 MM
Length102 MM
Width / Depth48 MM
Height65 MM
Weight0.2KG
TiltADJUSTABLE
FinishBLACK
RALRAL 9005
IP RatingIP67
IK RatingIK08
Operating Ambient Temperature-20˚C - +50˚C

Optical Performance

Wattage7W
Lumen Output596LM
Efficacy85LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle45°
ChipsetCREE
Calculated Chip LifeL70 > 105,000HRS

Electrical

Constant Current or VoltageCONSTANT CURRENT
Voltage18V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length1000MM

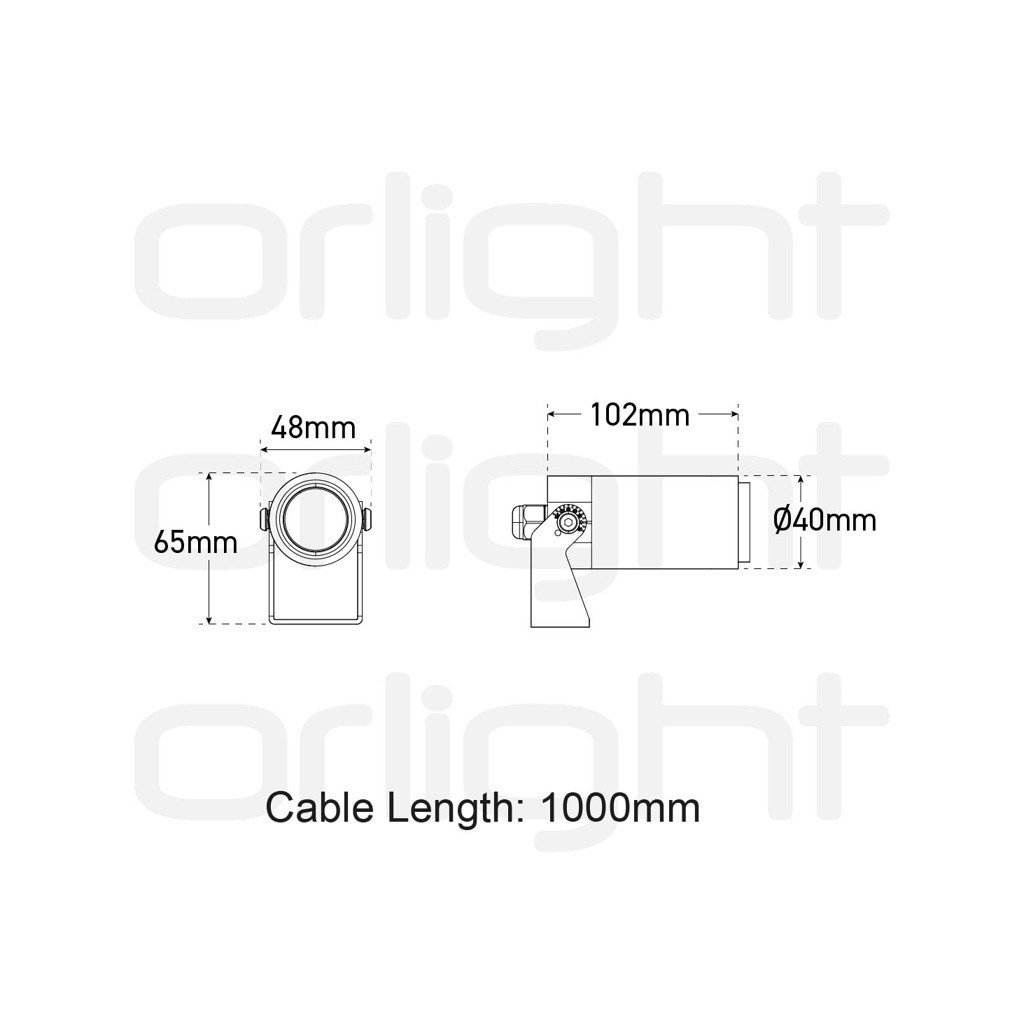

Dimensions

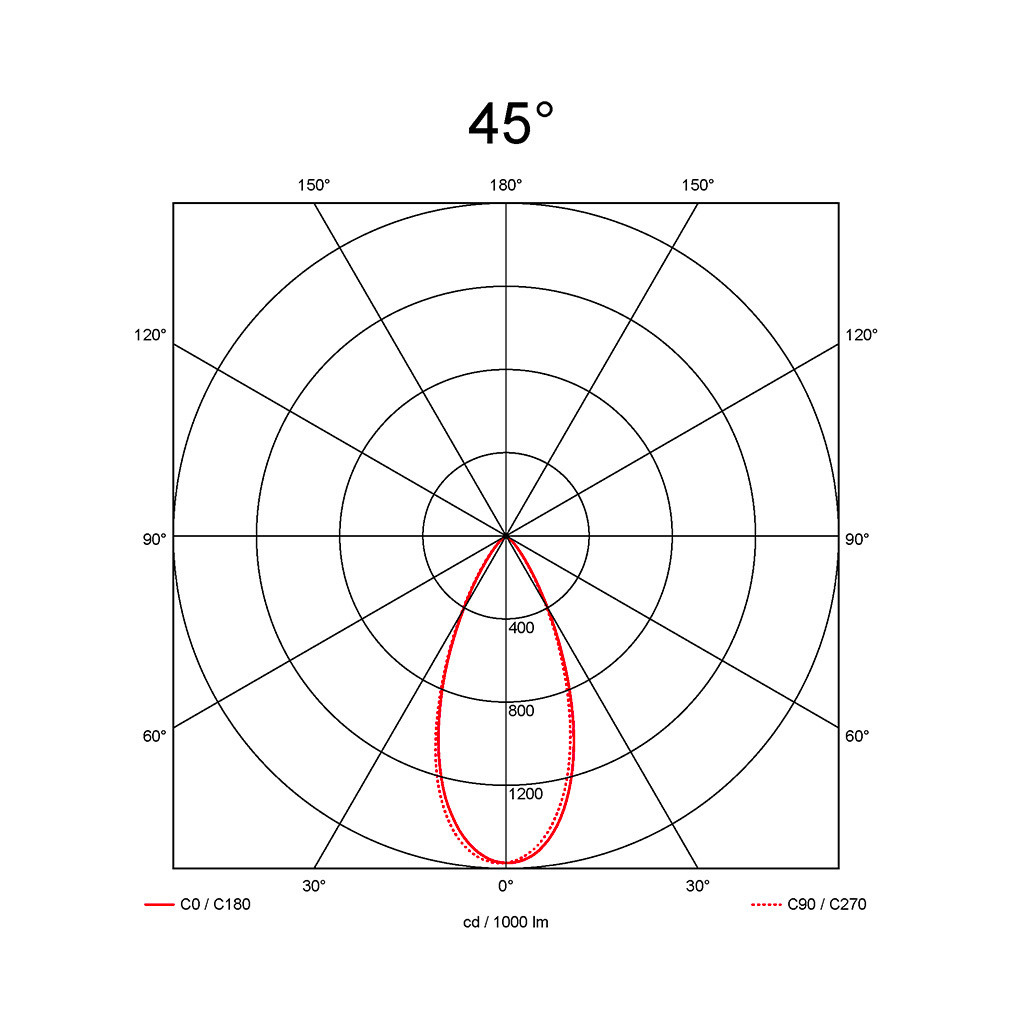

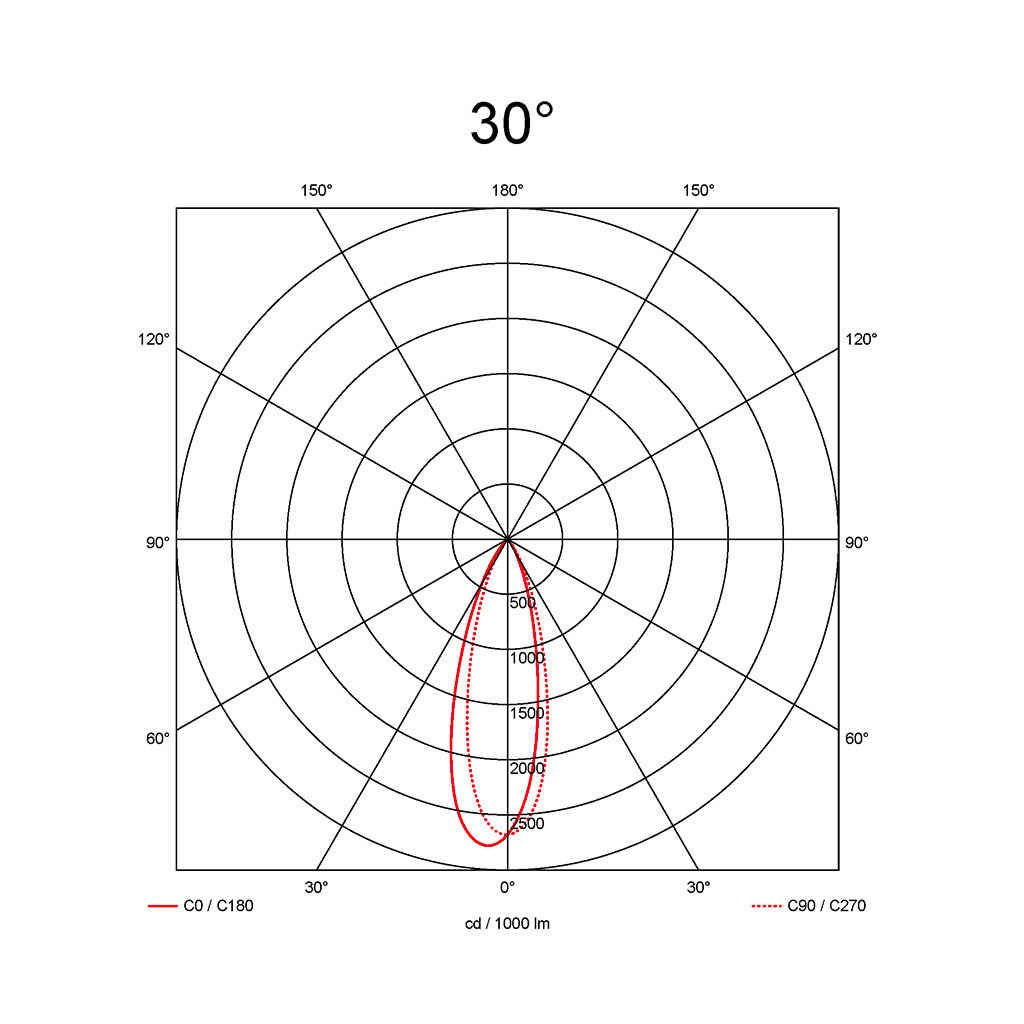

Light Distribution

Item No.DriverControlMin. Fitting Max. Fitting Datasheet
15231ORLRPV350CCSwitched [IP68]11
15230ORLRPV350-35-APCSwitched [IP42]25
31555ORLRPV350-35-APC-IP66Switched [IP66]25
46595ORLRPV20D-350MAMains [IP20]12
22251MAXDR-MINI-350MA1-10V/Push [IP20]12
34715ORL-DALI-NFC-15CC-350MADALI [IP20]12
ORLRPV350-35-APC

ORLRPV350-35-APC

Constant Current 350ma Driver

AYLAAYLASpike FixtureView Product

Product Support

We're here to help with product enquiries, technical questions, and project support.
