ORLLM66-SS-5000K
Spike Fixture
Spike
CATEGORYExterior
PRODUCT RANGEAYLA
COLOR316 Marine Grade
Marine grade 316 stainless steel in-ground spike fixture complete with integral CREE LED package. Configured to 15 degree beam as standard, product functions with 350mA constant current driver. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all touch temperature requirements. Please Note: This product does not support hot plugging.
Construction
InstallationINGROUND SPIKE
ConstructionSTAINLESS STEEL
Diameter67 MM
Width / Depth92 MM
Height385 MM
Weight0.925KG
TiltADJUSTABLE
Finish316 MARINE GRADE
IP RatingIP65
IK RatingIK07
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage3W
Lumen Output290LM
Efficacy97LM/W
CCT5000K
CRICRI > 70
Binning2 STEP MACADAMS
Beam Angle15°
ChipsetCREE 5050
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage9V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length3000MM

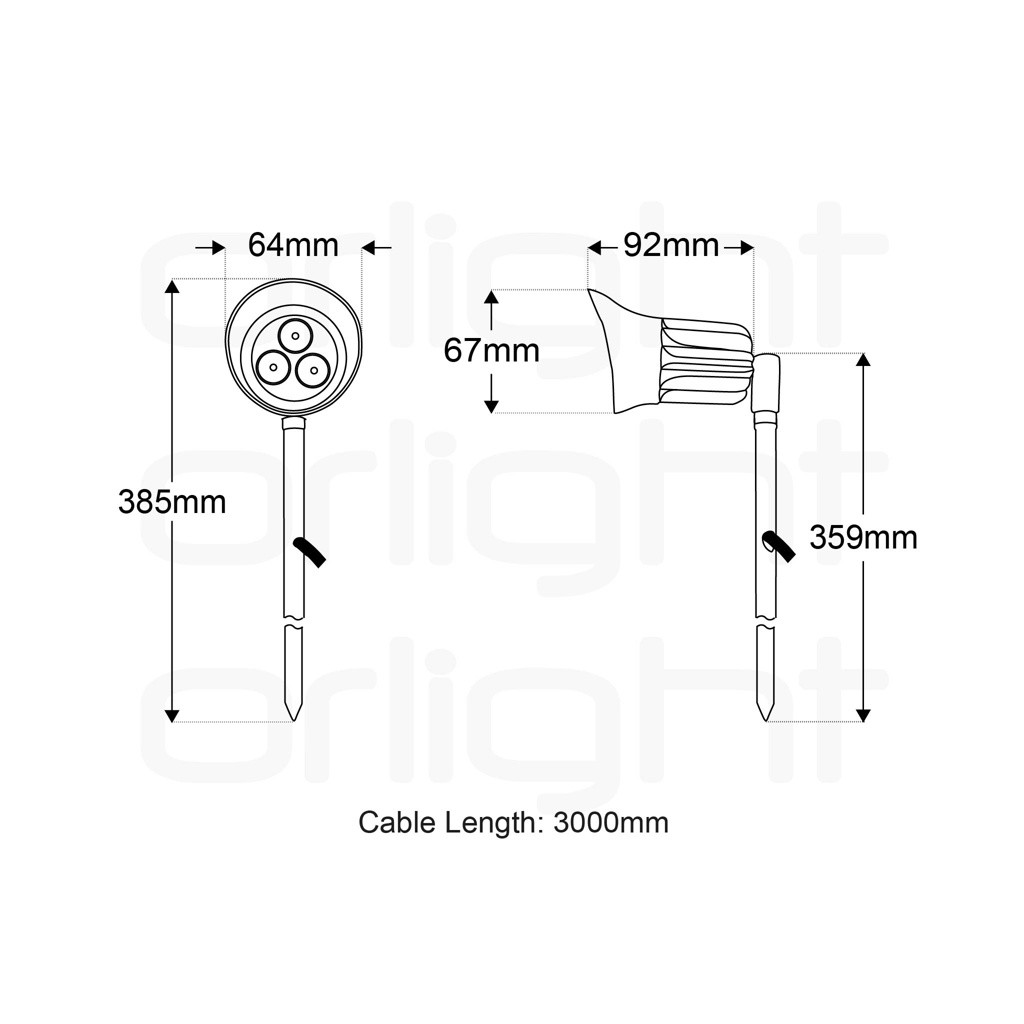

Dimensions

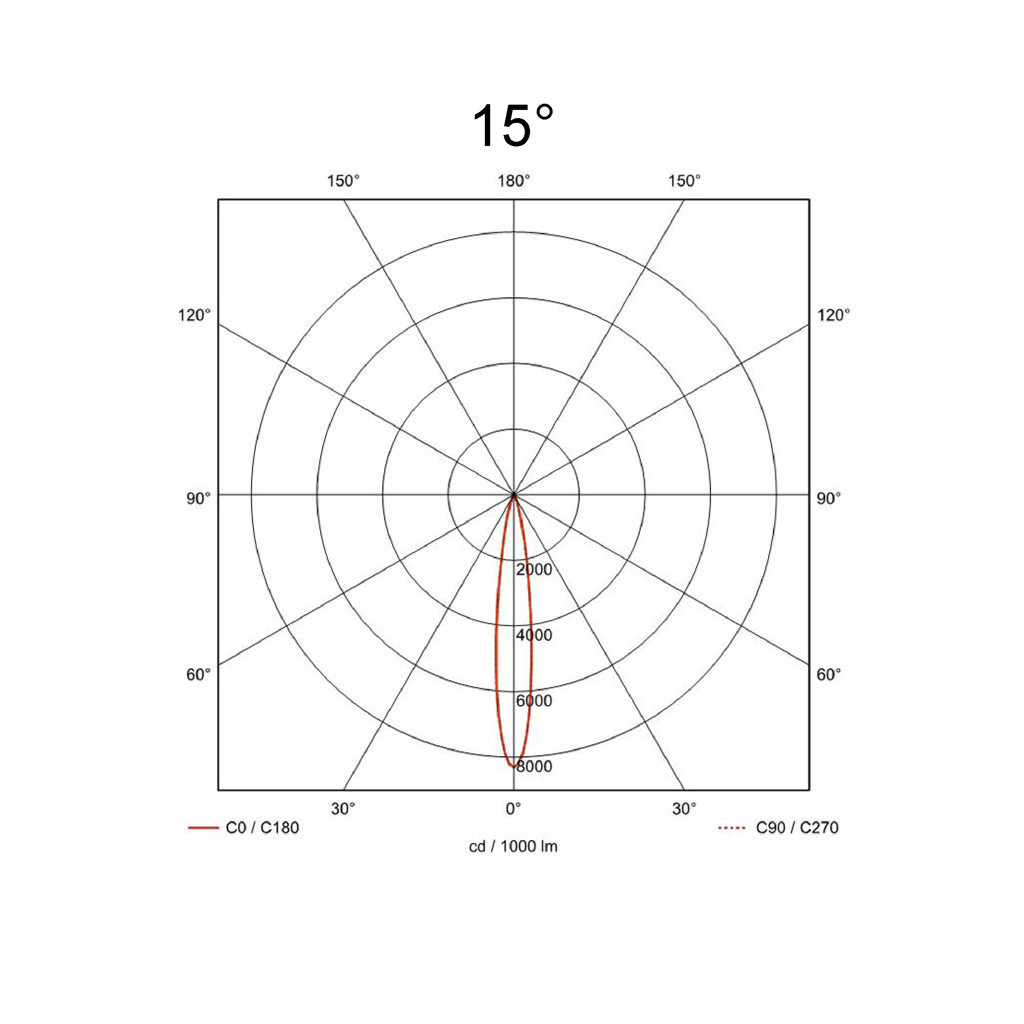

Light Distribution
15°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 3 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 4 | 10 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 4 | 10 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 4 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 5 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 1 | 4 |
