VECTOR2-3000K-1000MM-DALI
IP67 Linear Bar Fixture
Linear
CATEGORYExterior
PRODUCT RANGEVECTOR
COLORIron Grey
Solid state linear LED bar constructed from Aluminium featuring a narrow 10° beam angle, light shield and adjustable wall mounted tilt bracket. Construction rated to IP67 and IK06, suitable for exterior applications. Please Note: This product does not support hot plugging.
Optical Performance
Wattage22W
Lumen Output1757LM
Efficacy80LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle10°
ChipsetCREE XPE2 7D
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24VDC
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE MOUNTED
ConstructionALUMINIUM
Length1000MM
Height71 MM
Weight2KG
TiltADJUSTABLE
FinishIRON GREY
IP RatingIP67
IK RatingIK06

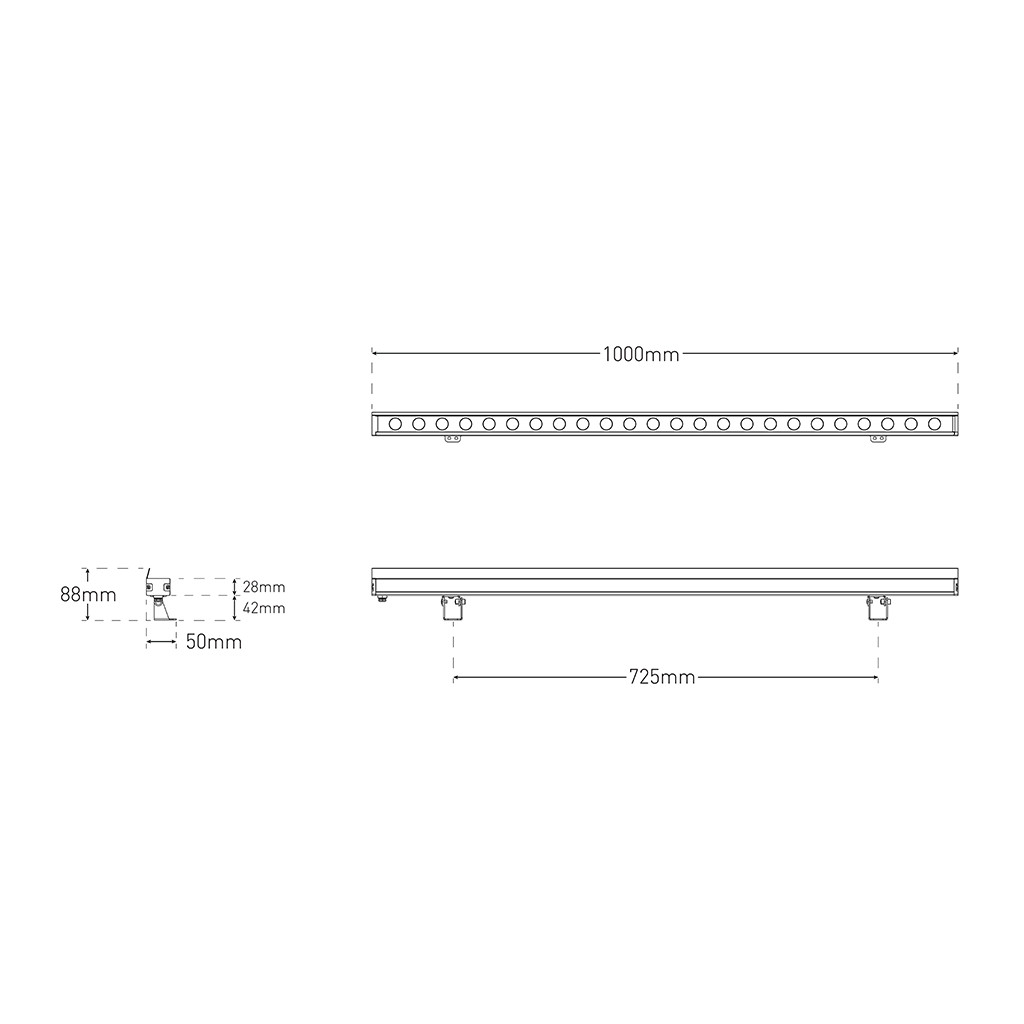

Dimensions

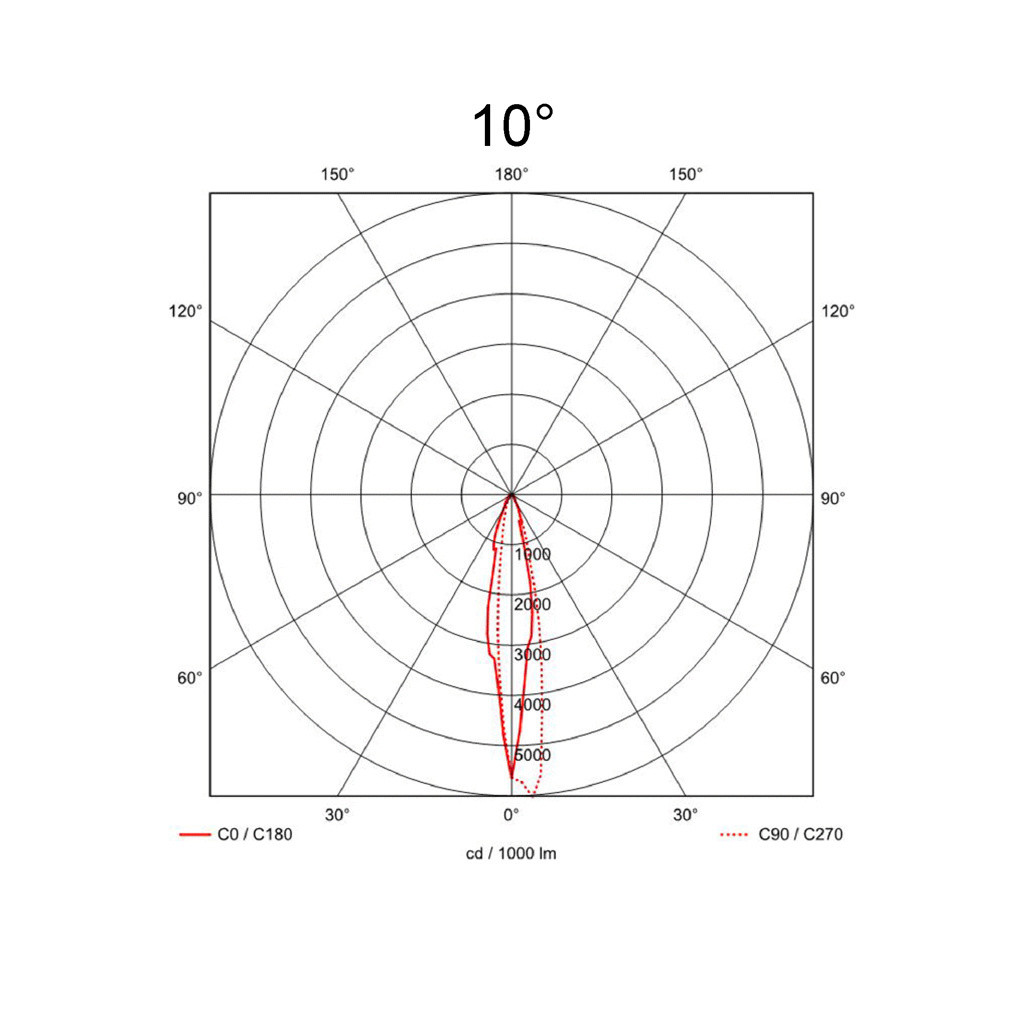

Light Distribution
10°
