VECTOR2-3000K-1000MM
IP67 Linear Bar Fixture
Linear
CATEGORYExterior
PRODUCT RANGEVECTOR
COLORIron Grey
Solid state linear LED bar constructed from Aluminium featuring a narrow 10° beam angle, light shield and adjustable wall mounted tilt bracket. Construction rated to IP67 and IK06, suitable for exterior applications. Please Note: This product does not support hot plugging.
Optical Performance
Wattage22W
Lumen Output1757LM
Efficacy80LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle10°
ChipsetCREE XPE2 7D
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24VDC
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE MOUNTED
ConstructionALUMINIUM
Length1000MM
Height71 MM
Weight2KG
TiltADJUSTABLE
FinishIRON GREY
IP RatingIP67
IK RatingIK06

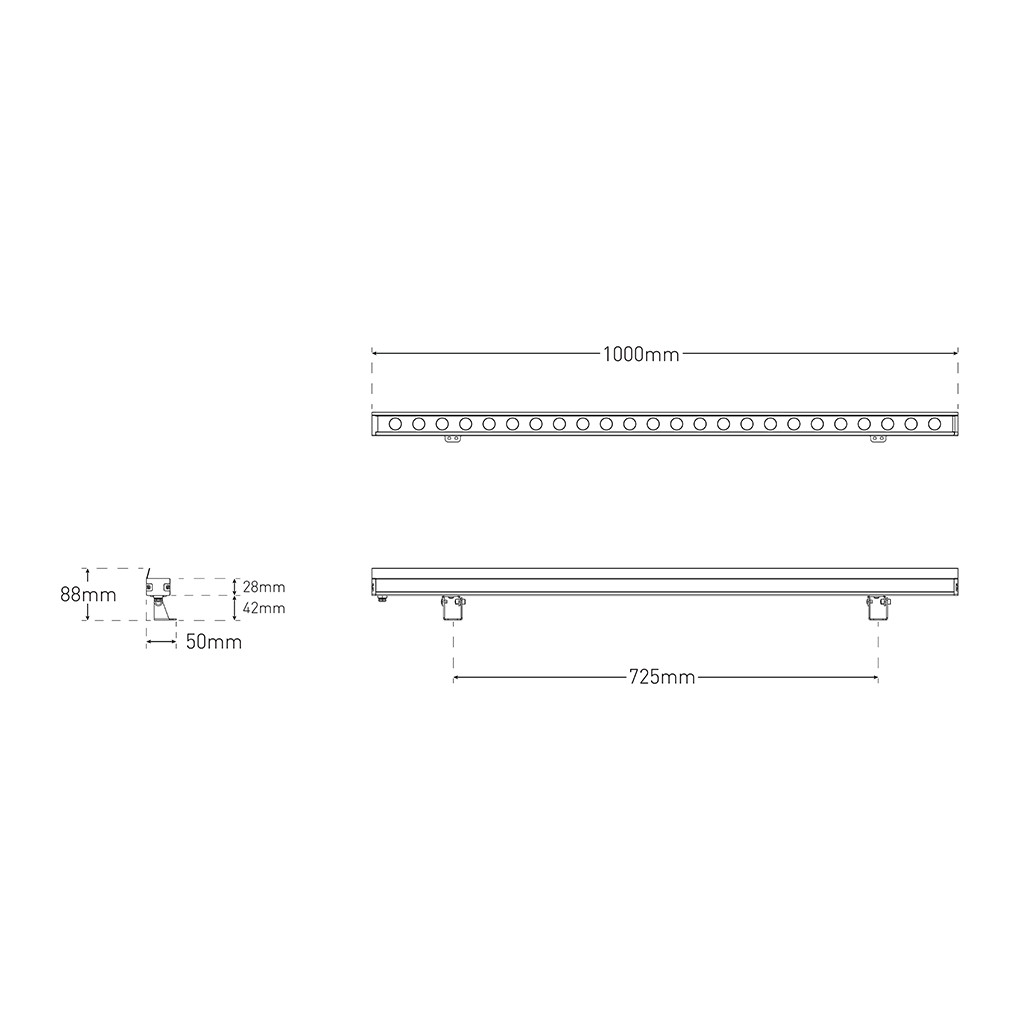

Dimensions

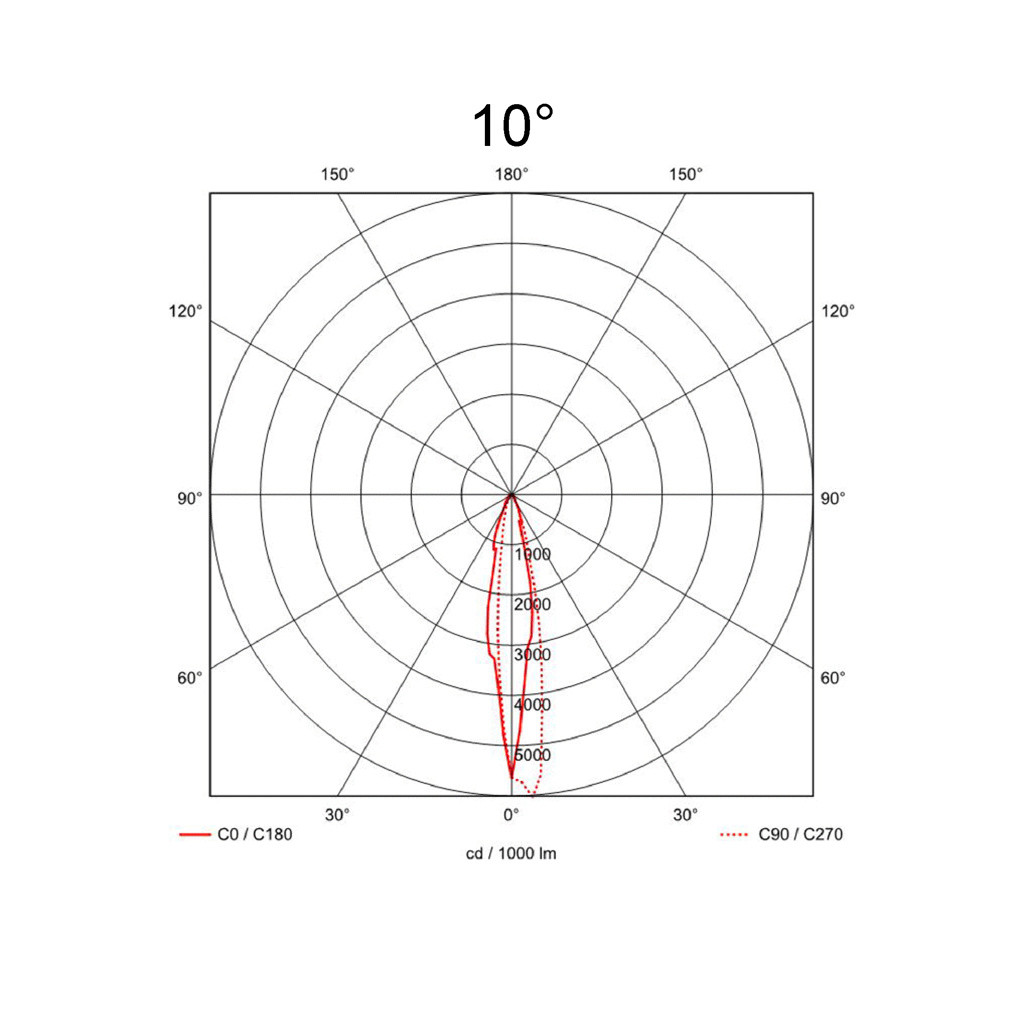

Light Distribution
10°
