Product Categories>EXTERIOR>VECTOR-3>VECTOR3-INTDALI-3000K-300MM
VECTOR-3 - 33059

VECTOR3-INTDALI-3000K-300MM

IP67 Linear Bar Fixture

Linear
VECTOR3-INTDALI-3000K-300MM
VECTOR3-INTDALI-3000K-300MM
CATEGORYExterior
PRODUCT RANGEVECTOR-3
COLORBlack

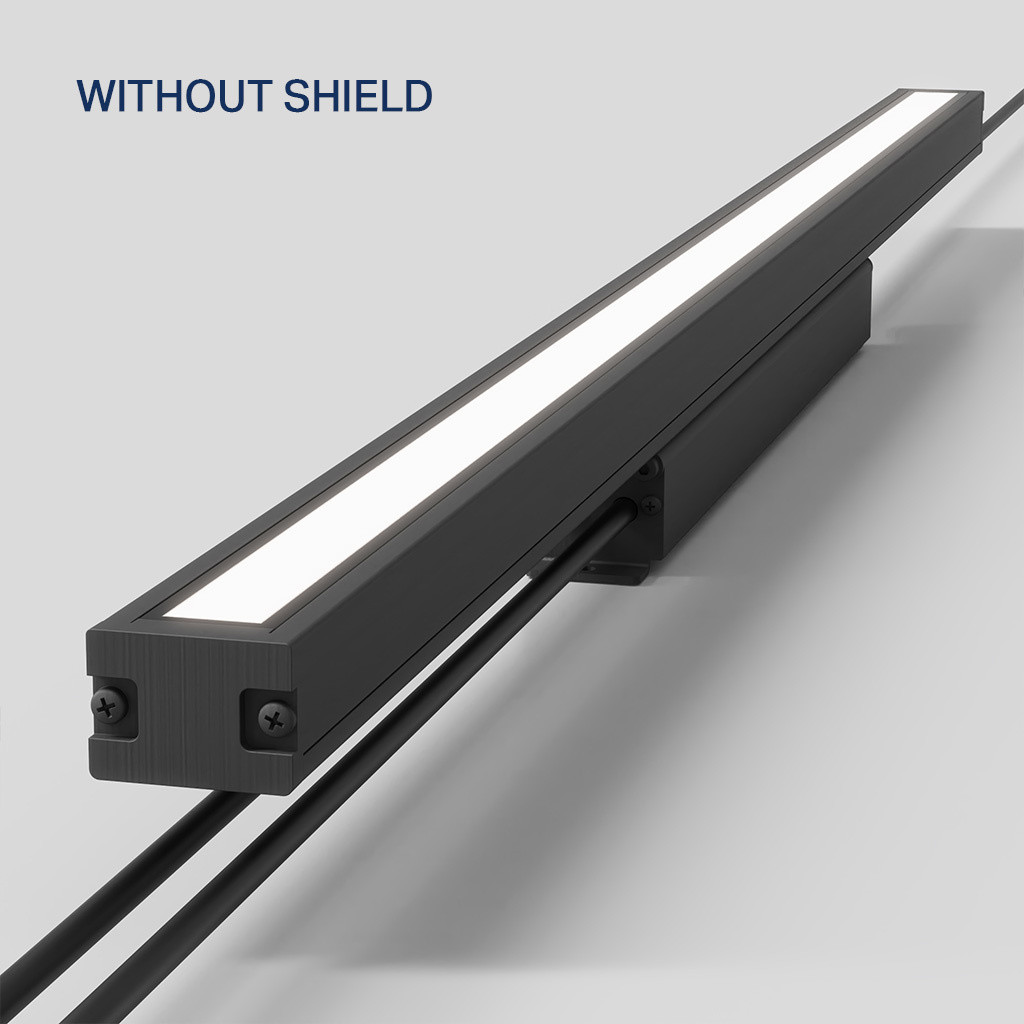

VECTOR3 is a high-performance solid-state LED linear bar, engineered from robust aluminium and frosted tempered glass for durability with a refined aesthetic. Designed for surface mounting with an adjustable tilt bracket, it offers precise aiming for architectural, commercial, or façade lighting applications. A removable shield enhances versatility, allowing the fixture to adapt seamlessly to different environments and design intents. An integrated driver streamlines installation and reduces the need for external components. Built to endure harsh conditions, VECTOR3 is rated IP67 for complete dust and water protection and IK07 for impact resistance. It's 30×60° optic ensures efficient light control, delivering uniform illumination with minimal glare. Please Note: This product does not support hot plugging.

Construction

InstallationSURFACE MOUNTED
ConstructionALUMINIUM
Length300 MM
Width / Depth40 MM
Height82 MM
Weight1.4KG

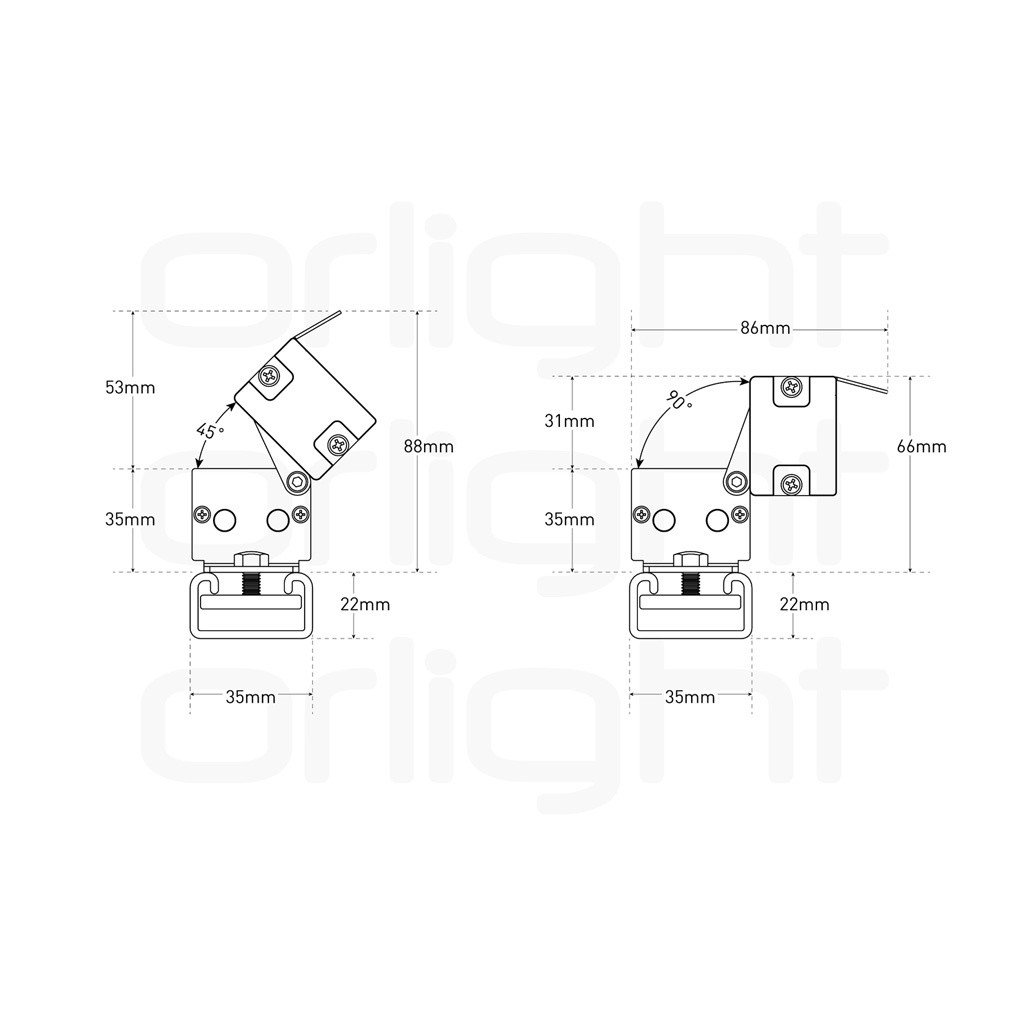

Tilt90°
FinishBLACK
RALRAL 9005
IP RatingIP67
IK RatingIK07
Operating Ambient Temperature-20˚C - +45˚C

Optical Performance

Wattage12W
Lumen Output588LM
Efficacy49LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle60° X 30°
ChipsetCREE
Chip LifeL70 > 63,500HRS

Electrical

Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current500MA
Driver ConfigurationFIXTURE MOUNTED
ControlDALI DIMMABLE
Cable Length250MM

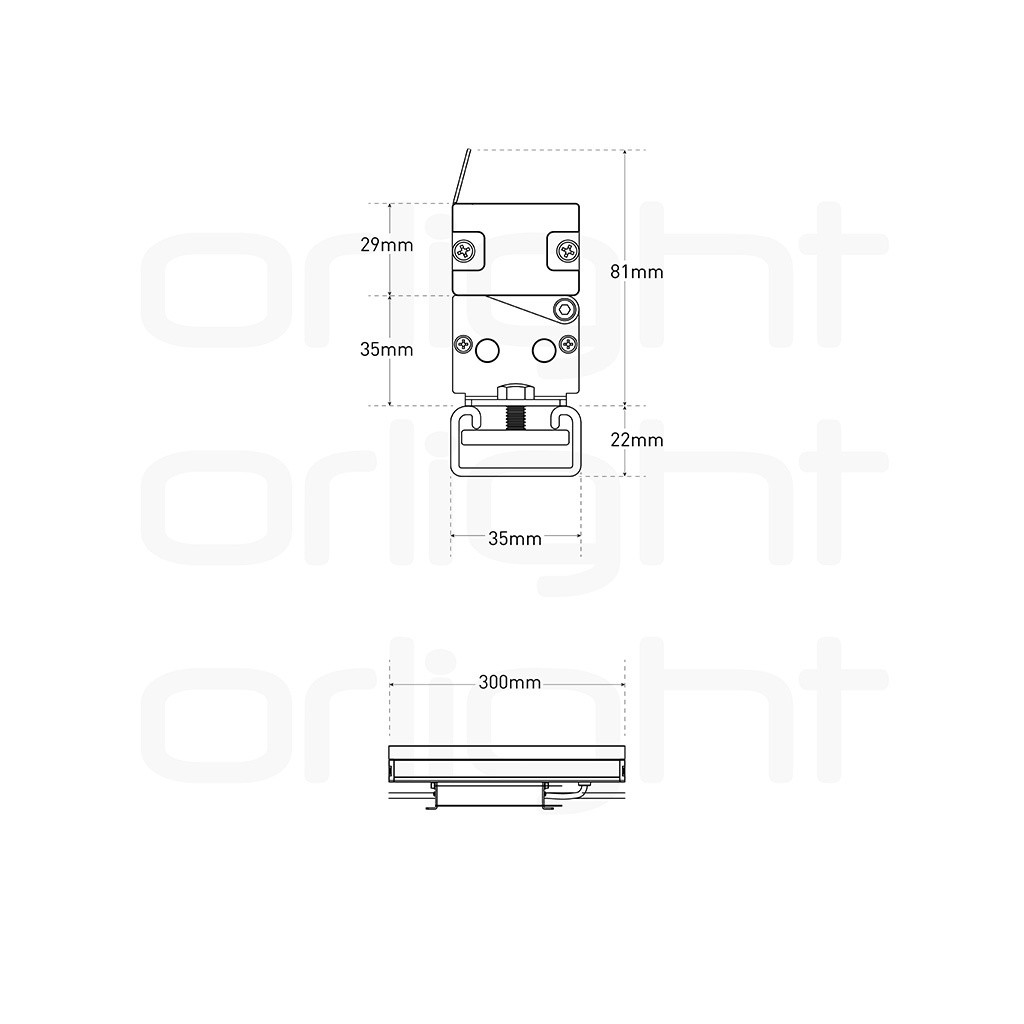

Dimensions

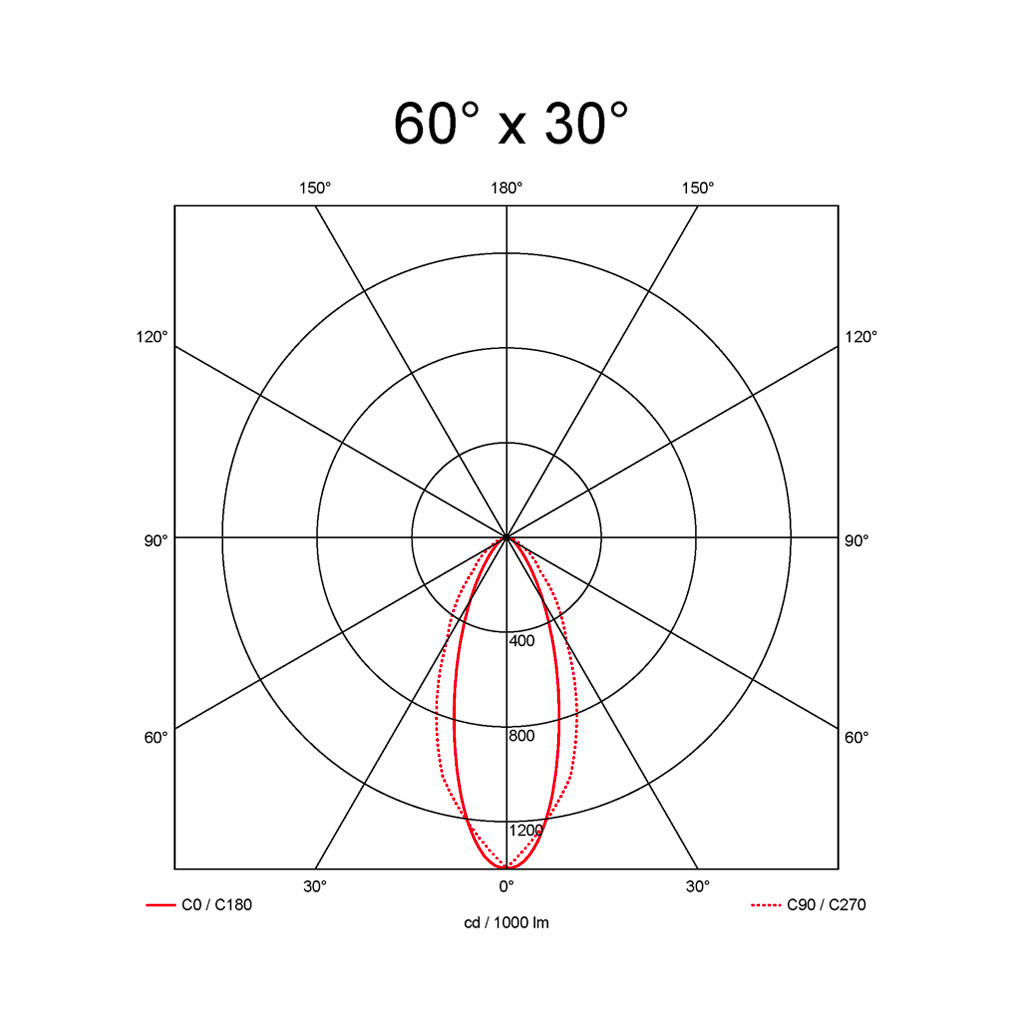

Light Distribution

60° X 30°
