ORLLEDBAR-3000K-900MM
IP65 Linear LED Bar Fixture
Linear
CATEGORYExterior
PRODUCT RANGELEDBAR
COLORAluminium
Solid state linear bar with integrated CRI90+ Luxeon chipset. 20 degree optic as standard for light projection. Aluminium construction rated to IP65, suitable for exterior applications. Supplied with optional mounting clips allowing for the fixture to be angled. Please Note: This product does not support hot plugging.
Optical Performance
Wattage17W
Lumen Output1396LM
Efficacy82LM/W
CCT3000K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle20°
ChipsetLUXEON 3030 2D
Electrical
Voltage24V
Driver ConfigurationREMOTE
Construction
InstallationSURFACE MOUNTED
ConstructionALUMINIUM
Length900 MM
Width / Depth29 MM
Height45 MM
TiltADJUSTABLE
FinishALUMINIUM
IP RatingIP65

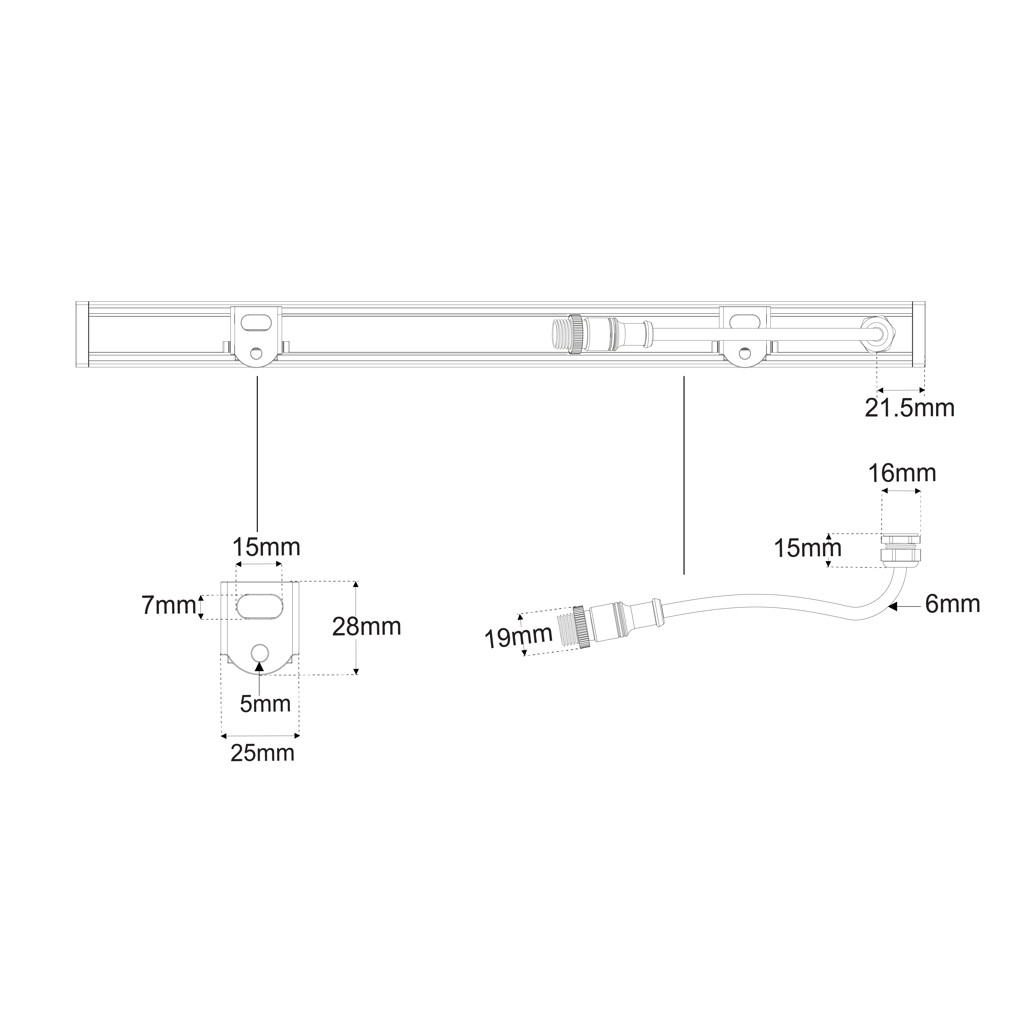

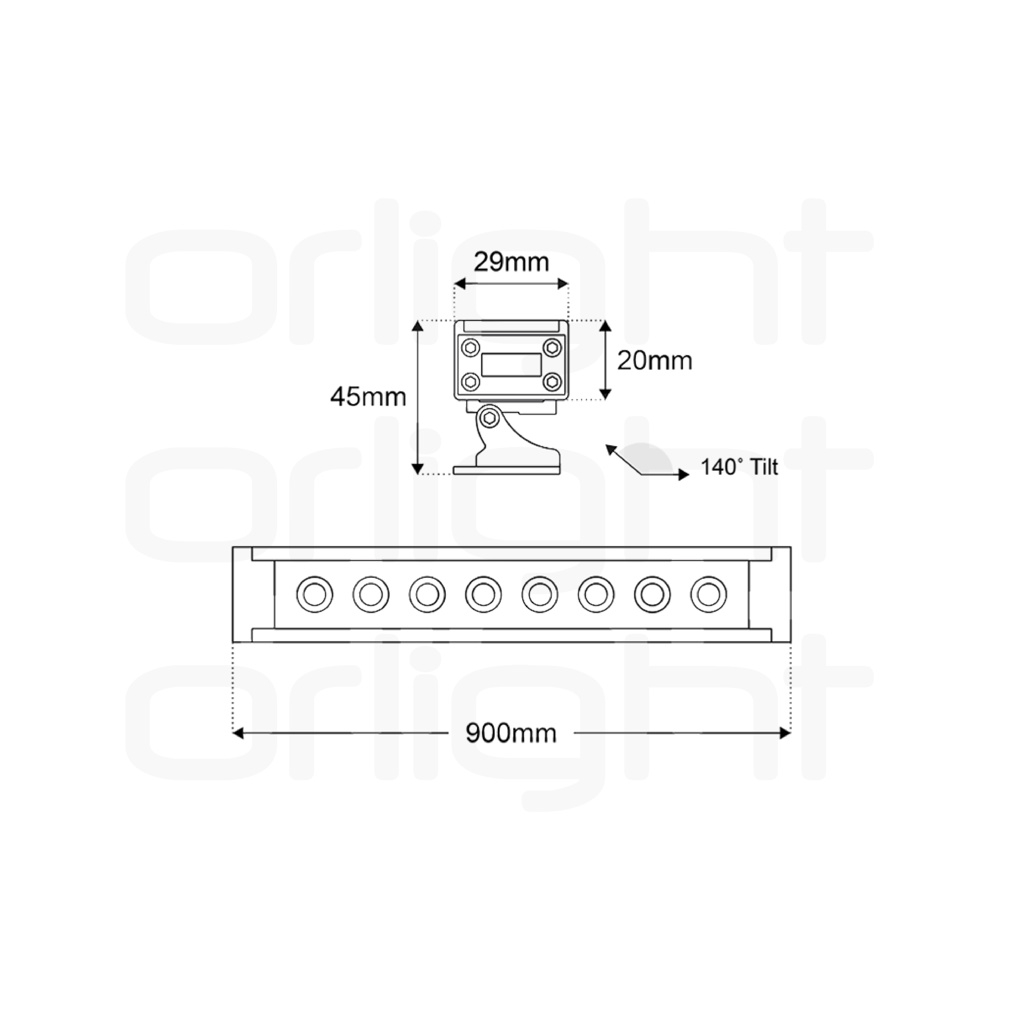

Dimensions

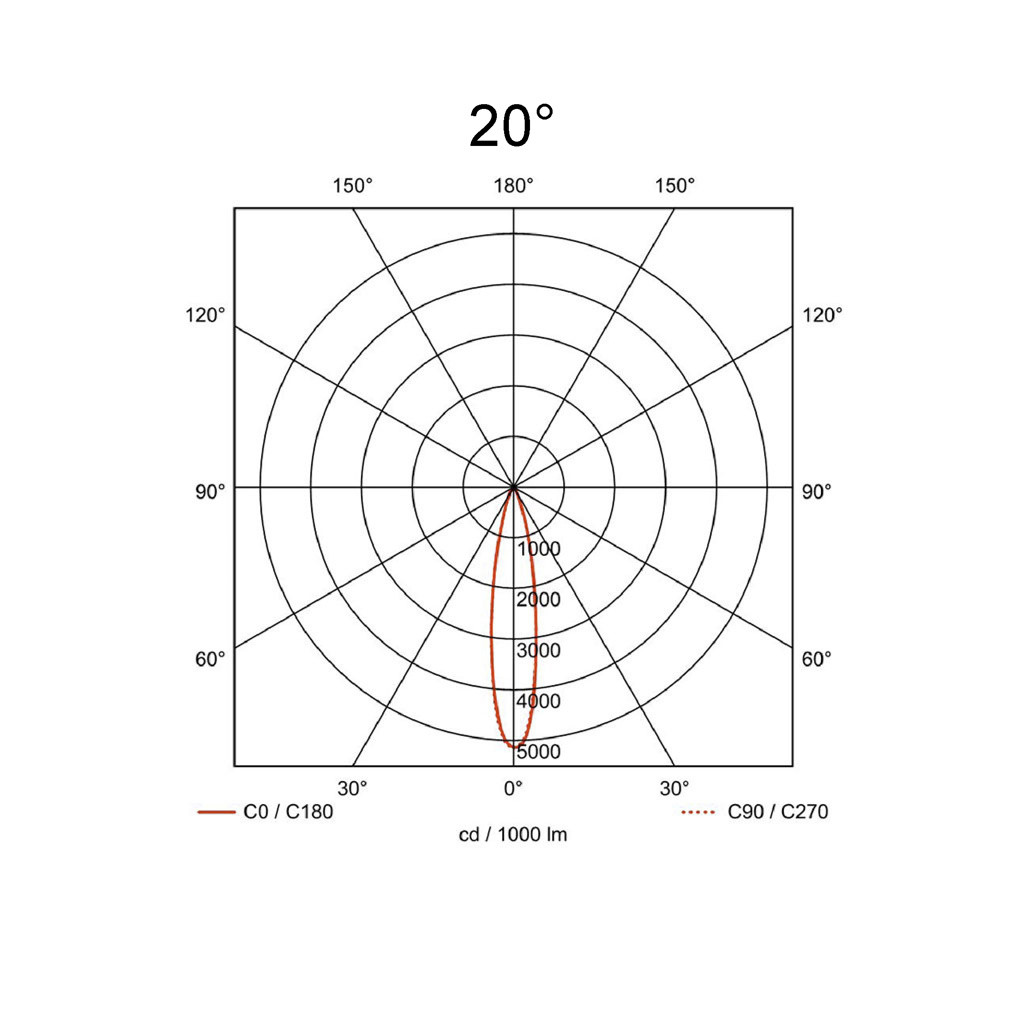

Light Distribution
20°
