ORLLM175-SS-4000K
Inground Fixture
In Ground
CATEGORYExterior
PRODUCT RANGETERRA
COLOR316 Marine Grade
Marine grade 316 stainless steel in-ground fixture complete with integral CREE LED package. Fixture rated to IP67 with no mechanical joints to light source ensuring robust protection against water ingress. Configured to 30 degree beam as standard. Product runs cool meeting all touch temperature requirements. Suitable for the illumination of small/medium trees. Please Note: This product does not support hot plugging.
Construction
InstallationRECESSED
ConstructionSTAINLESS STEEL
Diameter175 MM
Height51 MM
Cutout155 MM
Weight1.91KG
Finish316 MARINE GRADE
IP RatingIP67
IK RatingIK08
Operating Ambient Temperature-20˚C - +50˚C
Optical Performance
Wattage25W
Lumen Output1808LM
Efficacy95LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle30°
ChipsetCREE XPE
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage50V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length3000MM

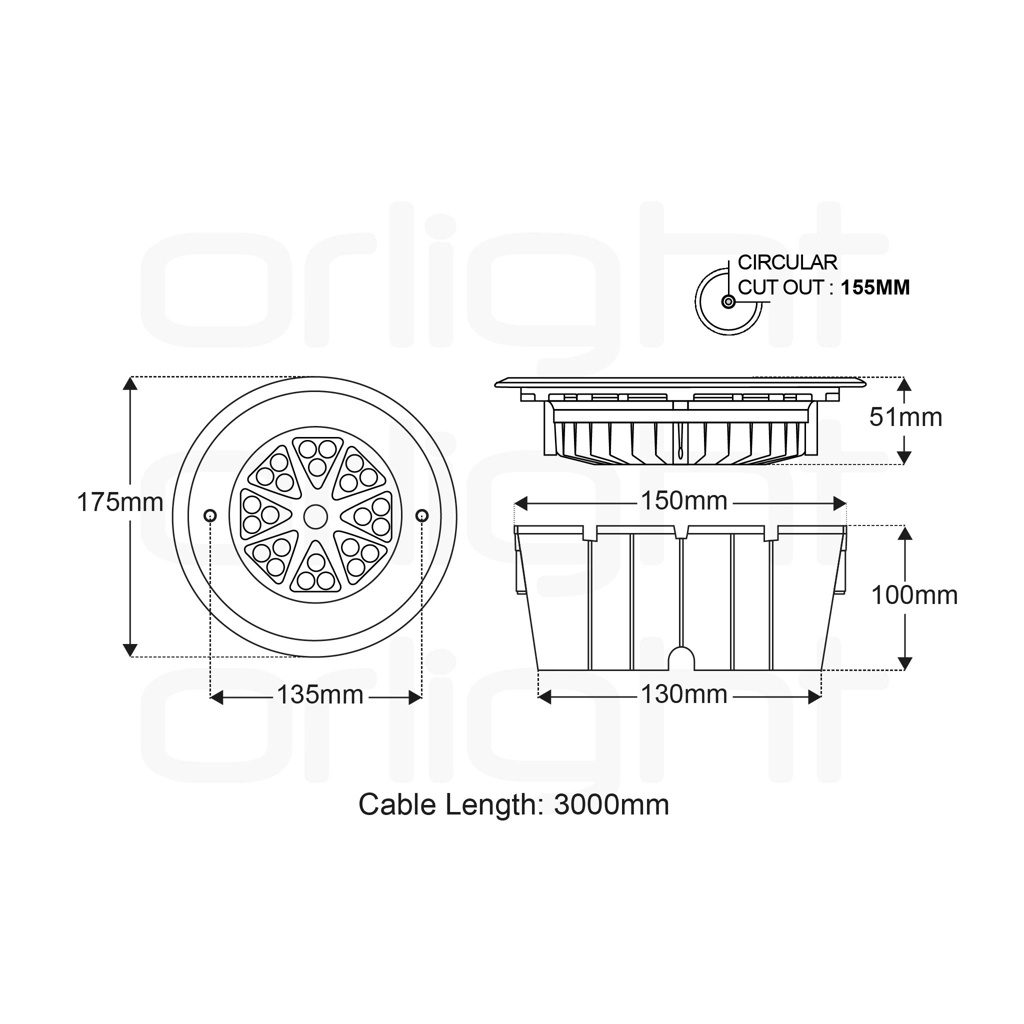

Dimensions

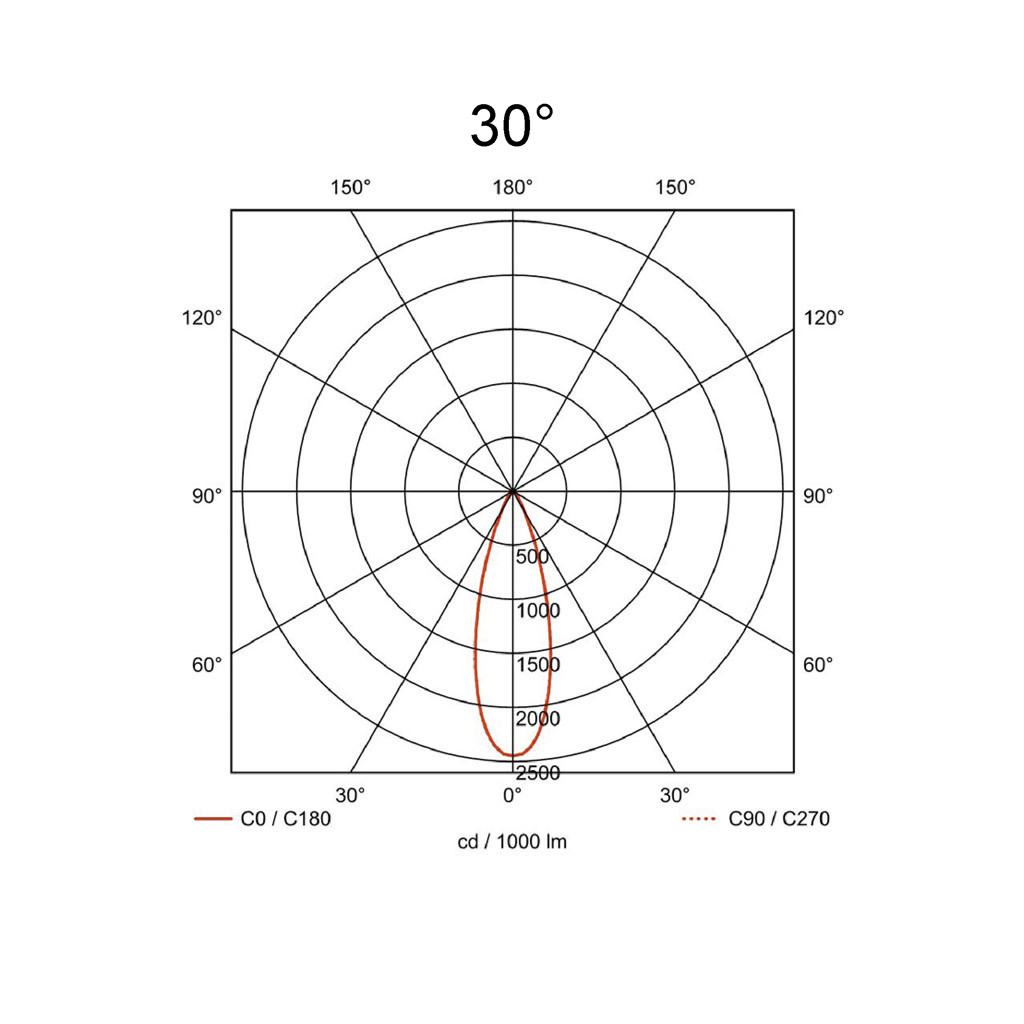

Light Distribution
30°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 1 | 1 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 1 | 1 |
