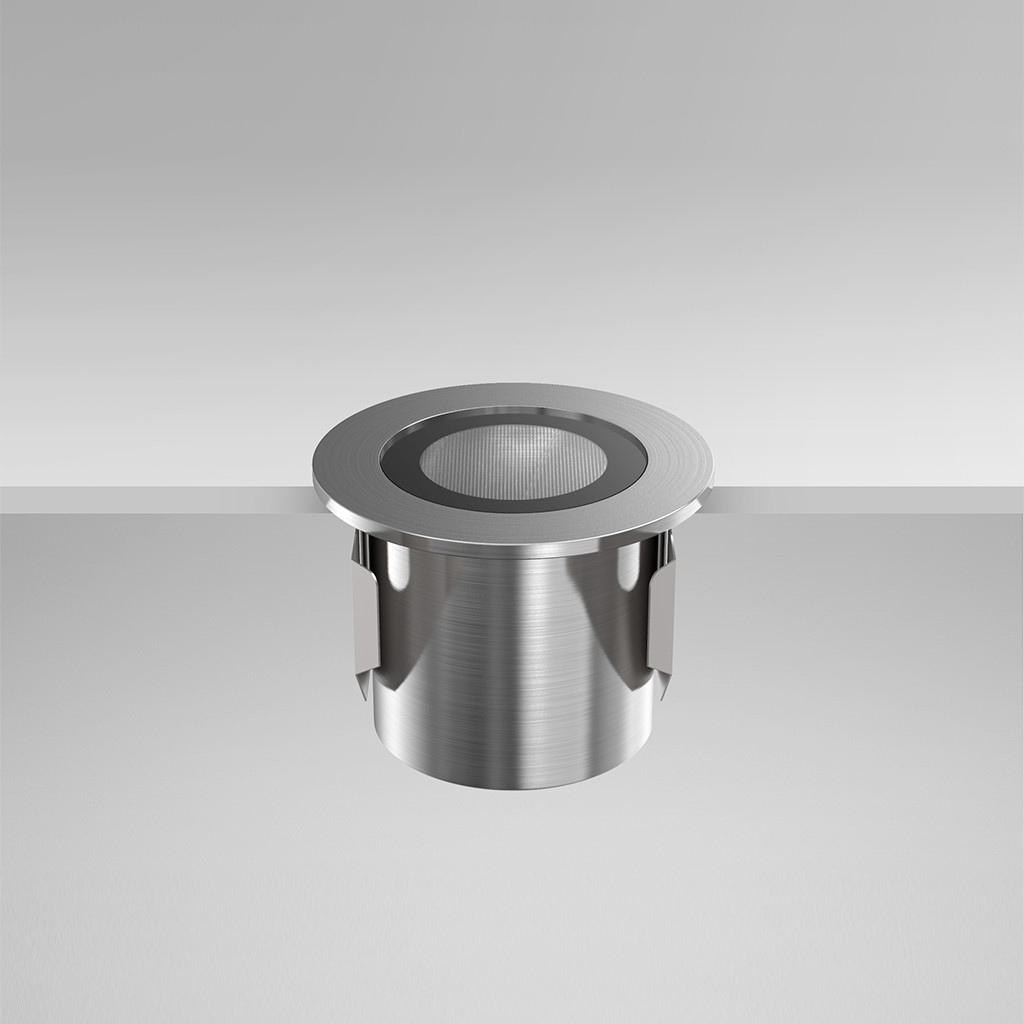

ORLLM760-SS-3000K-2
Midi Inground Fixture
In Ground
CATEGORYExterior
PRODUCT RANGEMEDIO
COLOR316 Marine Grade
Miniature recessed fixture complete with integral CREE LED package and 35 degree beam option. White finish features an Aluminium construction with Epoxy Power coat rated to IP65. Product footprint of 60mm diameter ensures versatile application. Inline driver options include switched, 1-10V and DALI dimmable solutions. Please Note: This product does not support hot plugging.
Construction
InstallationRECESSED
ConstructionSTAINLESS STEEL
Diameter60 MM
Width / Depth44 MM
Height45 MM
Cutout50 MM
Weight0.465KG
Finish316 MARINE GRADE
IP RatingIP68
IK RatingIK07
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage2W
Lumen Output136LM
Efficacy68LM/W
CCT3000K
CRICRI > 85
Binning2 STEP MACADAMS
Beam Angle35°
ChipsetCREE
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage3V
Milliamp / Current500MA
Driver ConfigurationREMOTE
Cable Length3000MM

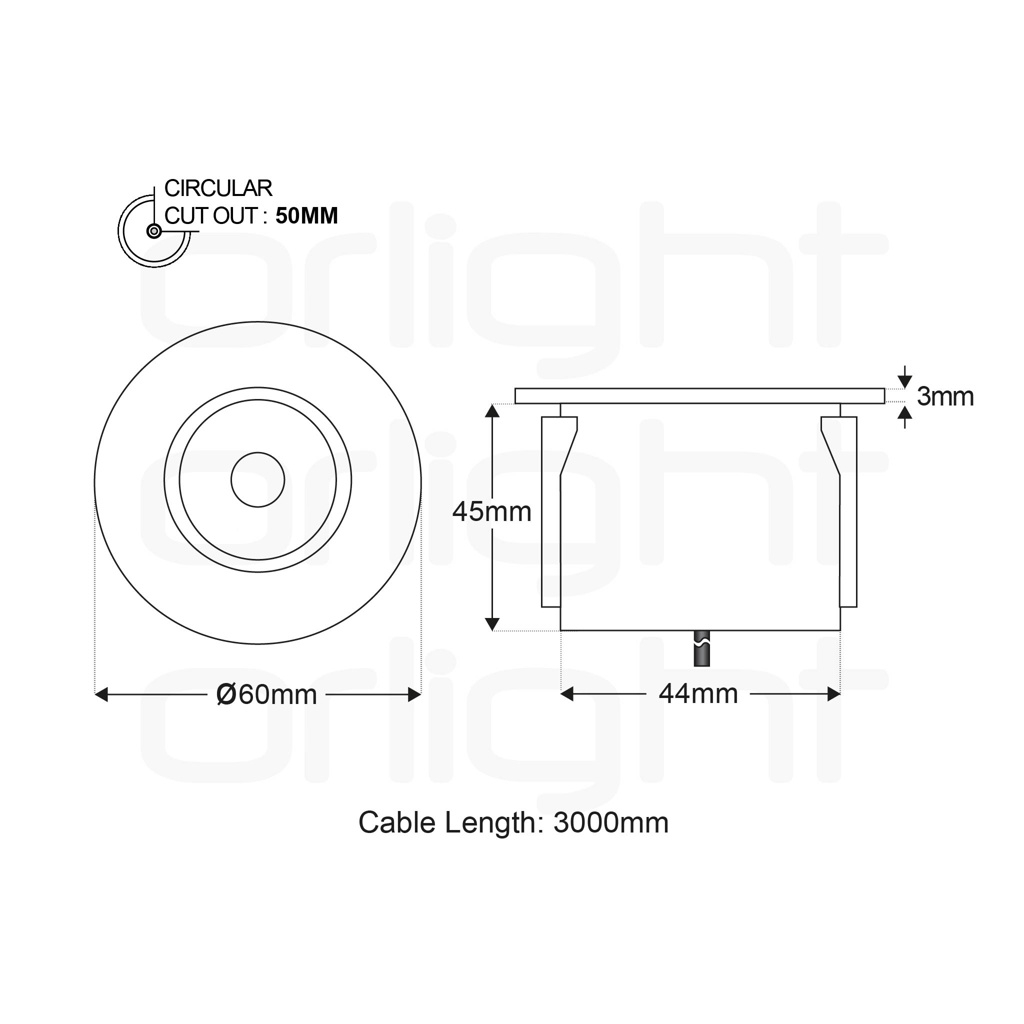

Dimensions

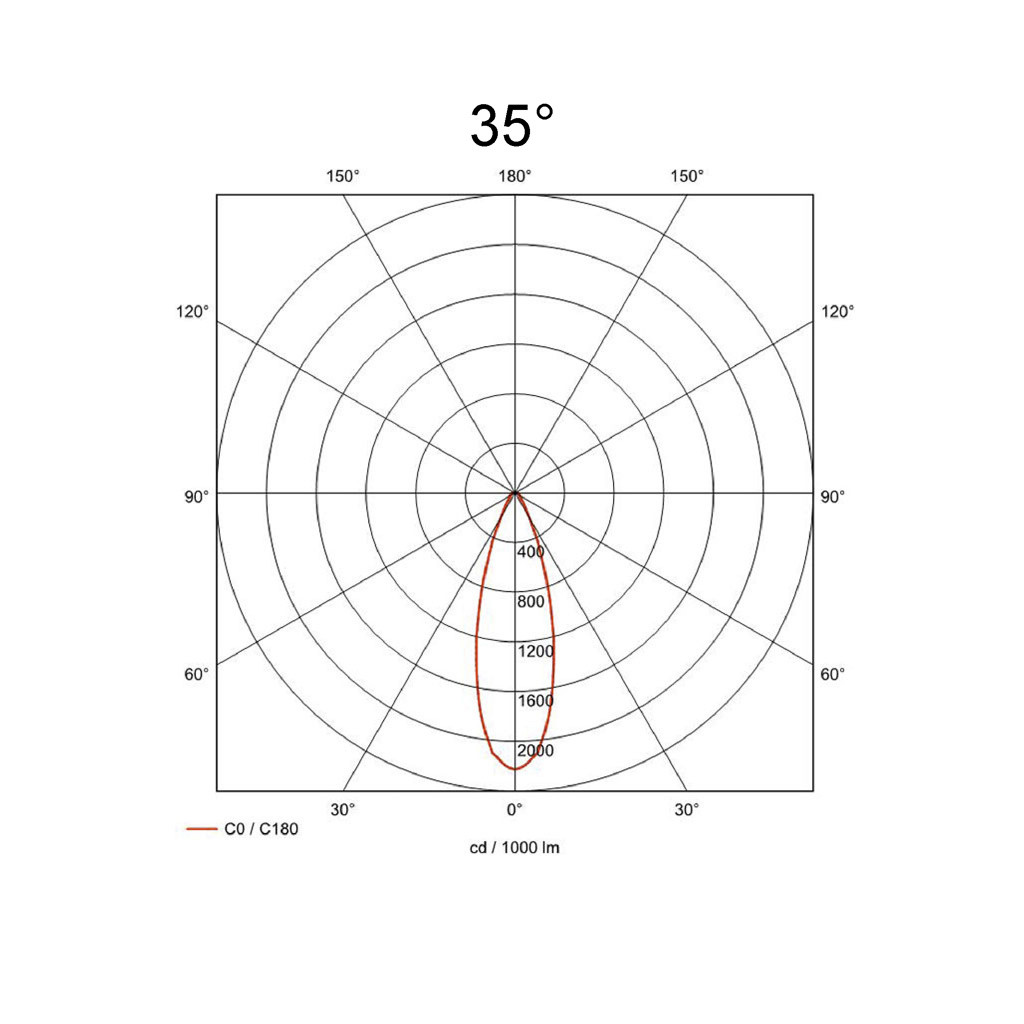

Light Distribution
35°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 22253 | MAXDR-MINI-500MA | Switched [IP20] | 1 | 12 | |
| 43630 | ORLRPV20D-500MA | Mains [IP20] | 1 | 10 | |
| 22253 | MAXDR-MINI-500MA | 1-10V/Push [IP20] | 1 | 12 | |
| 22253 | MAXDR-MINI-500MA | DALI [IP20] | 4 | 12 |
