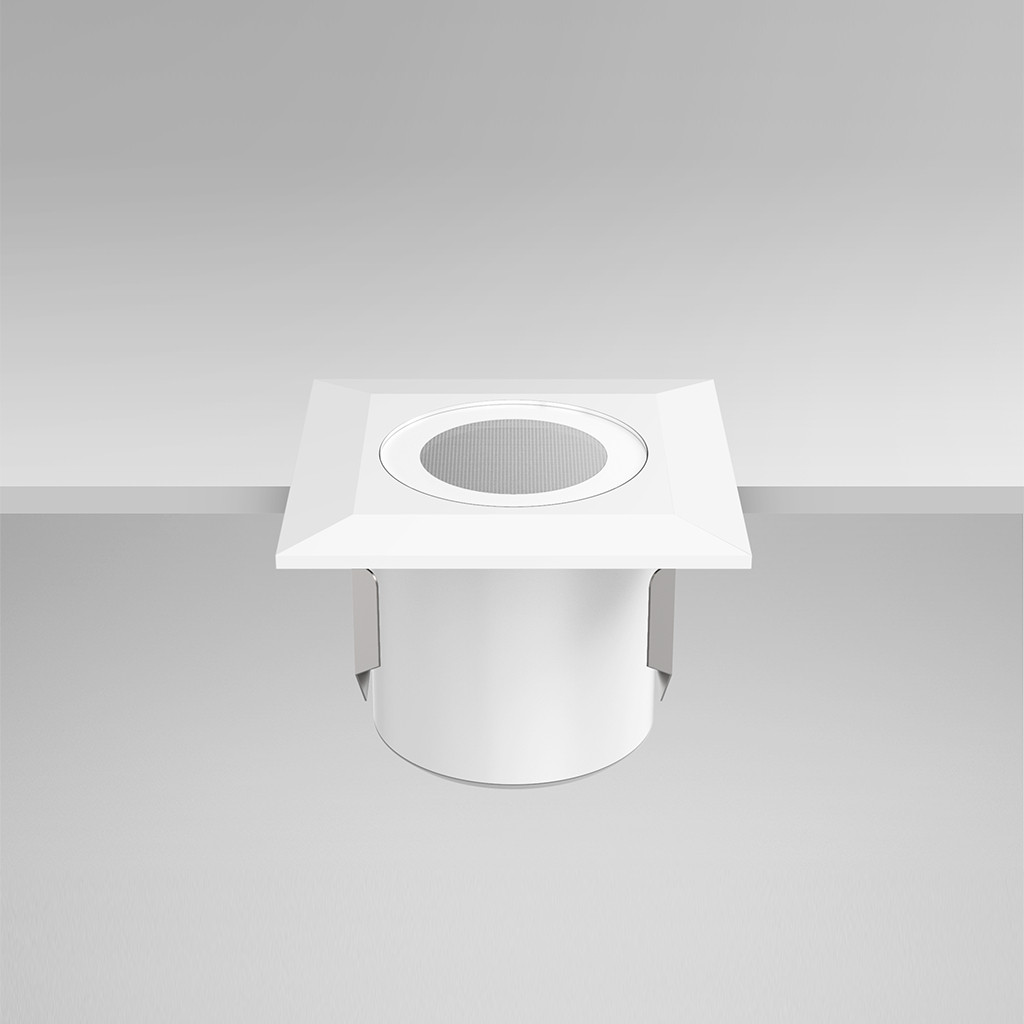

ORLLM760-SQ-WH-6000K
Midi Inground Fixture
In Ground
CATEGORYExterior
PRODUCT RANGEMEDIO
COLORWhite
Square recessed fixture complete with integral CREE LED package and 30 degree beam option. Marine Grade 316 Stainless Steel option with construction rated to IP68. White finish option features a Aluminium construction with Epoxy Power coat rated to IP65. Small Product footprint ensures versatile application. Inline driver options include switched, 1-10V and DALI dimmable solutions. Please Note: This product does not support hot plugging.
Construction
InstallationRECESSED
ConstructionALUMINIUM
Length64 MM
Width / Depth64 MM
Height45 MM
Cutout50 MM
Weight0.49KG
FinishWHITE
RALRAL 9016
IP RatingIP65
IK RatingIK07
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage1W
Lumen Output107LM
Efficacy107LM/W
CCT6000K
CRICRI > 70
Binning2 STEP MACADAMS
Beam Angle30°
ChipsetCREE
Chip LifeL70 > 60,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage3V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length3000MM

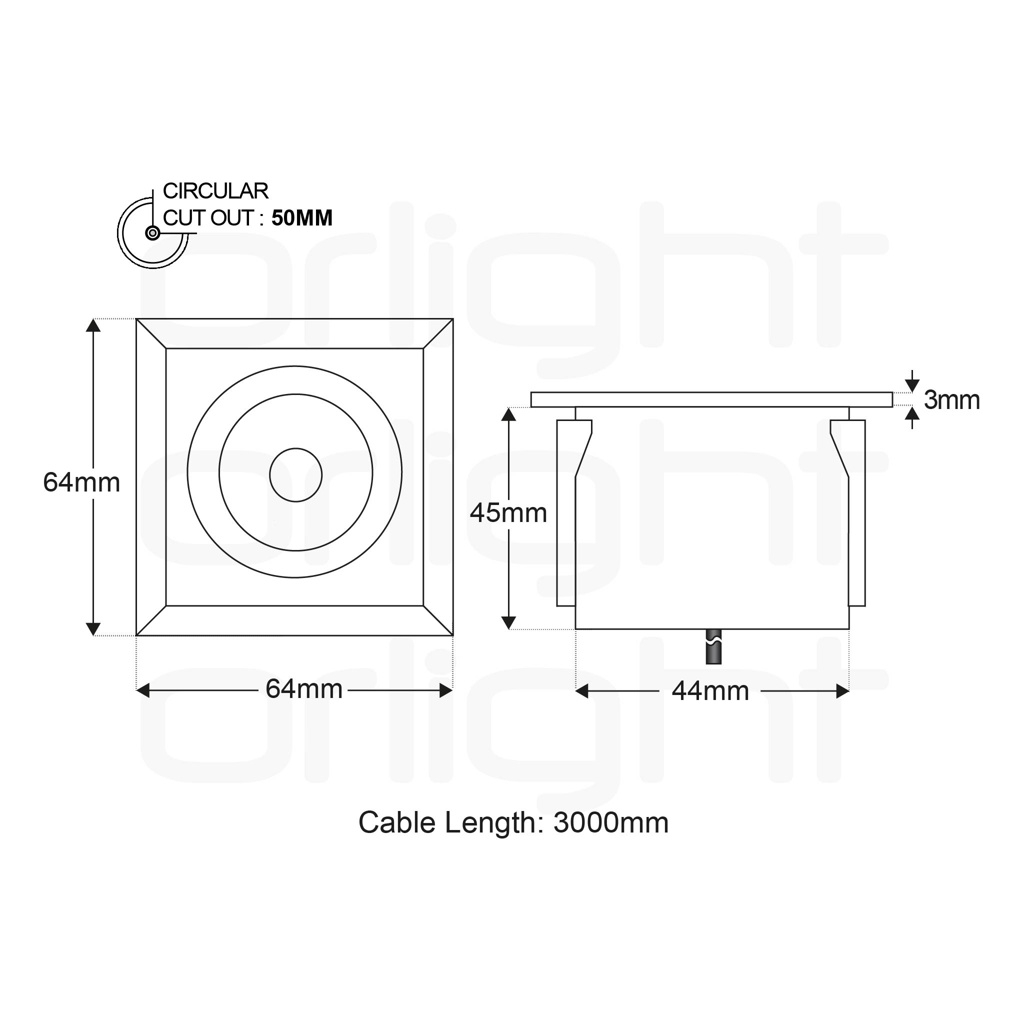

Dimensions

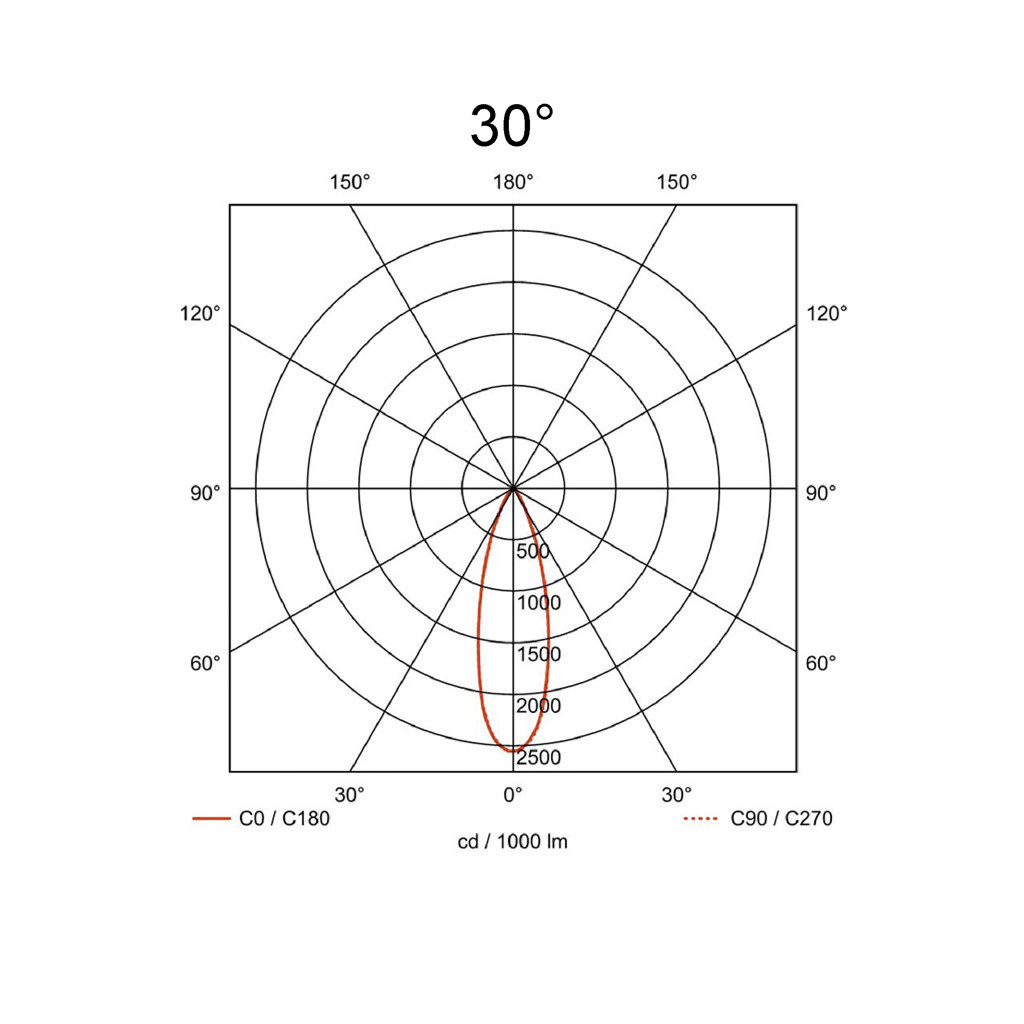

Light Distribution
30°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 8 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 10 | 30 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 10 | 30 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 13 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 15 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 2 | 13 |
