ORLLM760-BR-3000K
Midi Inground Fixture
In Ground
CATEGORYExterior
PRODUCT RANGEMEDIO
COLORBronze
Miniature recessed fixture complete with integral CREE LED package and 35 degree beam option. Marine Grade 316 Stainless Steel option with construction rated to IP68. White finish option features a Aluminium construction with Epoxy Power coat rated to IP65. Product footprint of 60mm diameter ensures versatile application. Inline driver options include switched, 1-10V and DALI dimmable solutions. Please Note: This product does not support hot plugging.
Construction
InstallationRECESSED
Diameter60 MM
Width / Depth44 MM
Height45 MM
Cutout50 MM
Weight0.465KG
FinishBRONZE
IP RatingIP65
IK RatingIK07
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage1W
Lumen Output107LM
Efficacy107LM/W
CCT3000K
CRICRI > 85
Binning2 STEP MACADAMS
Beam Angle35°
ChipsetCREE
Chip LifeL70 > 60,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage3V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length3000MM

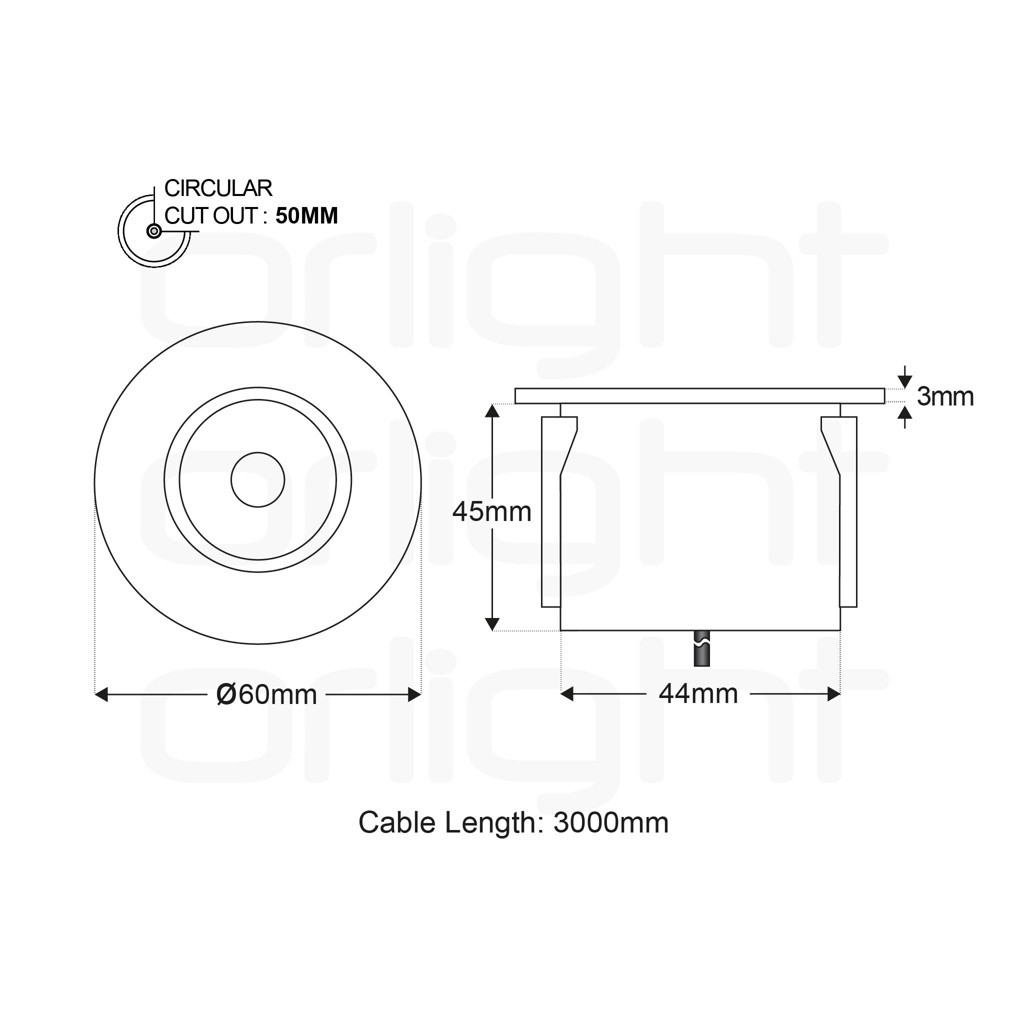

Dimensions

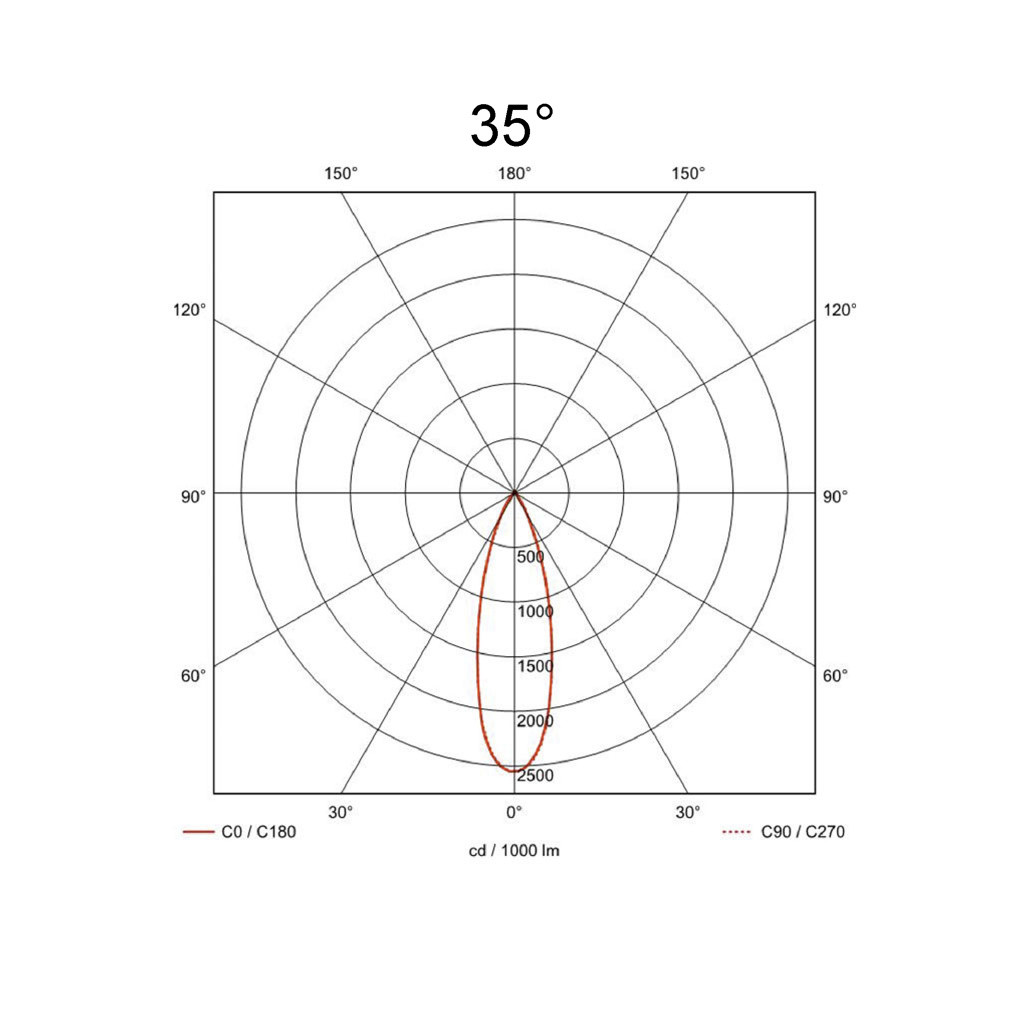

Light Distribution
35°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 8 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 10 | 30 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 10 | 30 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 13 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 15 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 2 | 13 |
