ORLLM88-2-SS-3000K
Midi Marker Fixture
In Ground
CATEGORYExterior
PRODUCT RANGECRESCENT
COLOR316 Marine Grade
Marine grade 316 stainless steel in-ground dual marker light complete with integral CREE LED package. Fixture rated to IP68 allowing submersion in water thus negating common issues arising from lack of soil drainage. Configured to 2 x 40 degree beam as standard, product functions with 350mA constant current driver. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all “touch temperature” requirements. Please Note: This product does not support hot plugging.
Construction
InstallationRECESSED
ConstructionSTAINLESS STEEL
Diameter88 MM
Height44 MM
Cutout65 MM
Weight0.65KG
Finish316 MARINE GRADE
IP RatingIP68
IK RatingIK10
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage3W
Lumen Output240LM
Efficacy80LM/W
CCT3000K
CRICRI > 85
Binning2 STEP MACADAMS
Beam Angle40°
ChipsetCREE 5050
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage9V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length3000MM

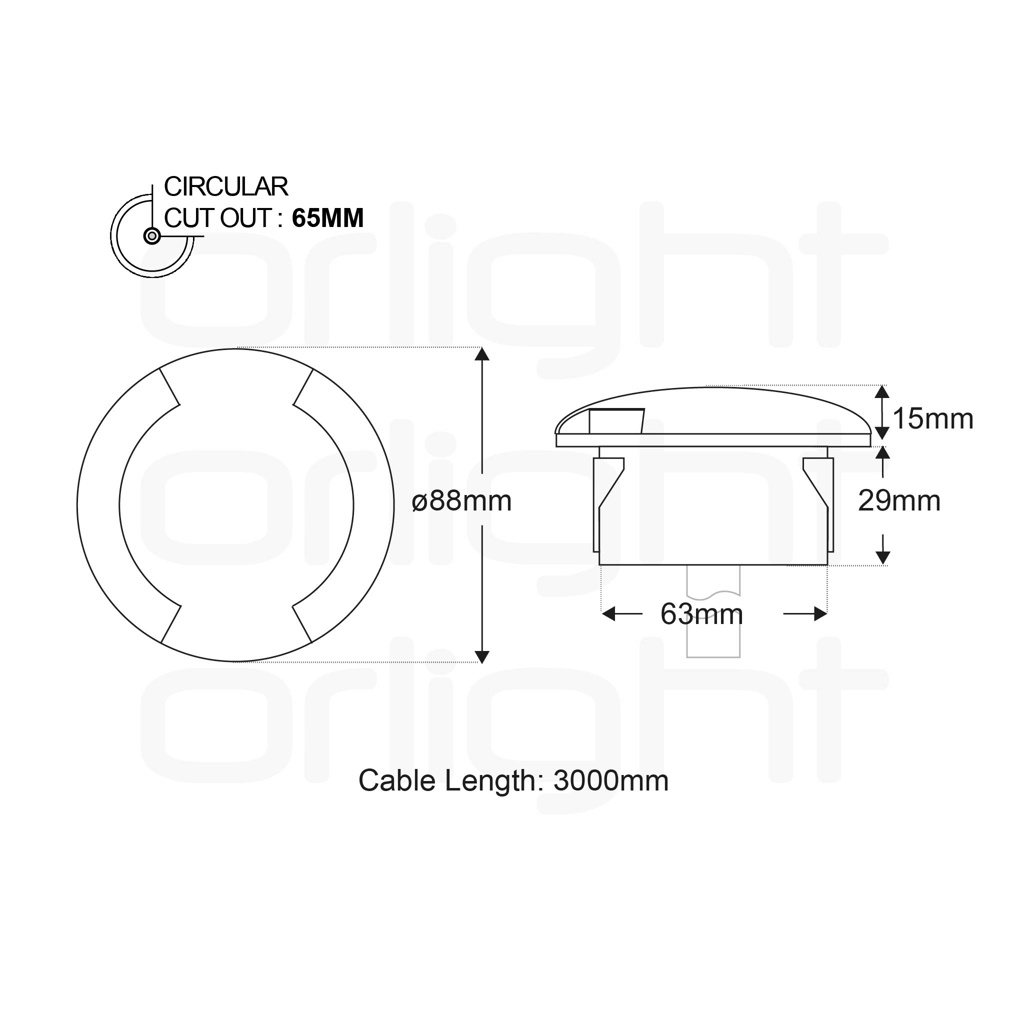

Dimensions

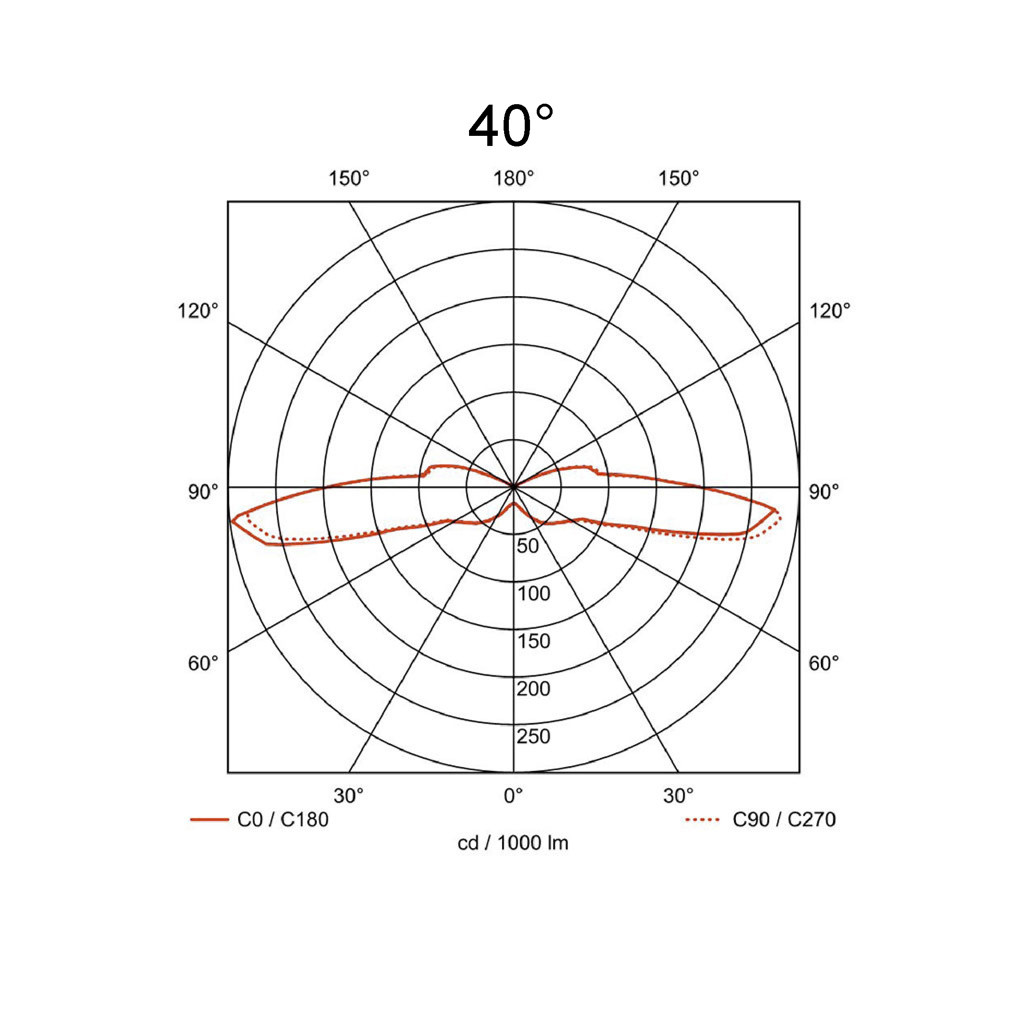

Light Distribution
40°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 3 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 4 | 10 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 4 | 10 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 4 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 5 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 1 | 4 |
