ORLLM119-SS-3000K

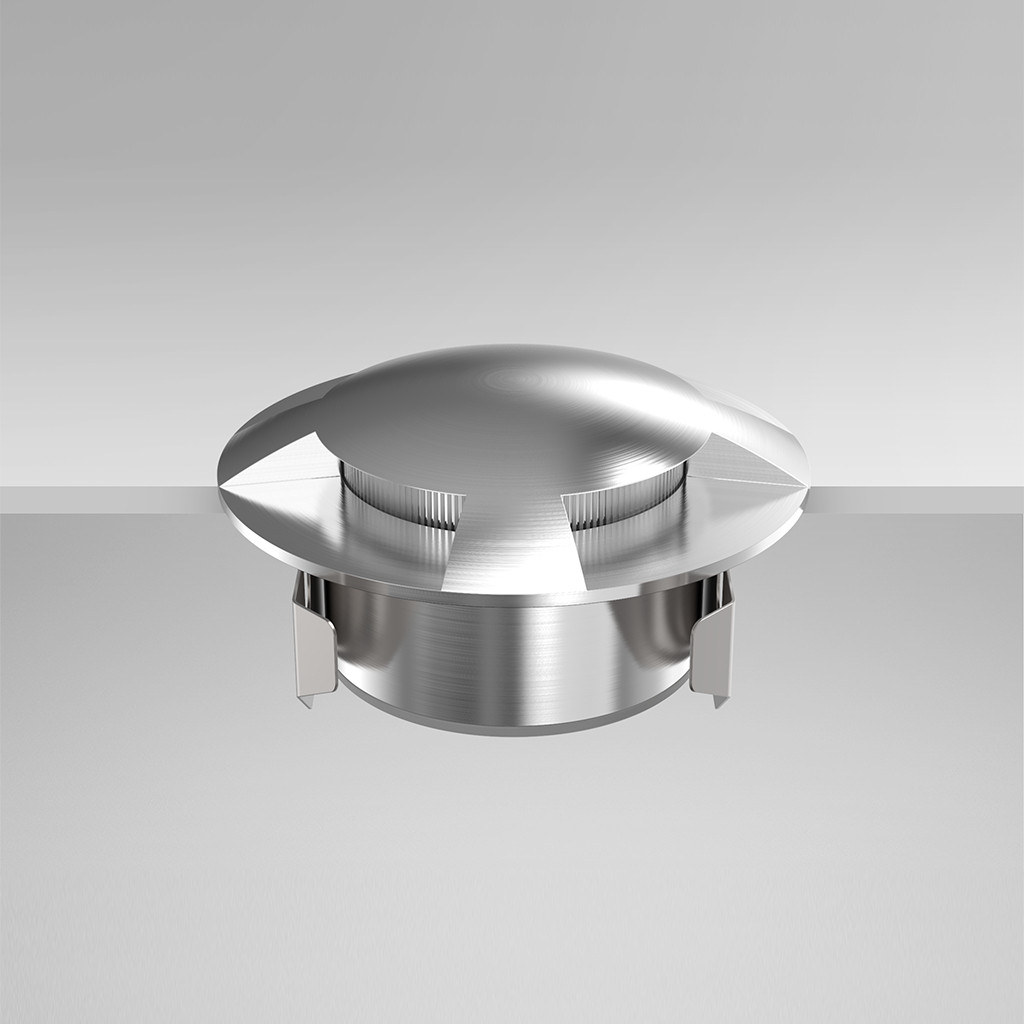

Mini Inground Marker Fixture
In Ground
CATEGORYExterior
PRODUCT RANGECRESCENT - MINI
COLOR316 Marine Grade
Miniature Eye-Lid fixture complete with integral CREE LED package and 20 degree beam option. Marine Grade 316 Stainless Steel option with construction rated to IP68 with Eye-Lid design for asymmetric light emission. Product footprint of 40mm diameter ensures versatile application. Inline driver options include switched, 1-10V and DALI dimmable solutions. Please Note: This product does not support hot plugging.
Optical Performance
Wattage1W
Lumen Output45LM
Efficacy45LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle65°
ChipsetCREE 5050
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage3V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length1100MM
Construction
InstallationRECESSED
ConstructionSTAINLESS STEEL
Diameter40 MM
Height46 MM
Cutout32 MM
Weight0.14KG
Finish316 MARINE GRADE
IP RatingIP68
IK RatingIK06

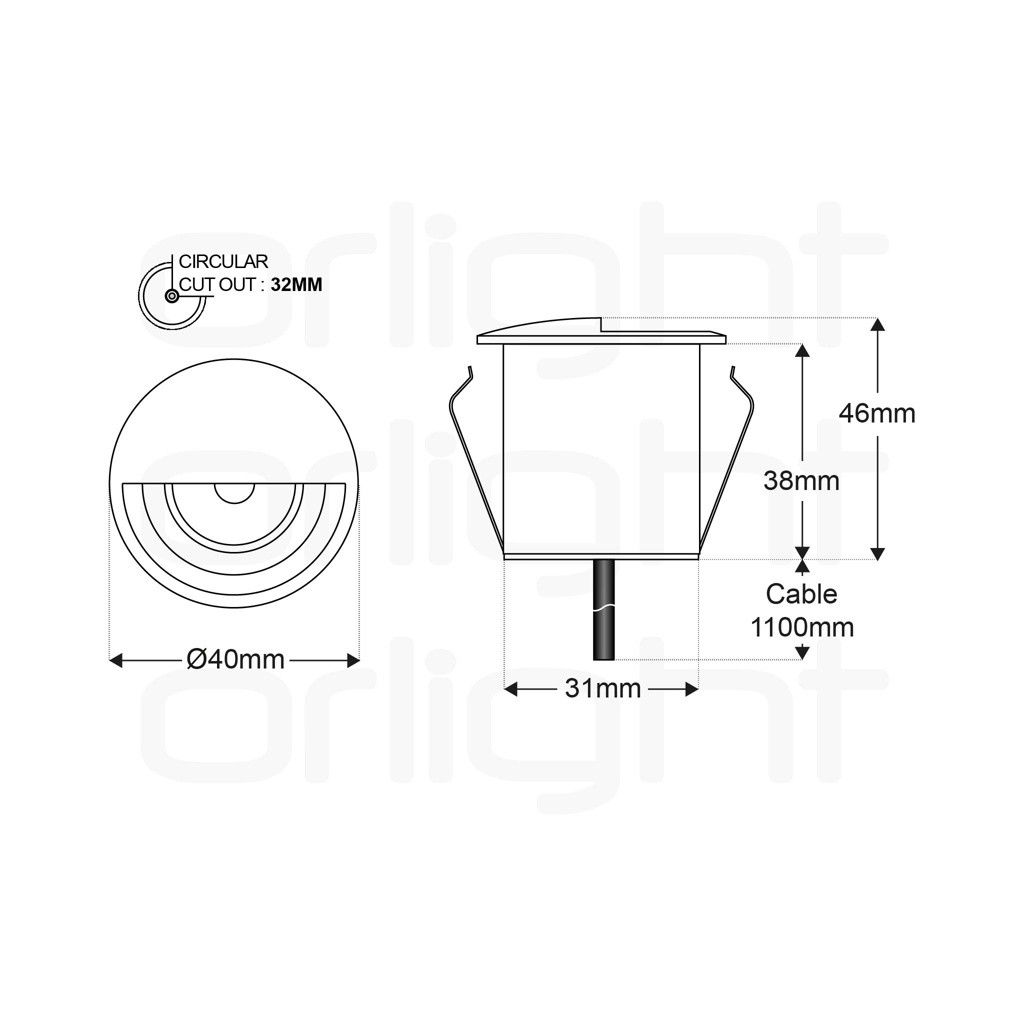

Dimensions

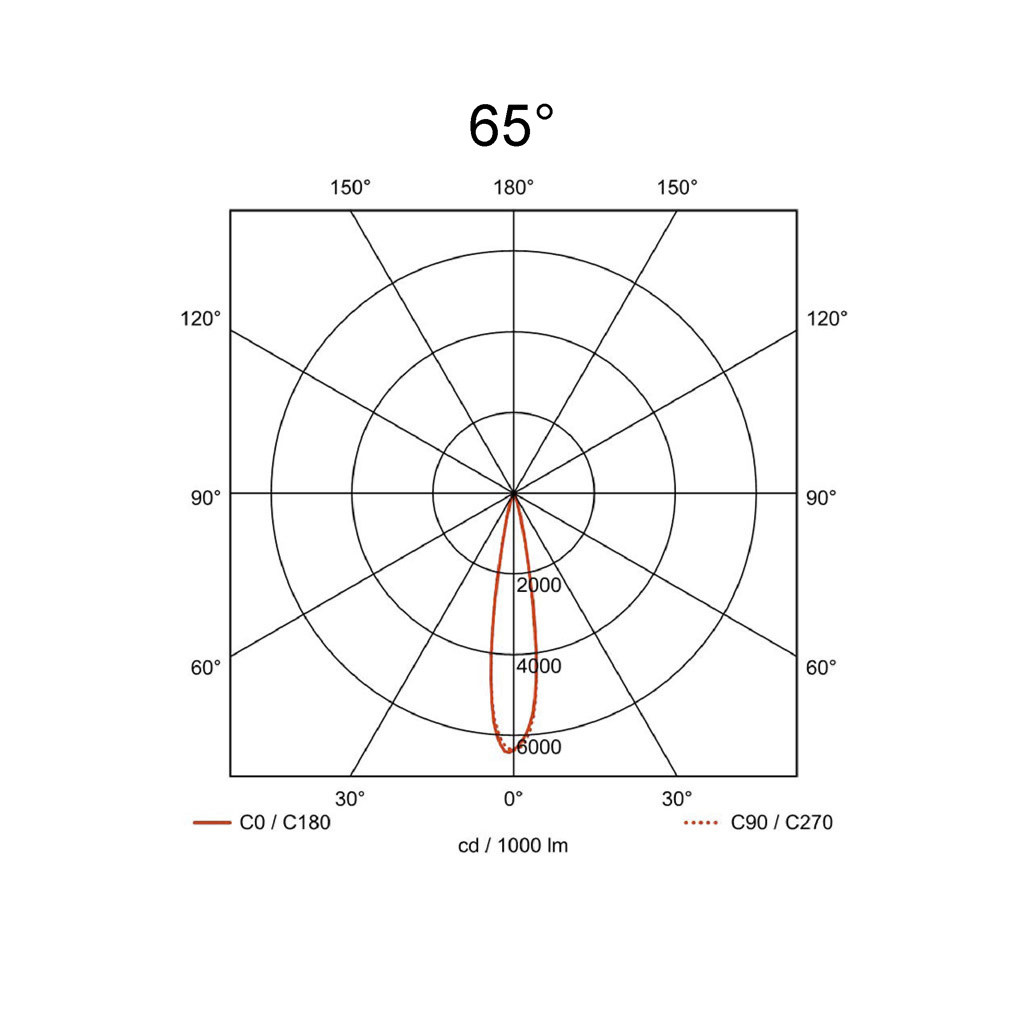

Light Distribution
65°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 8 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 10 | 30 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 10 | 30 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 13 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 15 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 2 | 13 |
